unlimited_mojab
1998 Jeep Wrangler TJ Sahara Sport Utility 2D
More actions
Share
Comments

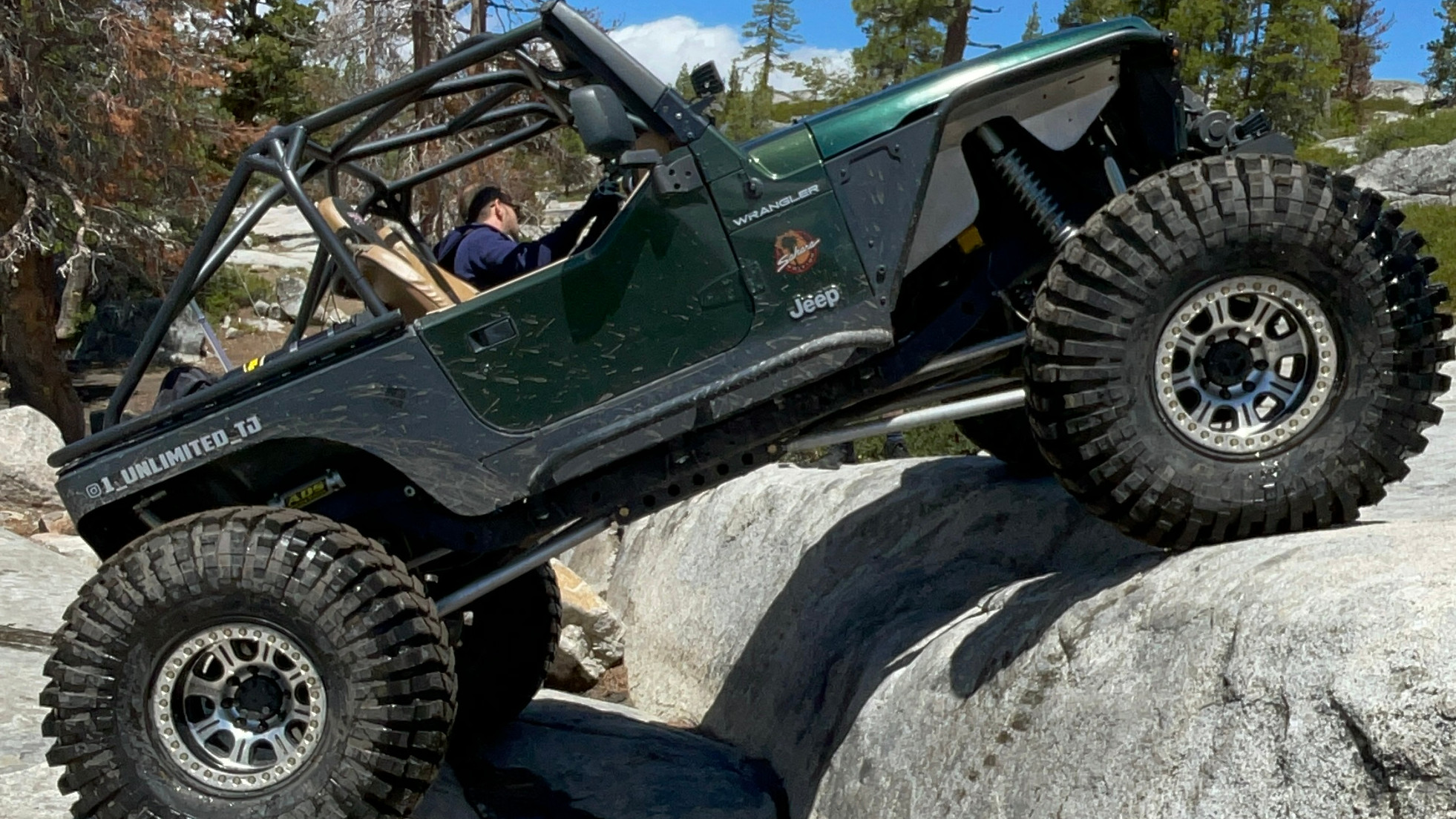

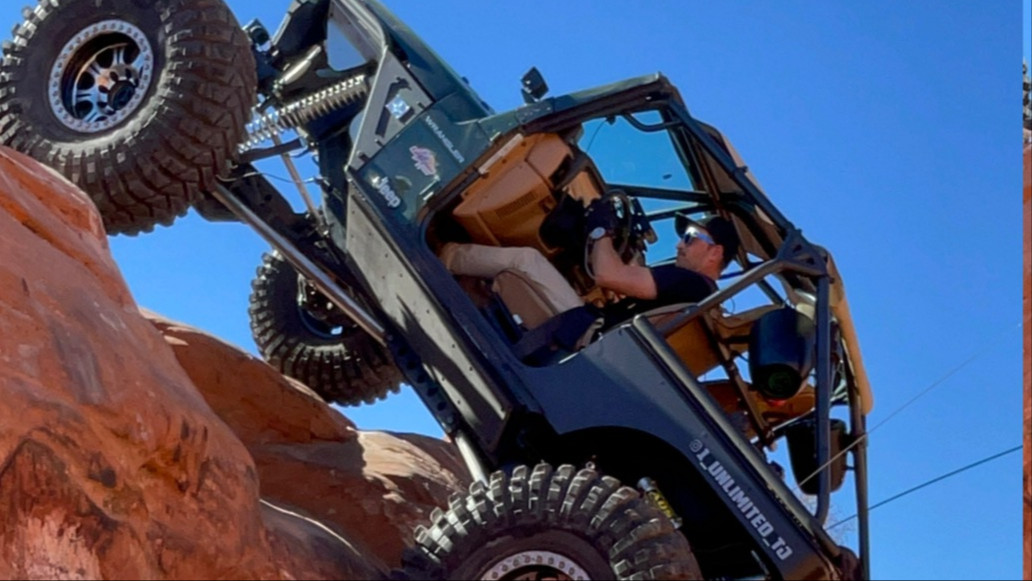

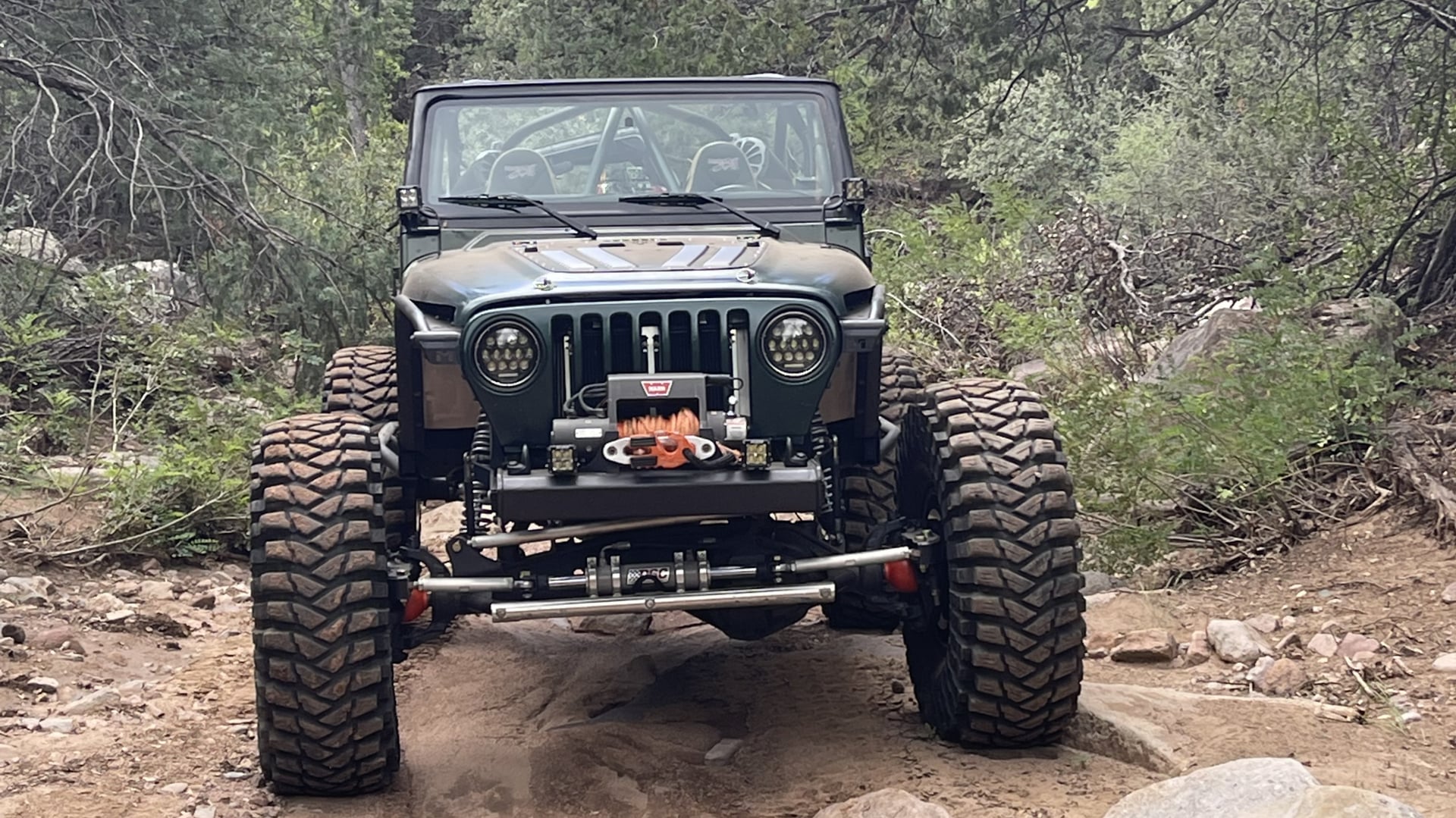

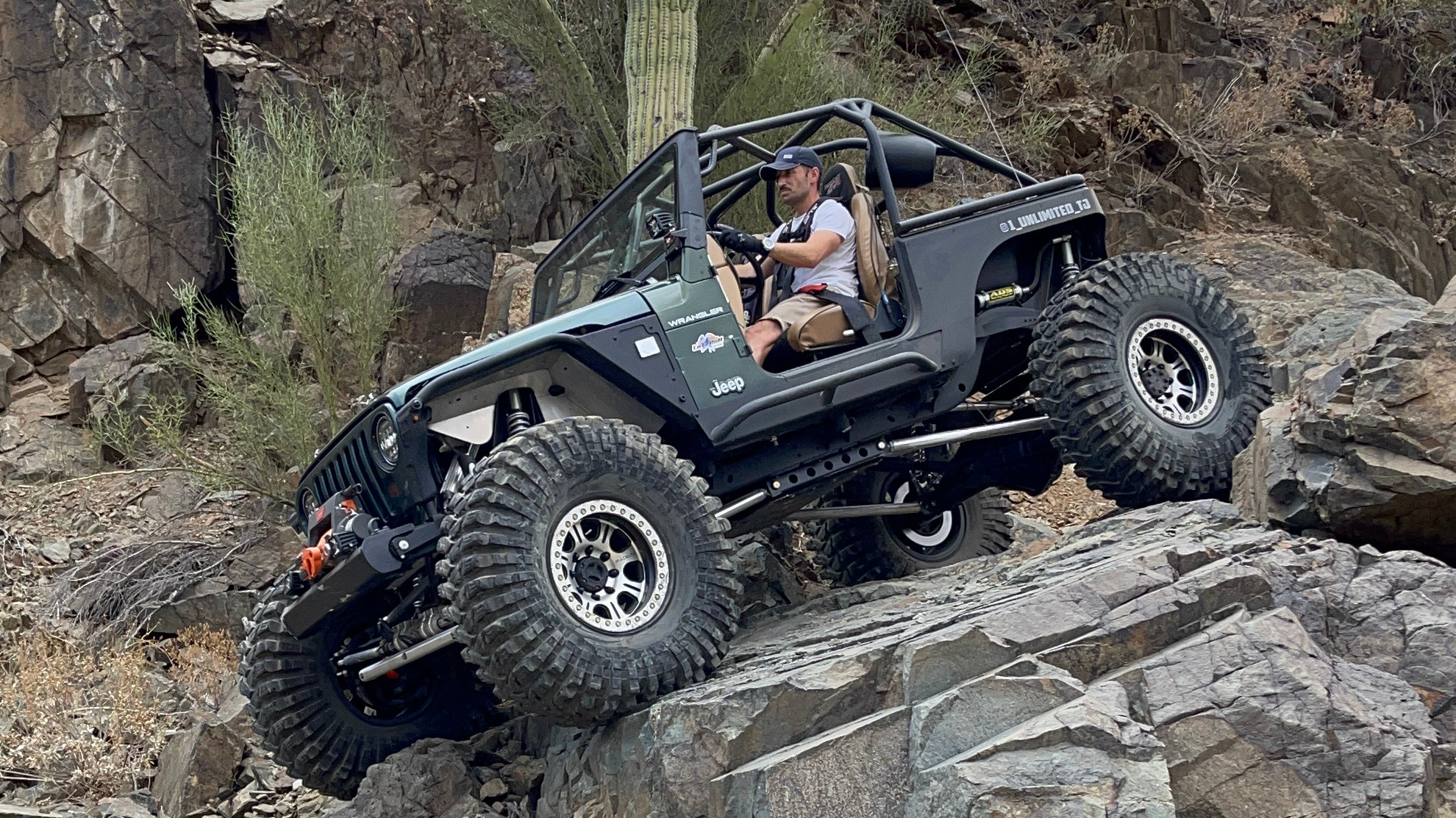

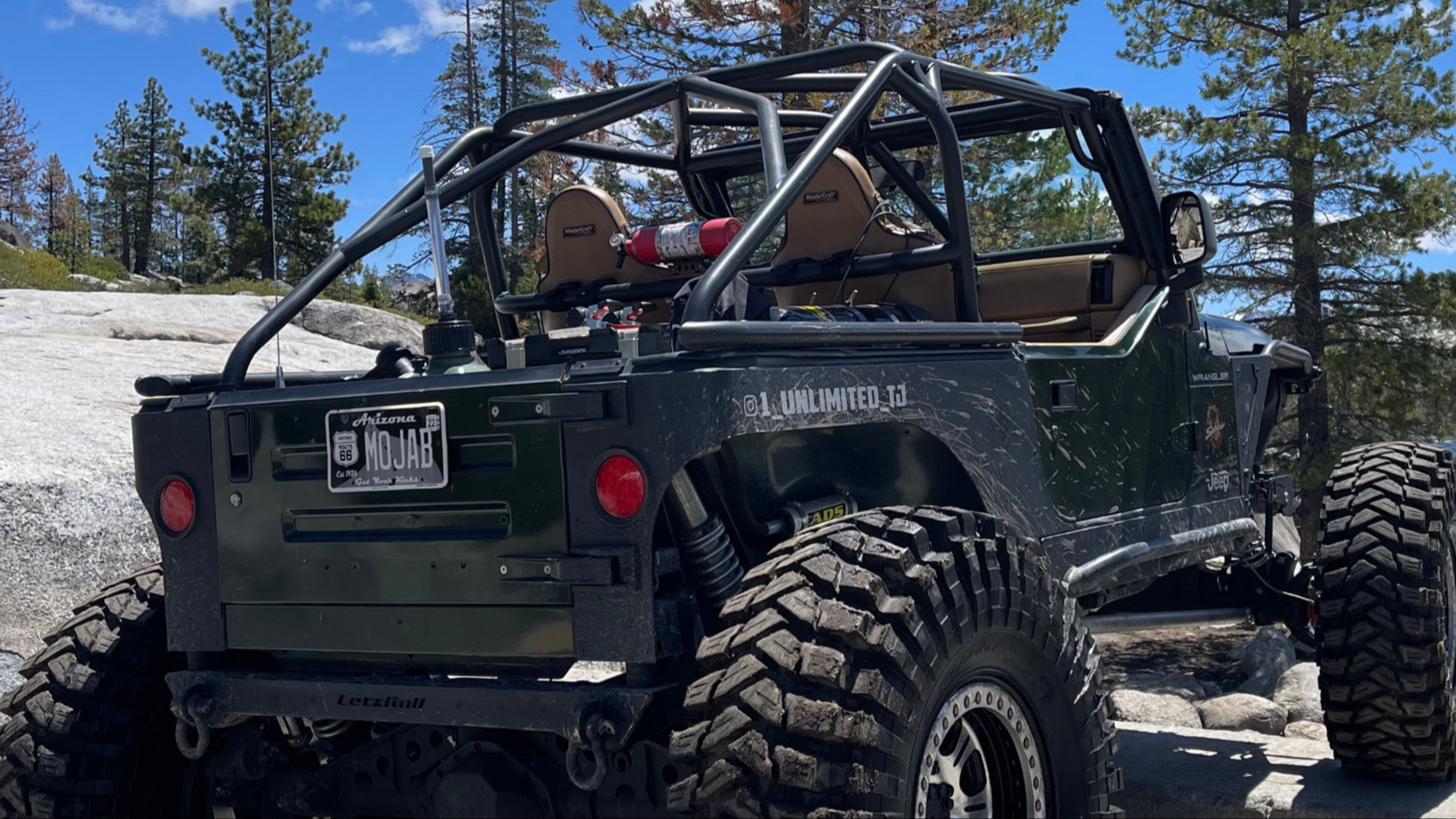

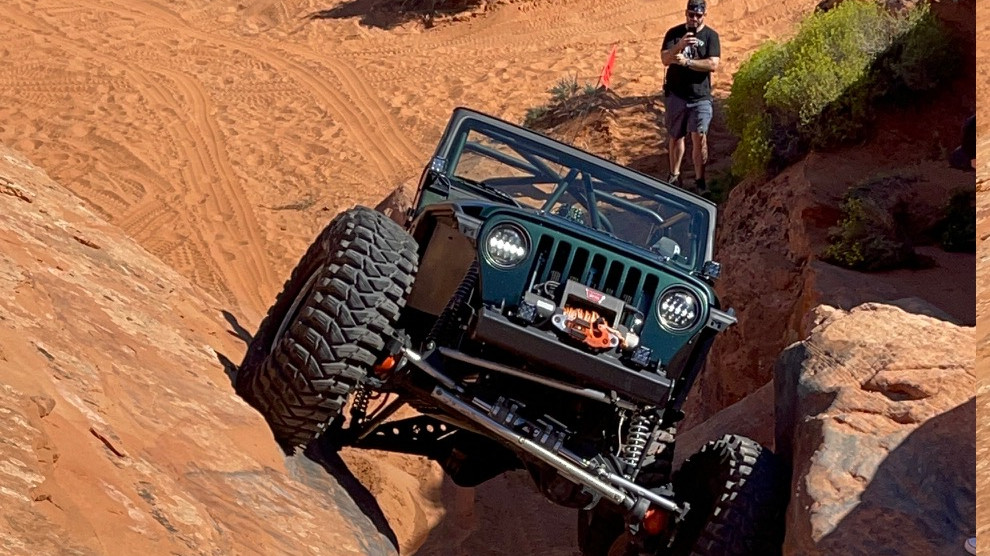

I'm a guy who always likes to follow the buggy line with a Jeep! So I kept a little of the tub but modified everything else to be able to do the gnarly stuff. This was built by Andrew McLaughlin and his team at Letzroll Offroad, Mesa-AZ
Show more
Save this build
Comment
Build highlights
44 parts
42" tires
Lifted
Black
Wheels
Raceline bead lock 17''
Maxxis trep 42'' competition
Suspension

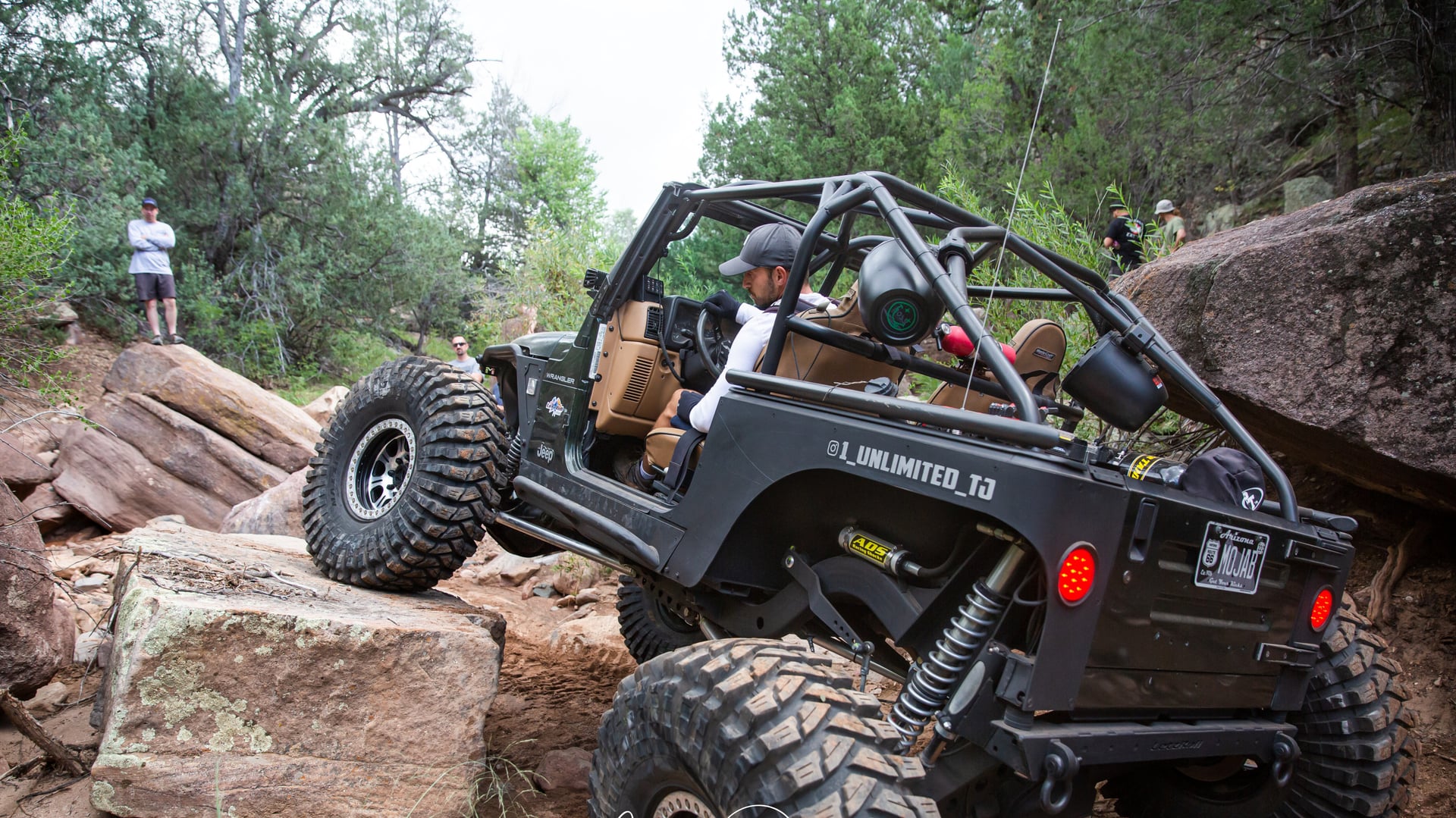

14'' ADS 2.5 coilover with resi all around. 15 inch limited strap, ADS 2.125'' bump stops all around
4 link rear triangulated and 3 link front with 7075 T6 aluminum control arms
Heim joints
1 inch body lift
Stretch to 112''
Exterior

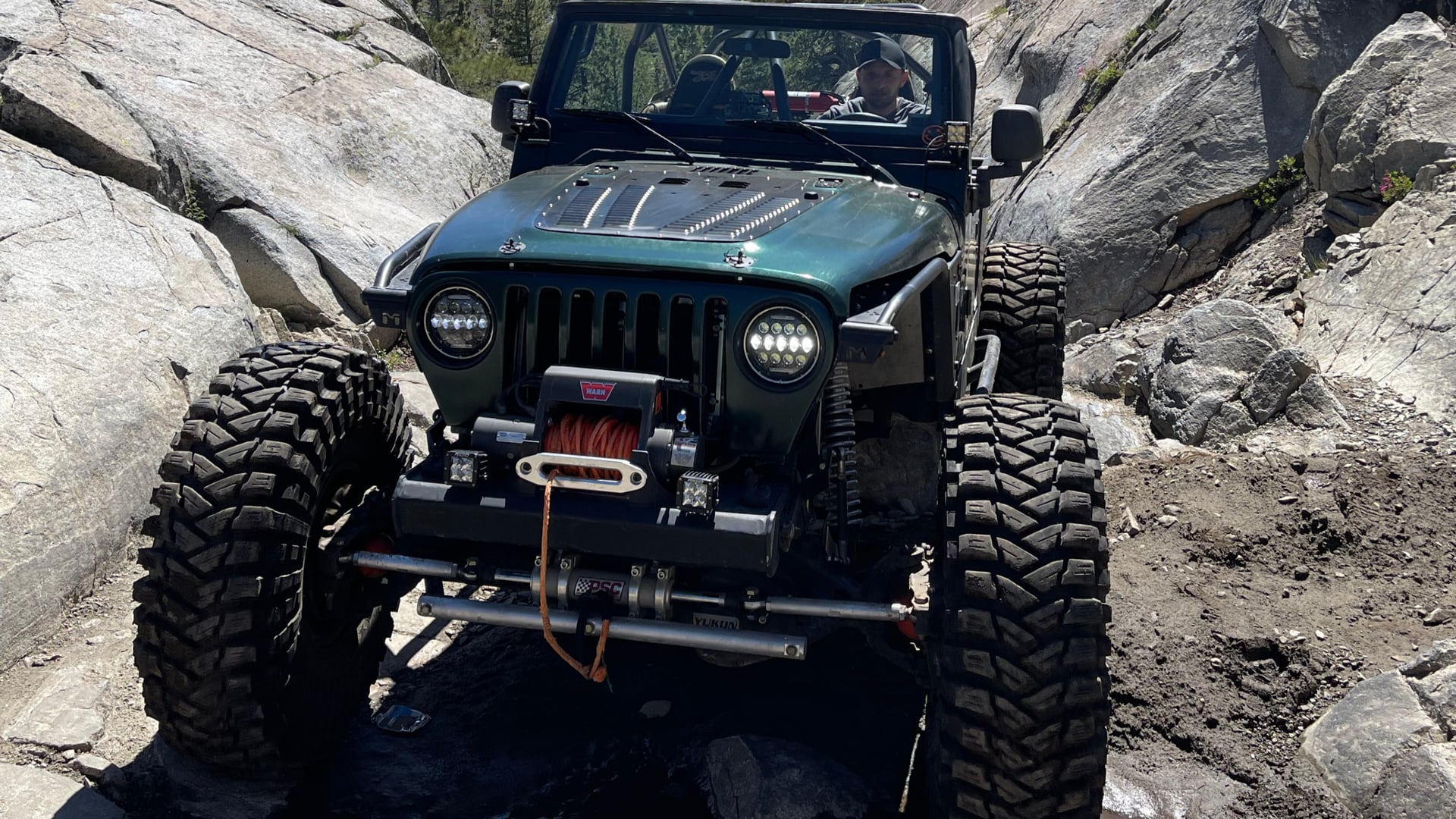

Letzroll offroad front and rear bumper
Metal clock overline tube fender

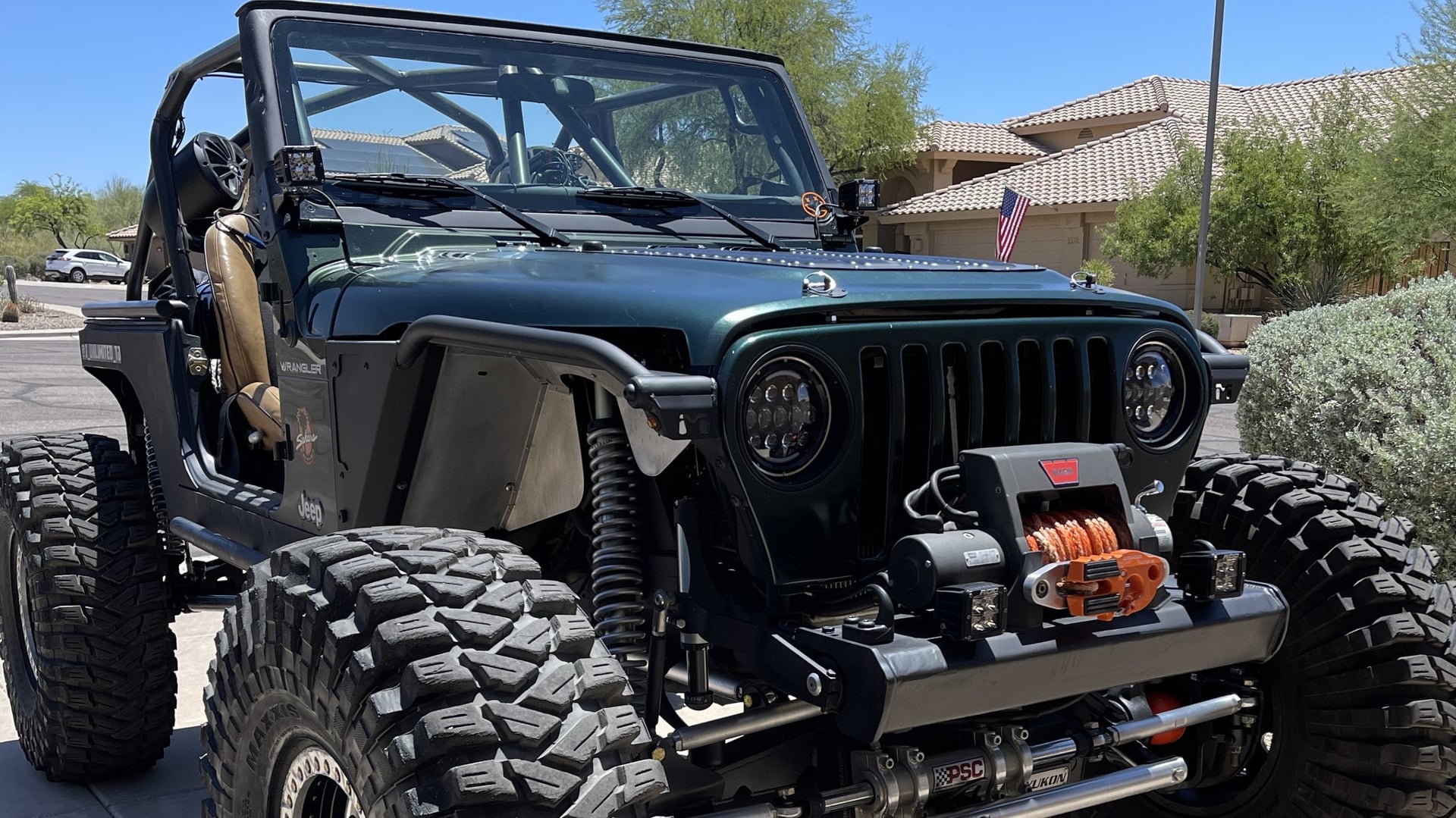

warn winch 8000 pounds with synthetic rope and factor 55
Fiberglass hood with poison spyder hood louver
UHMW plastic boat sliders, belly, transmision and engin
Lighting
LED head light
D series pro
Rigid light
Drivetrain
Front: HP Dana 60 super duty with Yukon 5.38 ring and pinion
35 spline iner and outer
R tech high steer weld on steering kit
ARB locker
Yukon diff cover

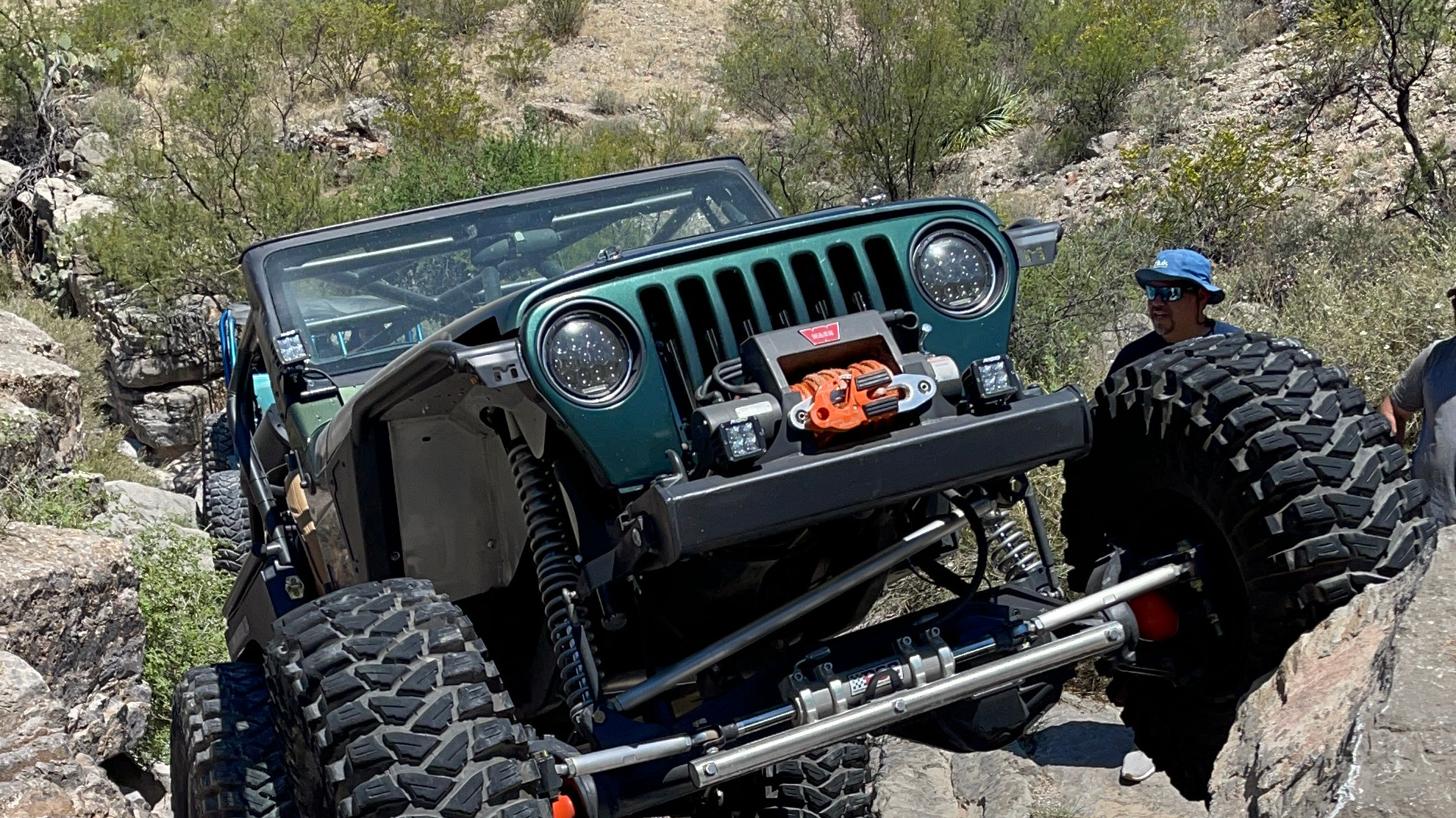

PSC full hydro kit with steering cooler
RCV axel
3 link front
Rear: GMC 14 bolts with Yukon 5.38 ring and pinion with 40 spline Chromoly axle shafts with 2 inch roughcountry spacer and Artec pinion guard zip locker
4 link rear
Adams drive shaft 1350 front and rear
Apex HD boil joints
2 speed Atlas transfer case 4:3
3 speed 32RH auto
Warn locking Hubs
Brakes
Ford F250 front and GM disc brake rear
Engine
4 liter inline 6
manifold
maped ECU 200bhp.
aluminum radiator with electric fan
Exhaust
Magnaflow
Intake
K&N cold intake
Interior
PRP steering wheel and harness

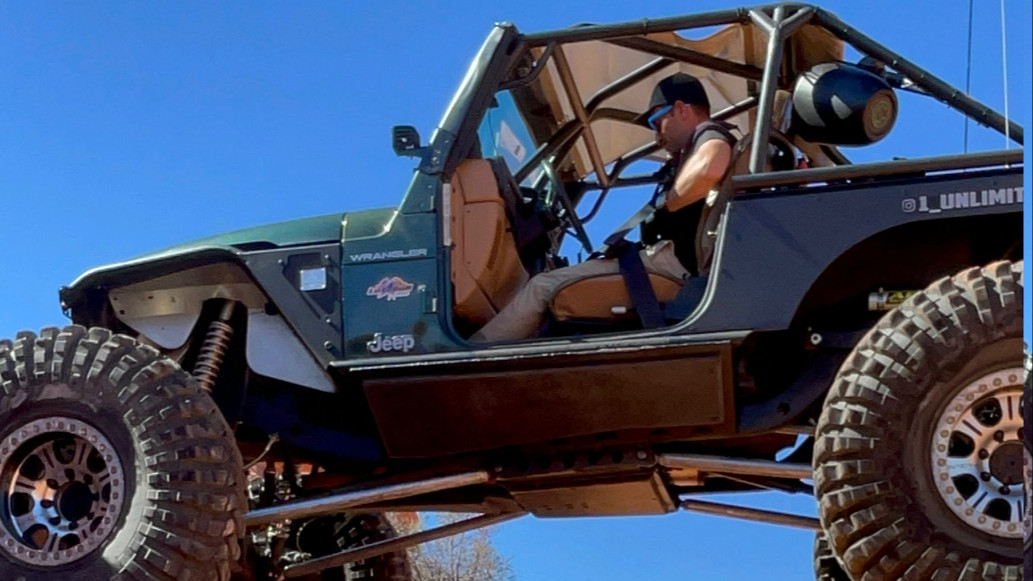

MasterCraft Baja RSA seats

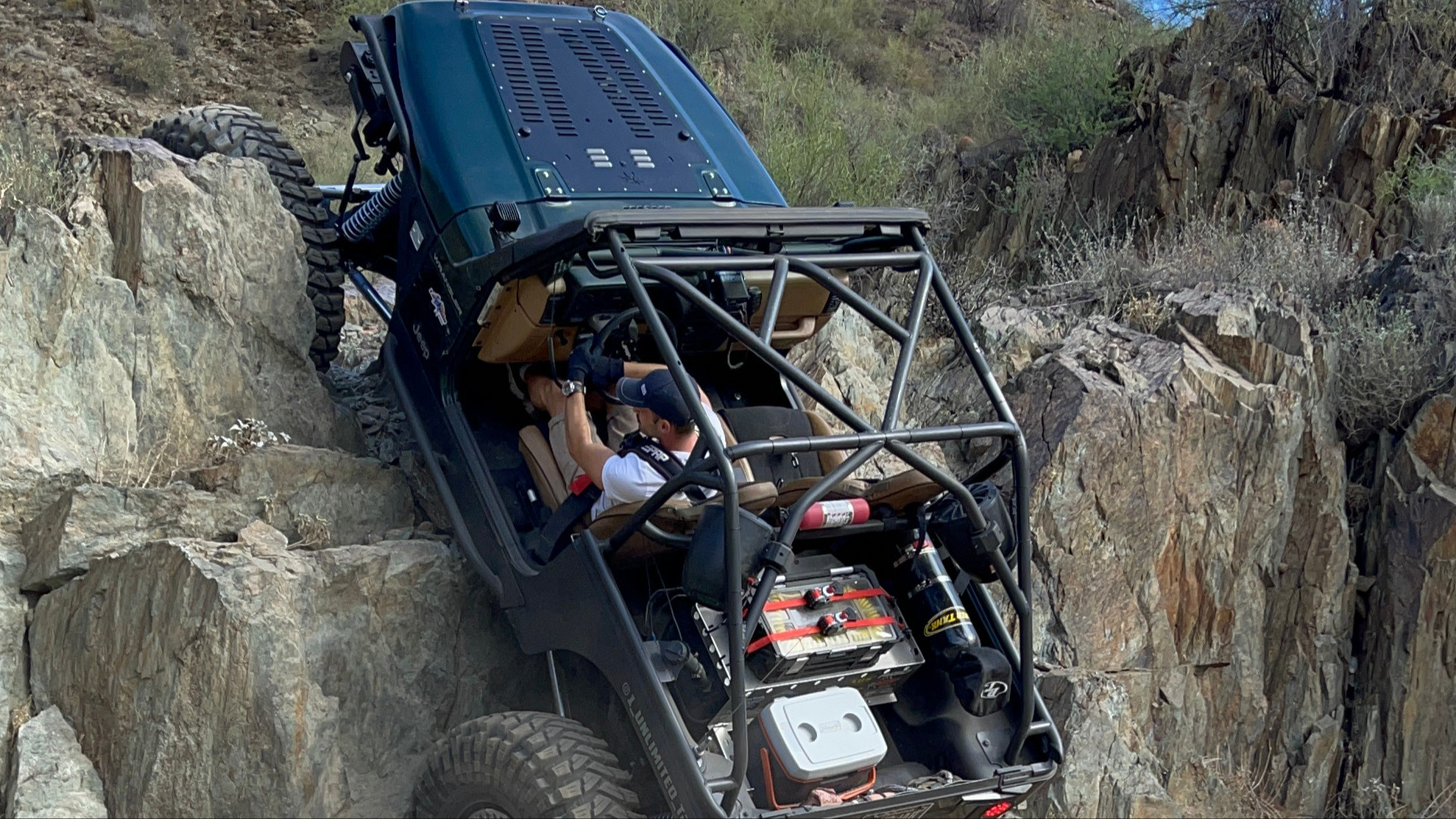

Custom cage
Rugged ALPHA bundle
switchpro
Boss audio
CO2 PowerTank
