Hello, Names Mike. Welcome to my Build! 4800 class Ultra4 Race Jeep for King of the hammers and a one off build of a 1997 Jeep Grand Cherokee Laredo ZJ. Follow me! Facebook : Heart Attack Fabrication Instagram: @ultra4_jeepzj Email: [email protected]

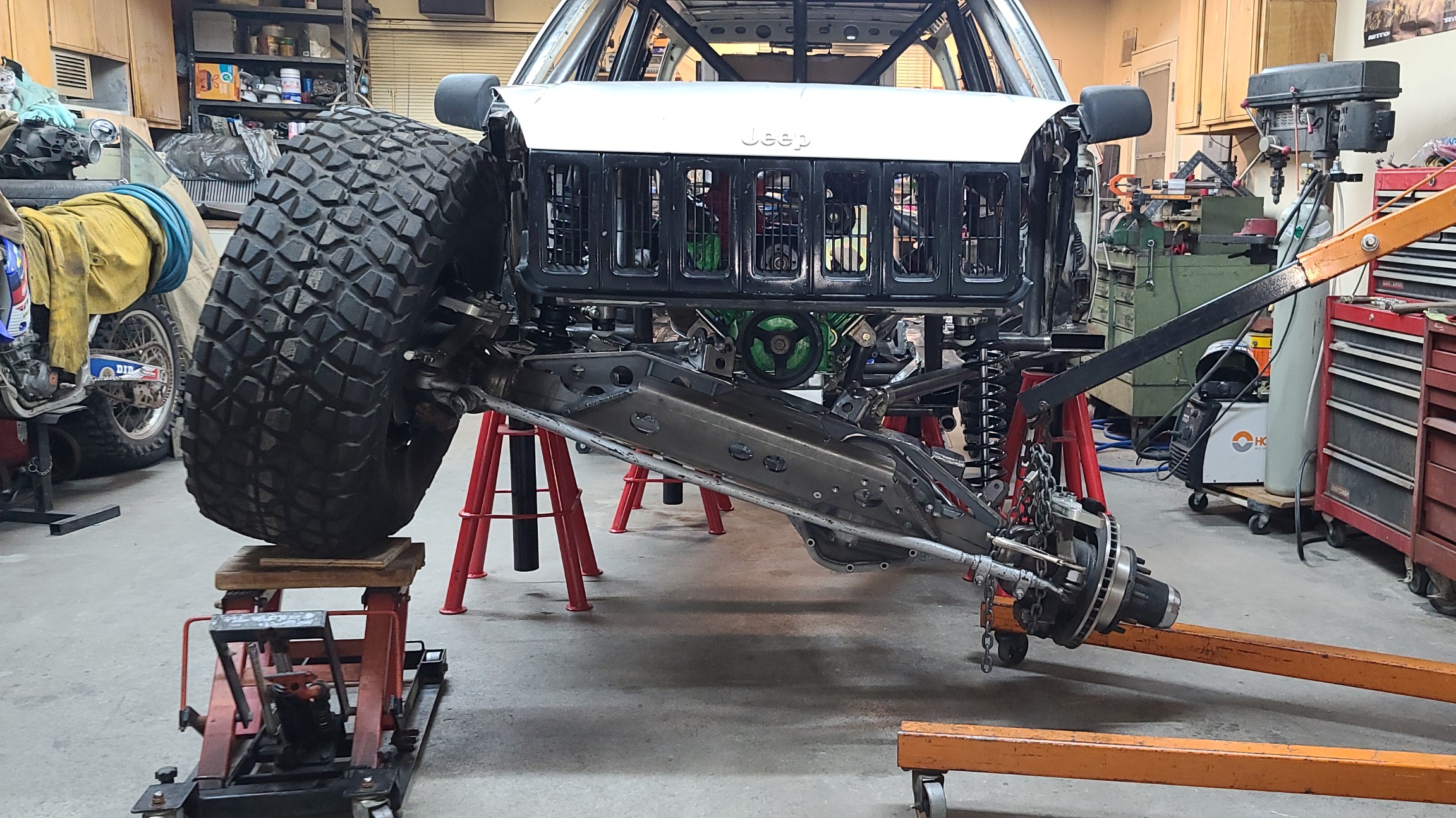

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 1 of 28
Build specs: 85 parts

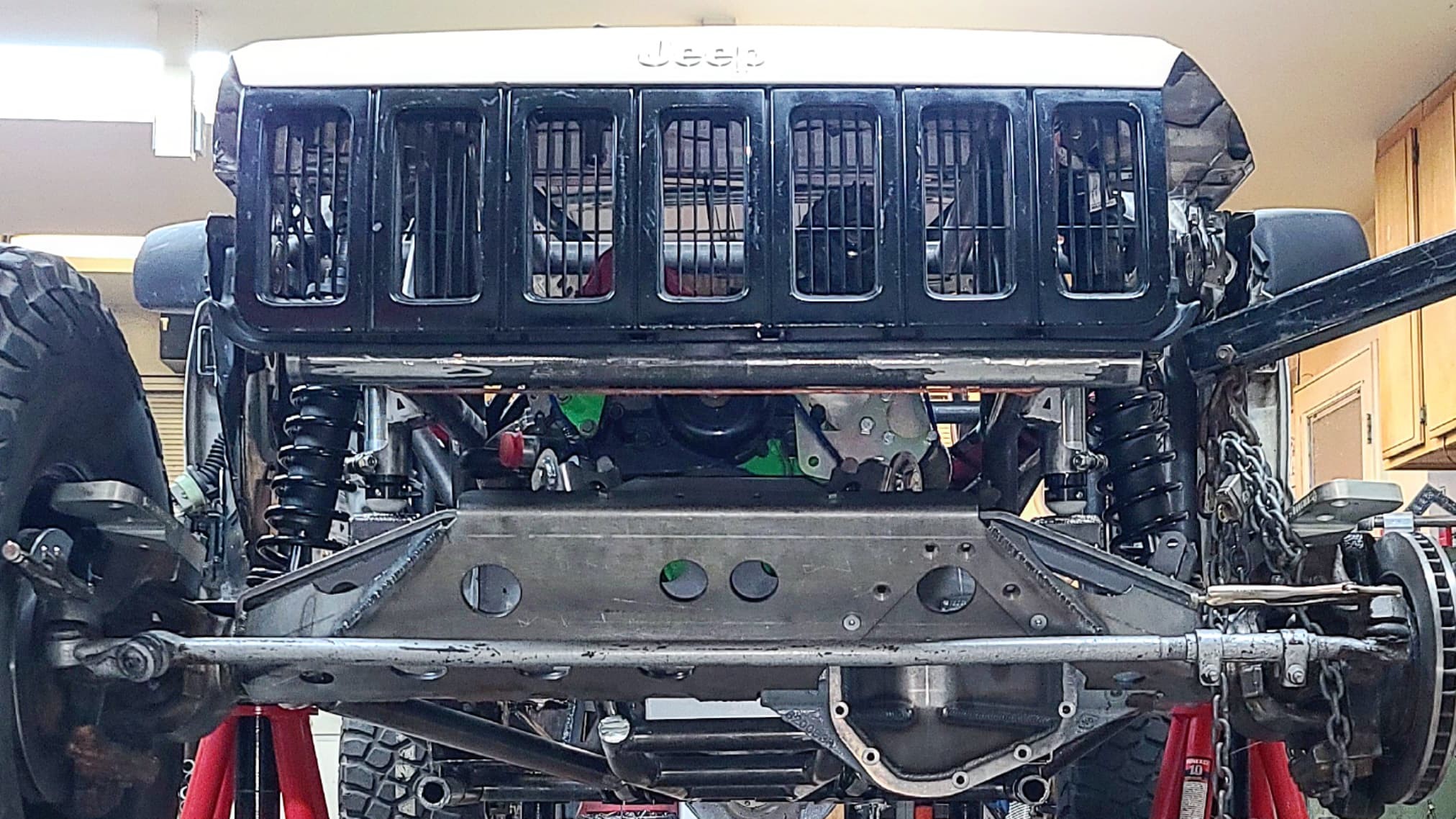

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 2 of 28

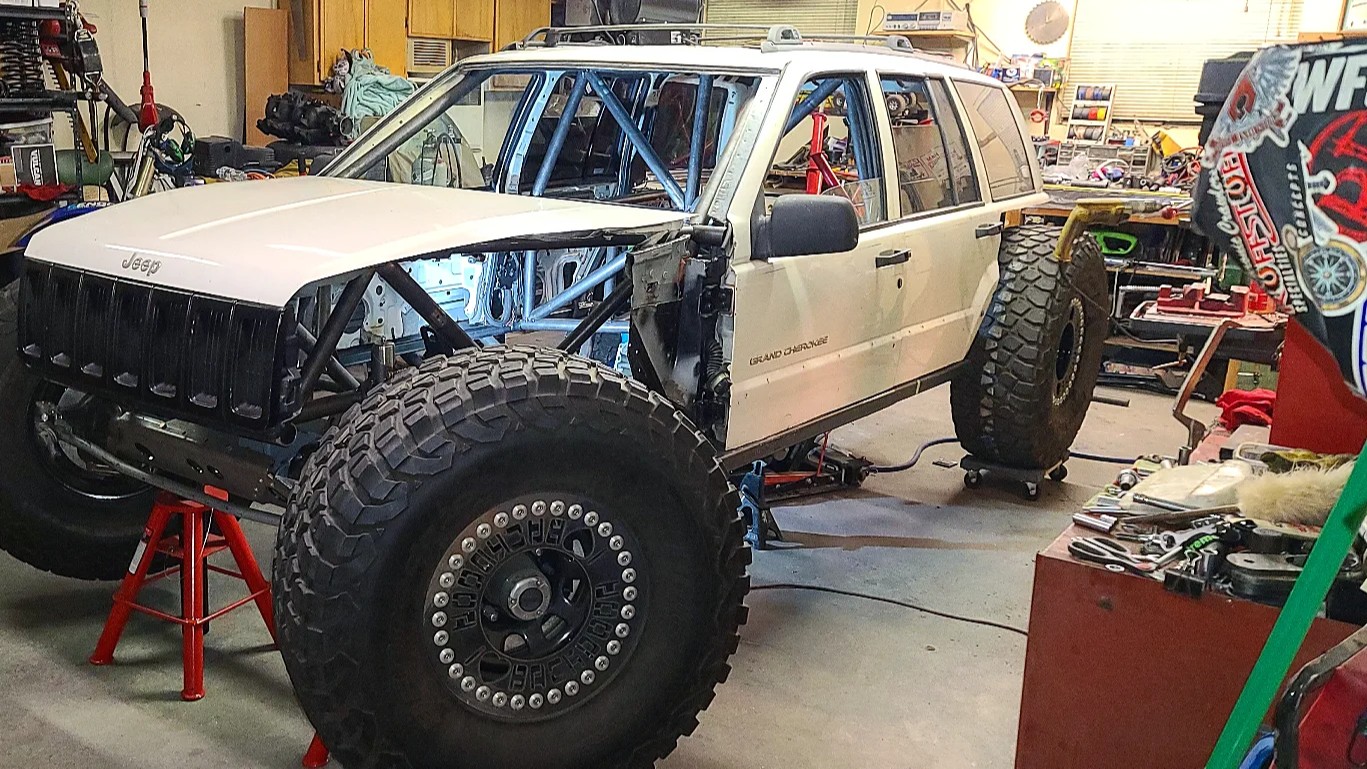

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 3 of 28

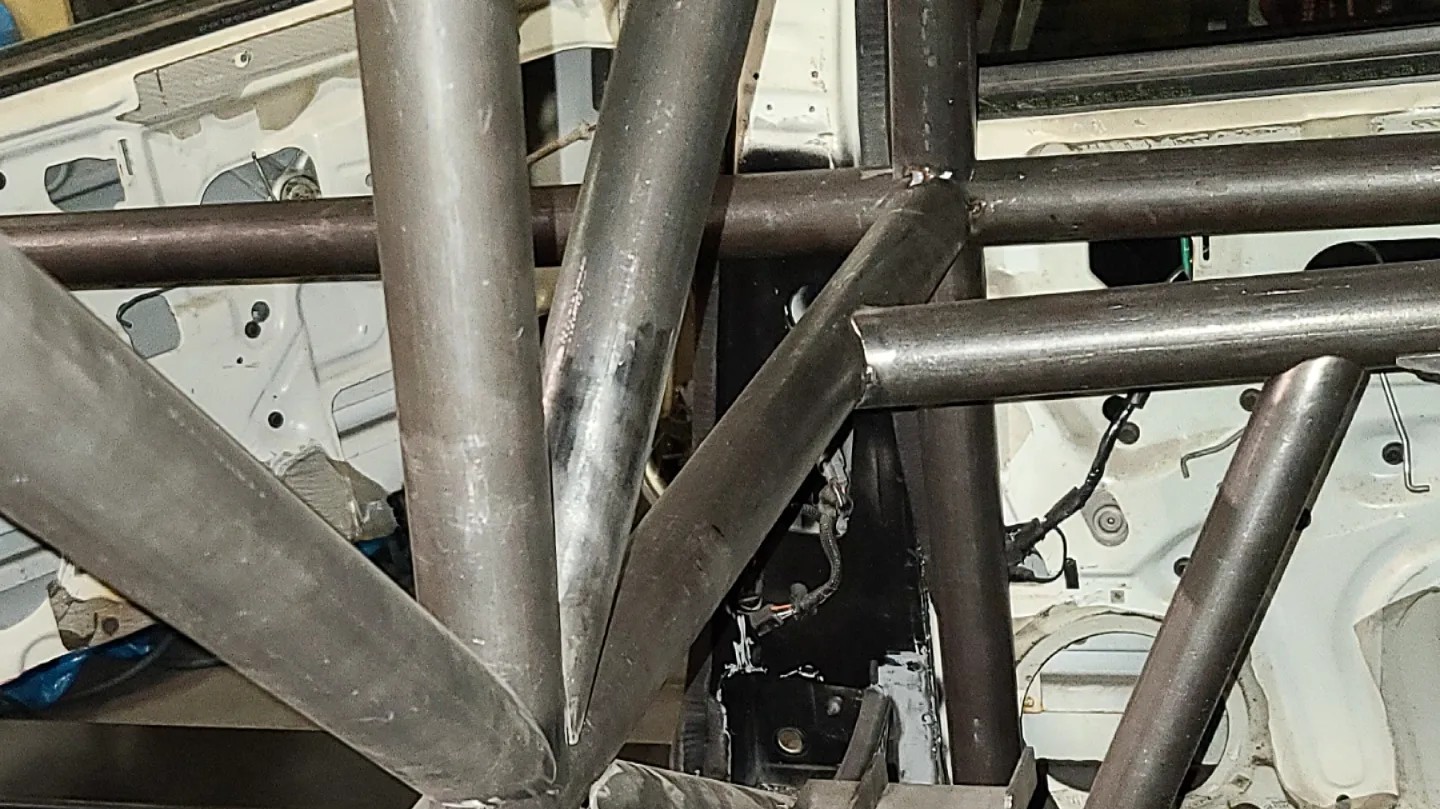

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 4 of 28

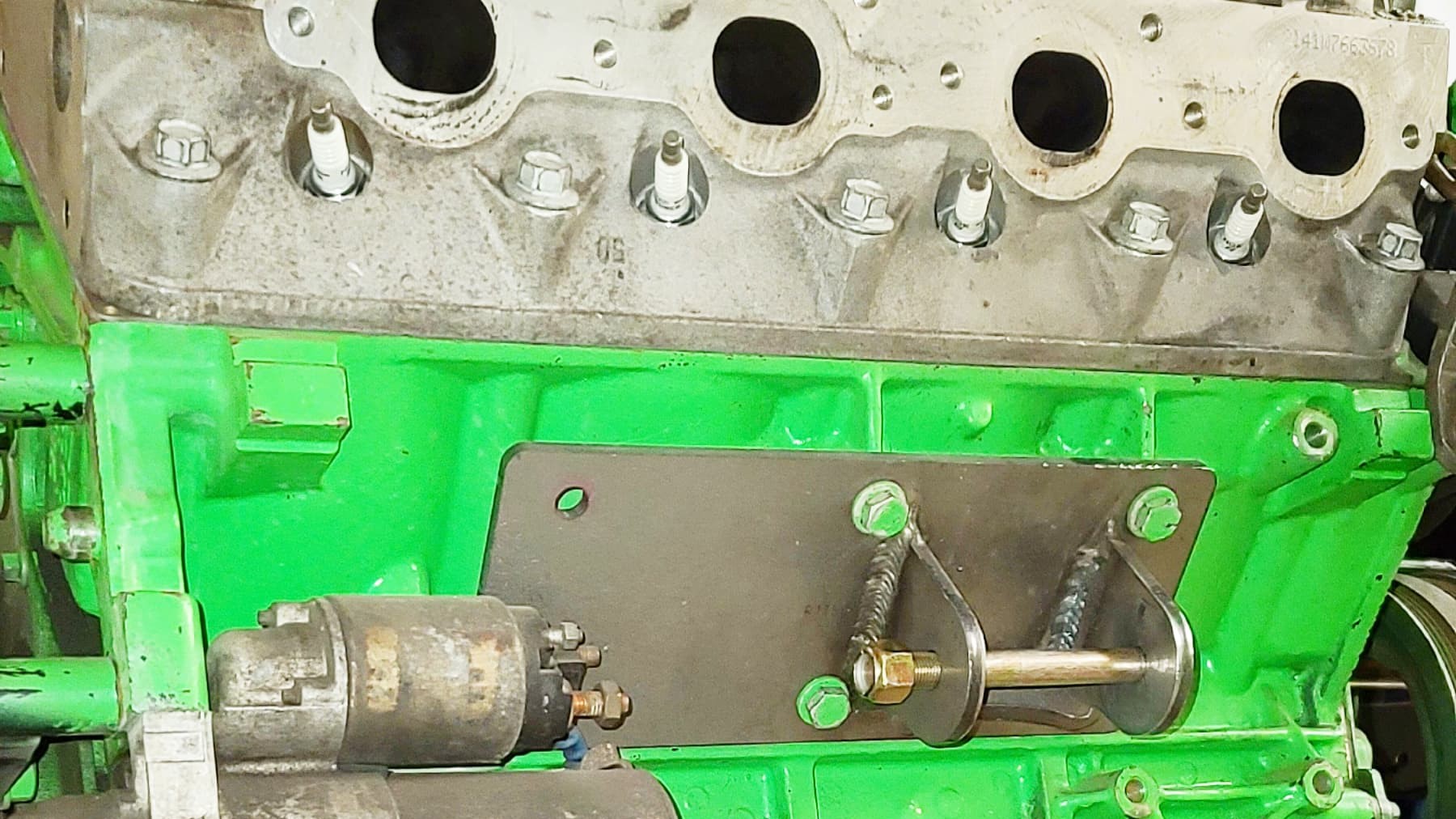

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 5 of 28

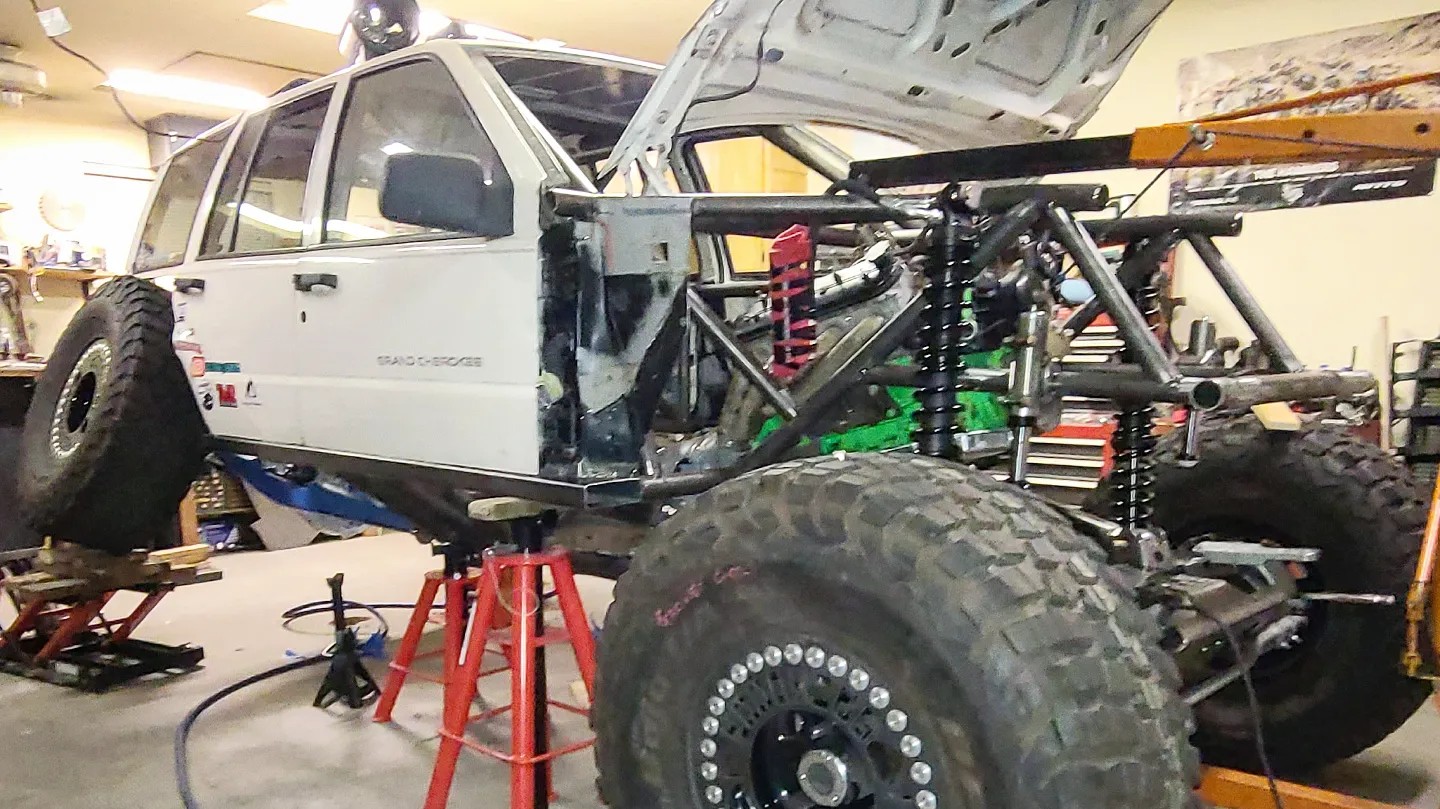

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 6 of 28

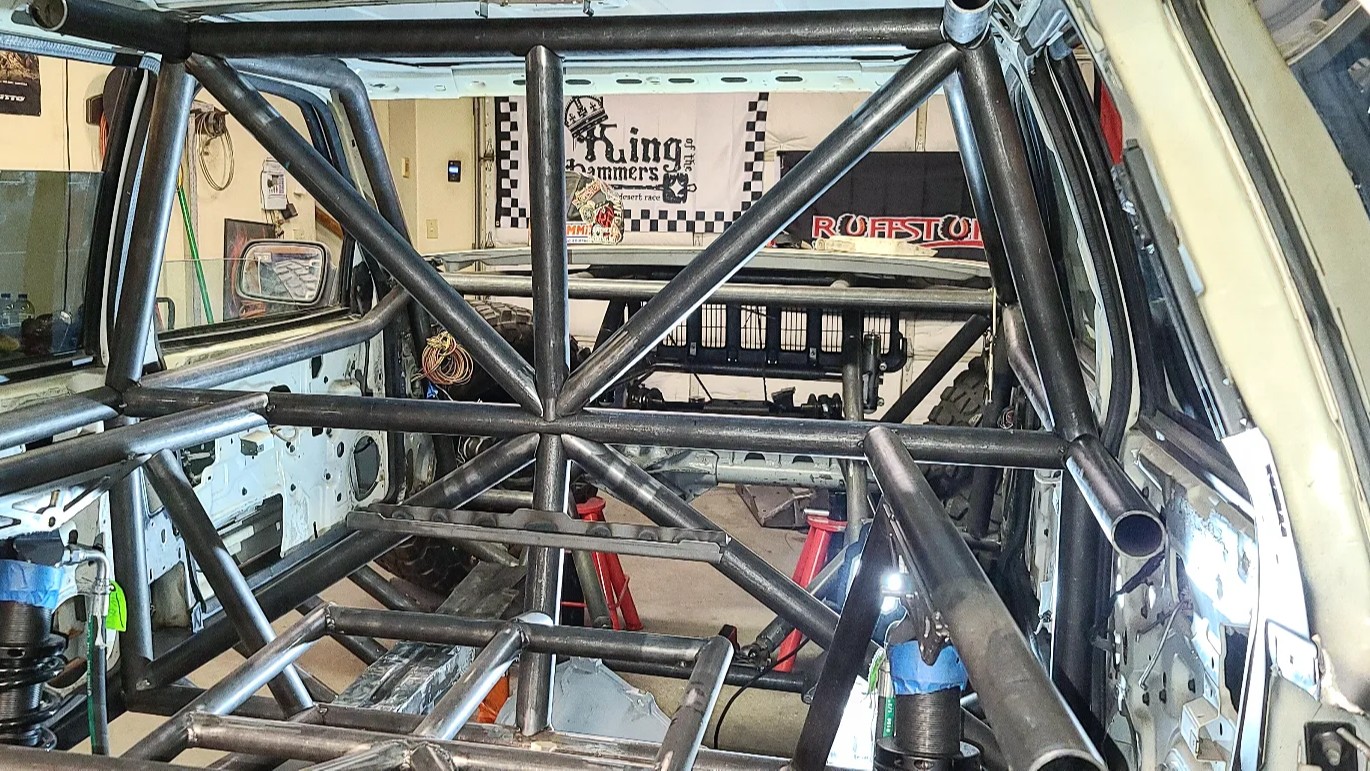

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 7 of 28

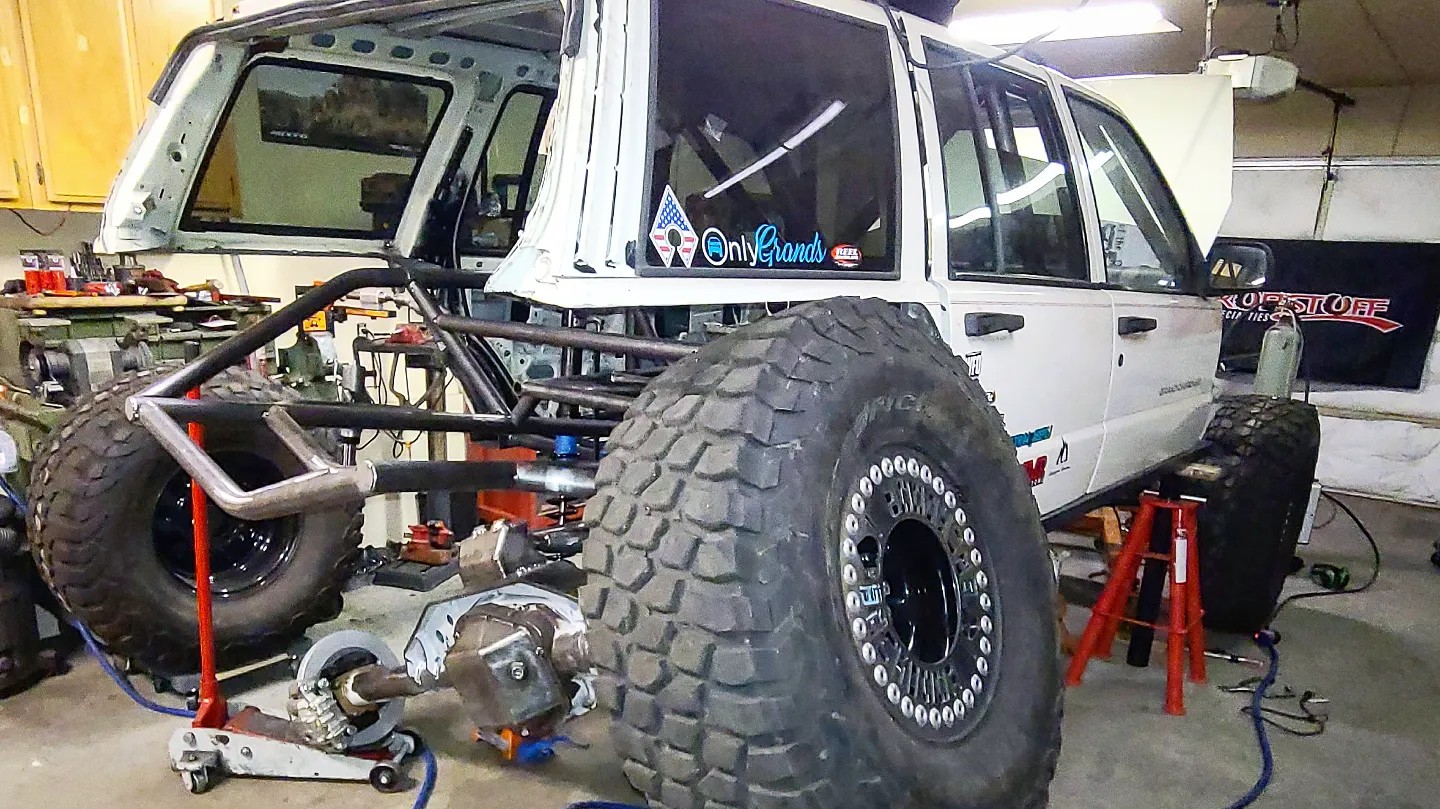

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 8 of 28

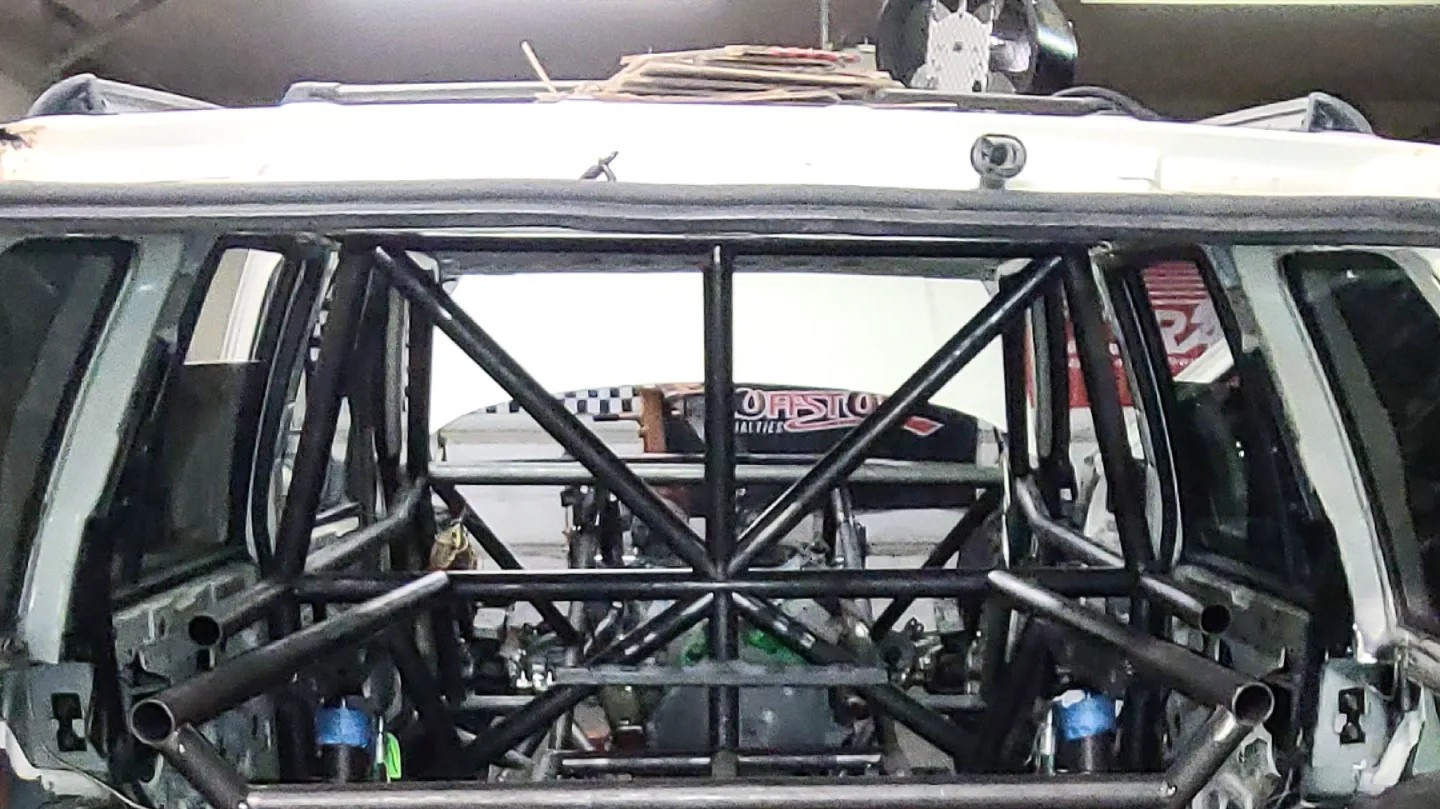

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 9 of 28

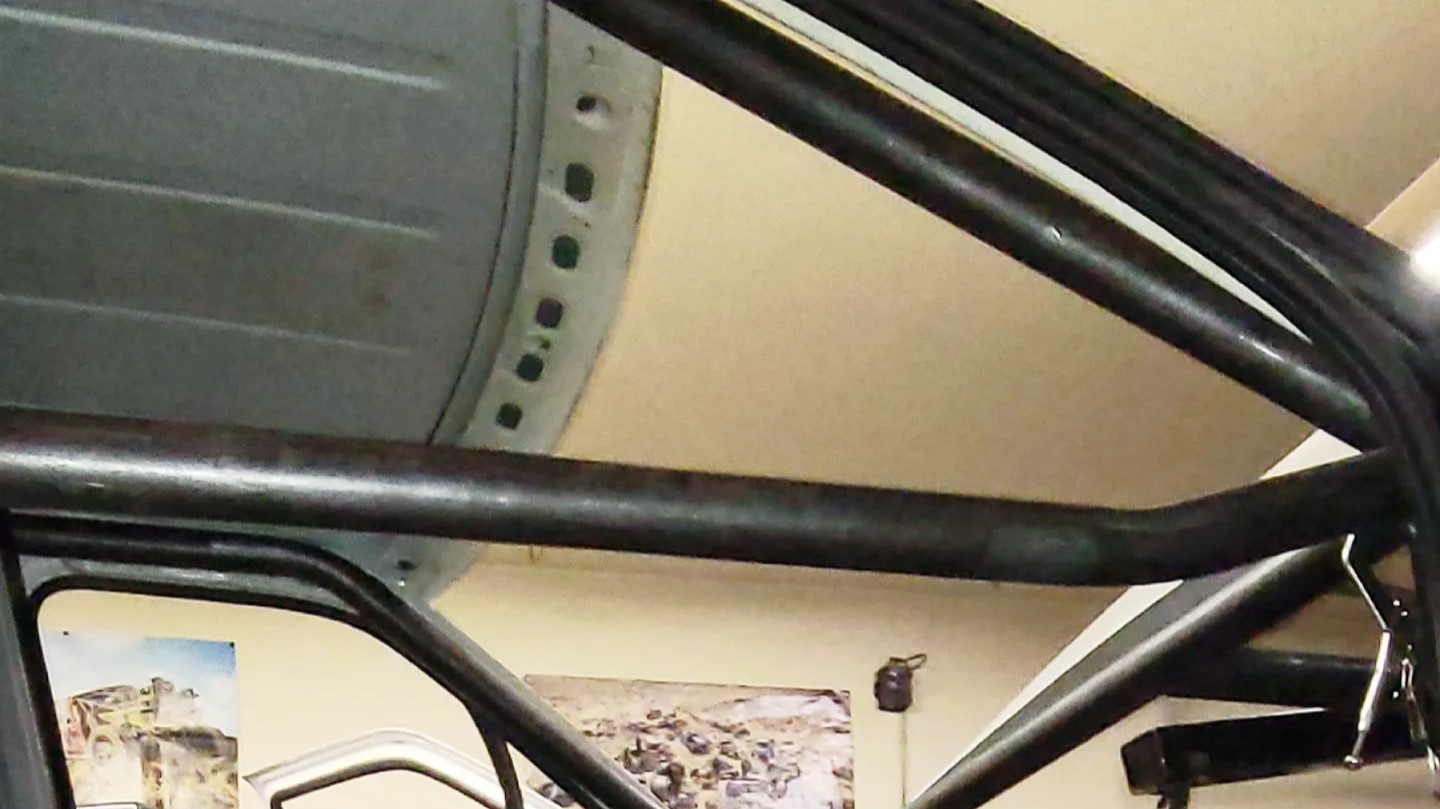

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 10 of 28

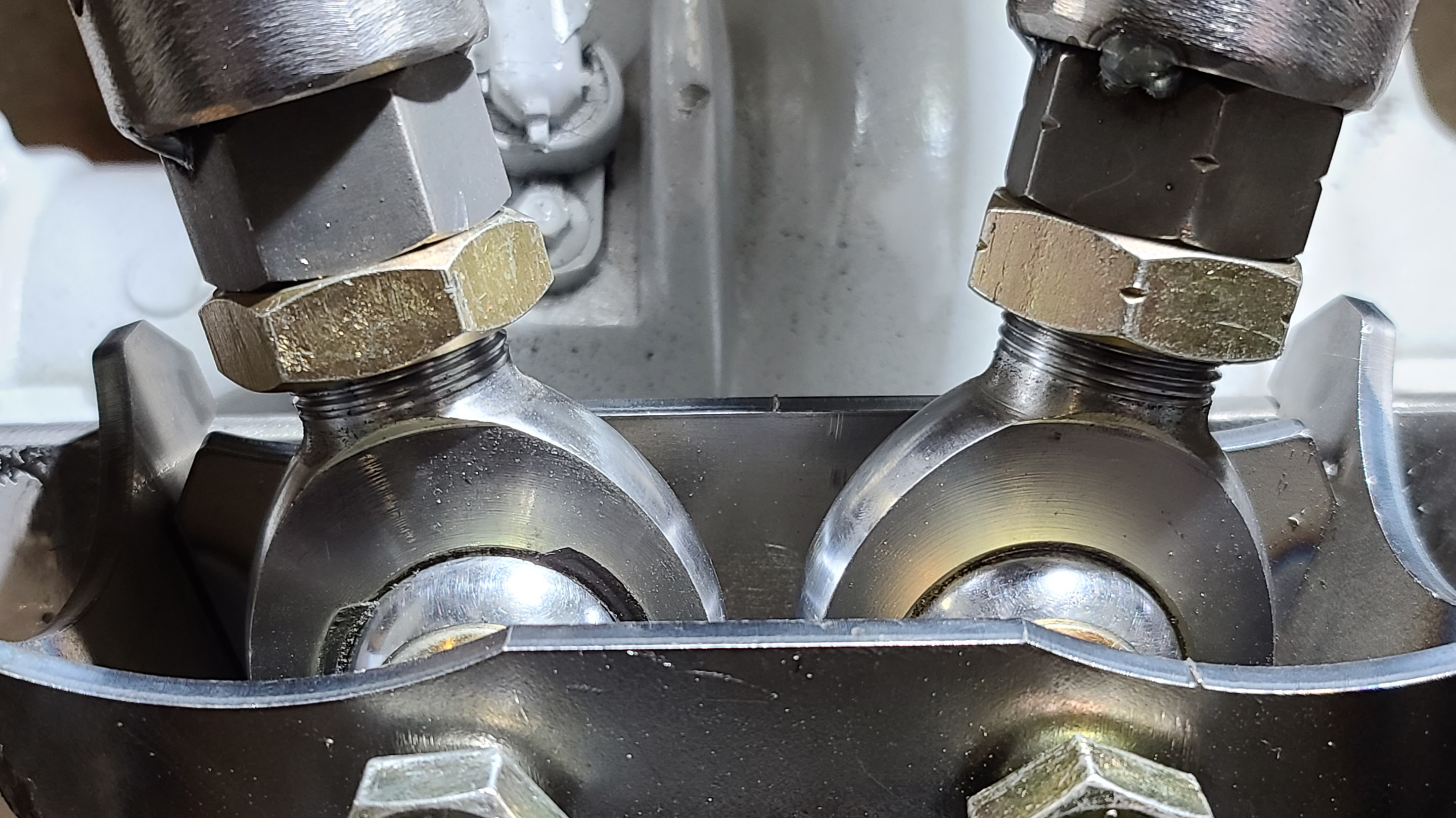

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 11 of 28

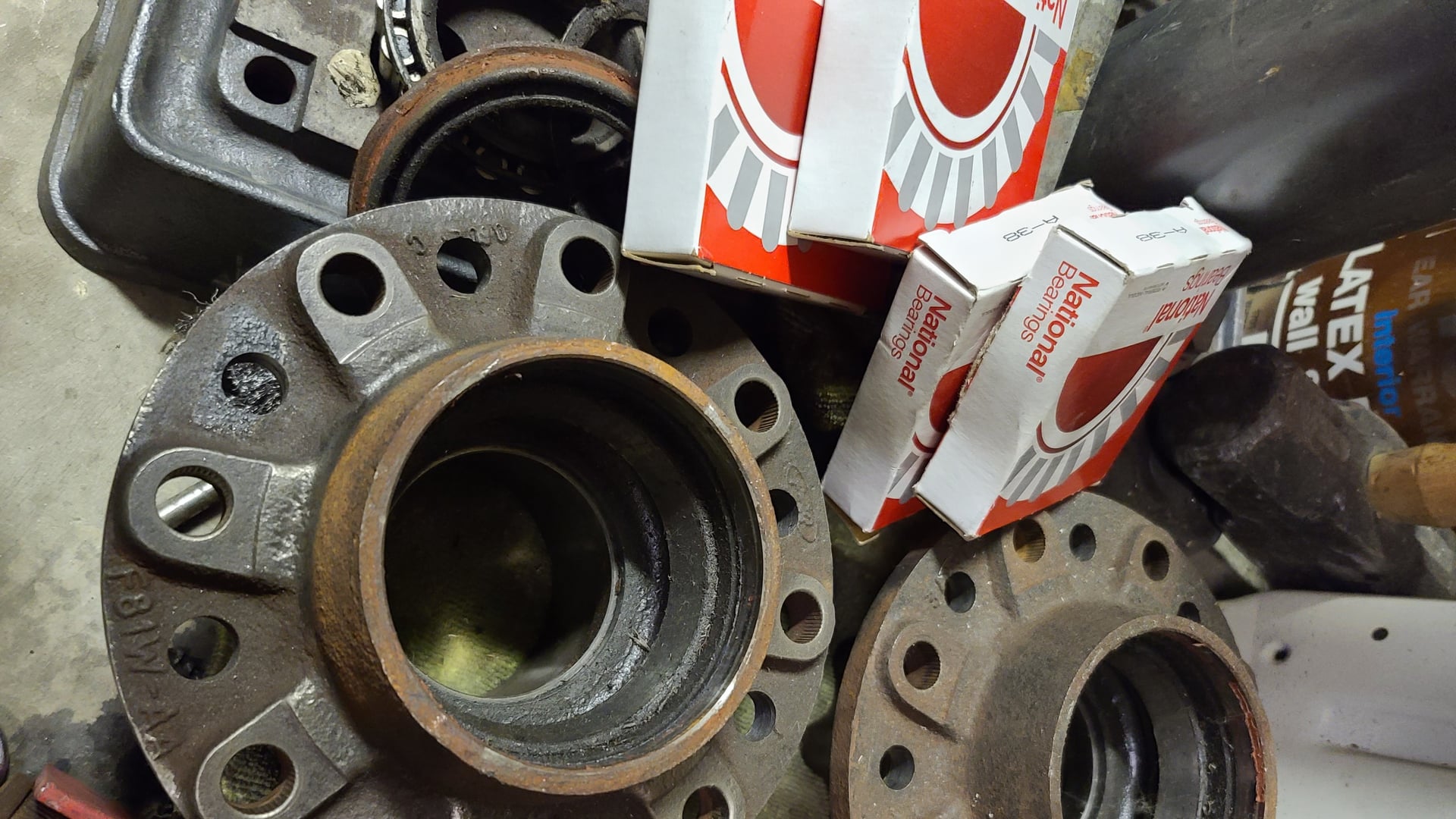

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 12 of 28

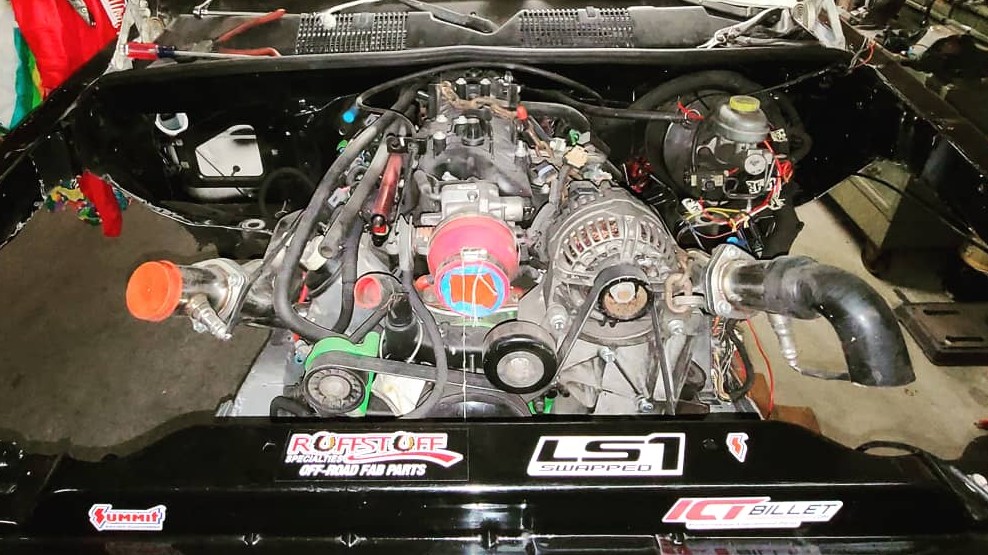

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 13 of 28

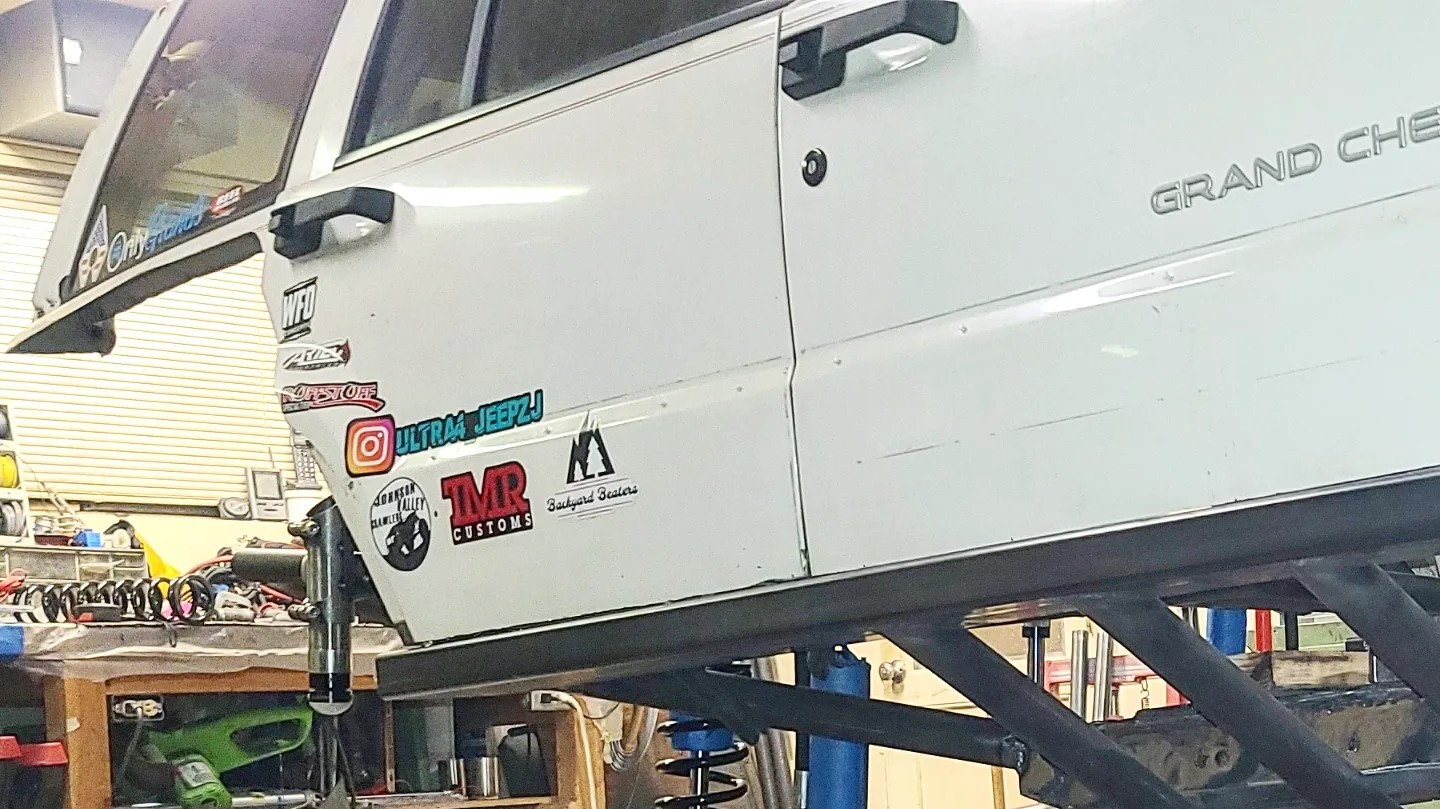

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 14 of 28

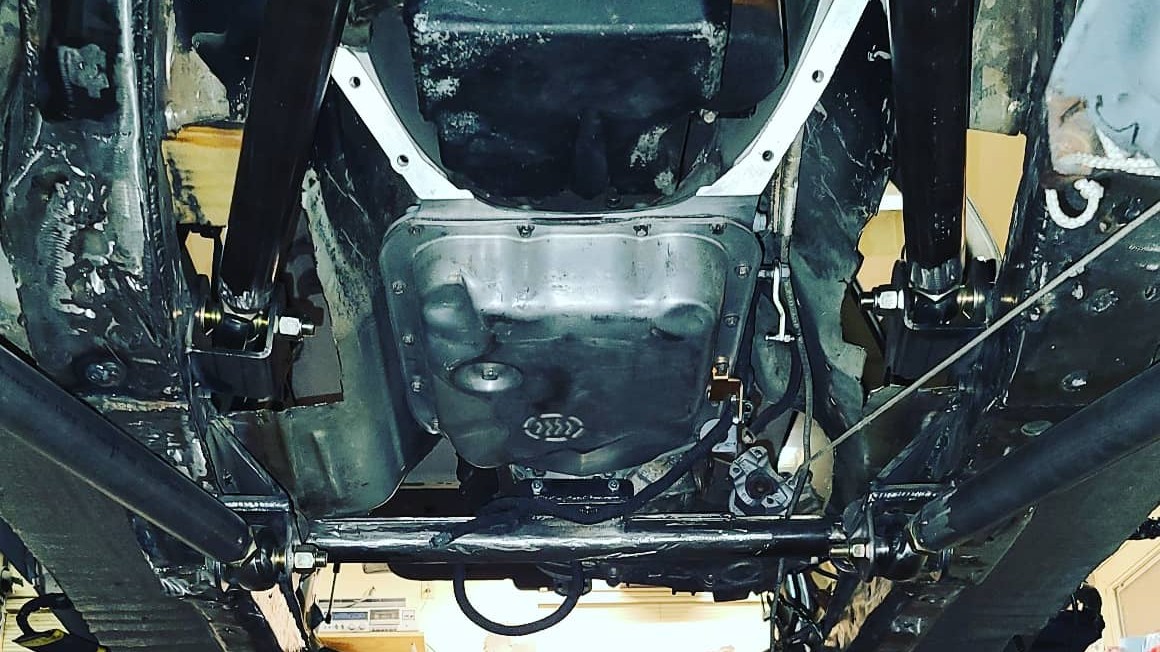

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 15 of 28

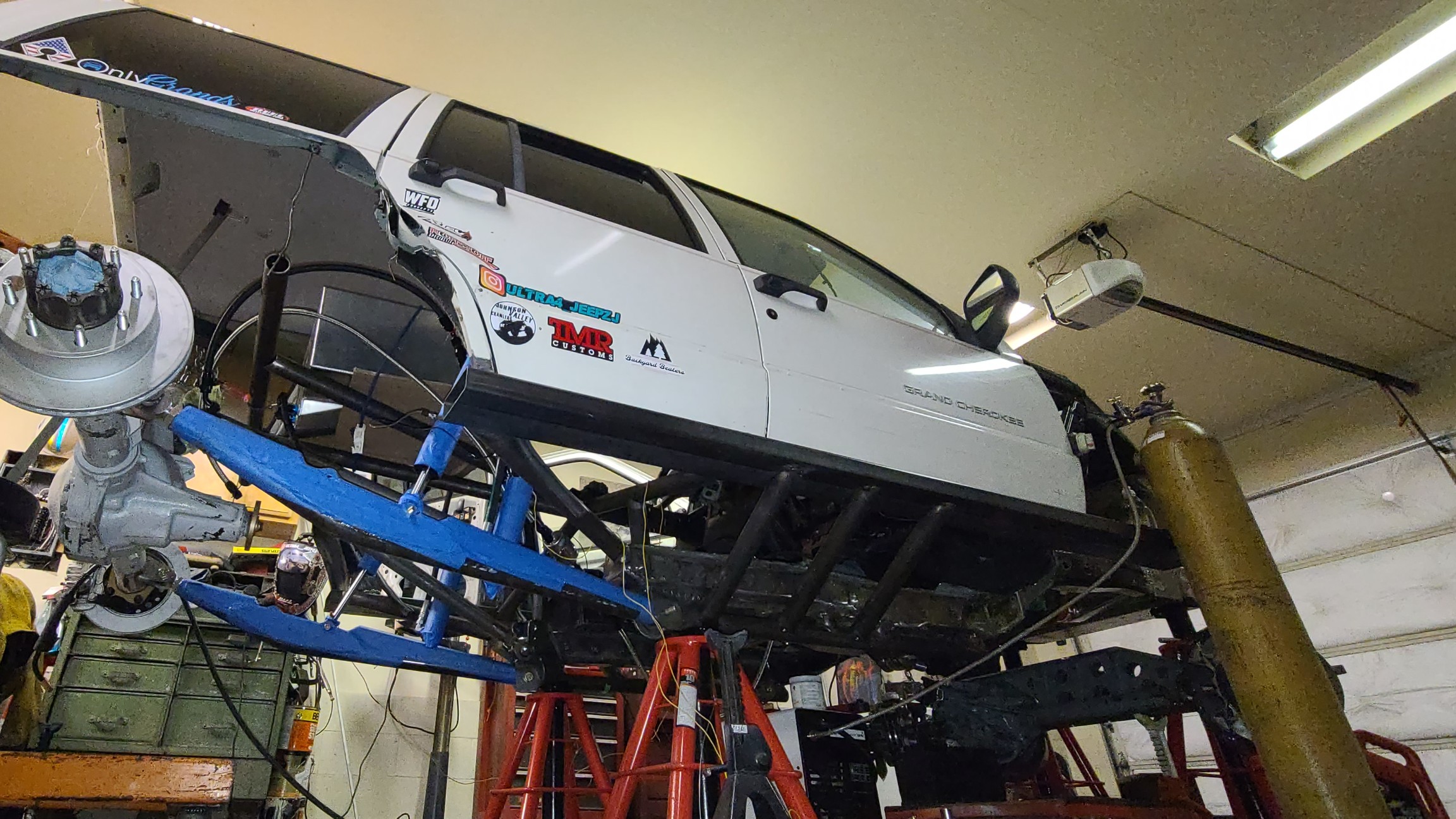

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 16 of 28

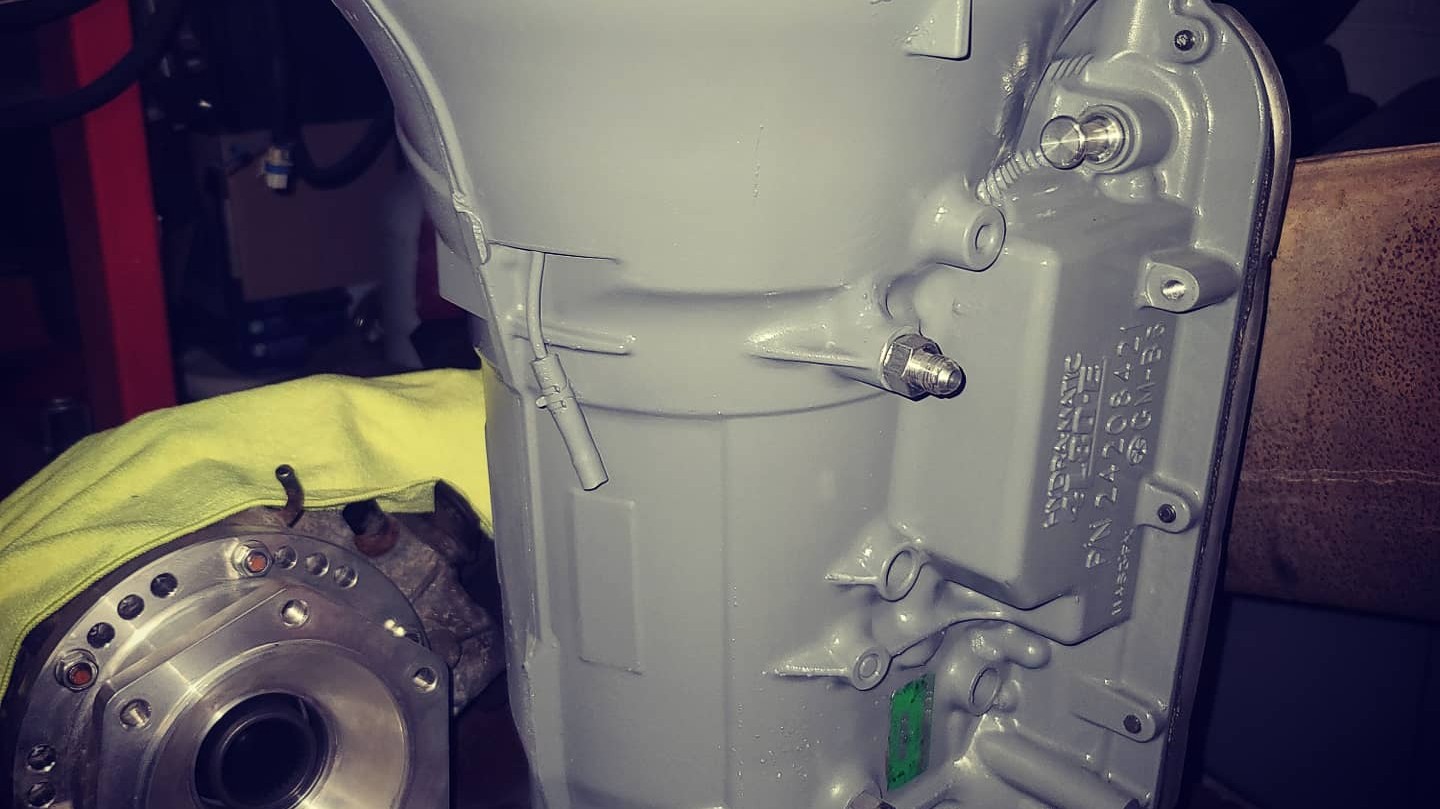

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 17 of 28

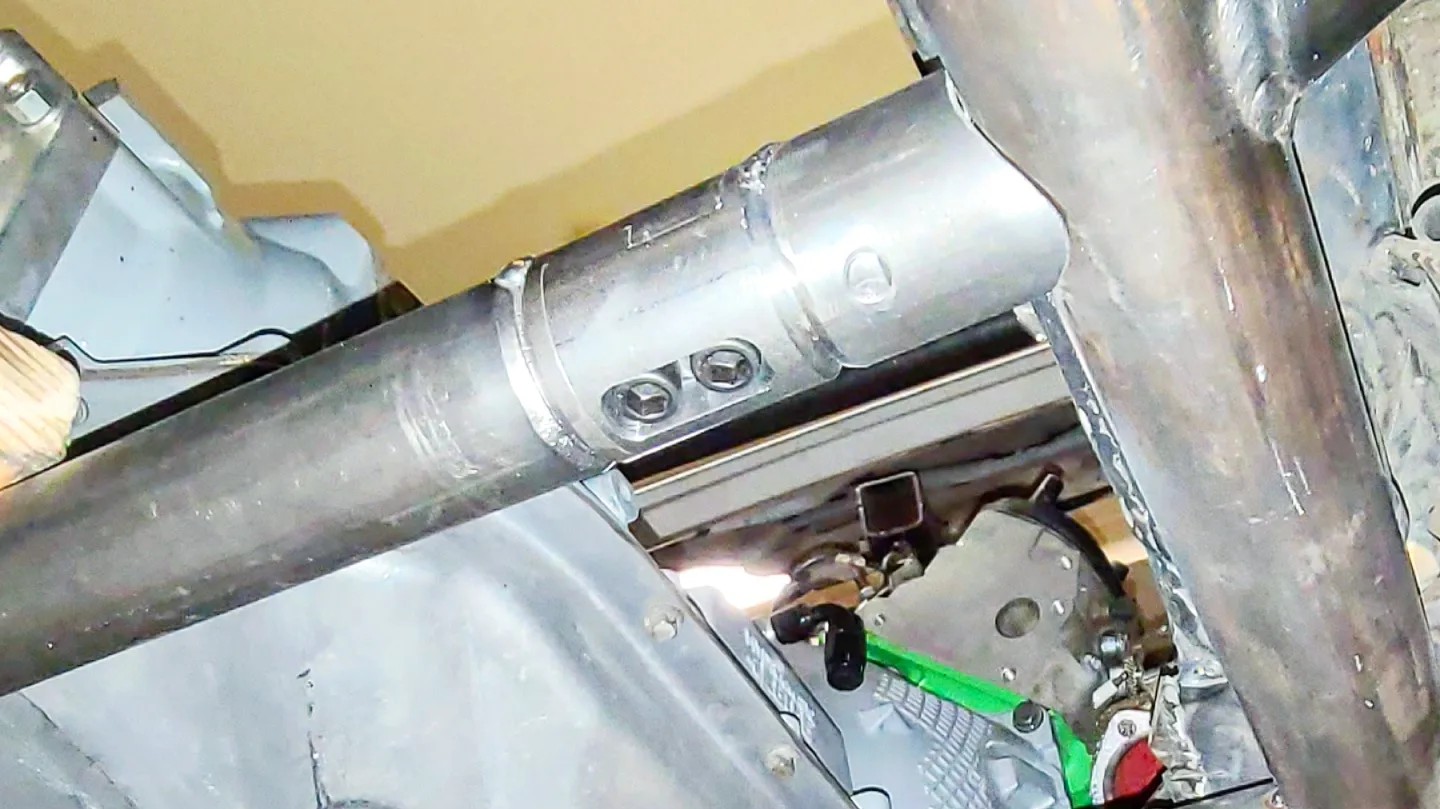

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 18 of 28

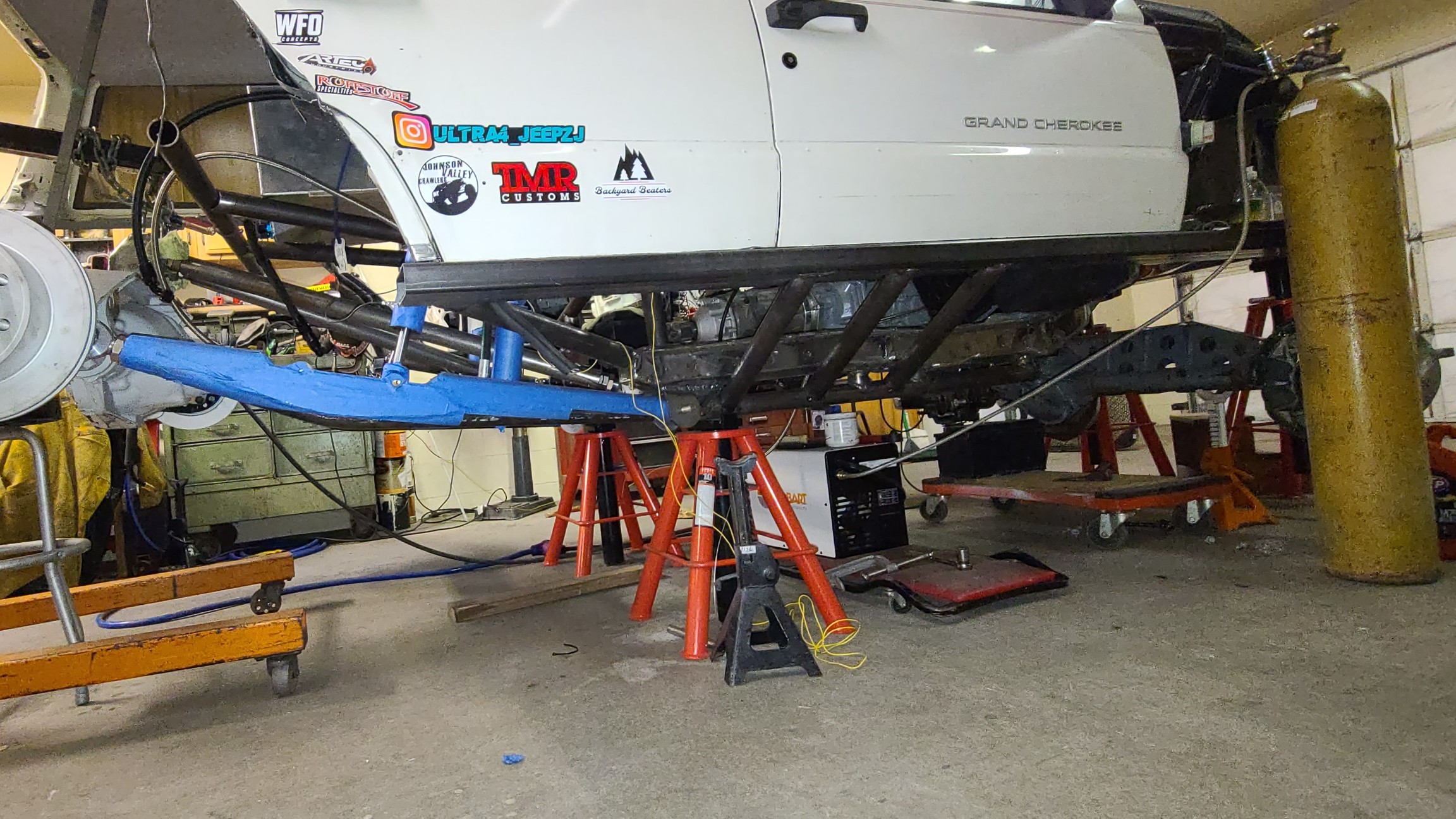

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 19 of 28

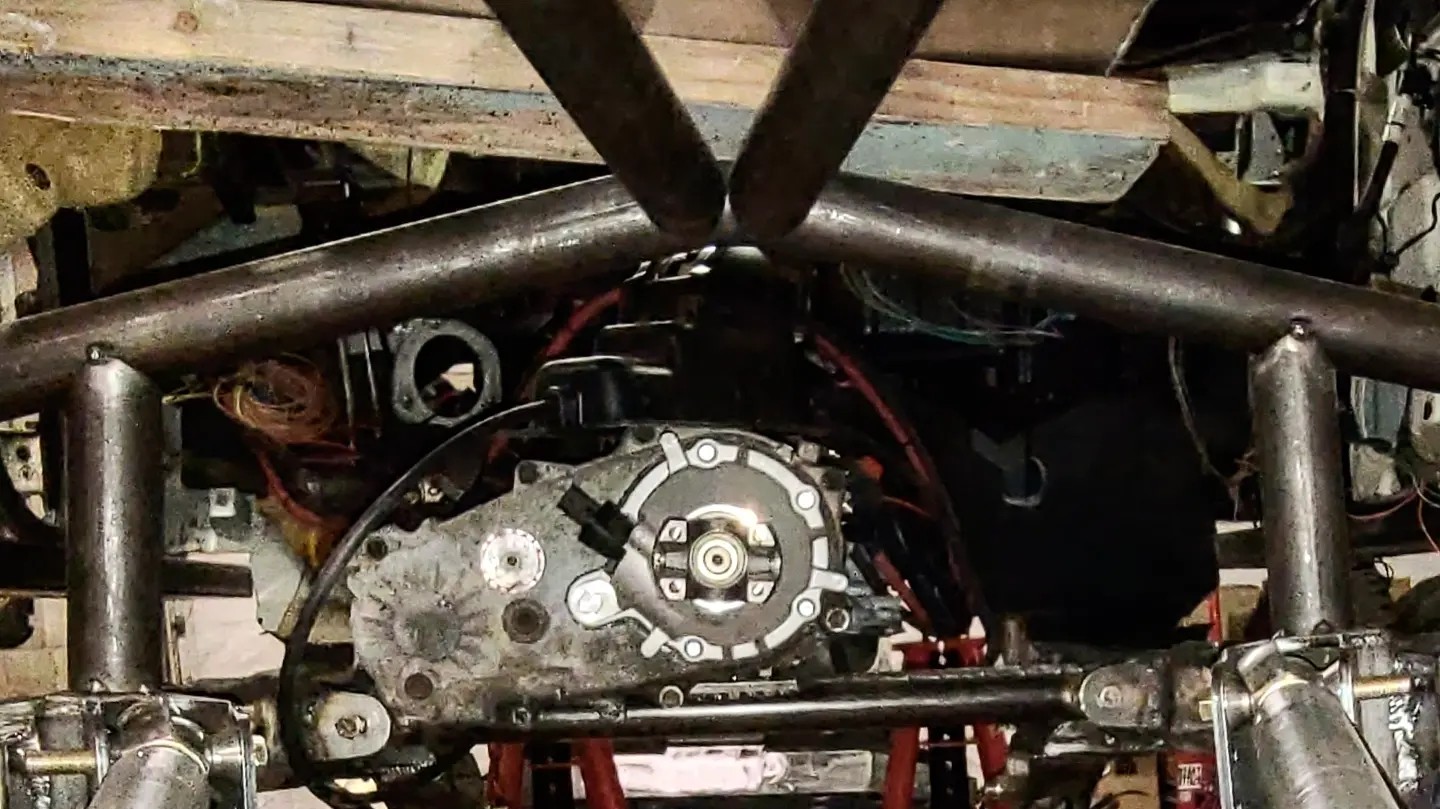

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 20 of 28

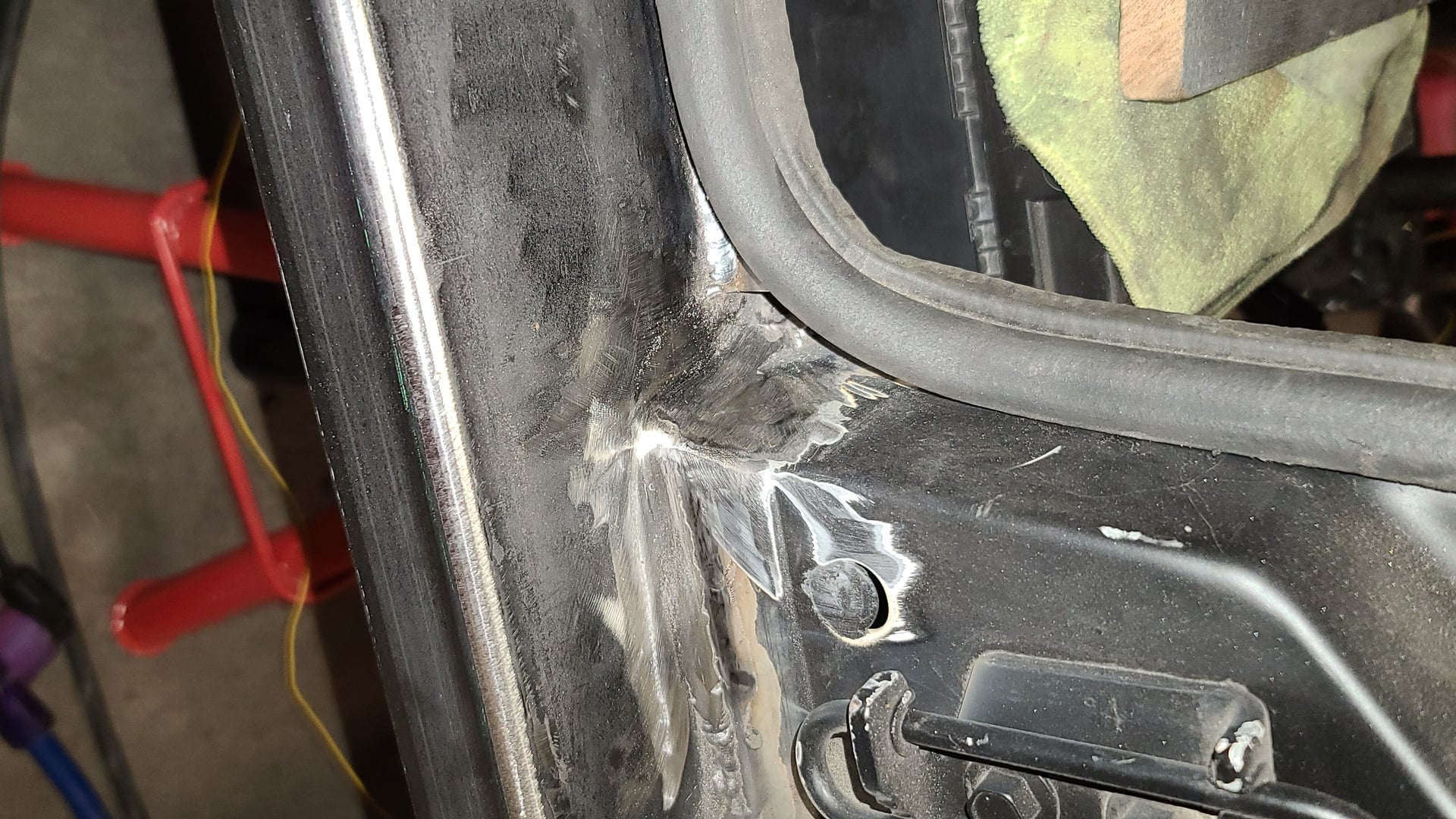

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 21 of 28

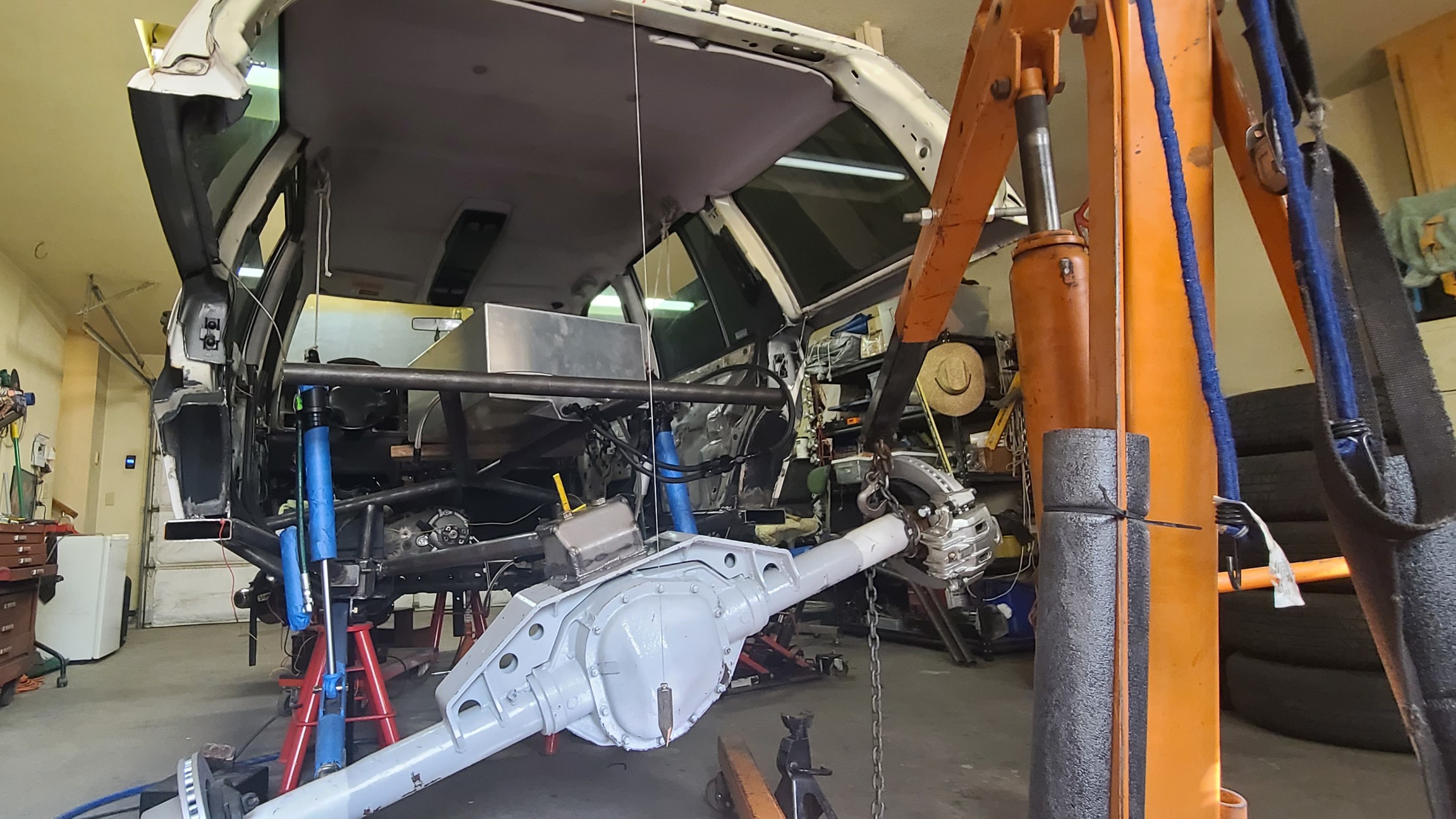

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 22 of 28

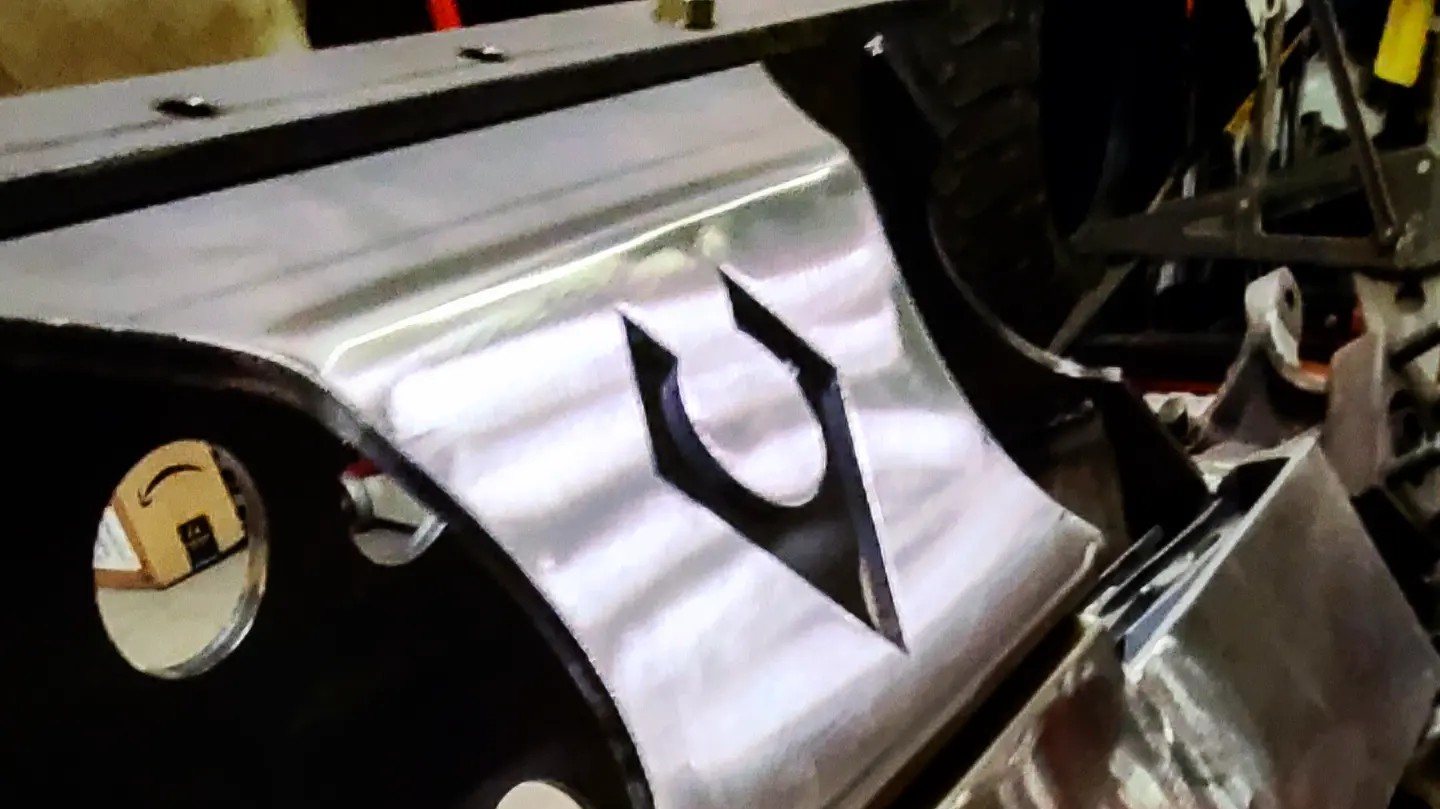

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 23 of 28

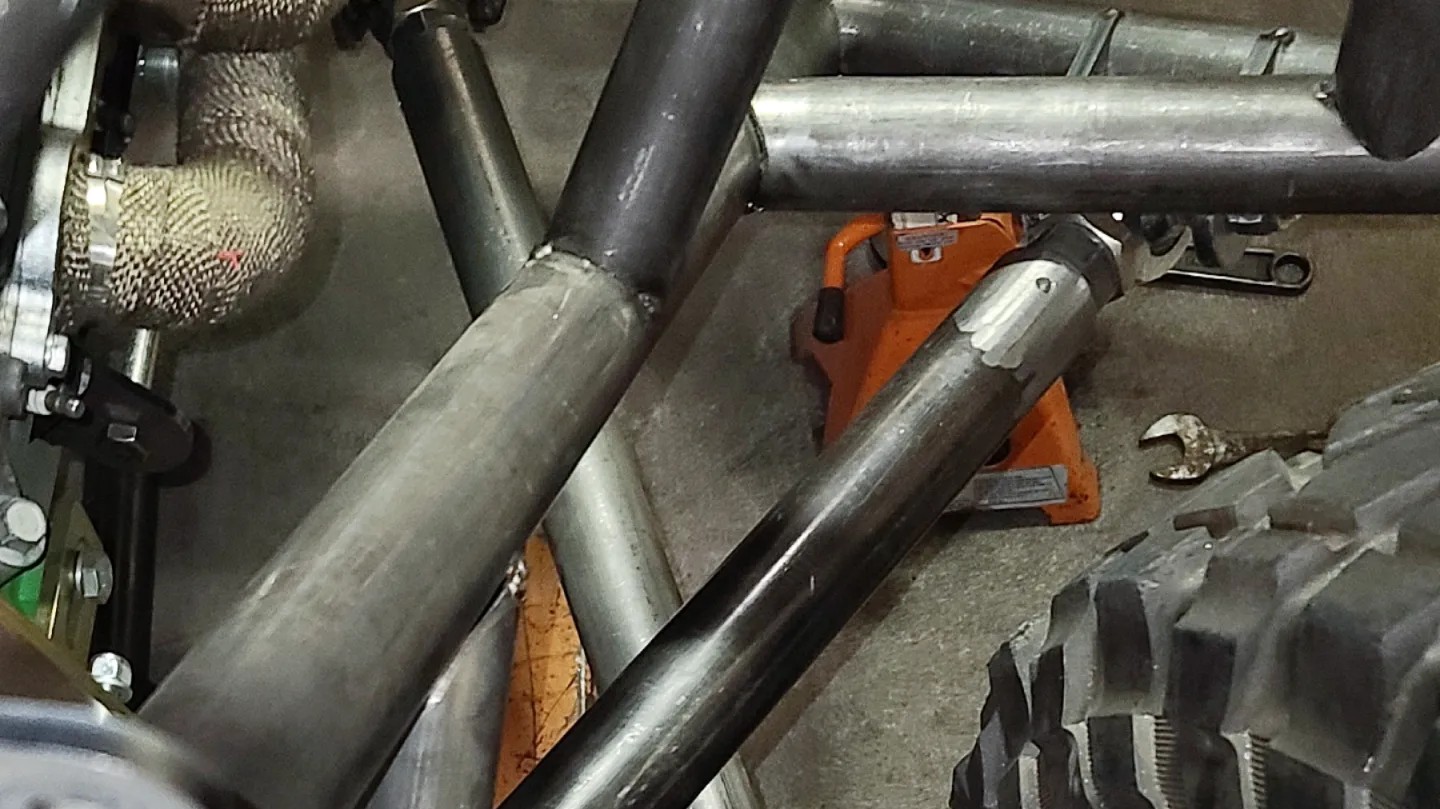

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 24 of 28
@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 25 of 28

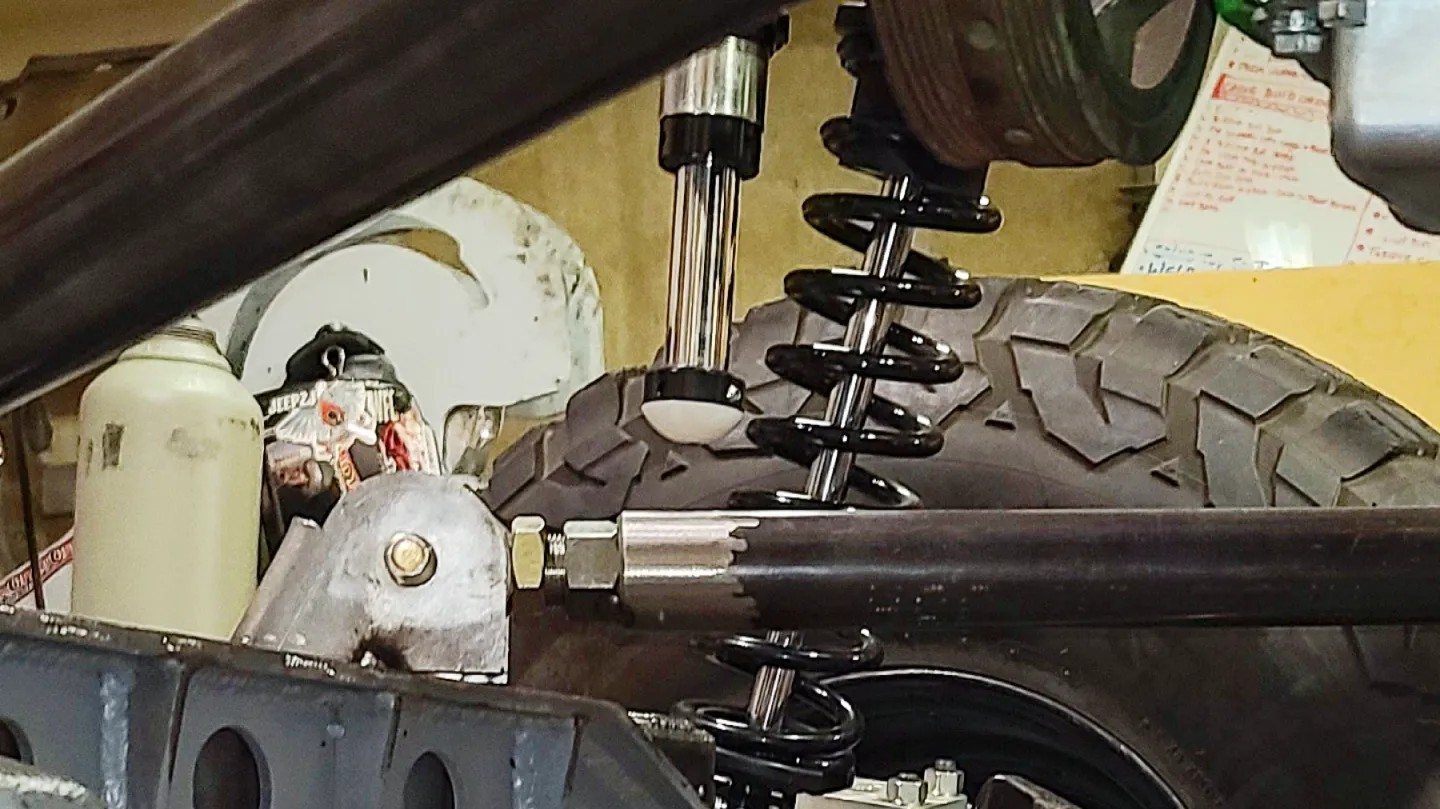

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 26 of 28

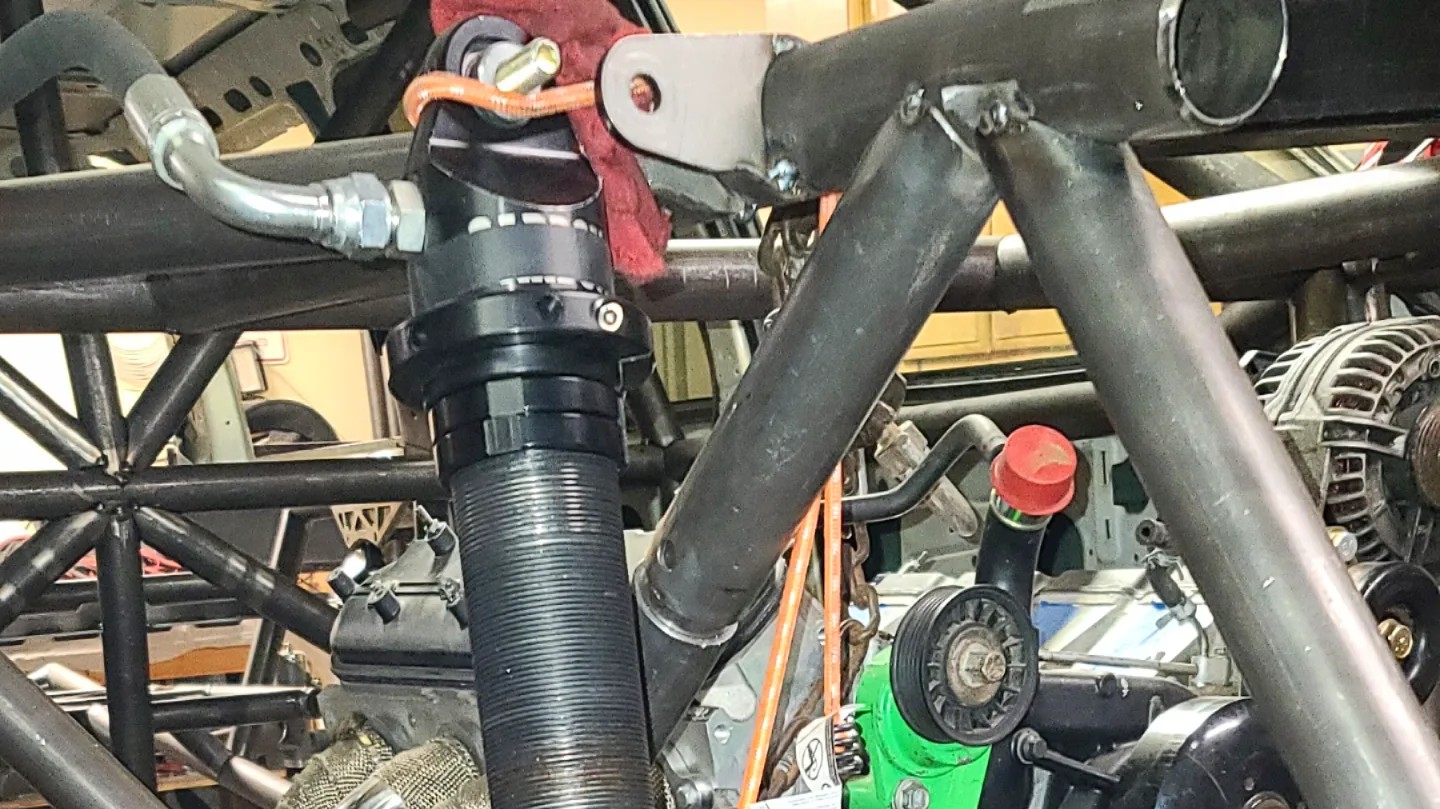

@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 27 of 28
@ultra4_jeepzj, a 1997 Jeep Grand Cherokee ZJ, photo 28 of 28

Top mods

  • Suspension2.5" x14" Custom coilovers Front
  • Tires37"×12.50"R17 Tires
  • WheelsTotal Metal Innovations DIY Beadlocks
  • Exterior2"×6"×.188" Rock Sliders
  • Drivetrain1988' Ford F350 Lairet Dana 60 King Pin Axle - Front

Parts

Wheels

37"×12.50"R17 Tires
39"×13.5"R17 BFG bajas
40"×12.50"R17 Tires
Total Metal Innovations DIY Beadlocks
Pro Comp Steel Wheels - 17"×9.0"× 8x6.5
Motobuilt Drilled sterling 10.5" wheel hubs conversion

Suspension

Ruffstuff Specialties 48" Trailing Arms - Rear
Ruffstuff Specialties Dual Mount Adjustable 4 Link Brackets - Rear
Ruffstuff Specialties 4 link tubes - Front/Rear
Ruffstuff Specialties 1.25" Hiems All Around
Ruffstuff Specialties 1/2, 9/16, 3/4 Bolts
Ruffstuff Specialties Horizontal 4 Link Axle Bracket
2.5" x14" Custom coilovers Front
2.5" x16" Custom coilovers Rear
2.0"x4.0" Custom Bump stops Front & Rear
Artec Industries upper Link mounts
Artec Industries Truss Front and Rear
Barns 4 wheel parts poly bushings

Exterior

Ruffstuff Specialties Universal Winch Mount Plate
DOM RollCage ( 1.75" - 2.00" )
Jeep Door trimmed 4" above bottom of door
2"×6"×.188" Rock Sliders
Boatsides 3/16 plate
3/16 Belly skid plate
Dovenose Front
Rear Tire Rack
DBM Frame stiffeners Mid rail

Drivetrain

Chevy 4L80-HD3 Manual Transmission
ICT 4l80e sensor delete
Jeep 231JHD-SYE Transfer Case
1988' Ford F350 Lairet Dana 60 King Pin Axle - Front
Artec Industries Dana 60 Truss
Artec Industries Hydrolic ram skid
PCI hydrolic 2.75" x 8" double steering ram
2002' Ford Excursion 10.5 Sterling Axle - Rear
Artec Industries 10.5 Sterling Axle truss
Steel Front and Rear Diff Covers
Delrail Engine oil cooler 12" spal fans
Delrail Transmission oil cooler 12" spal fans
Driveshaft ( N/A ) Front and Rear
TMR Customs Bumpstop pads/sleeves

Brakes

Remote mount F350 Hydroboost Brake system
Ford F350 Master Cylinder
7:1 Willwood Brake Pedal system
Willwood Master Cylinder on pedal
Ford E350 Van Disk Rotors 8x6.5" - Rear
East coast gear supply, Dana-60 Disk Rotors - Front
SS hard lines all around
Custom Hand Break

Engine

LM7 5.3L V8 GenIII Vortec Engine
COMP CAMS camshaft Custom 204/212 duration @ .050 with .523/ .522 lift on a 116 LSA
Comp Cams Sbc Magnum PushRods 5/16 Push Rods 7.400
NGK TR6 spark plugs
GM LS6 Blue valvesprings
GM 2.5 bar MAP sensor
Chevey high performance Roller Lifters
Ford SVO 42 lb/hr green monster injectors
Chevy performance high flow oil pump
Custom Built wire harness Red/Blue Pcm tuned
Monster Green Engine Enamel

Exhaust

Forward Mount SS Customs headers
Front - o2 sensors L&R
Rear - o2 sensor delete
Air intake sensor

Intake

Intake Vacume port for manual transmission
Chevy Truck Intake 2001
Drive by wire throttle body
ICT EGR delet
Taurus E-Fan 2-speed on Intercooler
Allstar Radiator- Rear Mount

Interior

PRP seats competition series custom build
Back halved 1.25"/1.5"/1.75"/2"×.120" DOM Cage
Shreddy / PRP 3×5 Harnesses Teal
Shreddy / Amped Off Road collab helmets
Fire resistant Sound proofing
Interior hybrid 2"×.120/1.75"×.120 Front Roll Cage
Rear B-Pillar Fire wall
Poly electric windows Front and Rear
Rear side window scoop cooling system

Other

Jazz 20gal Fuel Cell
Summit Fuel Filters 40mic/10mic
Corvette ls1 Fuel Regulator
255lph Fuel Pump
Evil oil braded lines / Fittings
Evil fuel braded lines / Fittings
