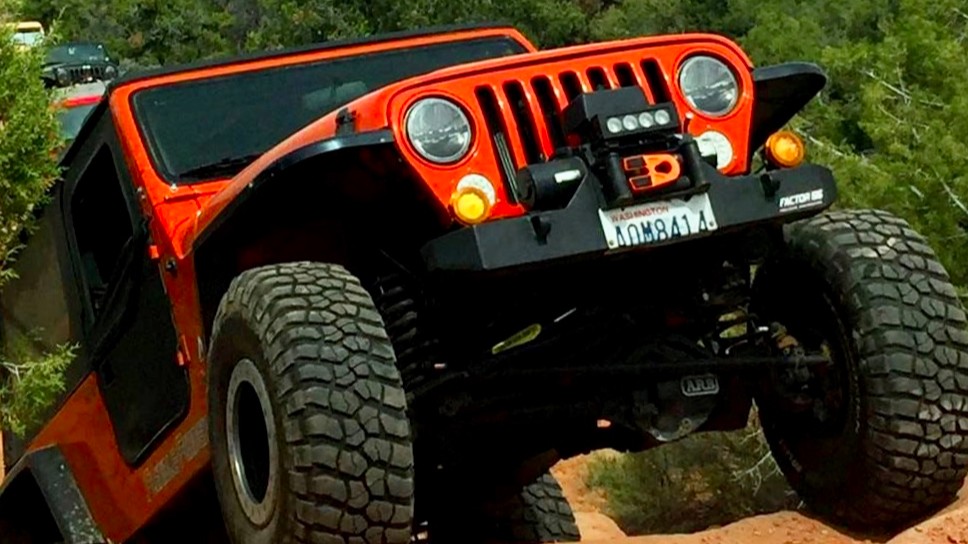

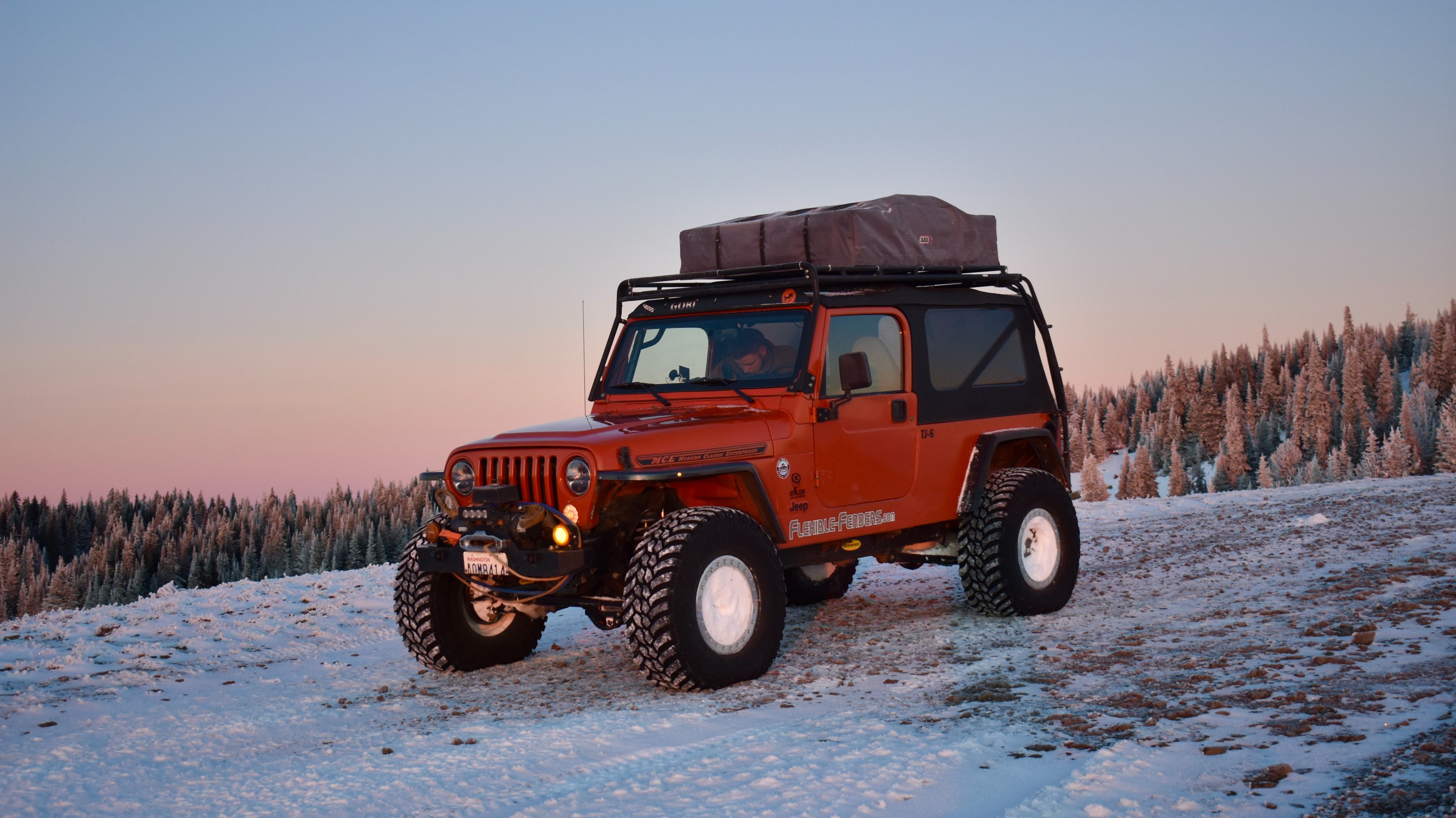

Tigger a TJ-6 photo 1

Tigger a TJ-6

1998 Jeep Sport Utility 2D

Thirteen years ago I bought this Jeep from an owner of MCE Fenders. He had previously stretched the wheel base by 15" to fit an Unlimited soft top. Axles were beefed-up and a Clayton long arm was installed. It rode in this configuration for many years, making 2000 mile round-trips to Moab many times. I have recently updated wheels and tires, swapped steering knuckles for a Big Brake kit and installed a Currie RJ44 front axle. Previously we added a Gobi rack and used the TJ-6 for camping and exploring. I have updated the shocks, added lower gearing and changed the lighting throughout. The Currie Currectlync has been rebuilt, along with the front track bar to maintain great road handling as well as off road driving. Control arm and shock mounts have been reinforced or boxed. The TJ-6 was driven daily to work for 8 years, and enjoyed on weekends for exploring. While I can't weld or fab, I try to do all the maintenance and upgrades myself. Three years ago a Golen 4.6 Stroker was built and installed 280hp and 322ftlb at flywheel.

Wheels

Dirty Life Road Kill Bead Locks

Tires

Nitto Trail Grapplers 37x12.50 17

Suspension

Clayton Off Road Pro Series Long Arm Kit
3-link front
4-link rear
RockJock Dual Rate Springs 4"
Bilstein 5100s
Extended sway bars links

Exterior

Custom, tubular, spare tire carrier
Custom bumpers
Poison Spyder LJ Crusher Corners
GOBI Racks Stealth rack
MCE Fenders, 4.5" width

Lighting

Truck-lites LED headlights
VisionX Reflex winch light
VisionX CG2 Light Cannons - Yellow
All makers are LED

Drivetrain

Rear Dana 44
Currie RJ44 by Carbon Off Road front
ARB Air Lockers
ARB High Output Air Compressor
Nitro-gear 5.13s
Nitro-gear Shafts
AW4 transmission
Tom Wood's Custom Drive Shafts

Brakes

Black Magic Big Brakes

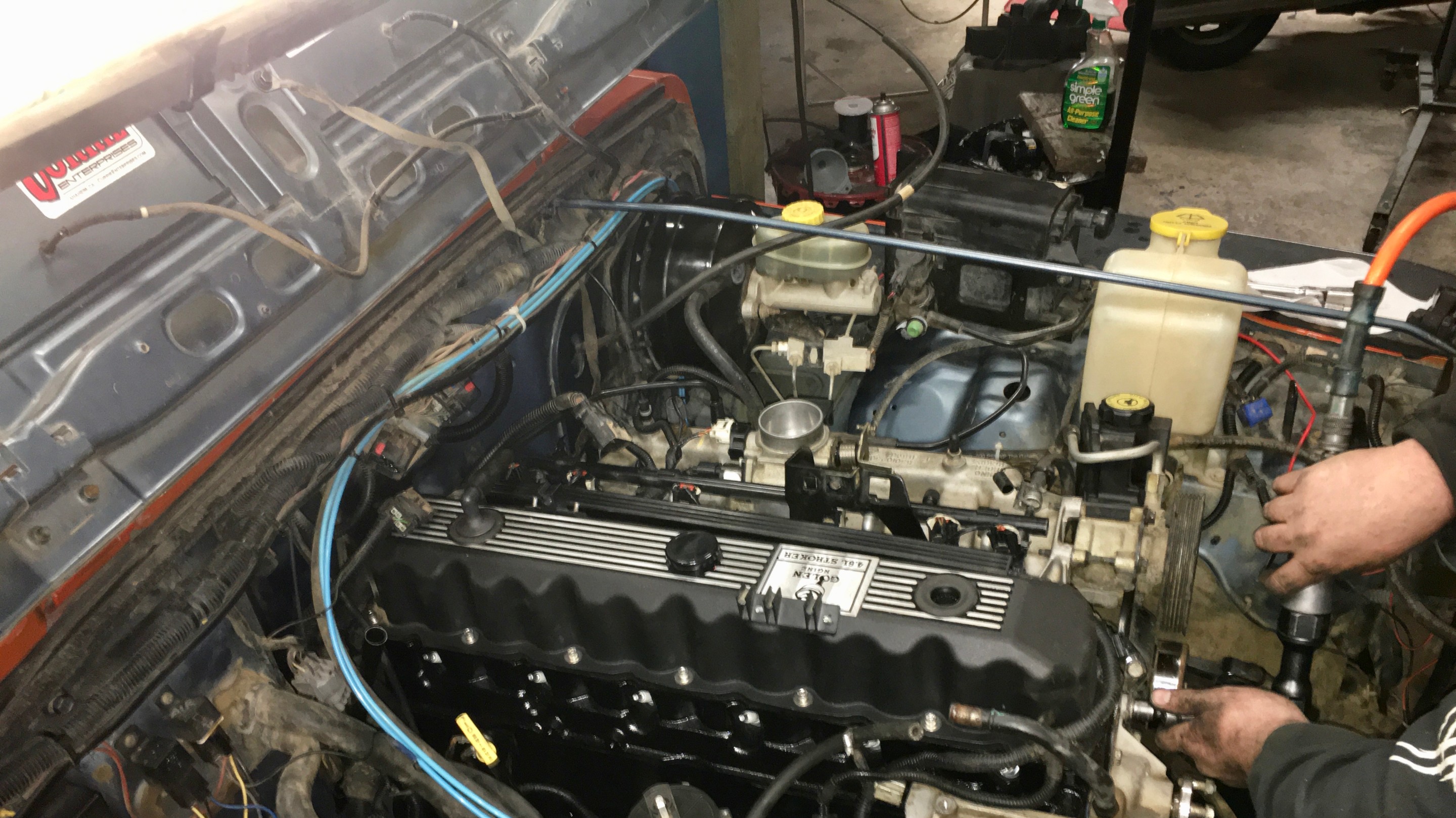

Engine

4.6 Golen Stroker

Exhaust

Basic header
MagnaFlow Catalytic Converter with Turbo muffler

Intake

Stock

Interior

Poison Spyder front cage
Re-used stock switches for lighting
Ol' School CD player
Stock seats with Bestop Covers
ARB refridgerator

Recovery Gear

ARB straps & soft shackles

Steering

Currie Correctlync
Redhead Steering Gears 4-turn box

Other

WARN M8000 winch
Bigfoot Winch Rope
Factor 55 Flat Link
Rugged Radios RDM-DB
ARB awning and awning room
15-inch wheelbase stretch, flat belly skip plate
