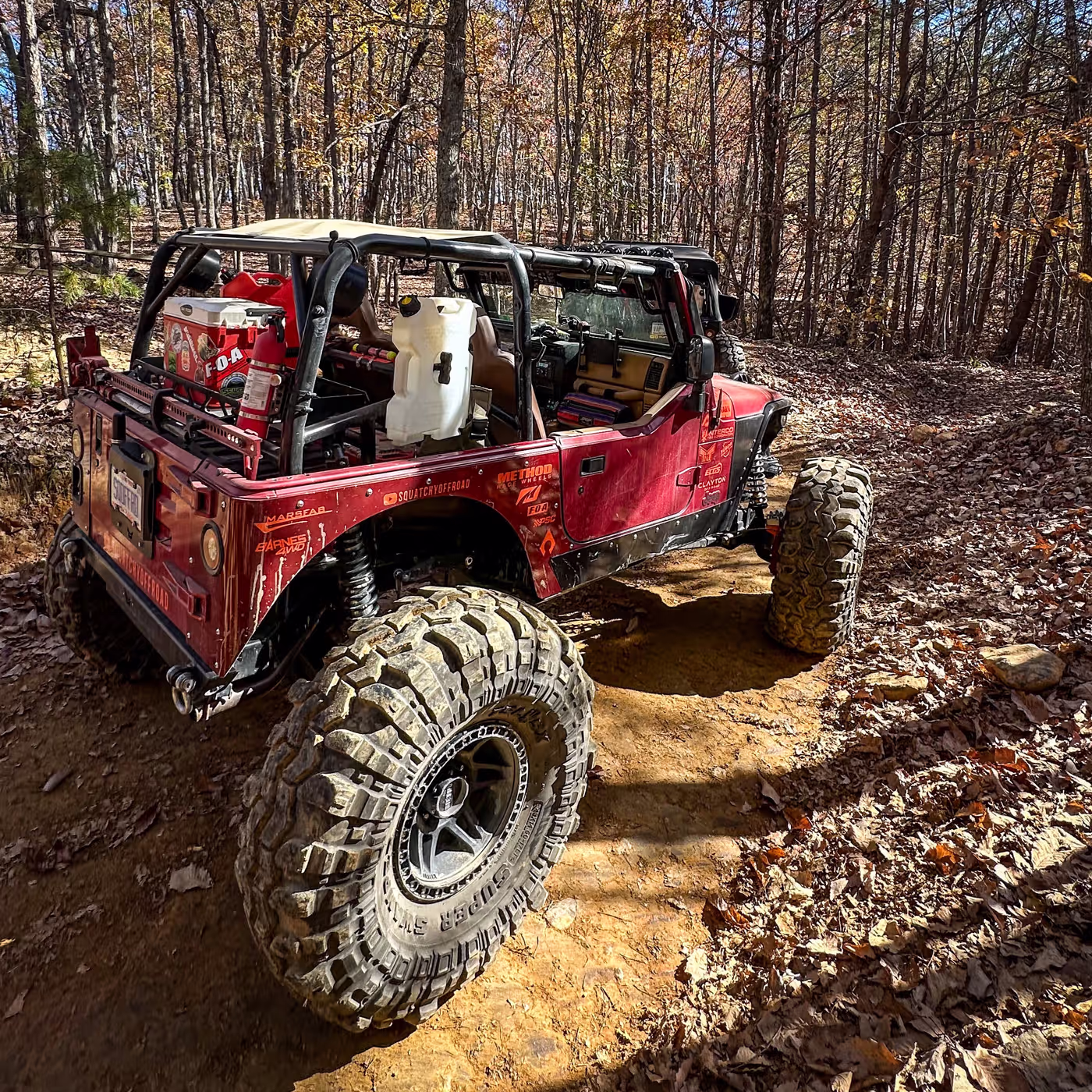

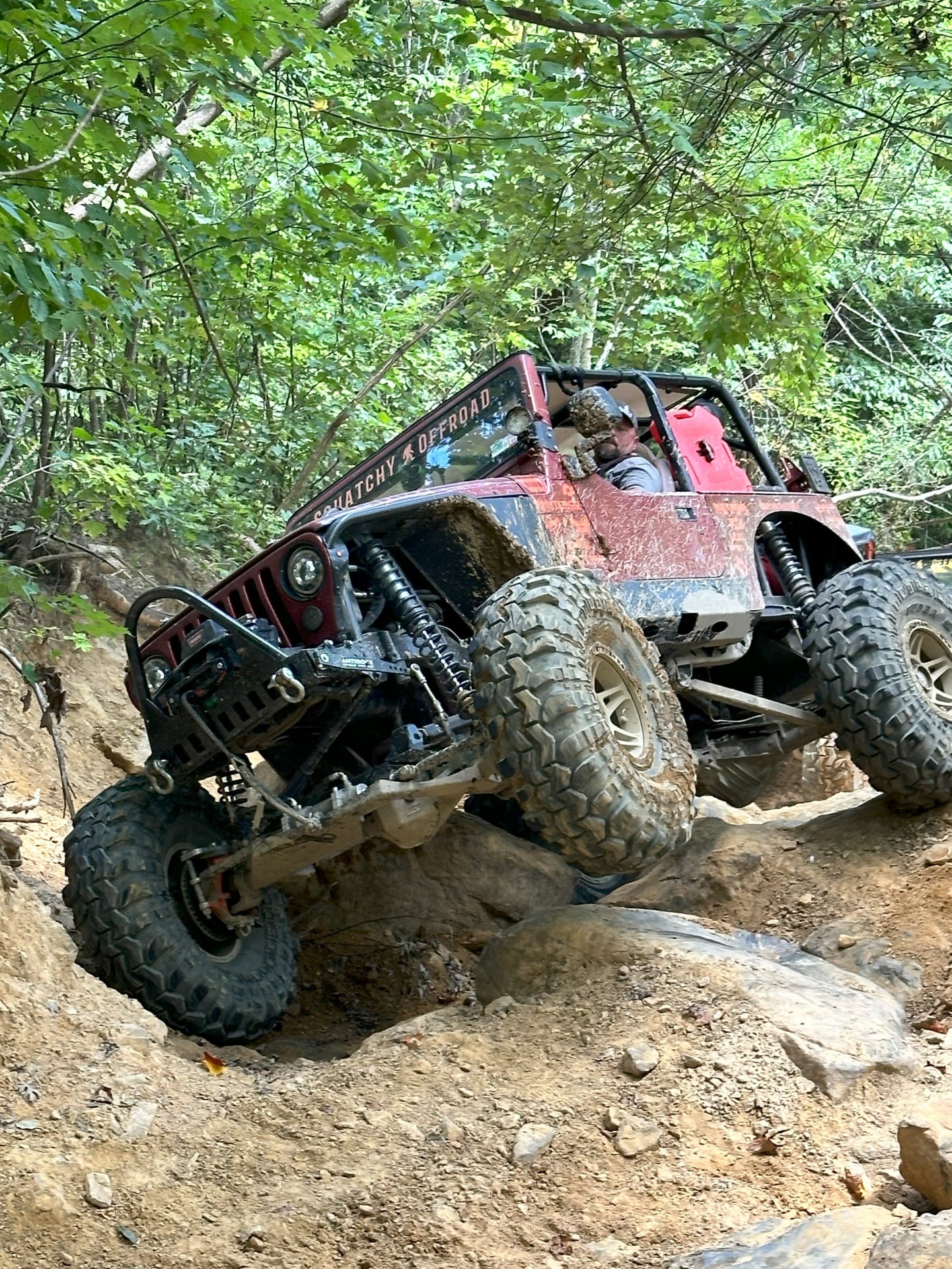

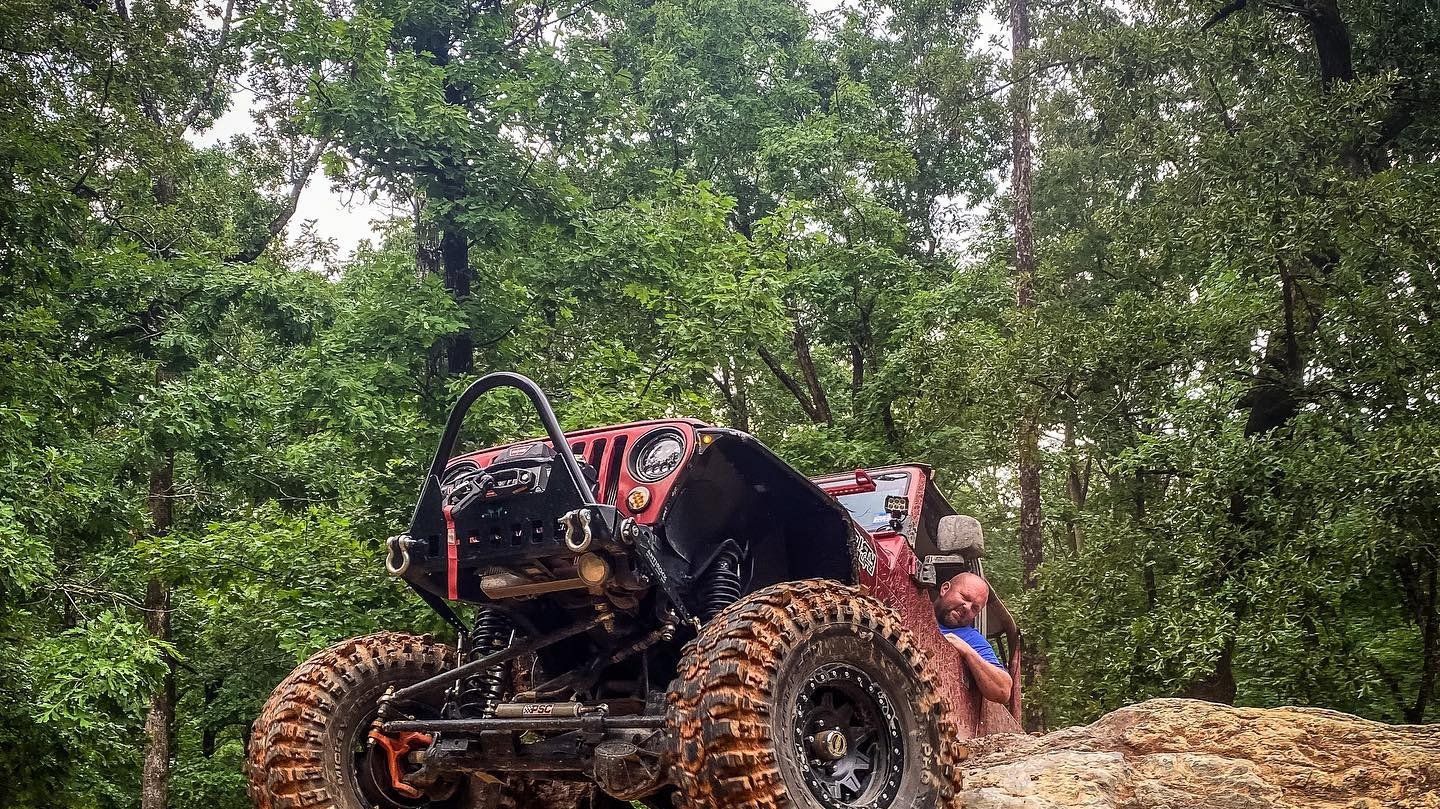

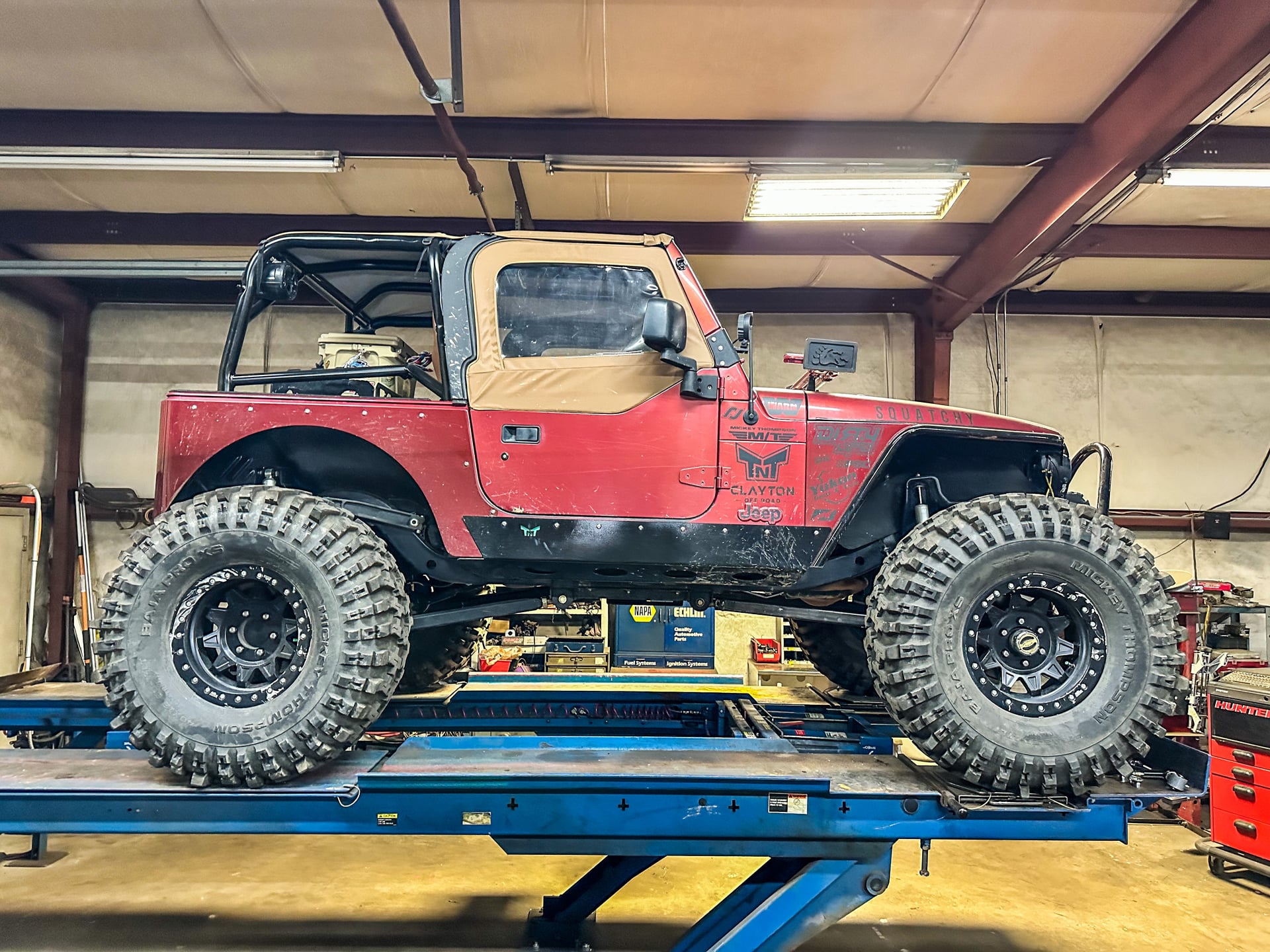

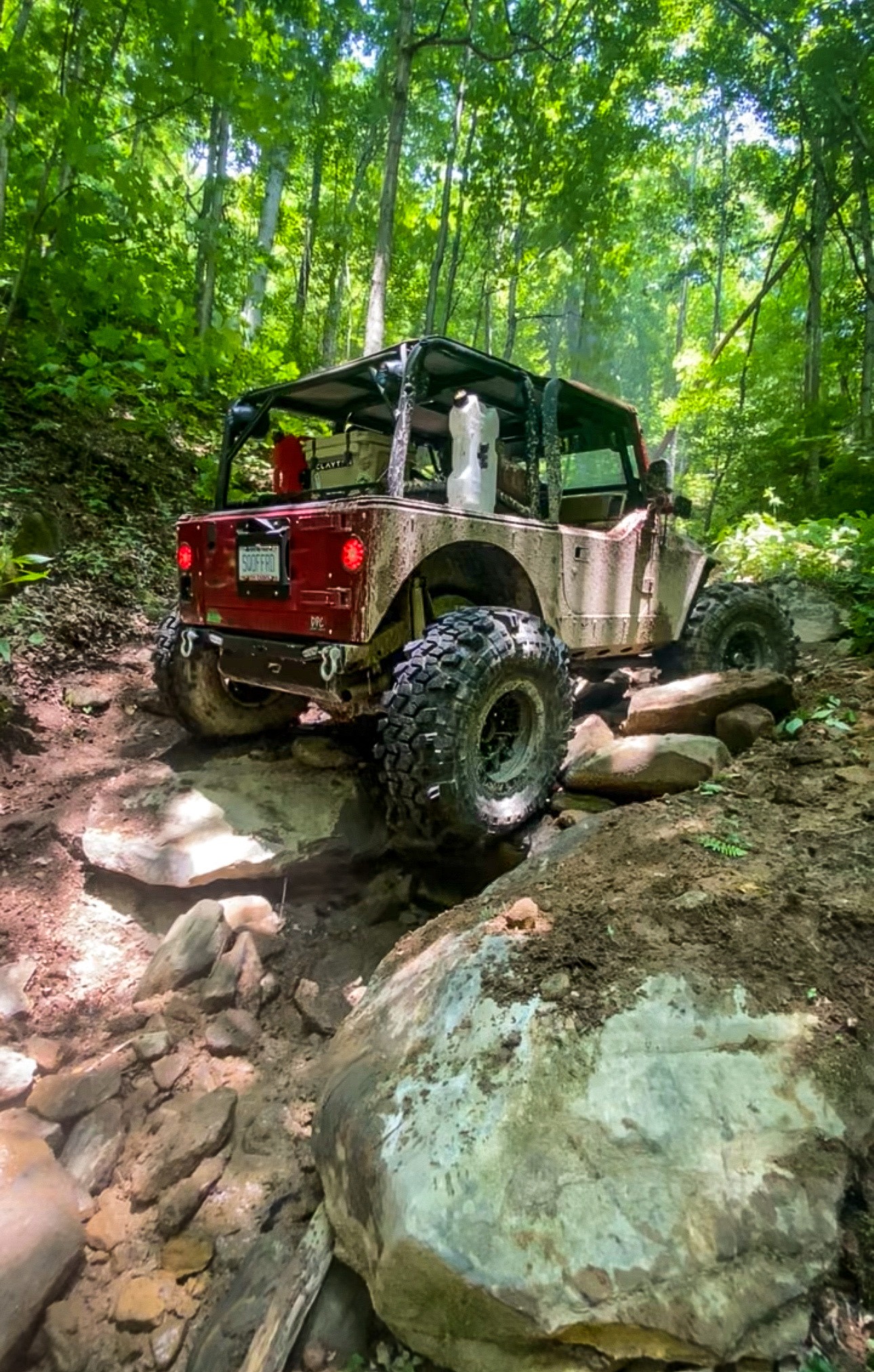

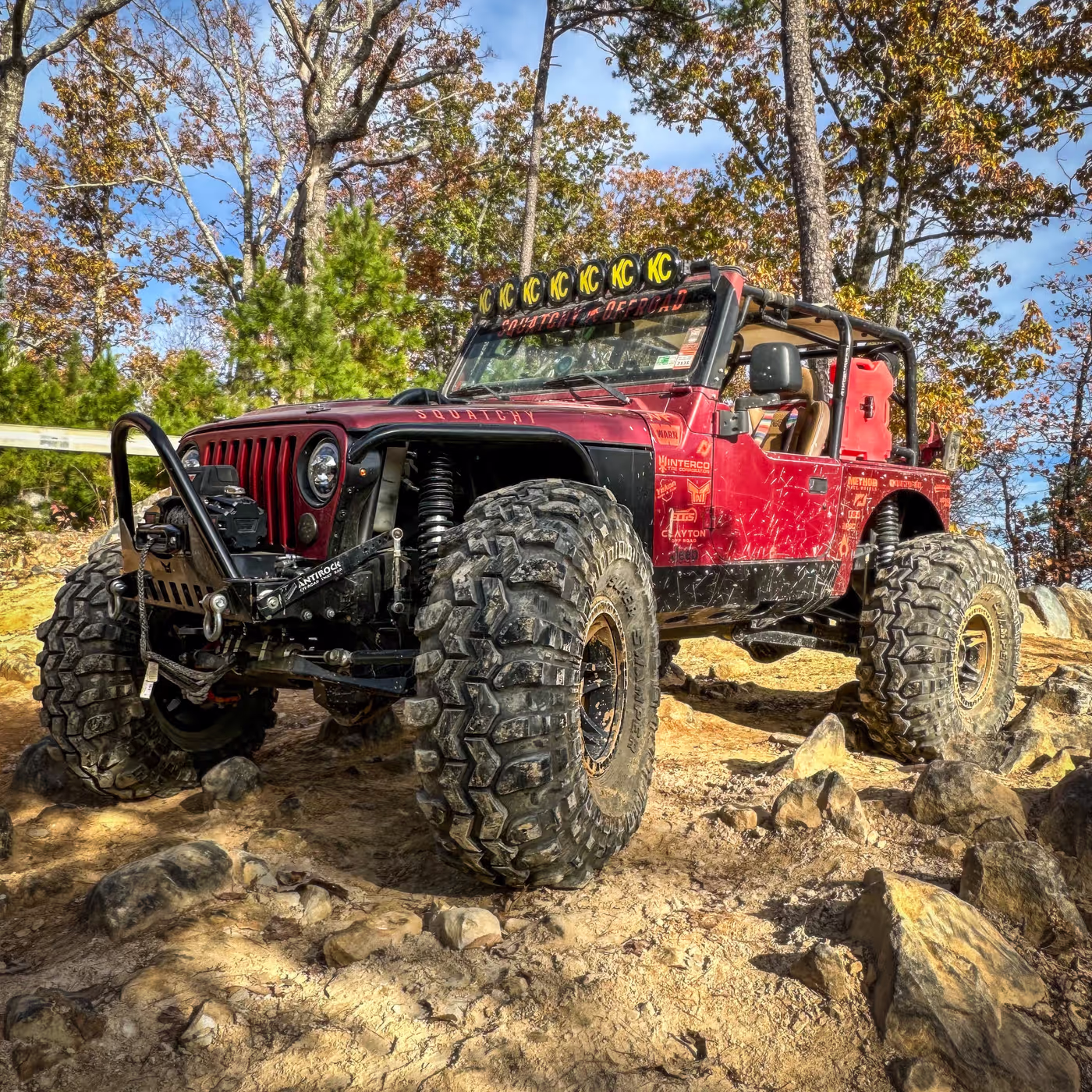

Squatchy TJ

1998 Jeep Wrangler TJ SE Sport Utility 2D

Found a ‘98 stock Jeep TJ, with a 4 cylinder, and decided to build it to wheel. Started out doing full width axles on 37’s… and that just wasn’t enough. Changed out the 4 cylinder to 4.0 6 cylinder, swapped in 5.38 gears, high clearance fenders, and 40’s to get it where it is today. Still more upgrades on the way.

Brakes

Disc Brakes F&R

Drivetrain

Knoxville Driveline Front & Rear Rock Shafts

Yukon Hubs

Front: 78 Ford HP Kingpin Dana 60/Yukon 5.38 Gears

Reid Racing Knuckles

Motobilt Truss

Motobilt Diff Cover

Rear: 05 Chevy 14 Bolt/ Yukon 5.38 Gears

Barnes 4WD Hydro Mount on Front Axle

Yukon Chromoly Shafts & Yukon Grizzly Lockers F&R

Engine

4.0 6 cyl

AW4 Jeep Cherokee Transmission

07-11 JK Rubicon 4.1 Transfer Case

Exhaust

Magnaflow Header with Spintech Muffler

Exterior

TNT Customs Front Bumper

TNT Customs Guardian Sliders

Mullner Fab Ultra High Line Fenders

TNT Customs Rear Quarter Stretch Armor w/YJ Filler

TNT Customs Tag Relocation Bracket

Hi-Lift

Clayton Off Road Belly Skid

Clayton Off Road Engine & Tranny Skid

Intake

Custom Cold Air Intake

Interior

GMRS Radio

Kicker Midrange Speakers

Kicker Amp

Kenwood Marine Single Din Head Unit

PRP Enduro Elite Reclining Suspension Seats

PRP Harnesses

Mars Fab Offroad Custom Cage

Element E50 Portable Fire Extinguisher

PRP Steering Wheel

Winters Performance Shifter

JB Custom Fabrication Transfer Case Shifter

Squatchy Offroad Custom Built Center Console

RADesigns Shift Controller

Snap On Tools Shifter Handles

JBL 12" Subwoofer

Lighting

KC Hilites Gravity Pro6 Lightbar

LED headlights/ park lights / taillights

MicTuning Q1 RGBW LED Rock Lights

Other

Daystar Motor Mount Kit

Prothane Transmission Mount

6 Gang Switch Panel w/Relay Circuit Control Box

Mishimoto Performance Aluminum Radiator

Recovery Gear

Warn VR EVO10-S Winch w/ Synthetic Rope

Factor 55 Recovery Kit

Bigfoot Winch Rope Soft Shackles

Steering

Artec High Steer Double Shear Steering Arms

Barnes 4 WD Steering Kit

PSC Full Hydro Kit

Suspension

Squatchy Offroad Custom Built Front Control Arms

14 Front FOA Coil Over Front - 16 Rear FOA Coil Overs

Clayton 3 Link Front Frame Brackets

Clayton 4 Link Rear w/Triangulated Uppers 5" Stretch

Rock Jock Antirock Sway Bars Rear

Motobilt Front Shock Hoops

Tires

Super Swamper 43" TSL Stickies

Wheels

17x9 Method Race Wheel Beadlocks
