Spool Bus

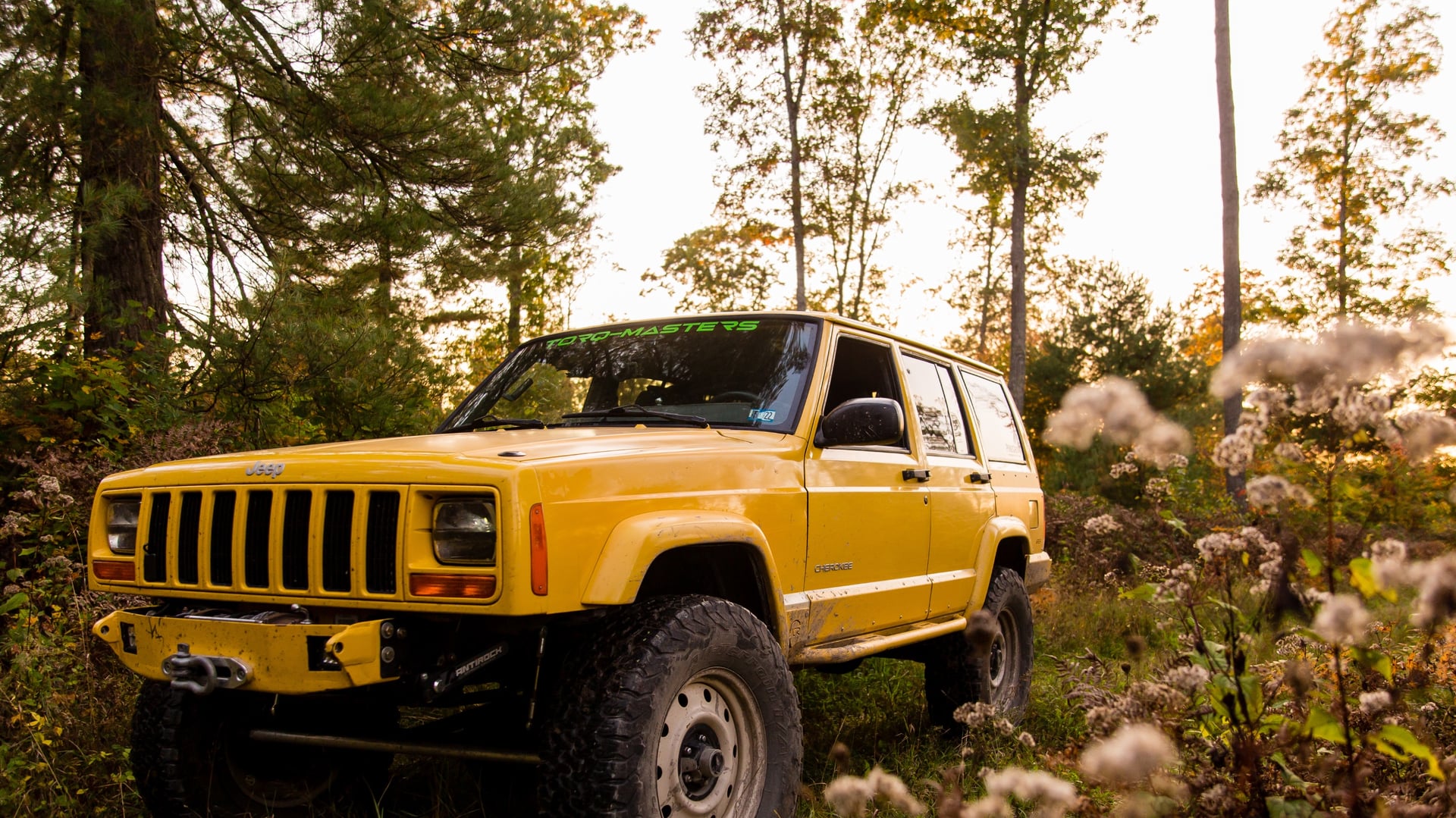

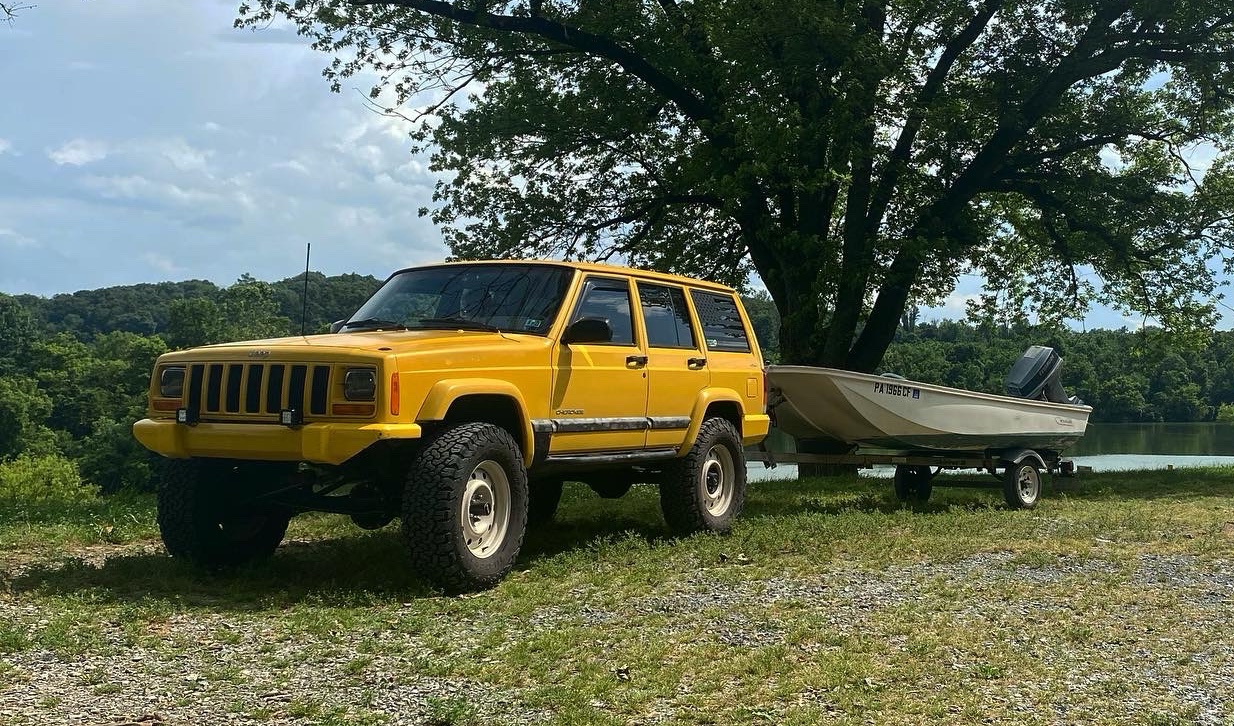

2001 Jeep Cherokee XJ Sport 4WD 4dr 4x4

I’ve always dreamed of a Diesel XJ, I finally own it and after building every aspect of it to spec (and more to come) I can honestly say it is everything I dreamed of and more. Follow me on IG for tons of pics and video clips, and feel free to ask me anything you’re wondering about the swap! Spool Bus 2.0 COMING SOON - 225HP/400+TQ TDI, 35's, Notch Flares, Refreshed Body, Paint, Suspension, Interior

Brakes

WJ Brakes (front)

ZJ Disc Conversion Rear

Drivetrain

AX-15 Transmmission

TD Conversions (Northwest Fab) TDI To 4.0 Adapter

Centerforce High Inertia 4.0 Flywheel

Behemoth Drivetrain Strongbox Doubler 2.73:1

Flipped Dana 300, Twin Stick

Adams Driveshaft Custom Front & Rear Shafts

MileMarker Freespin Hub Kit w/ Warn Hubs

Dana 30 HP Front with Beefed with Barnes 4WD Parts

Chrysler 8.25 Rear 29 Spline Disc Converted

Dr. Z Fabrication HD Differential Covers

4.10 Ring & Pinion

TORQ Locker Front & Rear

Engine

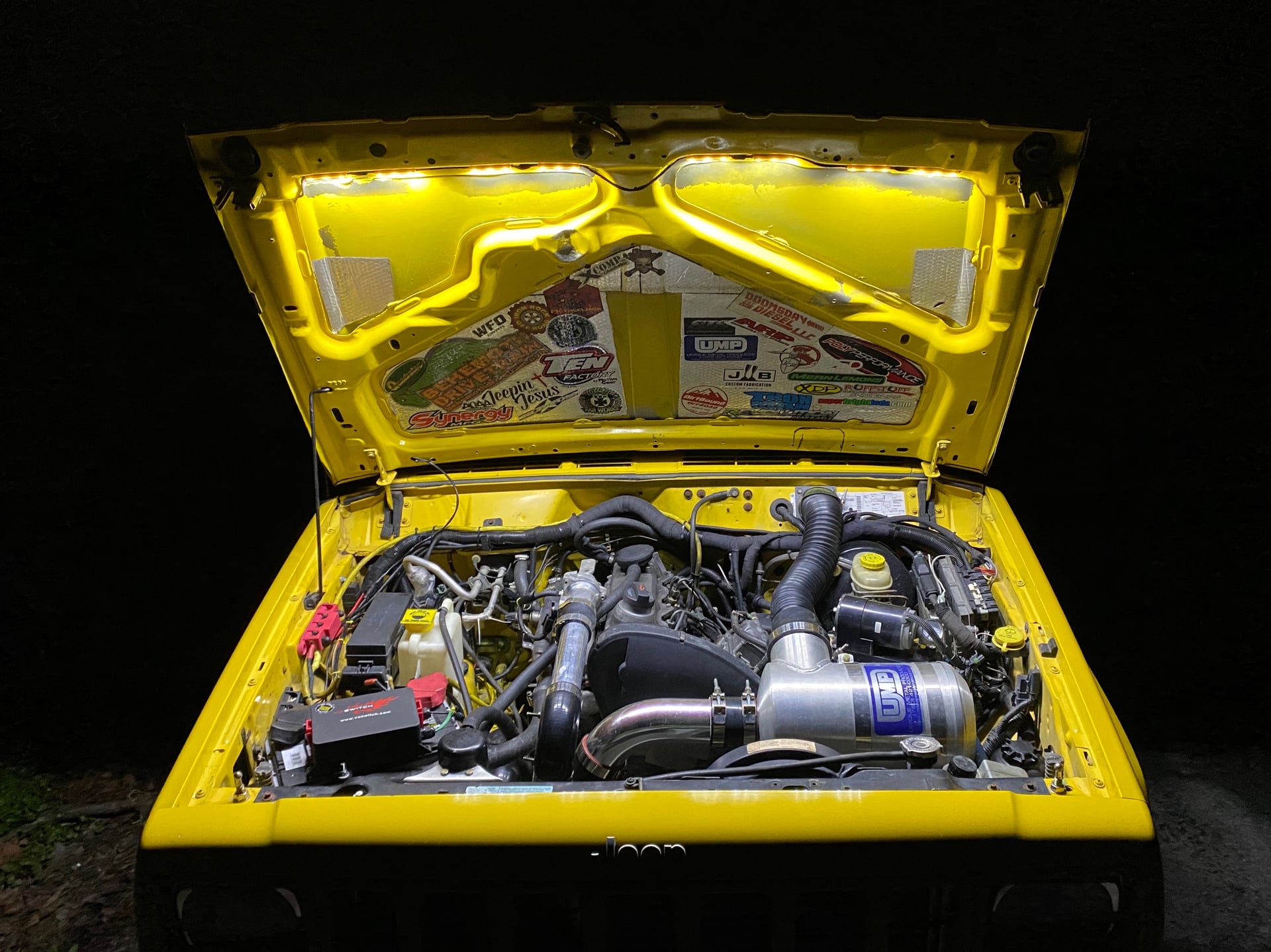

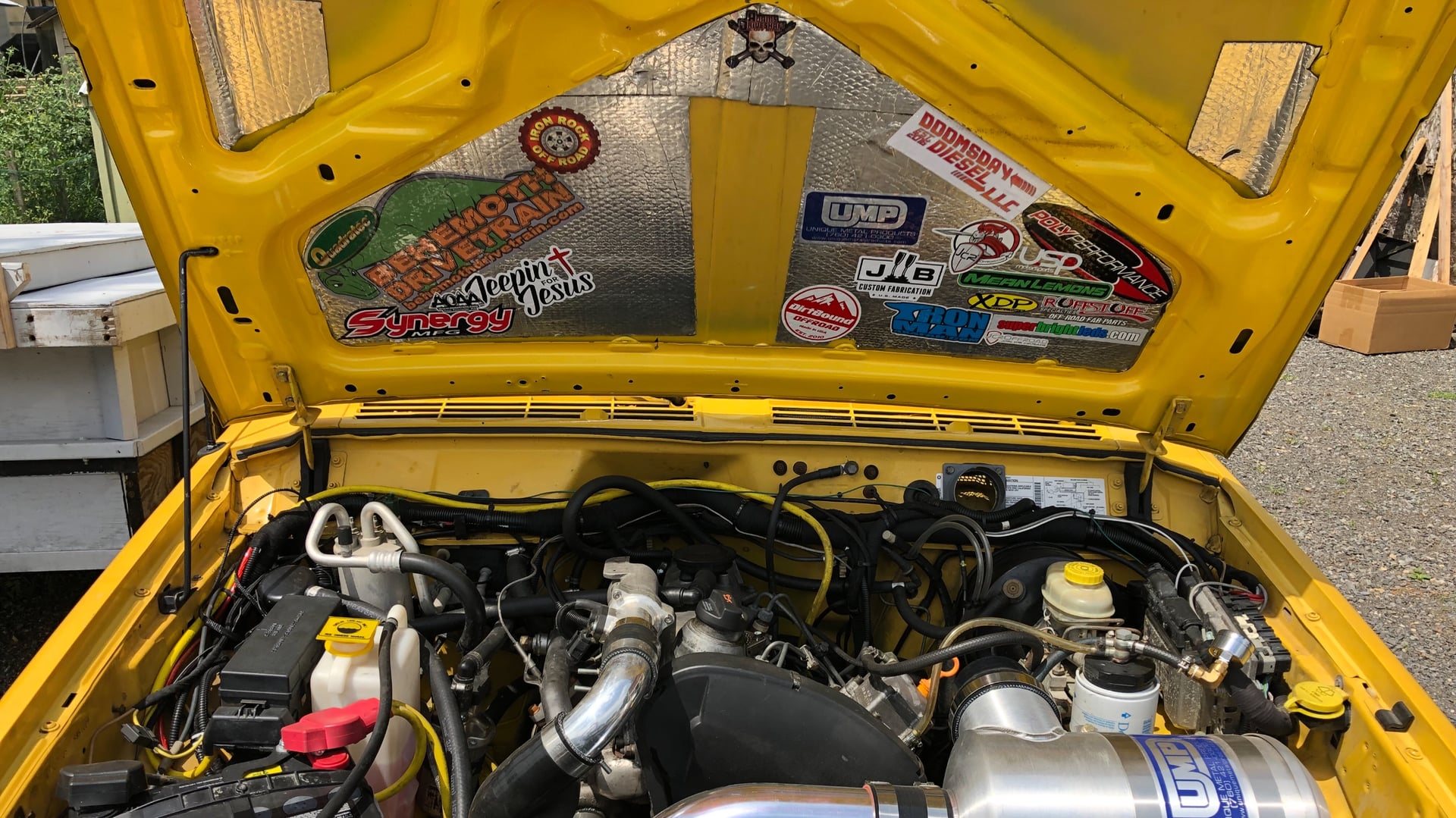

Volkswagen 1.9 TDI Turbo Diesel (ALH)

Garrett GT1749VB Billet Compressor Wheel & VNT20 Housing

.260 Nozzles

ARP Head Studs

AirDog FP100 Fuel Preperator

Malone Stage 4 Custom Tune

Exhaust

2.5” Custom Stainless Steel Exhaust

MBRP 16" Resonator

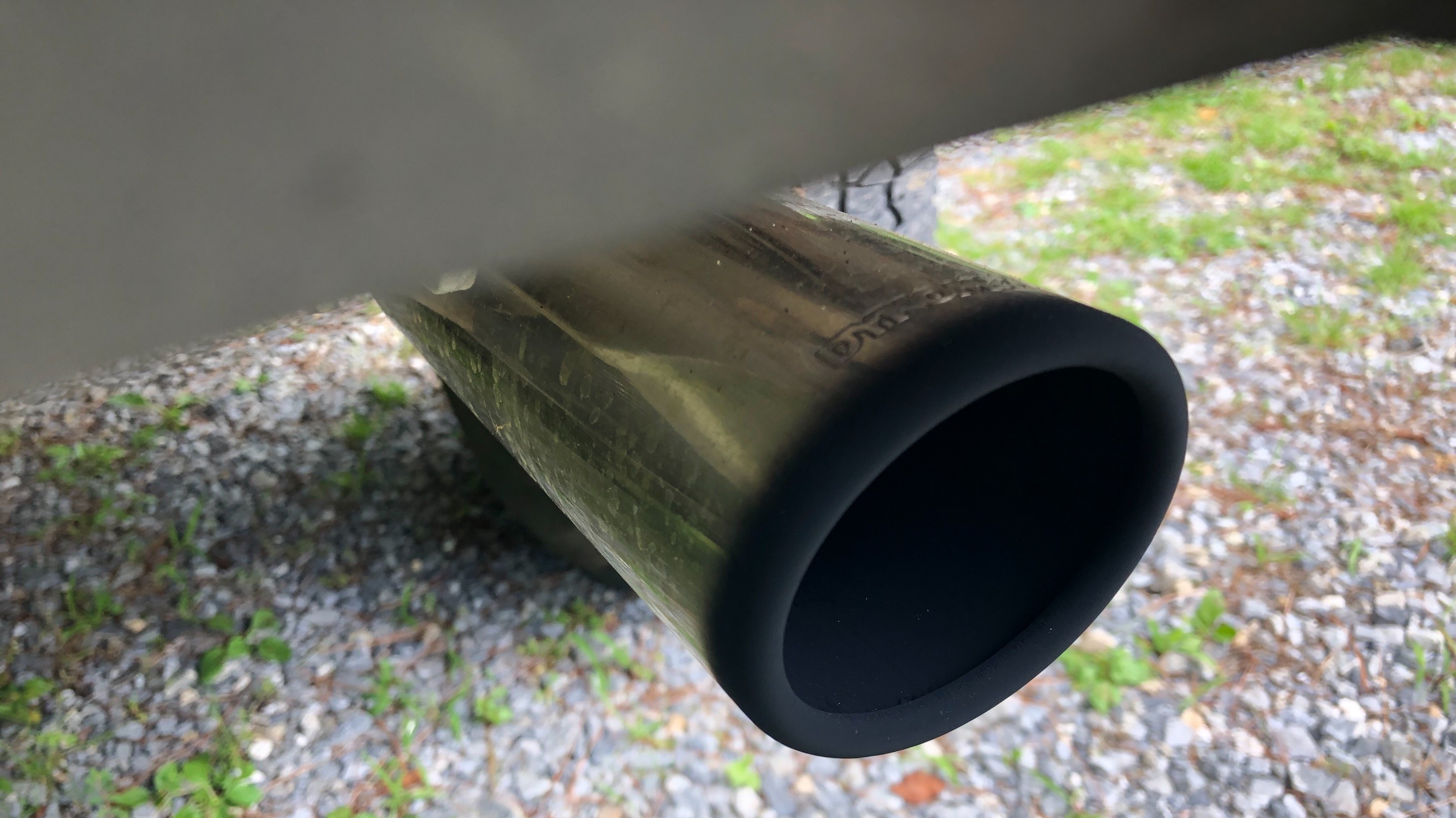

Dynomax 12" Stainless Exhaust Tip

Exterior

Factory Original Solar Yellow Paint

JCR Crusader Sliders

JCR Lower Quarter Panel Armor

Custom Rear Bumper with Storage & Swing Out

Custom Front Winch Bumper with Warn M8000

Ares Fab Quarter Armor

Body Armor Color Matched with Monstaliner

Intake

Unique Metal Products Superfilter

PD150 Intake & EGR Delete

Front Mount Intercooler

Interior

Rhino Liner floor By Mount Zion Offroad

Husky Liners

Upgraded Limited Cloth Seats with added Lumbar Support

8.8" Android Based Headunit by Joying with Rearview Cam, Torque Pro Gauges

Rock Knob Shifter, made with a rock from my childhood home

Lighting

Rigid Spot Lights on Front Bumper

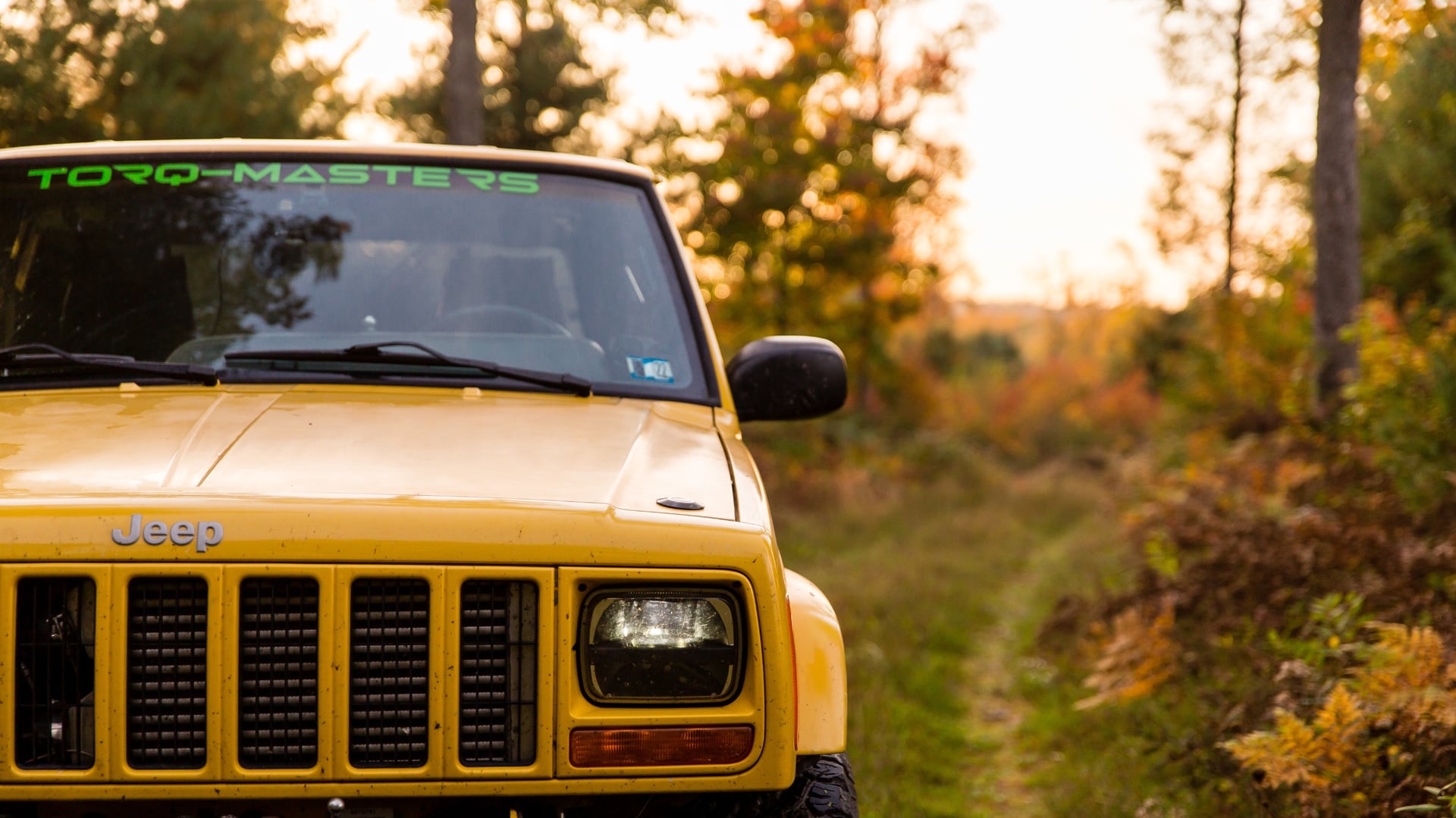

Bicyaco LED Headlights

Flush Mount LED Reverse Lights in Rear Bumper

All LED interior

Other

JCR Offroad Frame Stiffeners

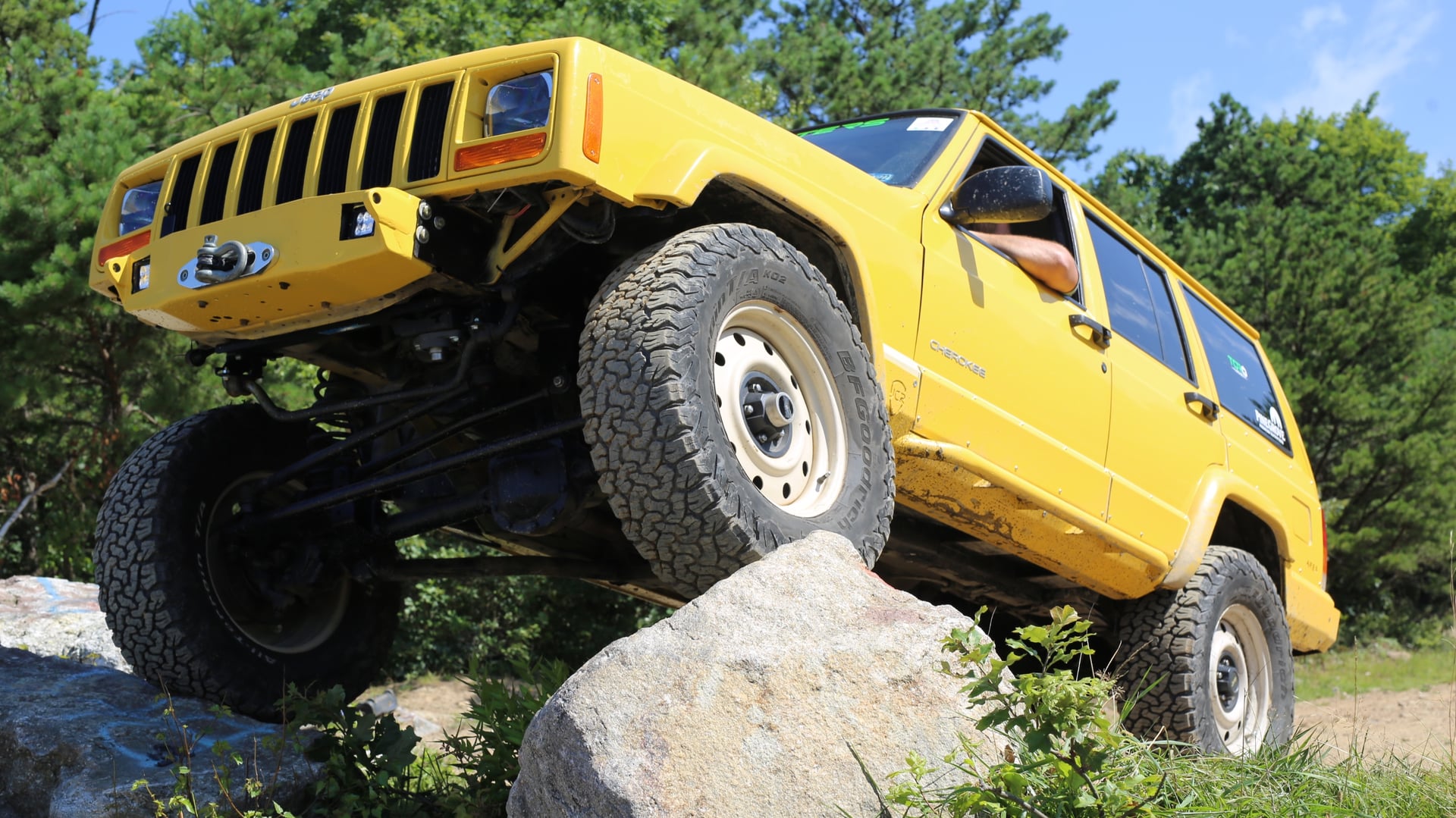

Suspension

Skyjacker 5.5" Dual Rate Coils

Bilstein 5100 Shocks

Iron Rock Offroad Critical Path 3 Link

Iron Rock Offroad Trackbar & Bracket

Iron Rock Offroad 5.5" Leaf Springs

Iron Rock Offroad Shackles

Wheels

33x10.5 R17 Milestar Patagonia

JK Rubicon 17” wheels
