Scrapyard JK

A 2017 Jeep Wrangler Jk build by @scrapyardjk

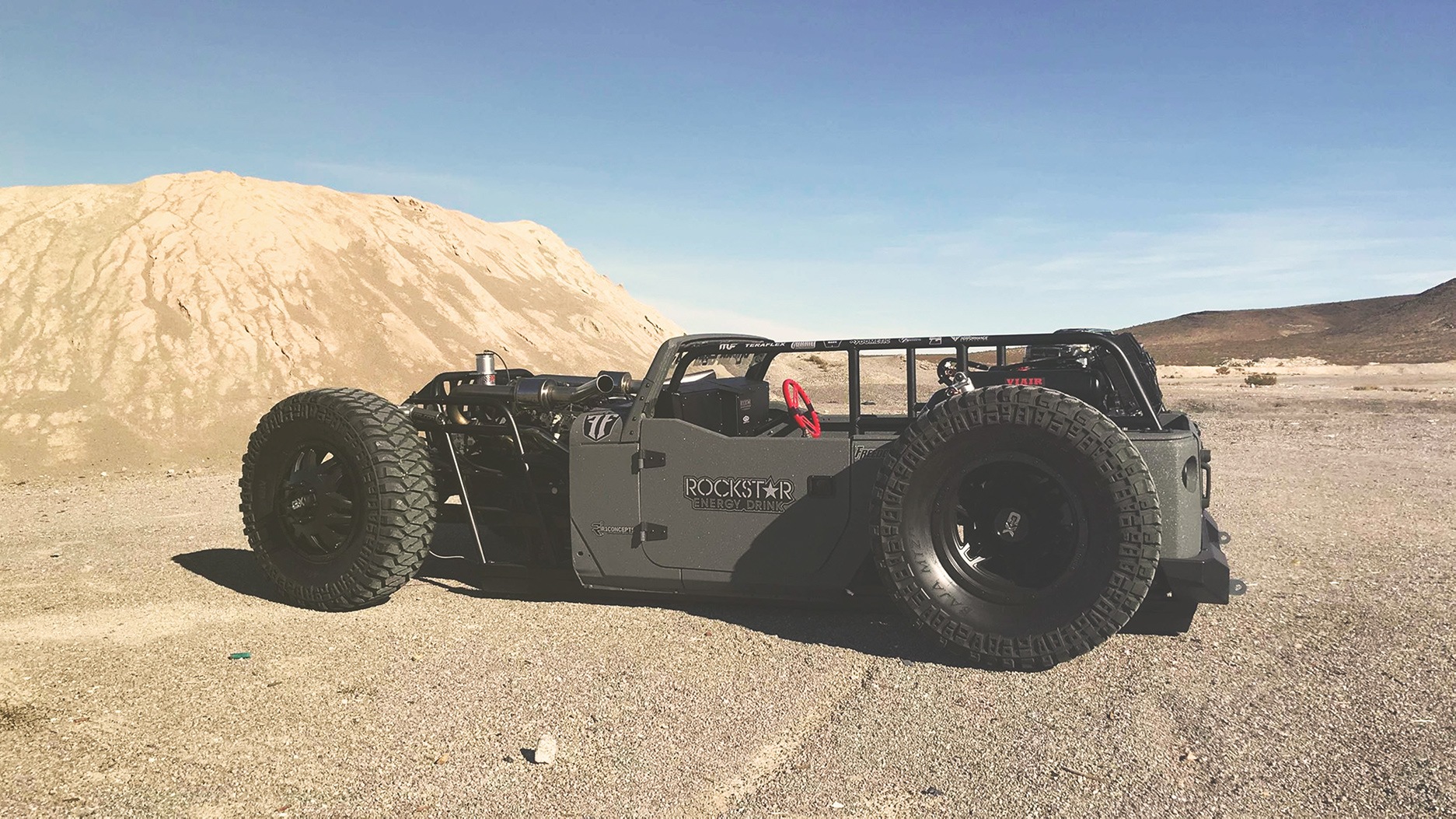

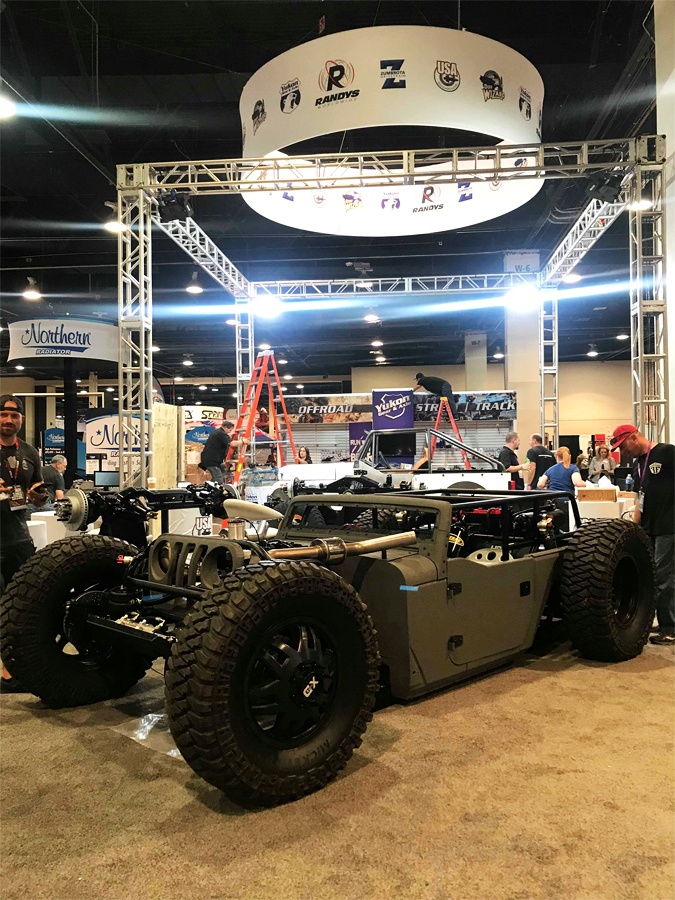

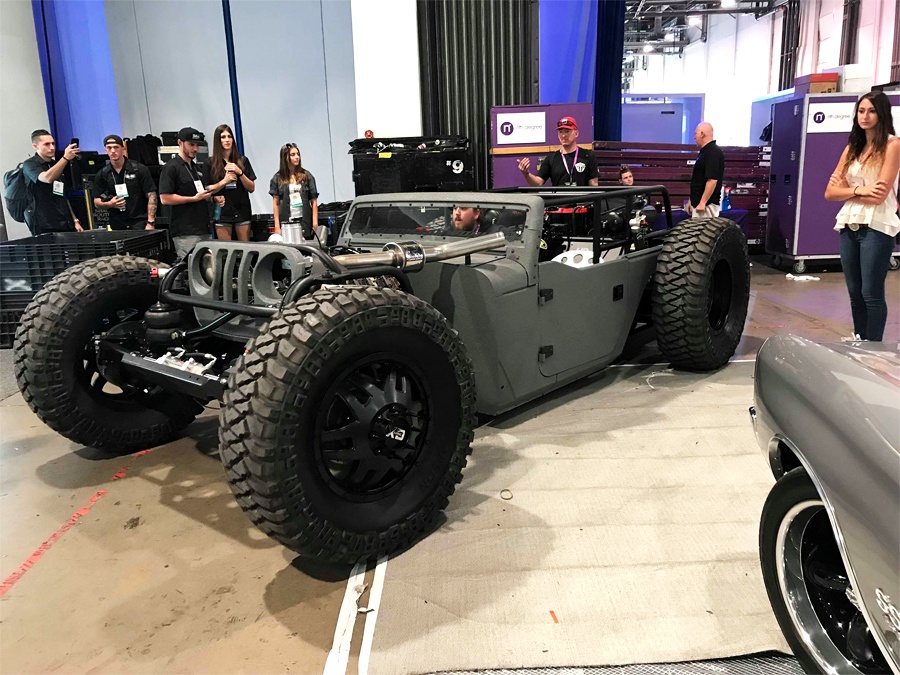

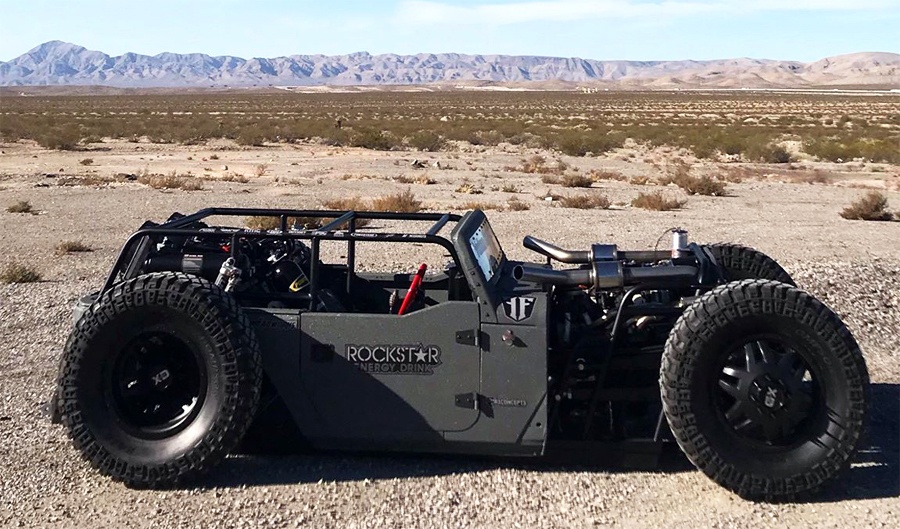

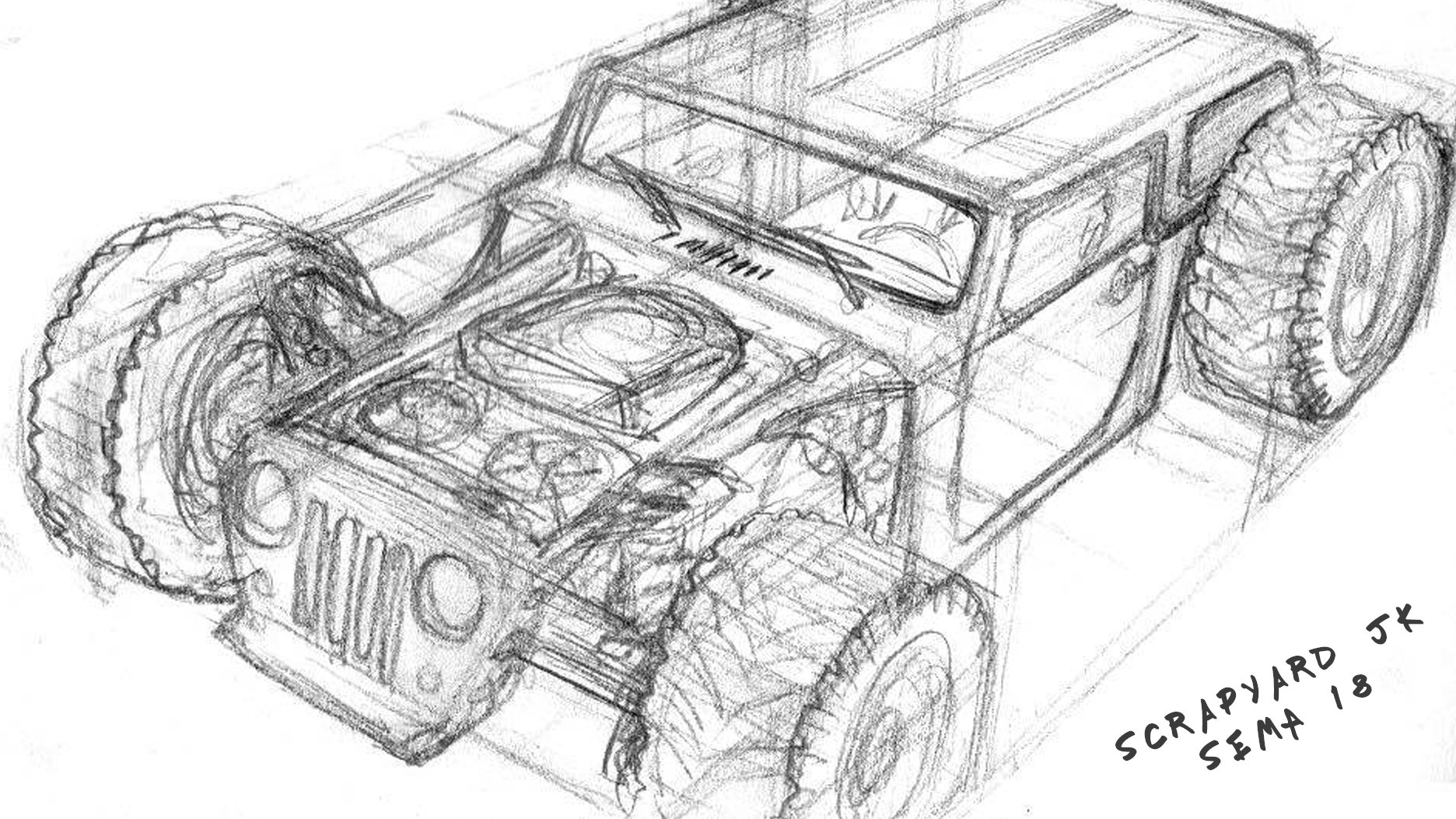

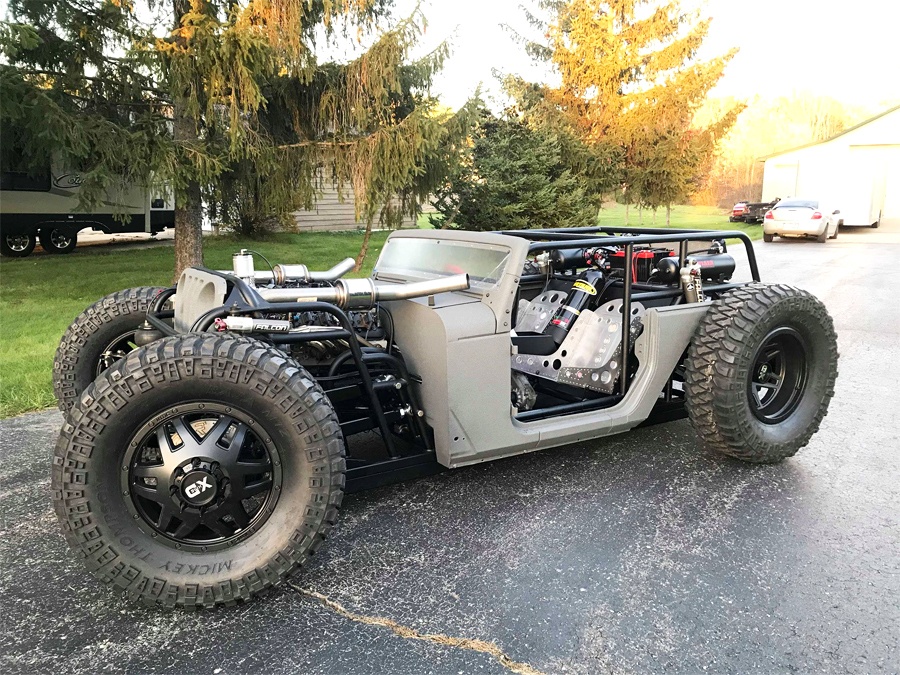

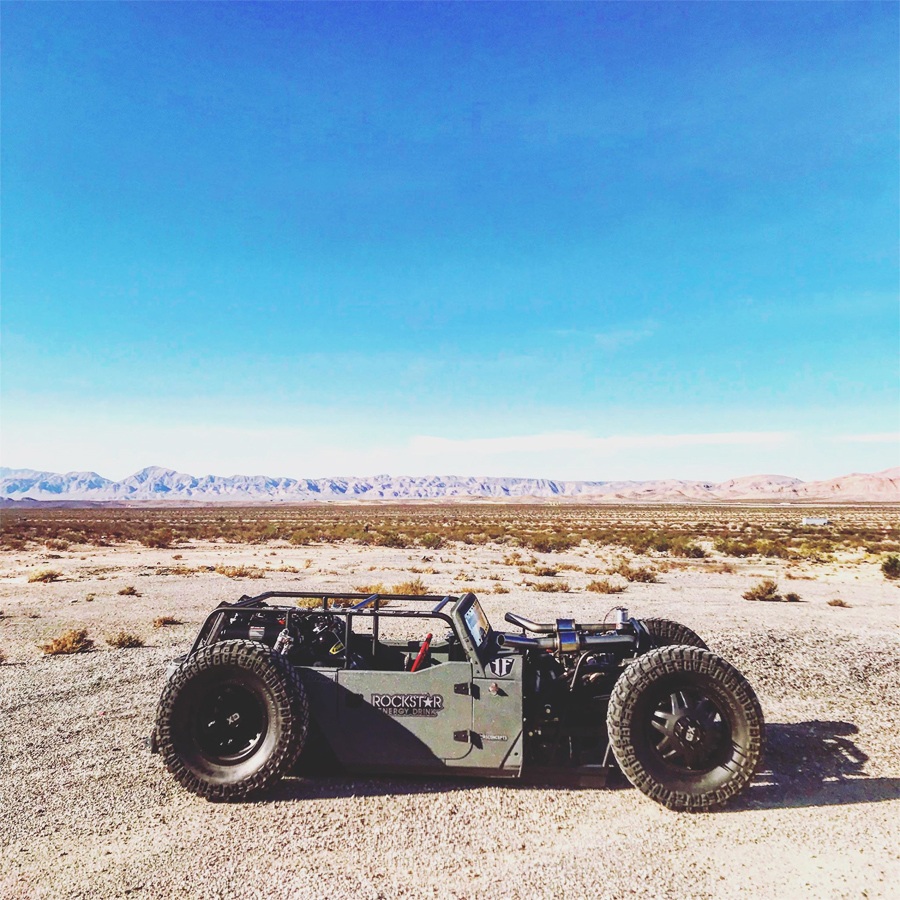

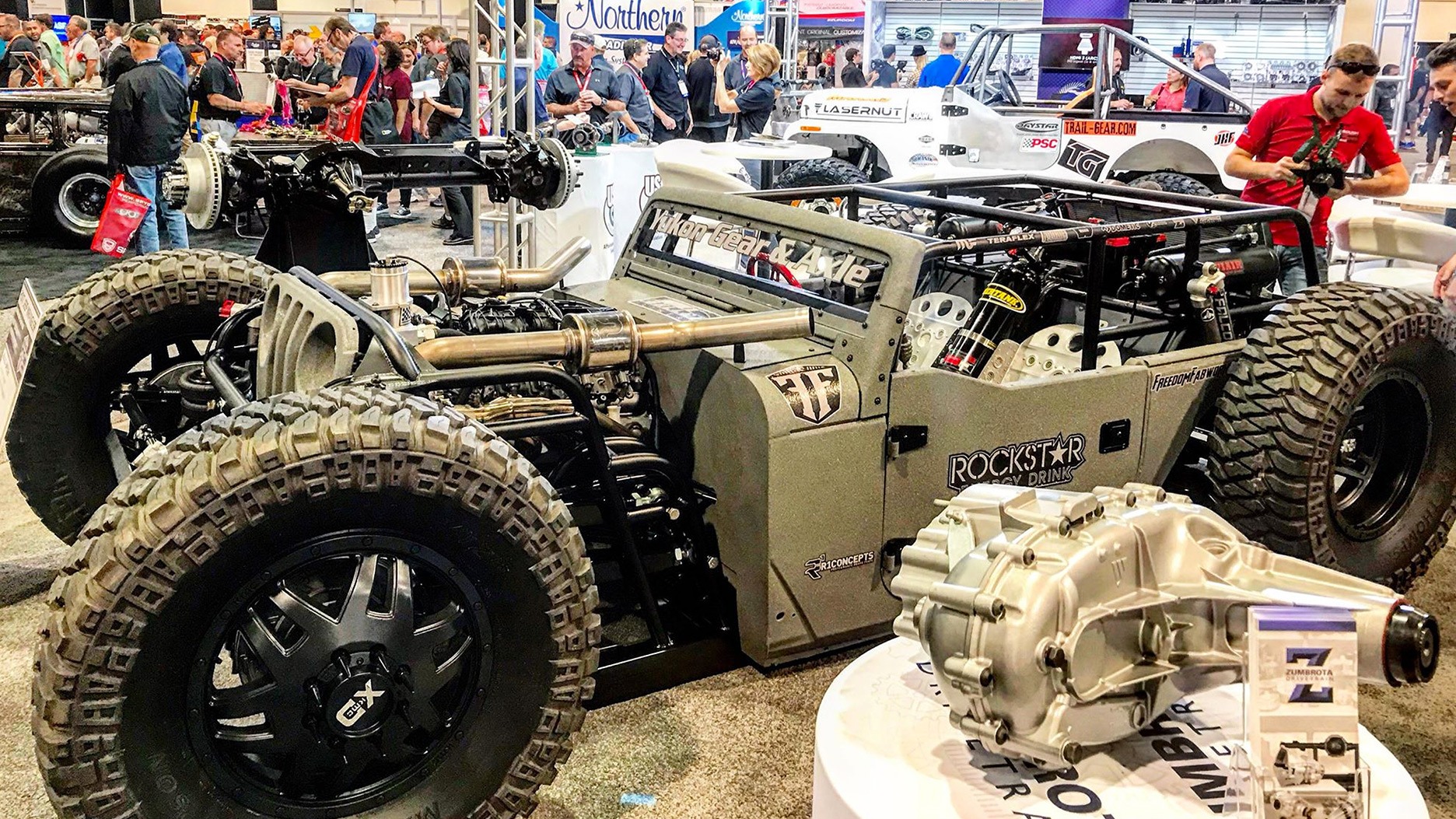

Scrapyard JK started as an idea with Rockstar Garage to blend a rat rod with a modern JK for SEMA 2018. The unlike other rat rods, Geoff wanted to keep this a true Jeep with four wheel drive. The result was a JK tub that was shortened and narrowed, custom roll cage, standalone engine swap, and giant 40" Mickey Thompson tires. Featured in the Yukon Gear and Axle booth, it was one of the most talked about Jeeps at SEMA!

2017 Jeep Wrangler Jk

Build Details


  • 6.0 LS


  • Custom


  • Custom exhaust using Magnaflow Mufflers


  • 4L80 Transmission
  • Ford F250 Superduty Dana 60 Front Axle
  • Ford F250 10.5 Sterling Rear Axle
  • 5.38 Yukon Gears
  • Yukon Zip Lockers Front And Rear
  • 231 Transfer Case
  • Yukon Driveshafts


  • R1 Concepts

wheels & tires

  • 40x13.50x17 Mickey Thompson Baja MTZ
  • KMC Dually Wheels


  • Custom Airlift Suspension
  • Custom 4 Link Rear Using Artec Industries Brackets
  • Currie Johnny Joints For 4 Link Rear
  • Pure Performance F250 4 Link Arms Front
  • Teraflex Falcon 3.3 JK Shocks

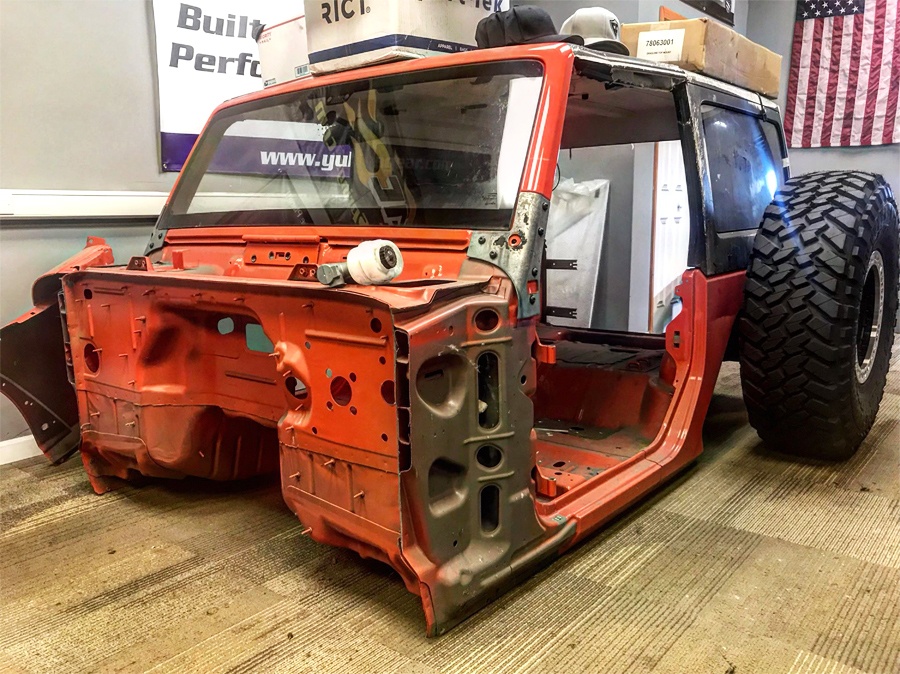

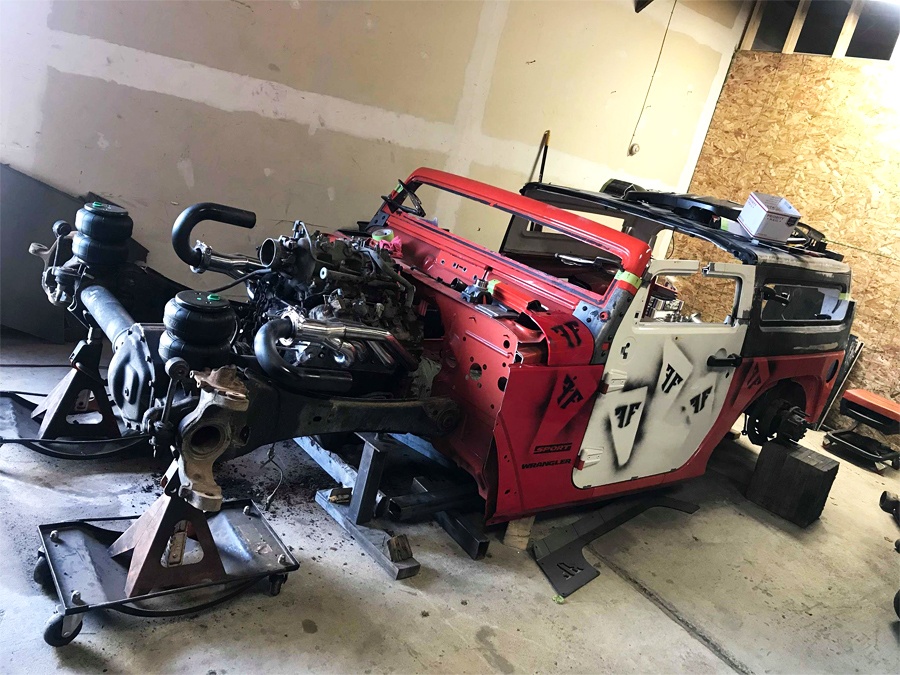

  • Modified JK Tub - Narrowed 2", Height Shortened by 8"
  • Custom Built Frame

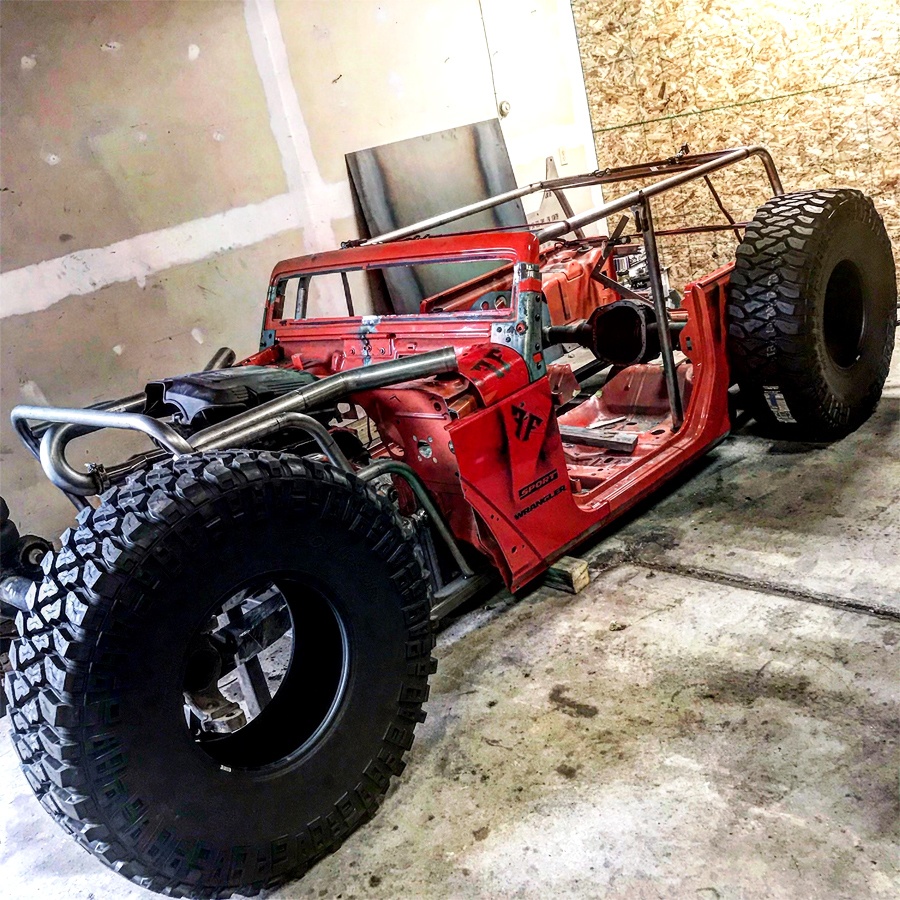

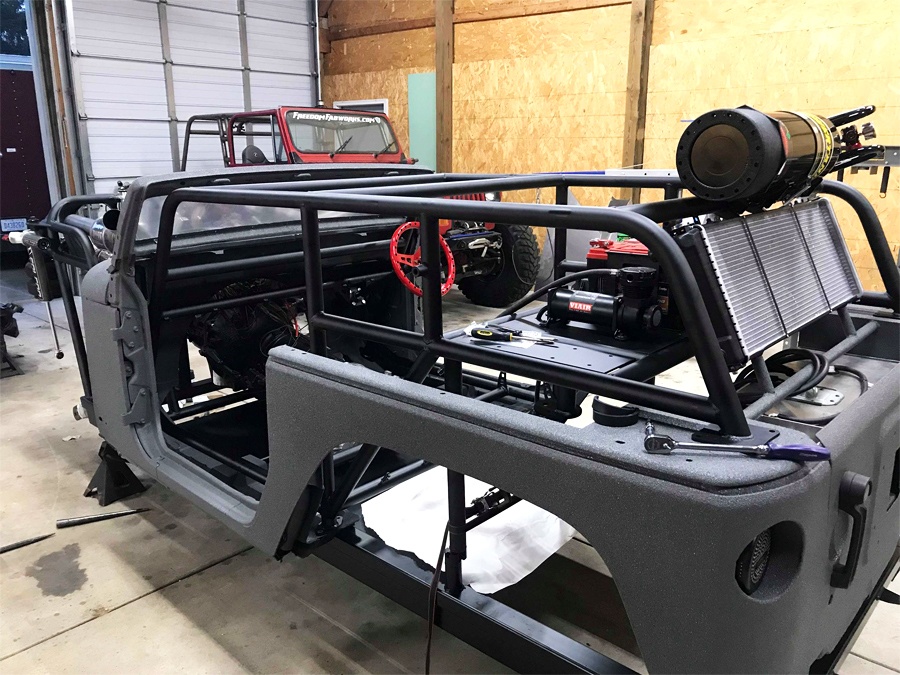

  • Custom Roll Cage
  • Genright JK Corners
  • Genright Rear Bumper
  • Genright Fuel Cell
  • JCR Offroad Aluminum Half Doors see it

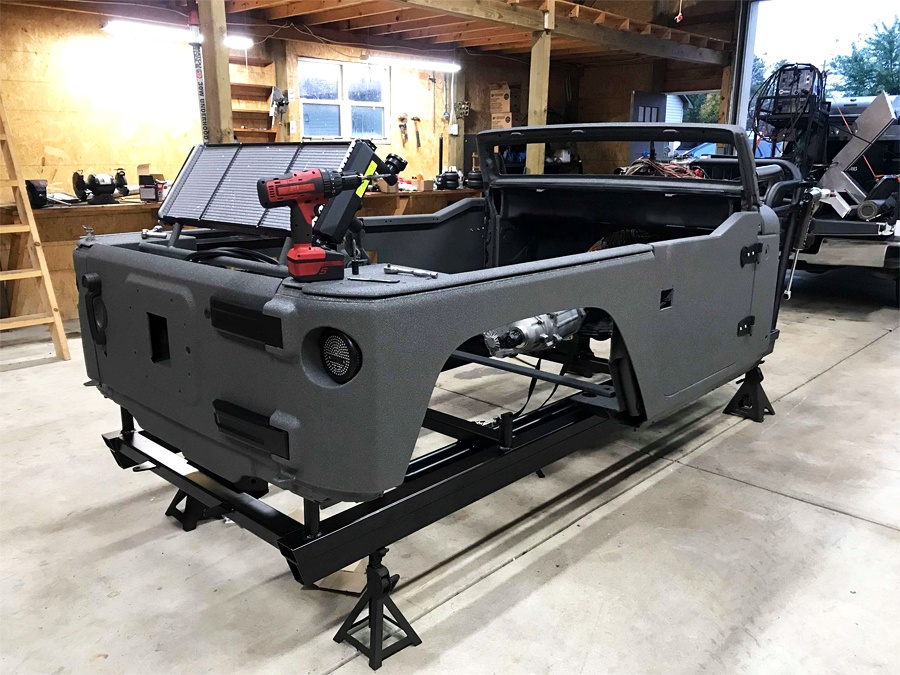

  • Bullet Liner Destroyer Gray Exterior Coating
  • Narrowed JL Grille


  • Bare Metal Bomber Custom Seats
  • Powertank 10 lb C02 Tank
  • Dual Viair Air Tanks
  • Viair Dual 480 Compressors

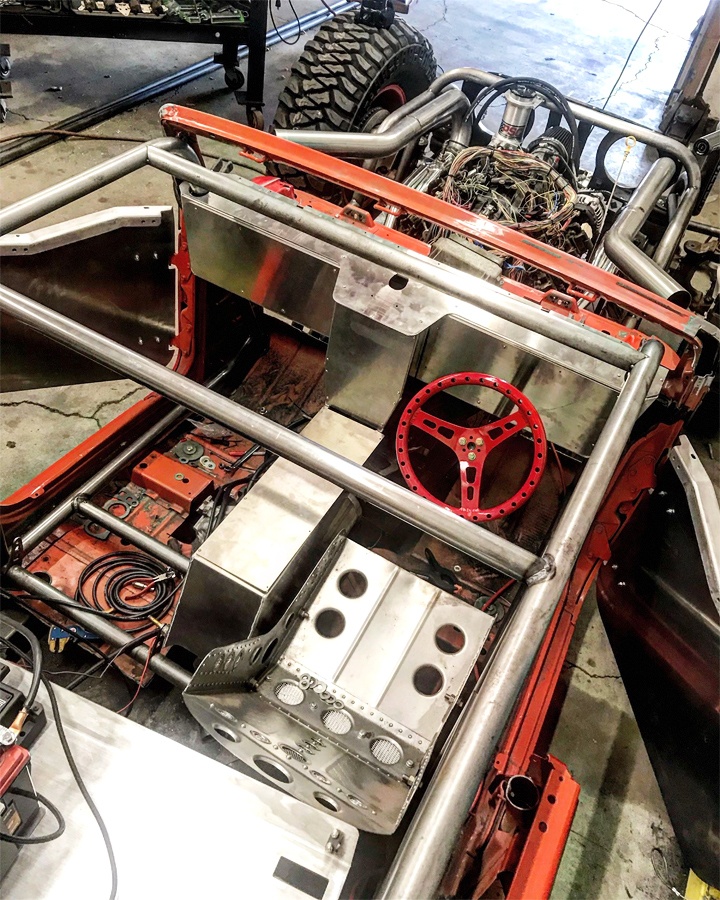

  • Custom RHD Conversion
  • PSC Steering Wheel
  • sPOD Bantam Switch System (Touch Screen)
