Recoil_TJ

A 1997 Jeep Wrangler TJ Sahara build by @Recoil_TJ

Under construction

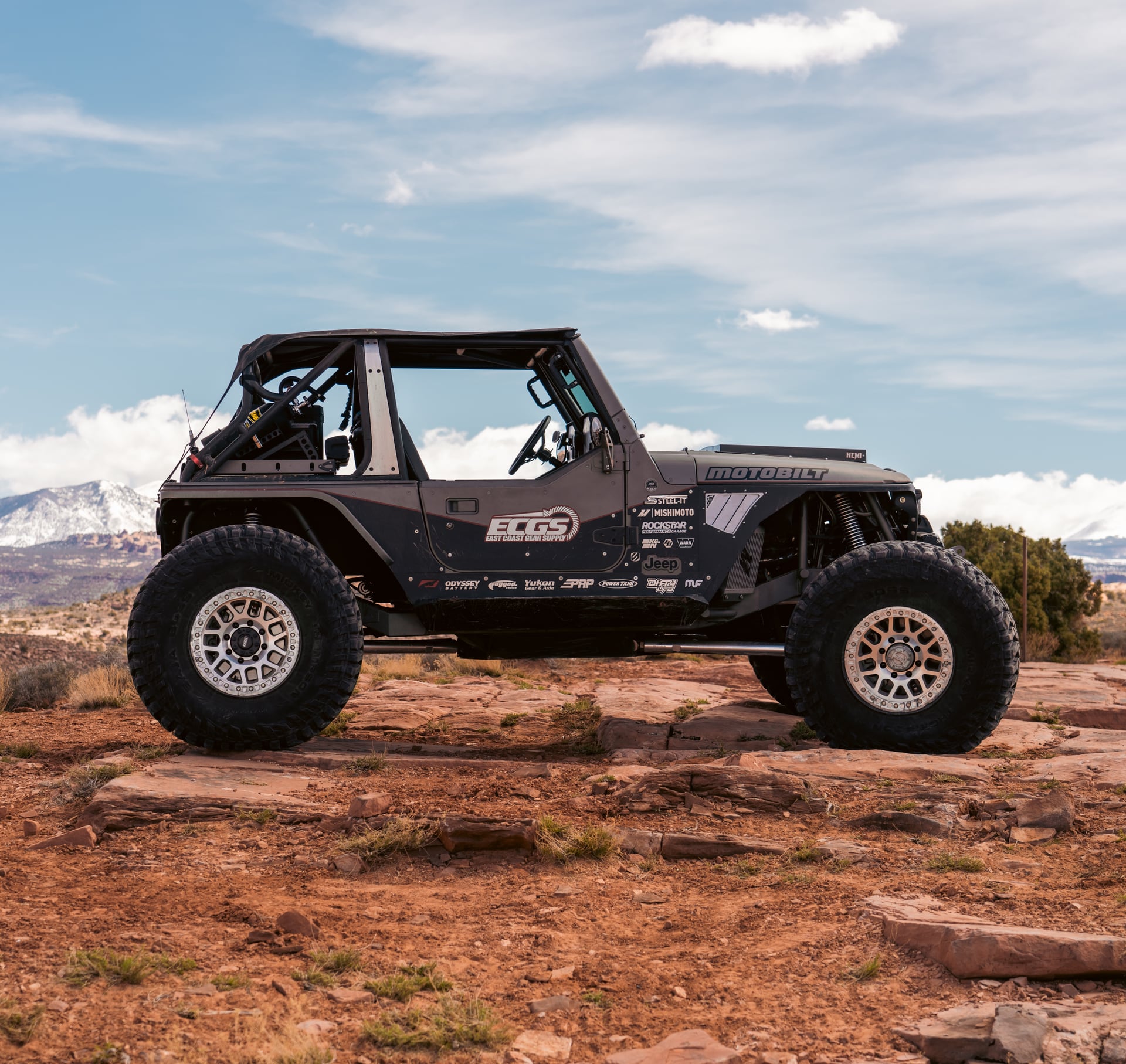

1997 Jeep Wrangler TJ Sahara

Build Details

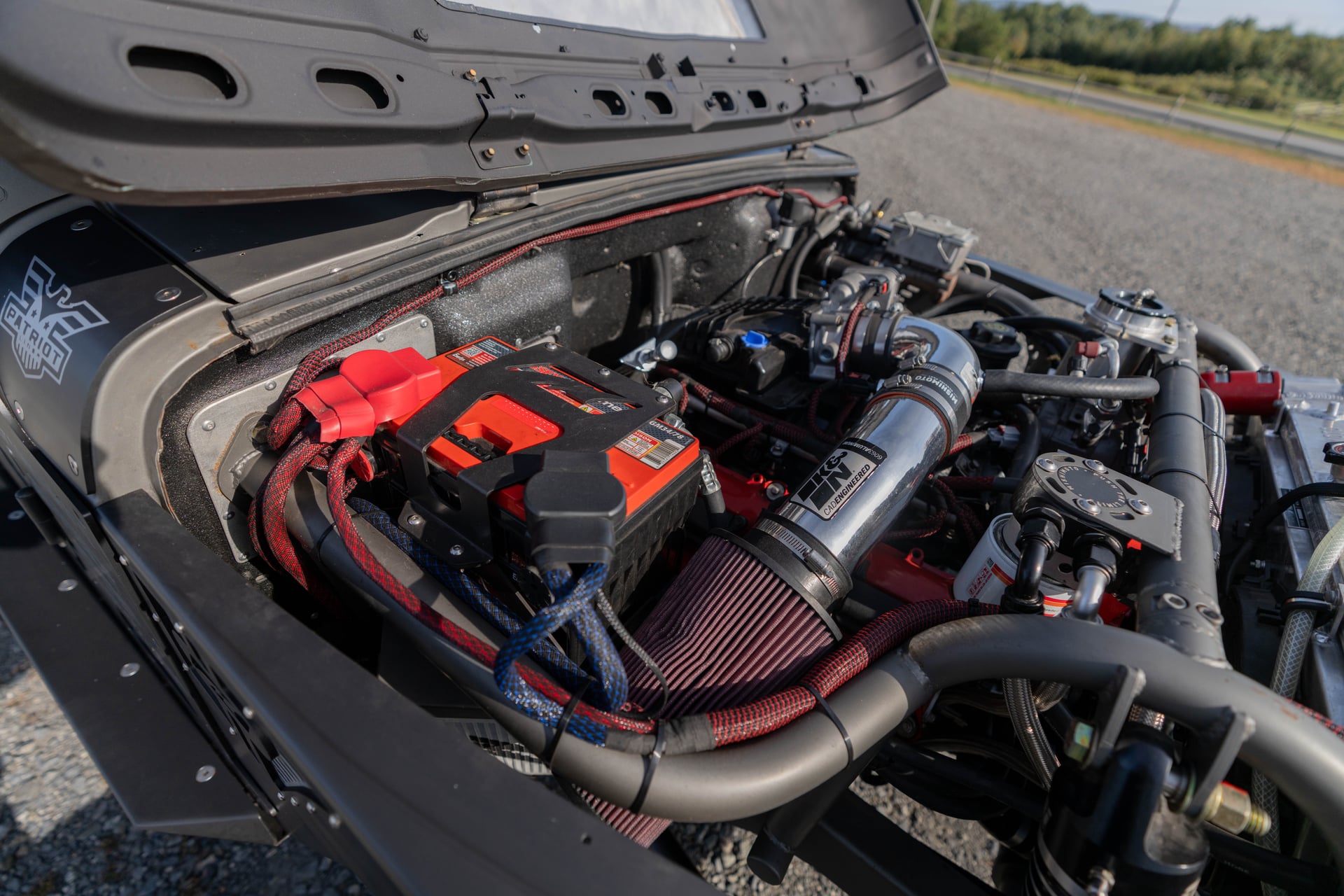

engine

  • 4.0L

intake

  • Stock

exhaust

  • Magnaflow 18135

drivetrain

  • AW4 automatic transmission
  • NP231 with Teraflex extreme short SYE
  • JK Rubicon Dana 44 Front, Turned inner Cs, 1/4” internal and external sleeves, Artec truss and brackets, 30 spline OX air locker run on C02, 30 spline RCV axles, Alloy ball joints.
  • JK Rubicon Dana 44 Rear, rock krawler truss, OX 35 spline air locker run on C02, Ten factory 35 axles.
  • Adams 1310 extreme duty front and rear driveshafts

brakes

  • Teraflex extended stainless brake lines
  • Dodge Ram 2500 master cylinder
  • Factory JKU pads,calipers, and rotors.

wheels & tires

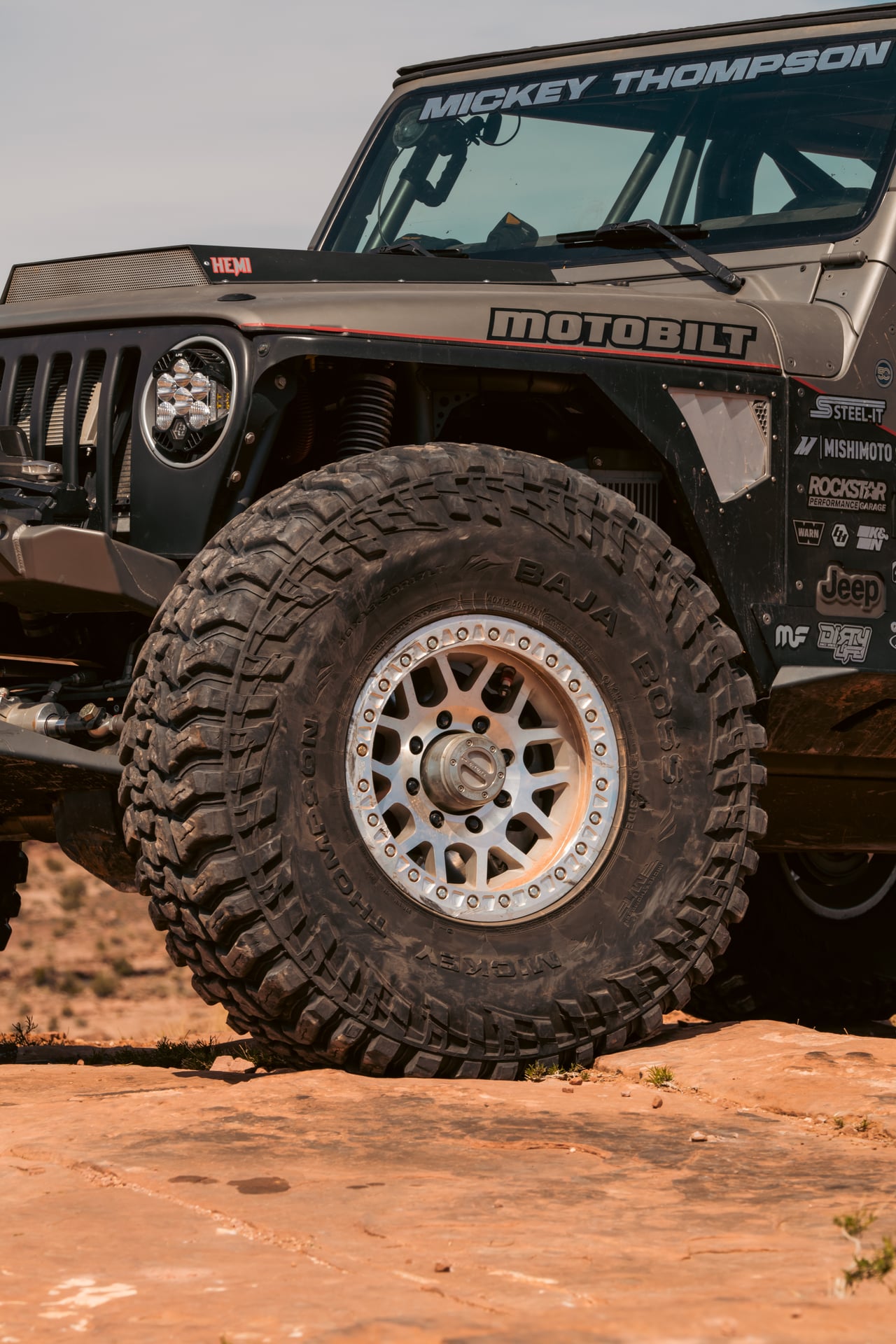

  • 17x9 Battleborn Bootlegger beadlocks

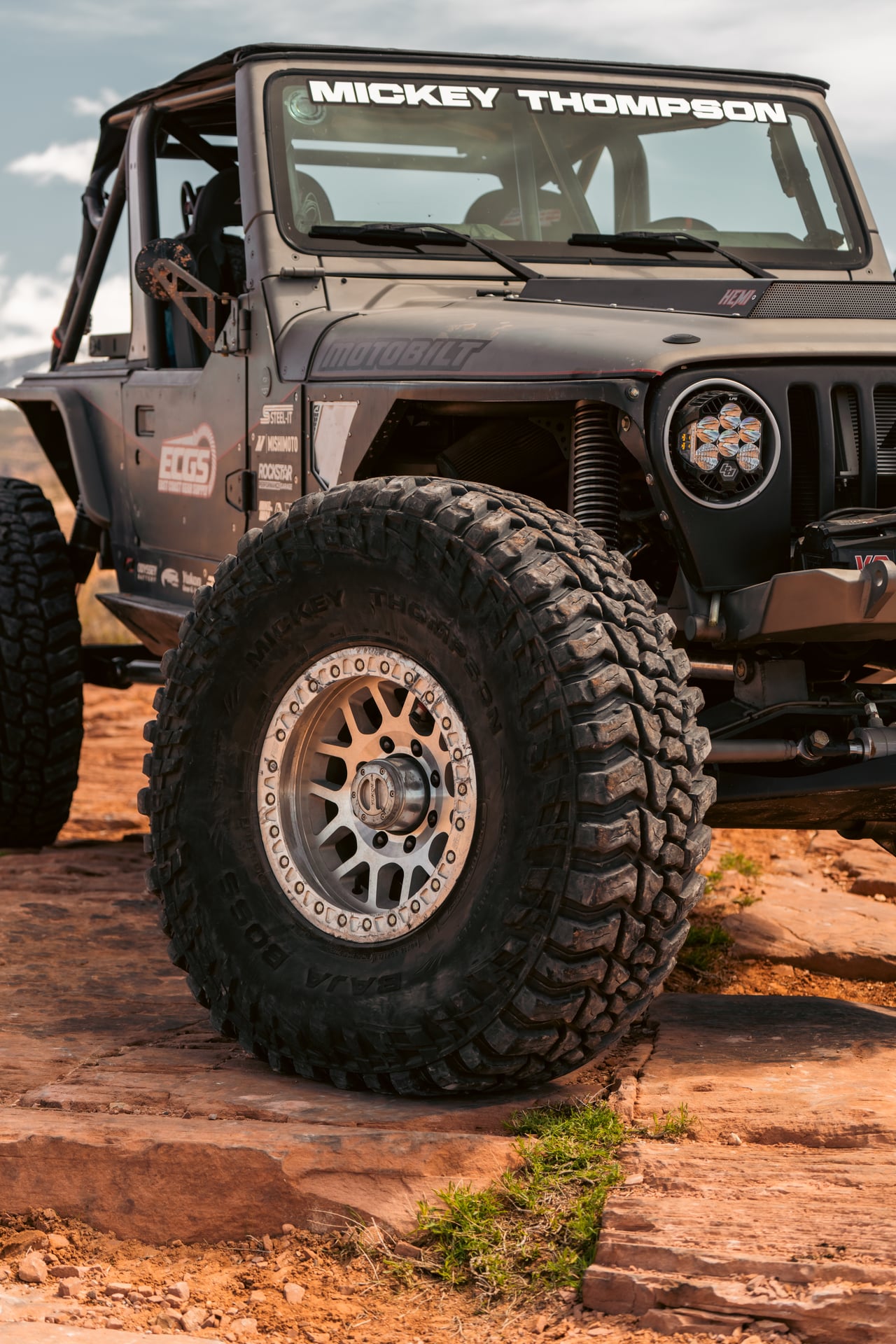

  • 40x13.5x17 Mickey Thompson Baja Boss MTs

suspension

  • Fox 2.0 16” front coilovers. Eibach coils
  • Fox 2.0 14” rear coilovers. Eibach coils
  • Rock Jock rear universal Anti-rock kit.
  • Rock Krawler 3/4 link long arm kit with 5” front and rear stretch

lighting

  • Maxbilt tail trail tail lights
  • Rough Country 10” slim front and rear light bars.
  • Xprite LED side mirrors

exterior

  • 100% coated in Steel-It black and gray polyurethane coating

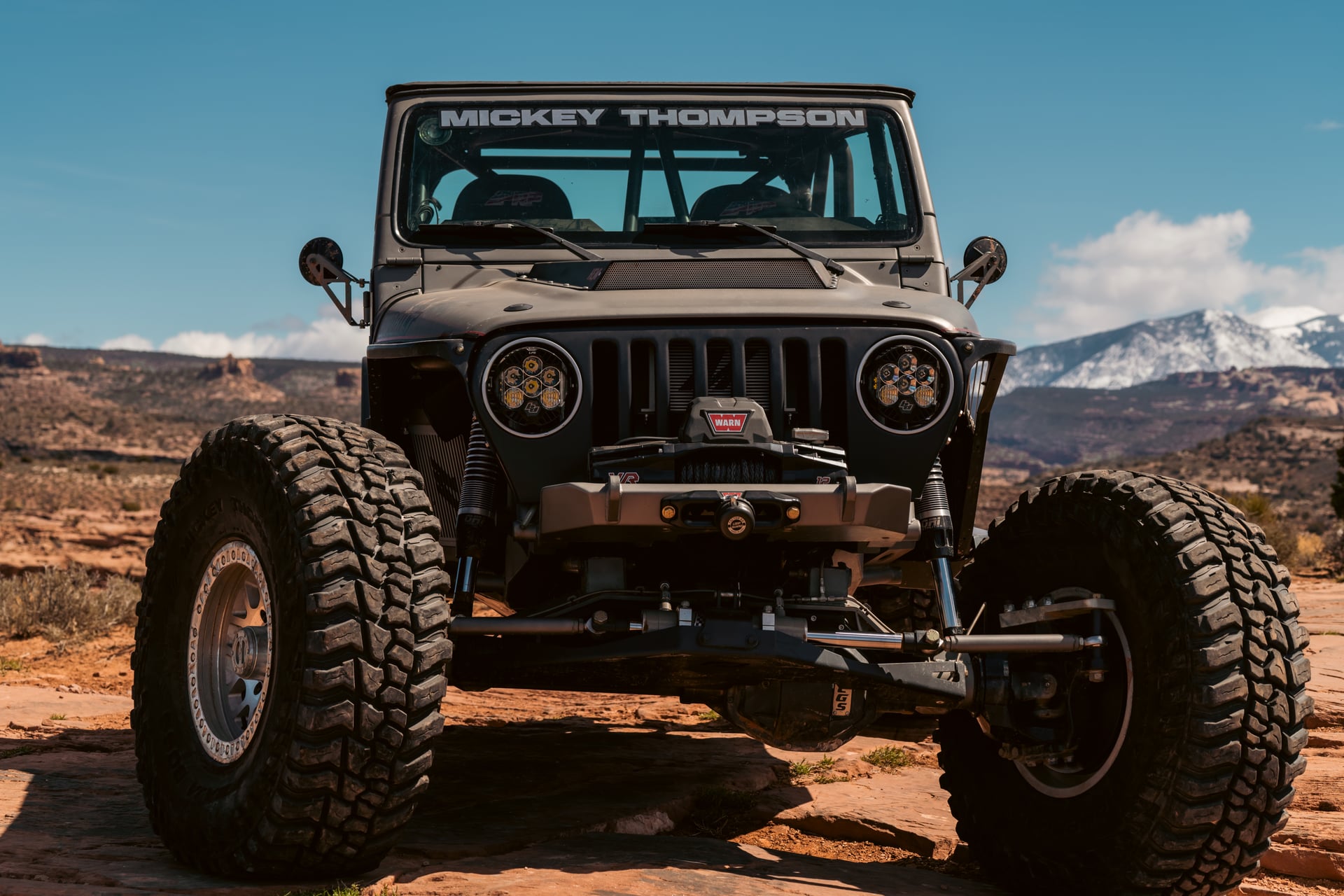

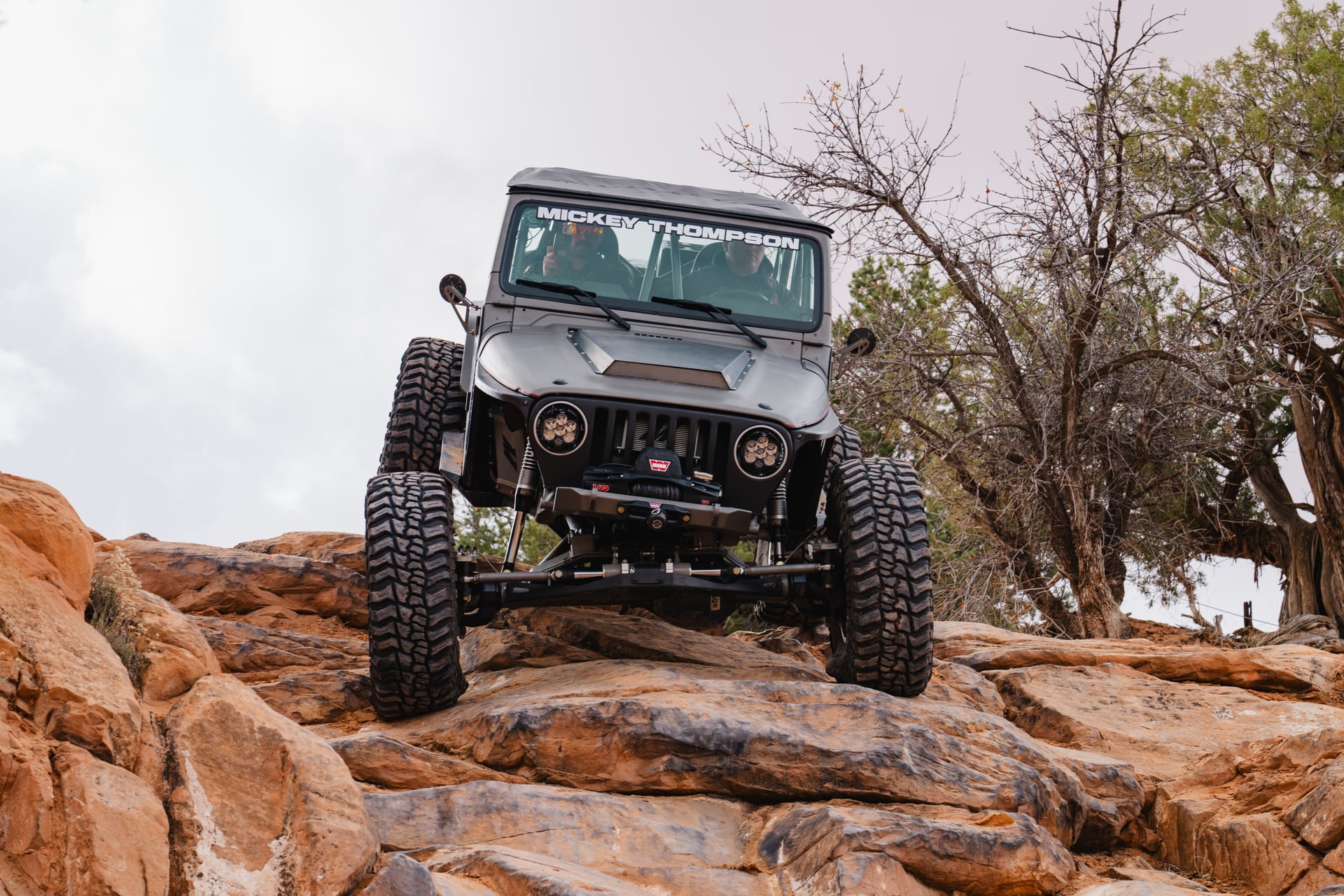

  • Custom stubby front bumper built off of the frame

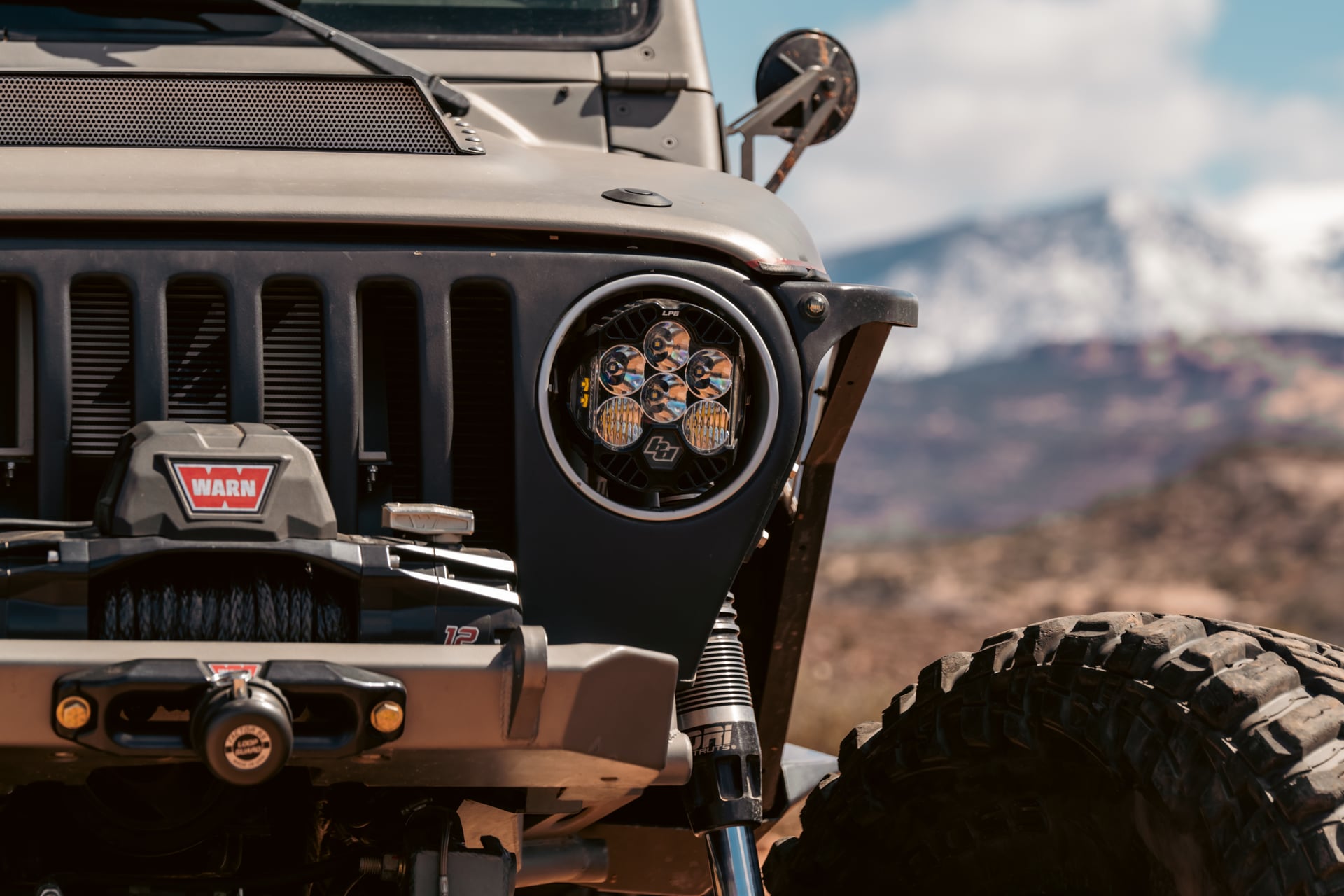

  • Relocated steering box and winch between front frame rails

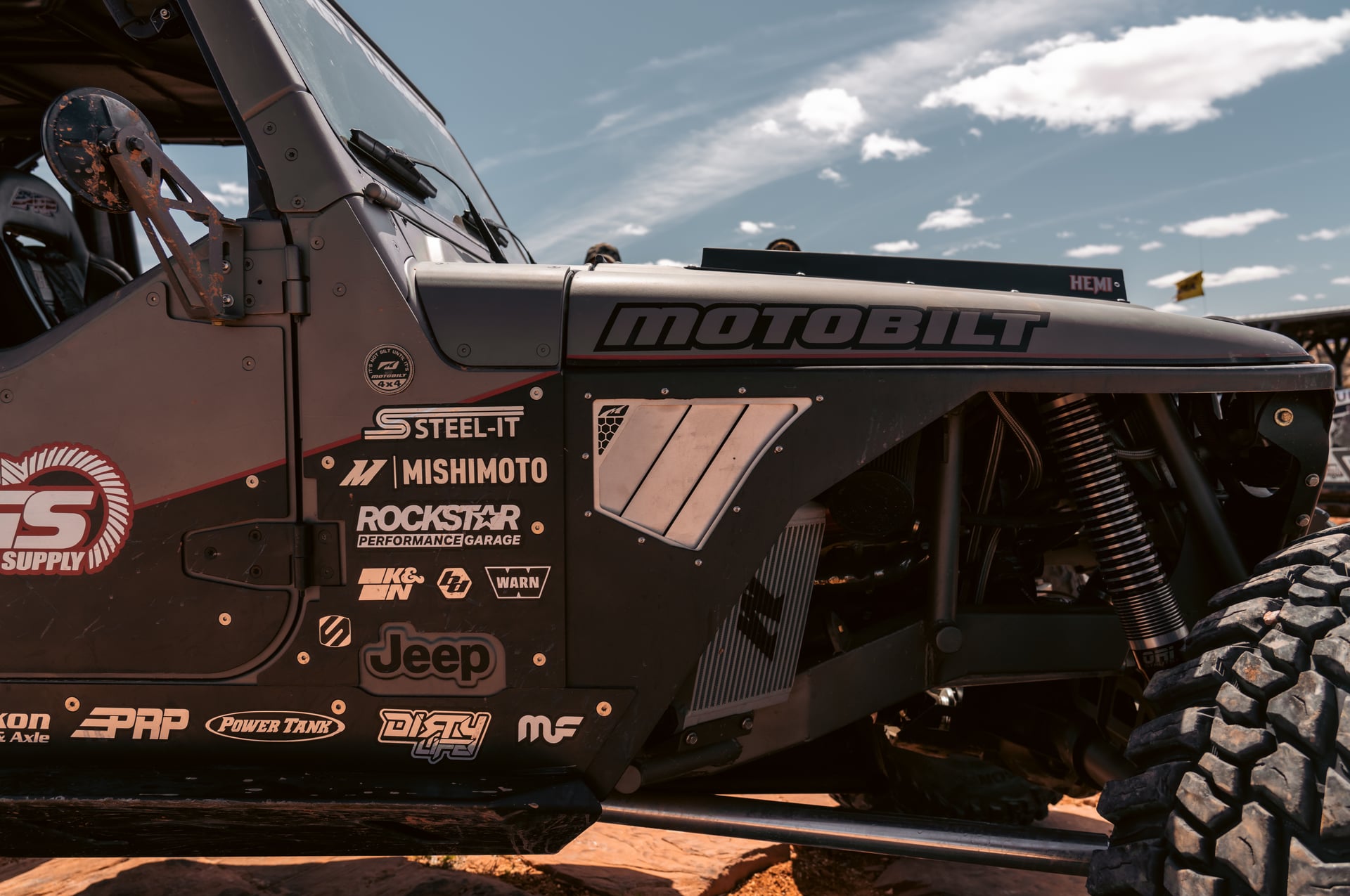

  • Motobilt front high-line fenders
  • Custom front inner fenders

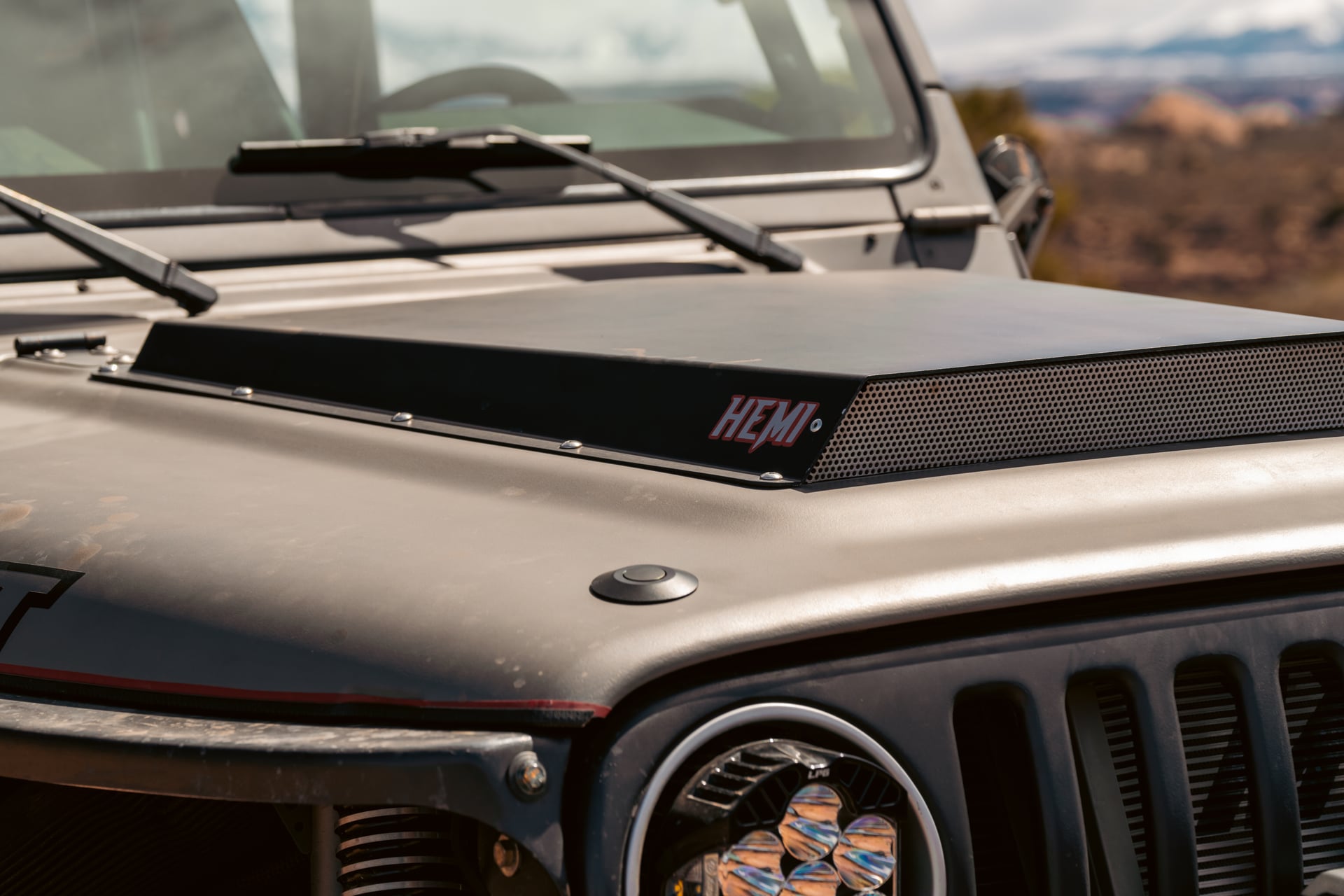

  • Poison Spyder hood vents
  • Genright windshield frame armor

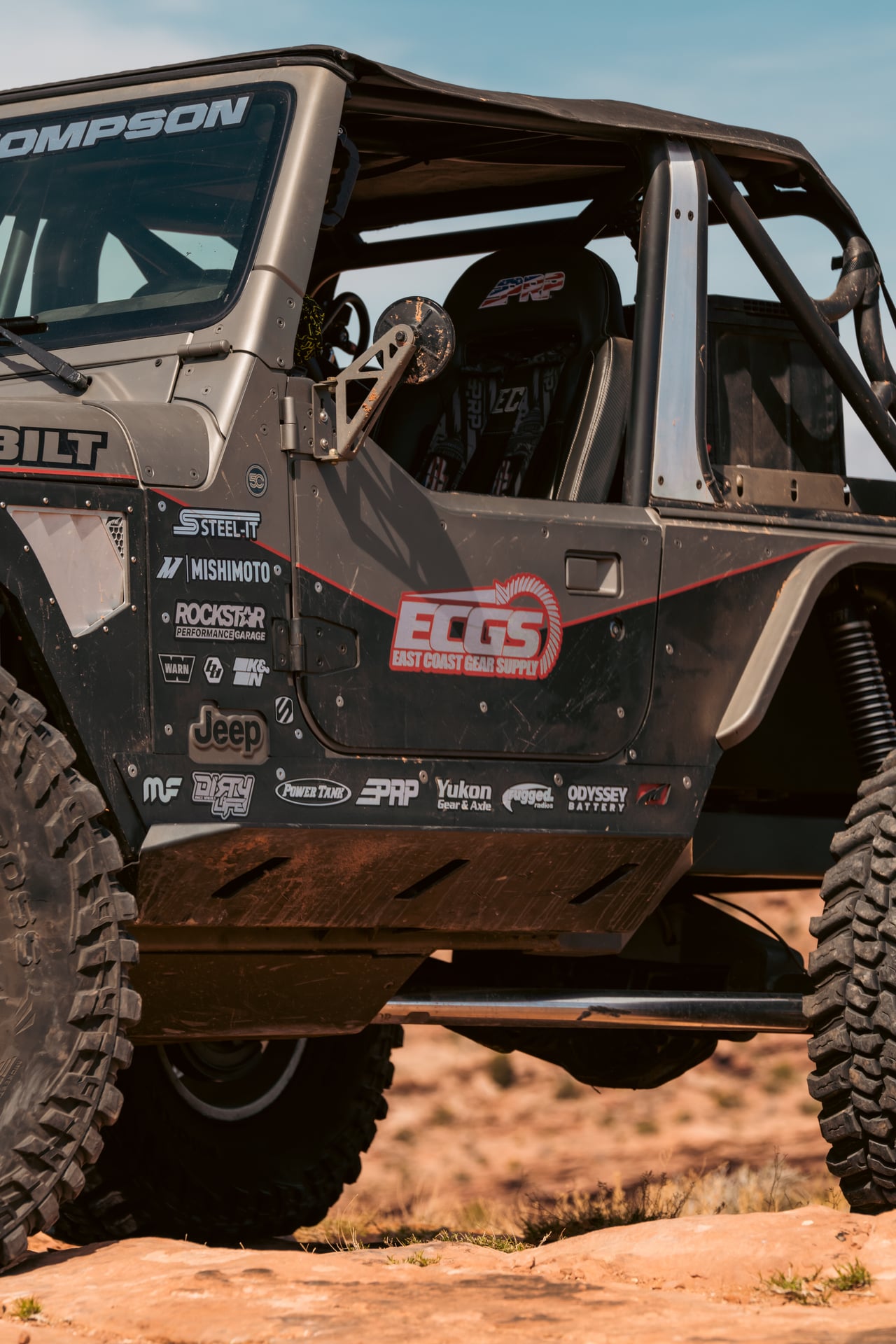

  • Motobilt side tub armor
  • Motobilt rocker armor
  • Motobilt blank rear corner armor with custom cut
  • Motobilt back half frame kit

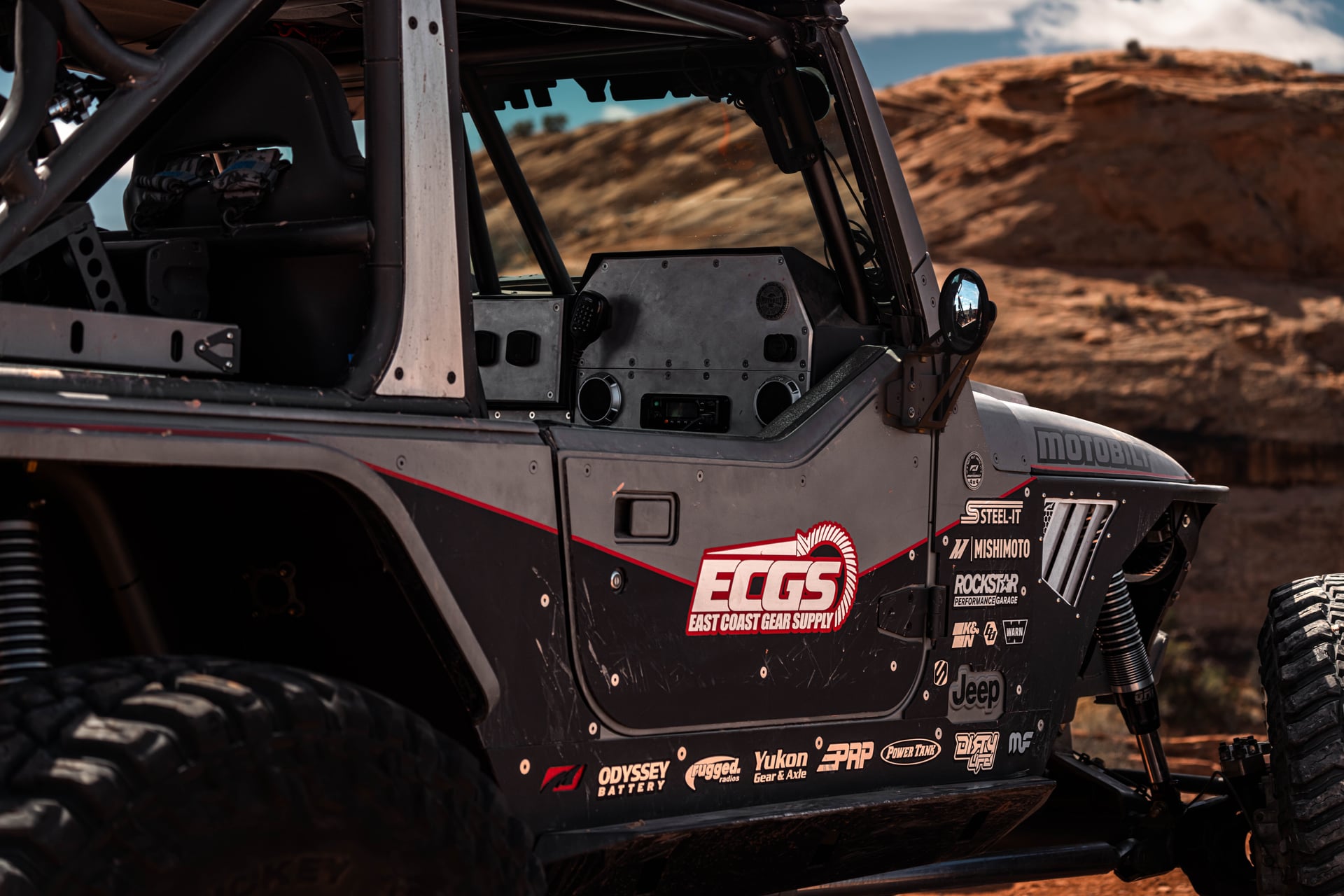

  • Bestop Element tube doors with enclosures
  • Poison Spyder roll cage
  • Poison Spyder trail gate
  • Motobilt JL spare tire delete and tag bount

interior

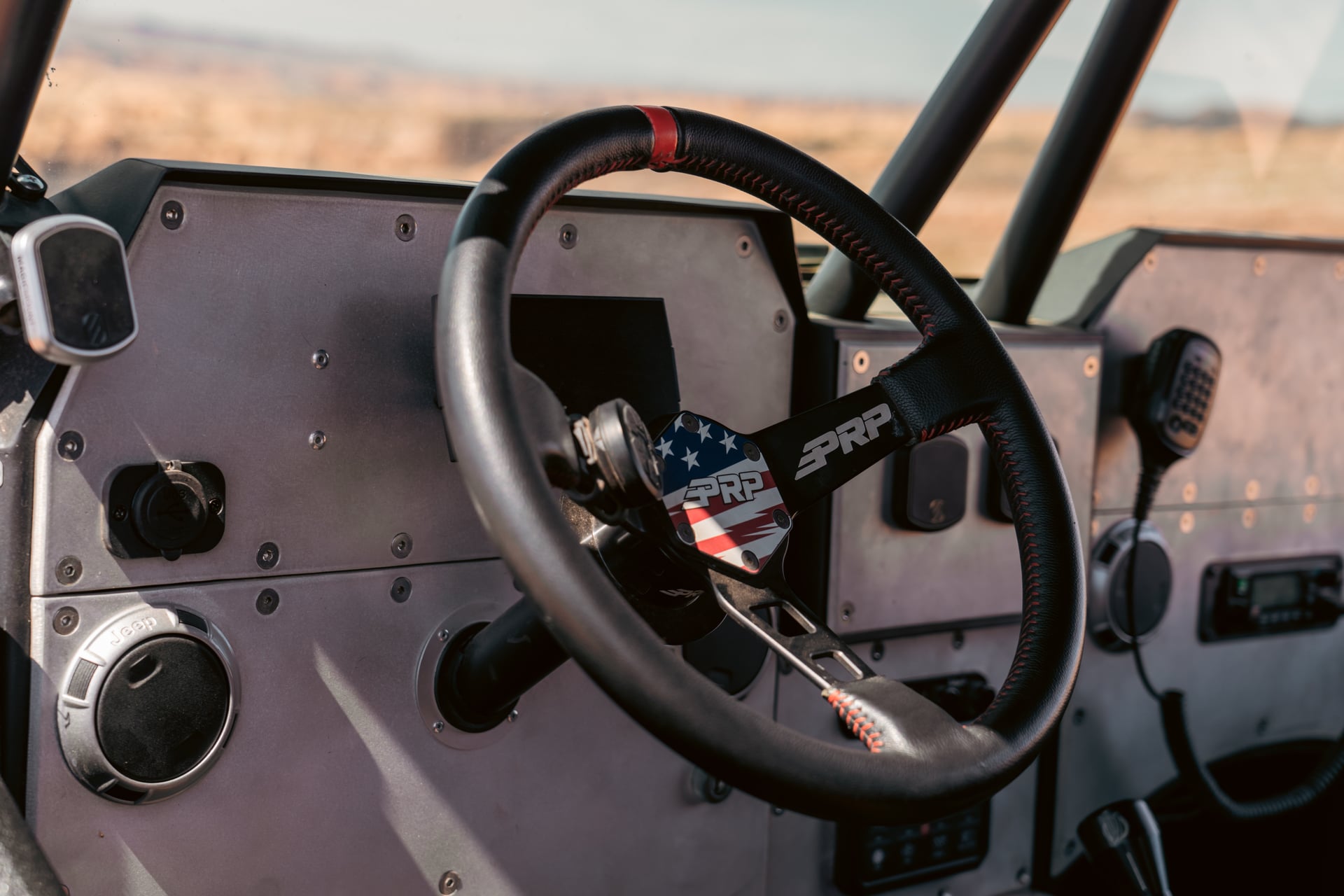

  • Custom steel dash (final rebuilt to be done)
  • NRG steering hub and quick release steering wheel
  • Bed tread front floor liners

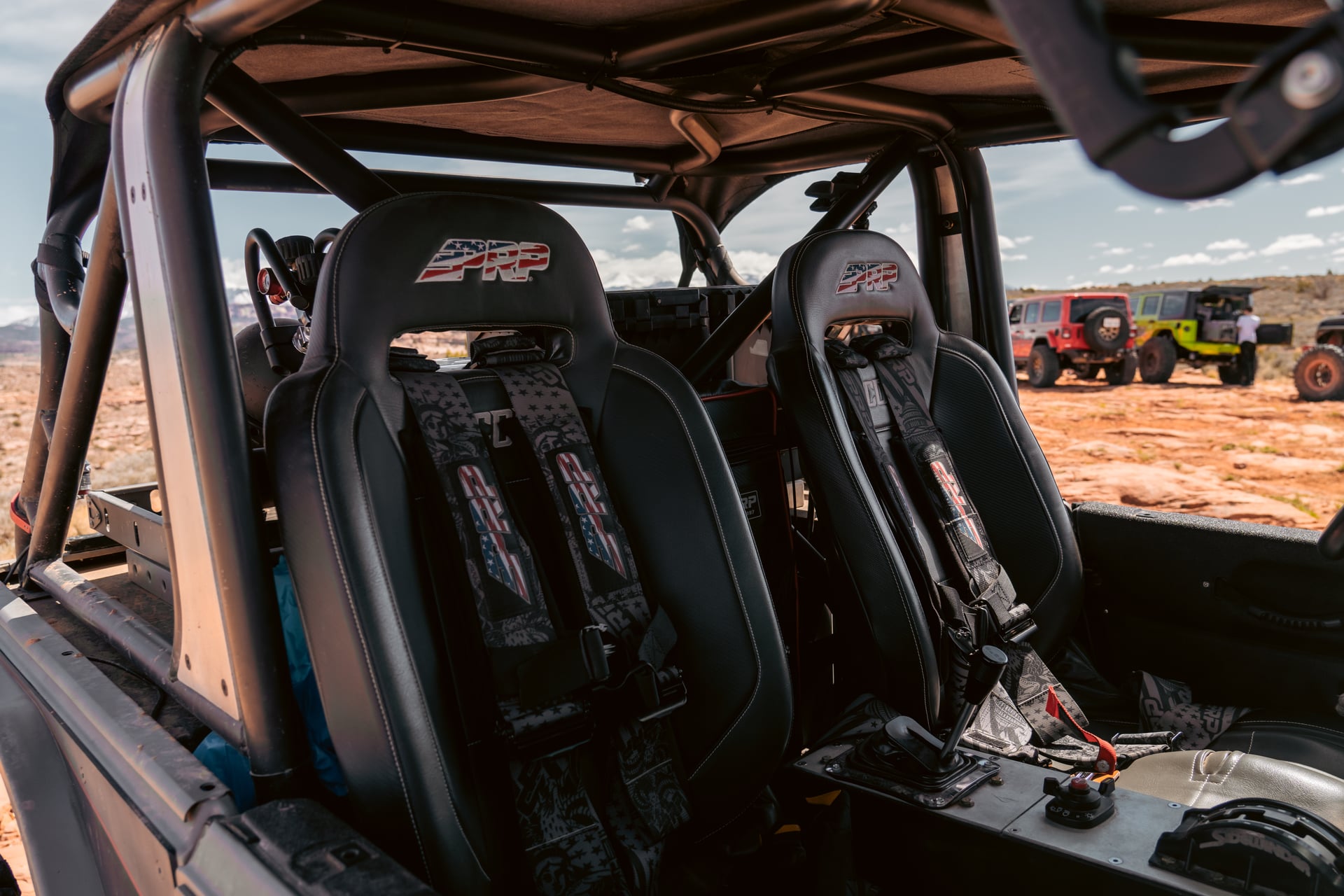

  • PRP daily driver high back seats
  • PRP harnesses
  • Custom center console with Swag ammo can and mount
  • Winters Sidewinder shifter
  • JB customs transfer case shifter
  • Fusion marine head unit
  • Intellitronix universal digital gauge cluster
  • Custom 20 Gallon aluminum fuel cell with Motobilt fuel ring
  • Custom rear tub cut and raised for tire clearance

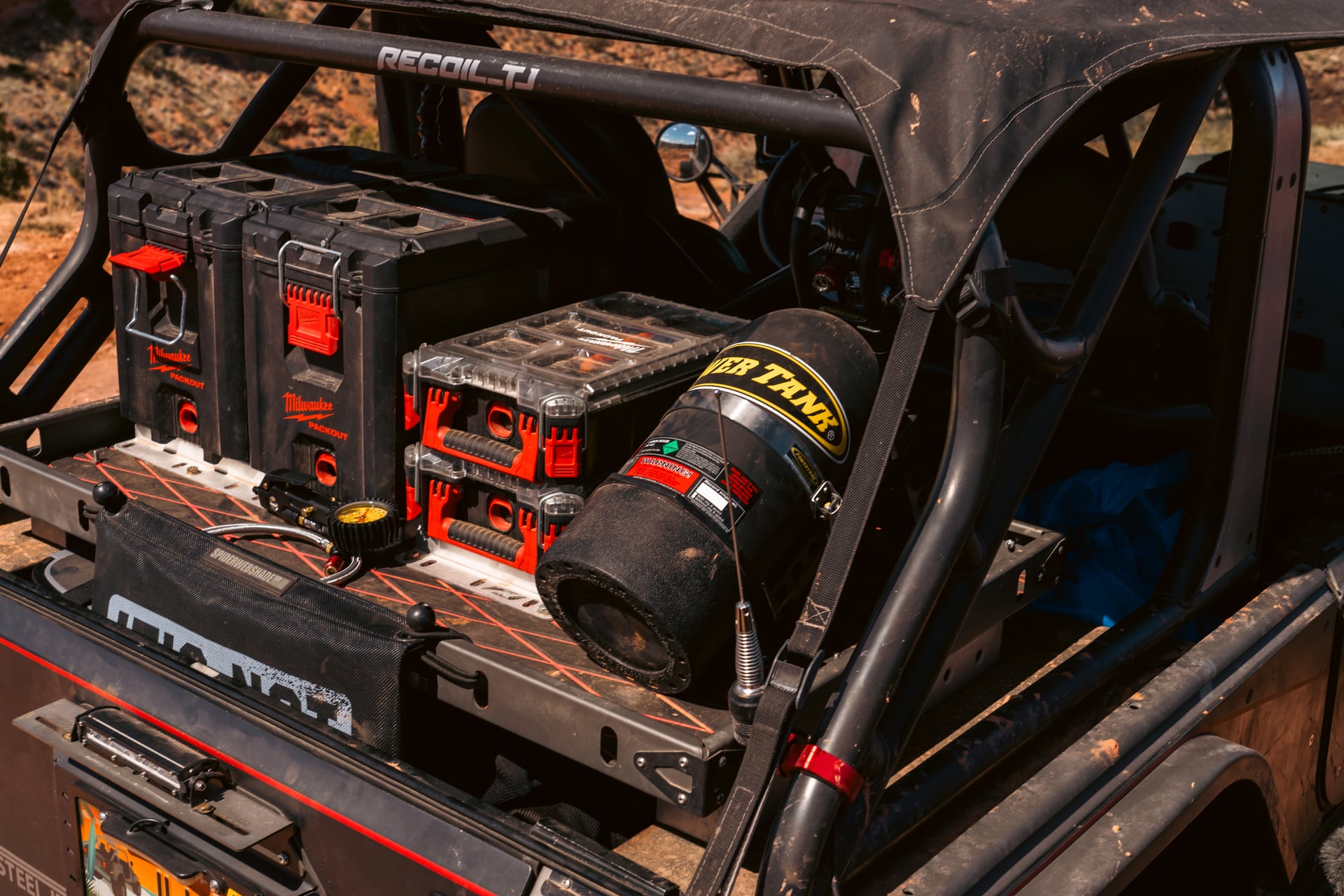

  • Custom tailgate storage box
  • Rear mount 4500 winch below tub between frame rails
