Ramsey
1988 Jeep Wrangler YJ 4WD
View profile

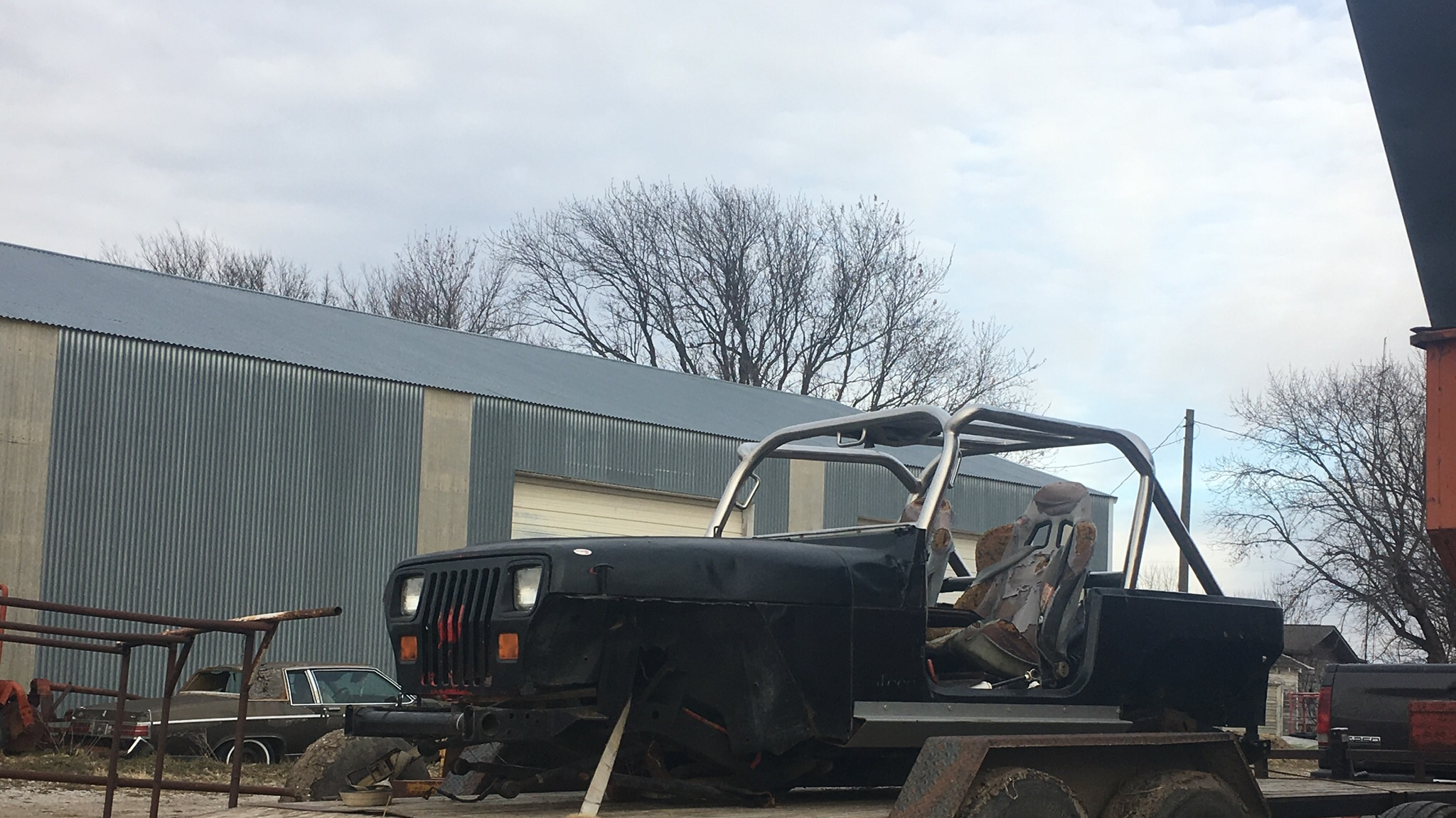

Starting with only a tub, frame, and roll cage, I was able to make this Jeep one of a kind and able to call it my own. Many more smiles and good times to be made in the future!
More
Build specs:
22
parts
·
40"
tires
·
6"
lift
1 / 8
Save this build
Comment
22
Parts
40"
Tires
6"
Lift
Top mods
Suspension
TJ 6” lift coils springs front and rear
Tires
40” Maxxis Trepadors radials
Wheels
17x9 dirty life roadkill wheels
Drivetrain
03-04 Ford Super duty Dana 60 front axle with Spartan locker
All 22 parts
Parts
Wheels
40” Maxxis Trepadors radials
17x9 dirty life roadkill wheels
Suspension
TJ 6” lift coils springs front and rear
Rear shocks- Fox 2.0s factory length for a Jeep Wrangler JKU
Front shocks- Rancho s5000 shocks
Four linked front and rear
Full hydro front steering
Offroad Anonymous high steer weld on brackets
Drivetrain
03-04 Ford Super duty Dana 60 front axle with Spartan locker
03-04 Ford super duty Dana 60 rear axle with Miller locker
700R4 transmission
ford NP205 transfer case
factory 3.73 gears
Wide Open Design driveshafts front and rear
Brakes
Factory Ford super duty brakes
Engine
5.3 LS
Exhaust
Custom 2.5” true duals
Intake
Spectre cold air intake
Interior
GenRight center console
Sidewinder shifter
Jegs racing seats
Other
Smittybilt X2O 10k competition winch
