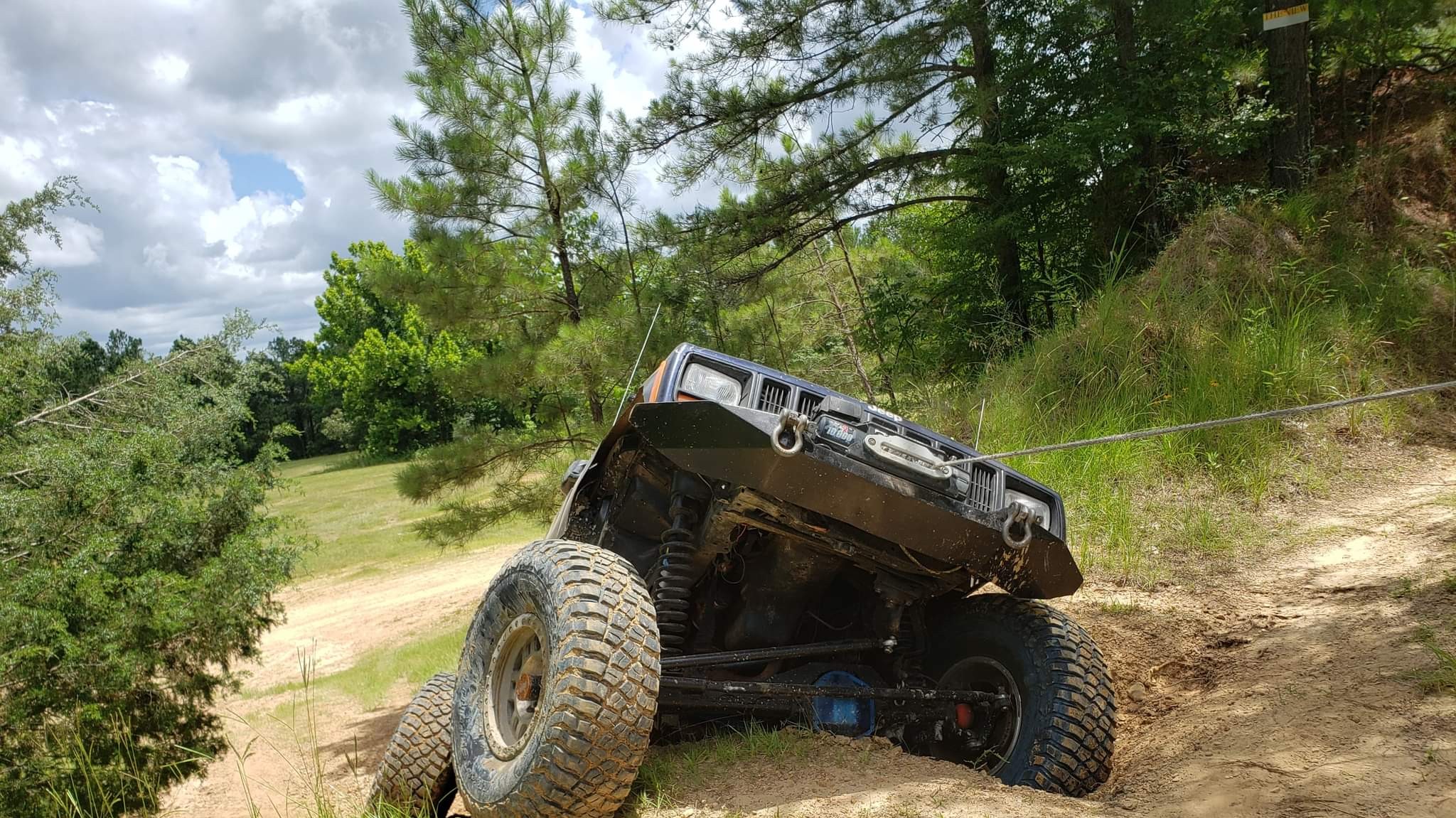

Plumb Crazy photo 1

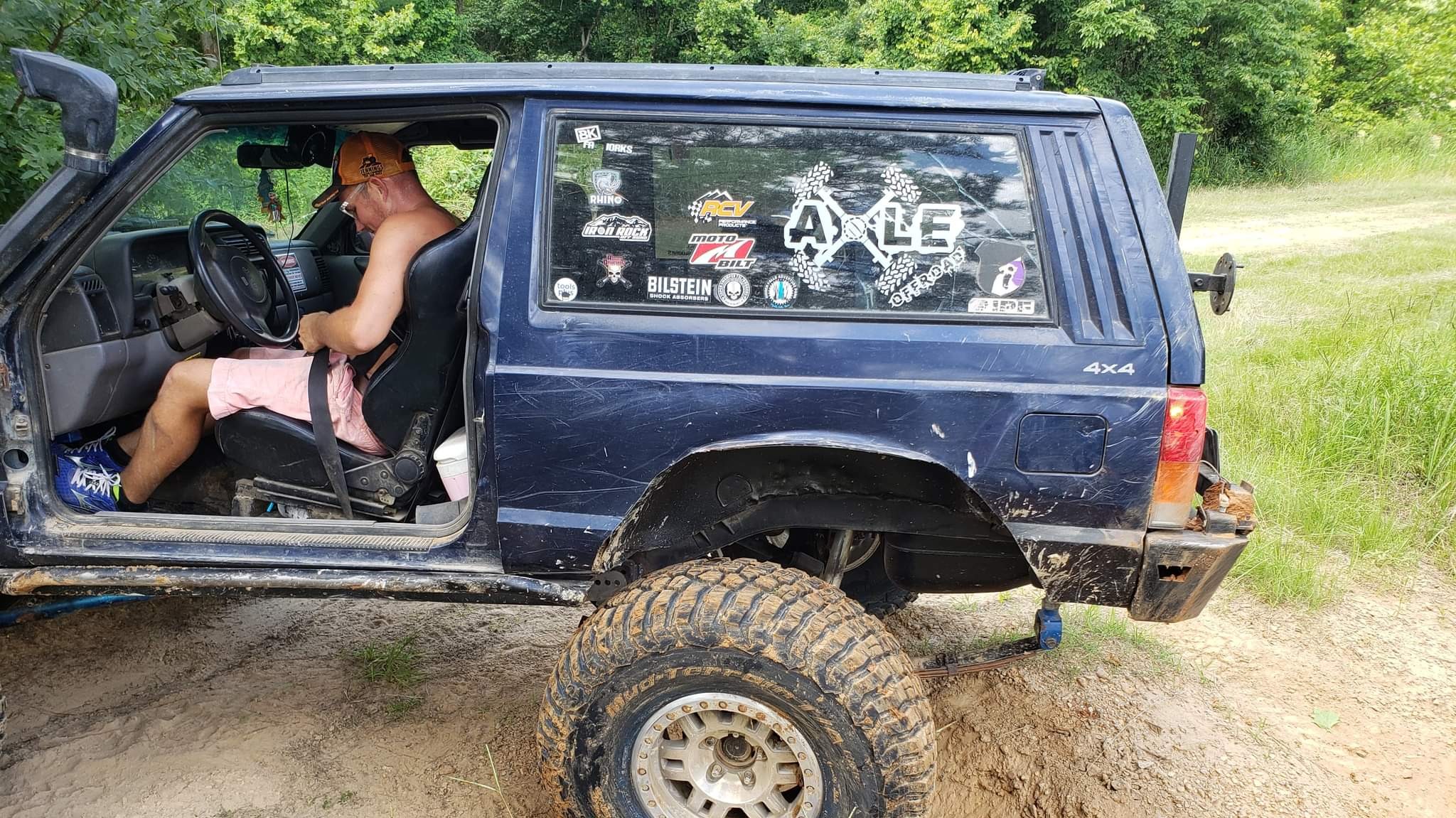

Plumb Crazy photo 2
Plumb Crazy photo 3

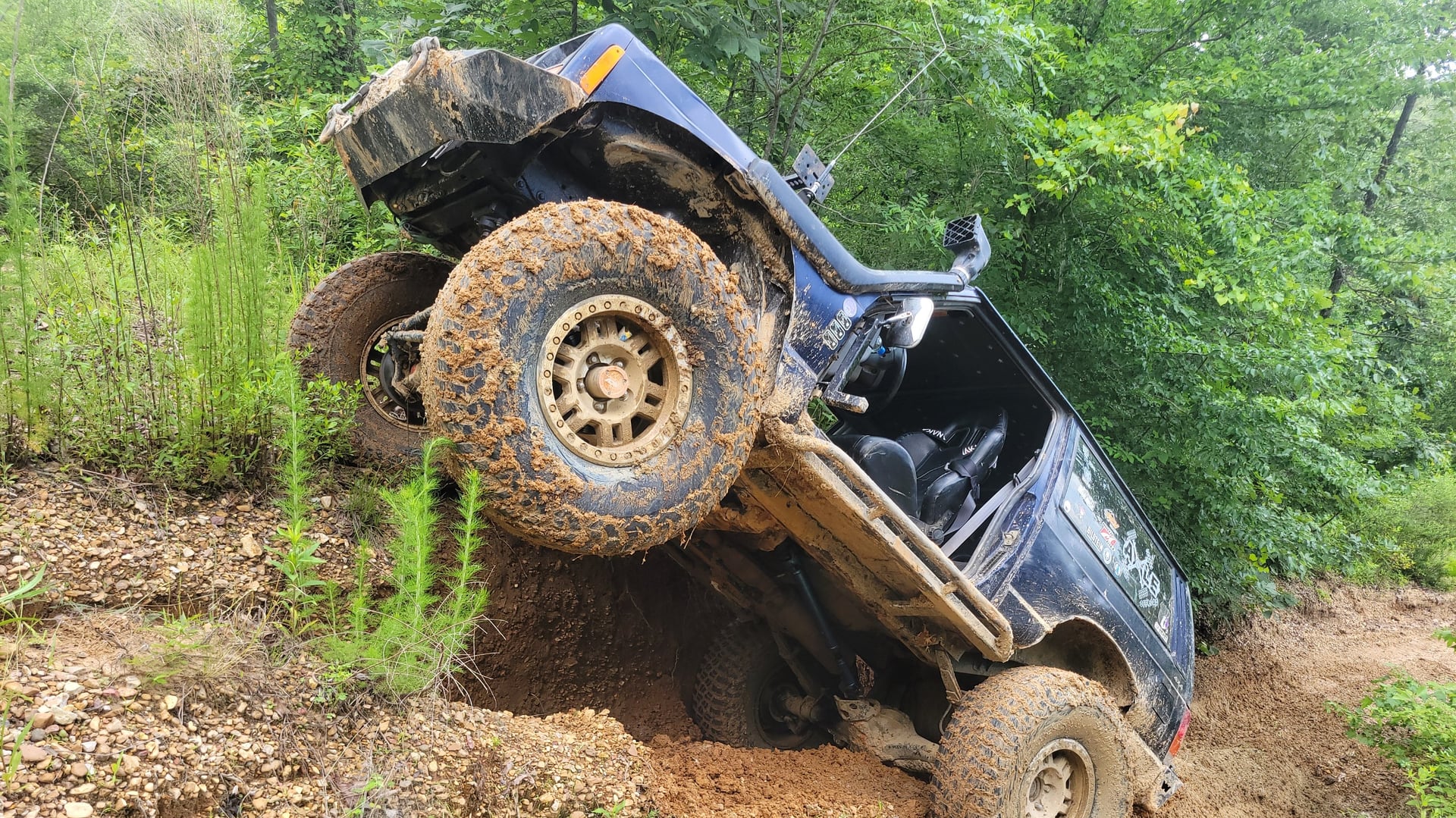

Plumb Crazy photo 4

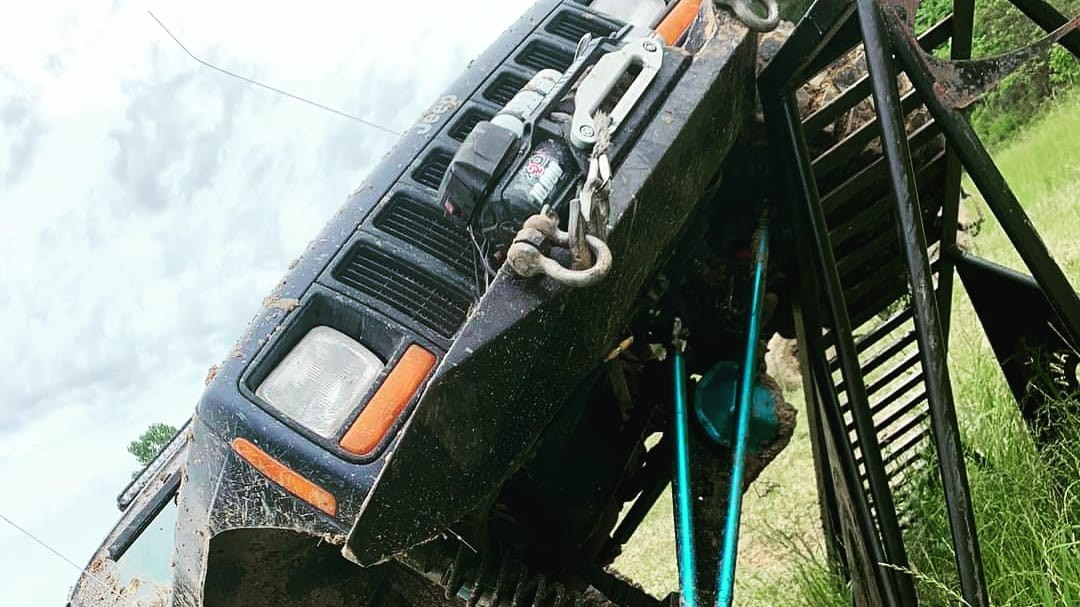

Plumb Crazy photo 5
Plumb Crazy photo 6

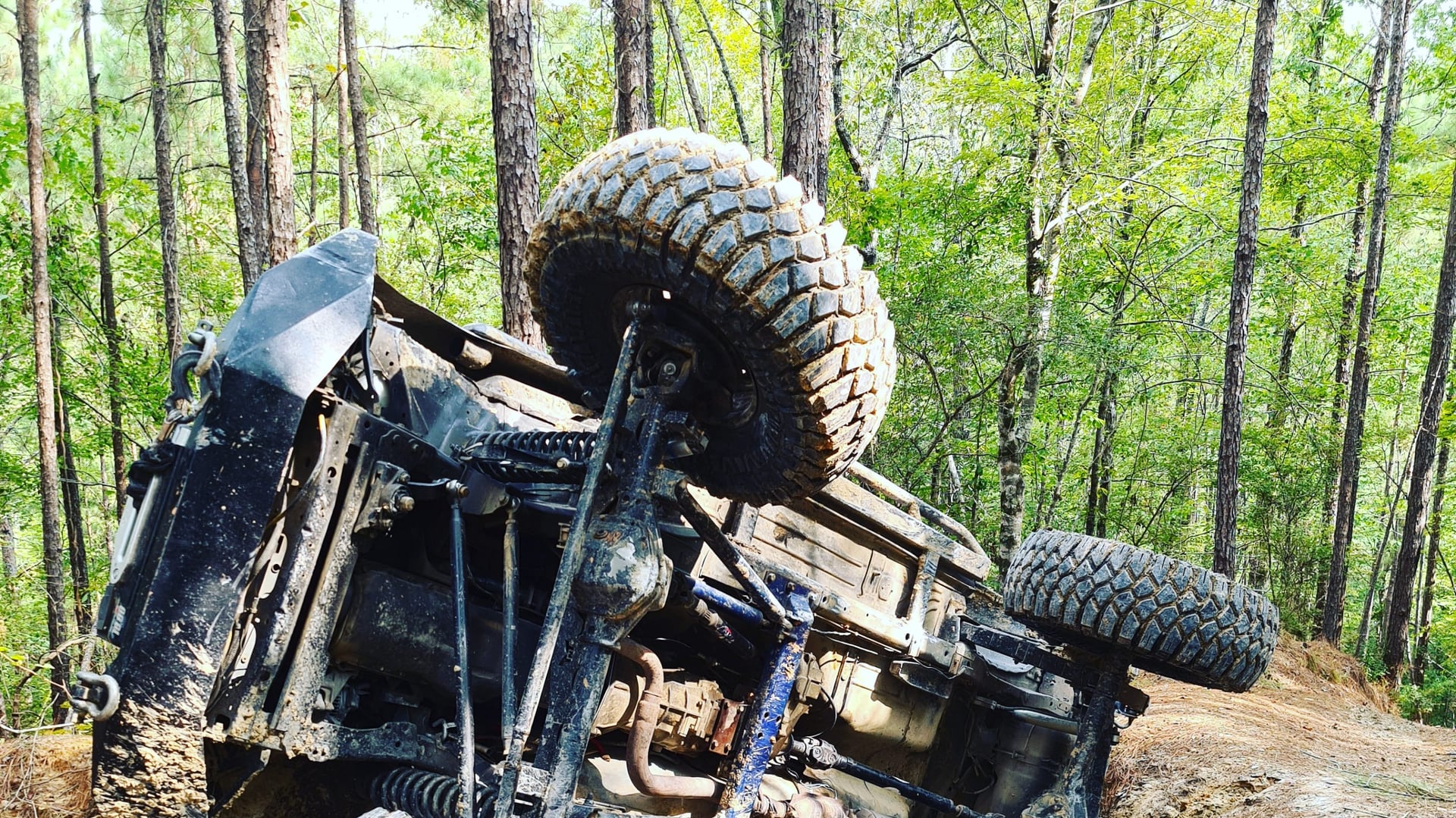

Plumb Crazy photo 7

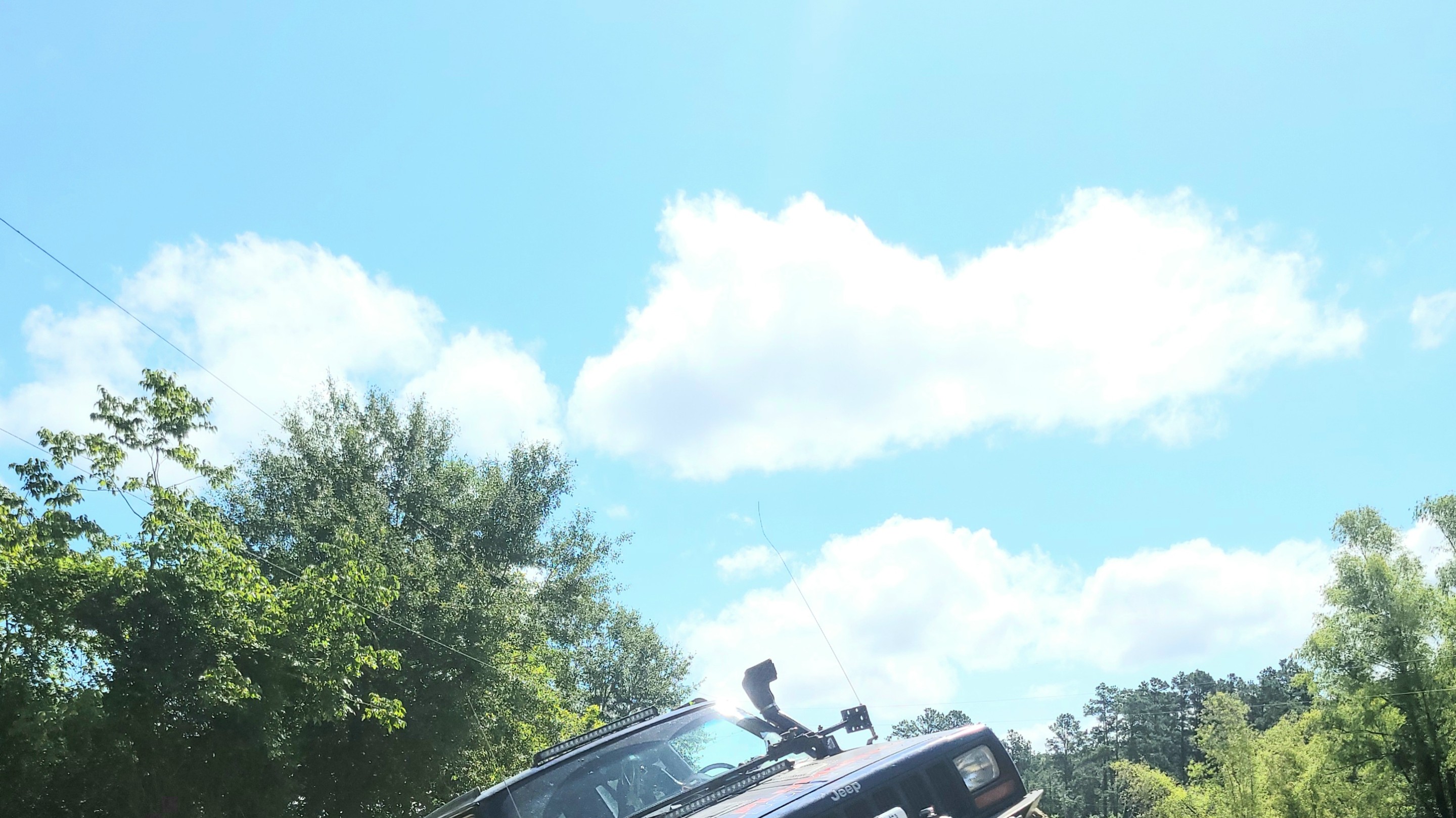

Plumb Crazy photo 8
Plumb Crazy photo 9
Plumb Crazy photo 10
Plumb Crazy photo 11
Plumb Crazy photo 12
Plumb Crazy photo 13

Plumb Crazy

1997 Jeep Cherokee XJ SE Sport Utility 2D

Been enjoying the xj for 3yrs now. It is currently on 76 f150 axles hp dana 44 and 9" rear. Small stretch with 105" wheelbase. It performs very well. Has 5 speed transmission and is a blast to drive in the rocks and on the road. You can find me on Facebook @Allen Reed or Plumb Crazy Offroad

Build highlights

  • 11 parts
  • 39" tires
  • 7" lift
  • Blue

Suspension

Front bk fabworks front 3 link, ota track bar and steering. Rear rubicon express leafs with ruff stuff front leaf mount to stretch the rear 3", shackle relocation bracket in the rear fabbed to frame. with antiwrap bar

Lighting

Led lightbars, 5th set of stock taillights

Drivetrain

Ax15 transmission, np231 with hackntap, adams driveshafts, 76 ford hp dana 44 front 5:13 gears grizzly locker 30 spline rcvs with lockout hubs tnt truss, rear ford 9" 5:13 gears strange third member with spool, 35 spline yukon axle shafts.stretched 4", antiwrap bar, rubicom express leaf springs, ebay adjustable shackles, shackle relocation, front leaf stretch mount. 14" travel bilstein shocks, custom shock mounts

Brakes

Ford f 150 disc brakes front and rear

Engine

Stock 4.0 150k miles

Interior

Racing seat with harness, child seats with harness. Mild audio system

Other

Smittybuilt winch, vinegar jug washer fluid reservoir, factory steering. Steering box brace,
