A 2000 Jeep Grand Cherokee WJ Limited 4WD 4dr 4x4 build by @onetonminivan

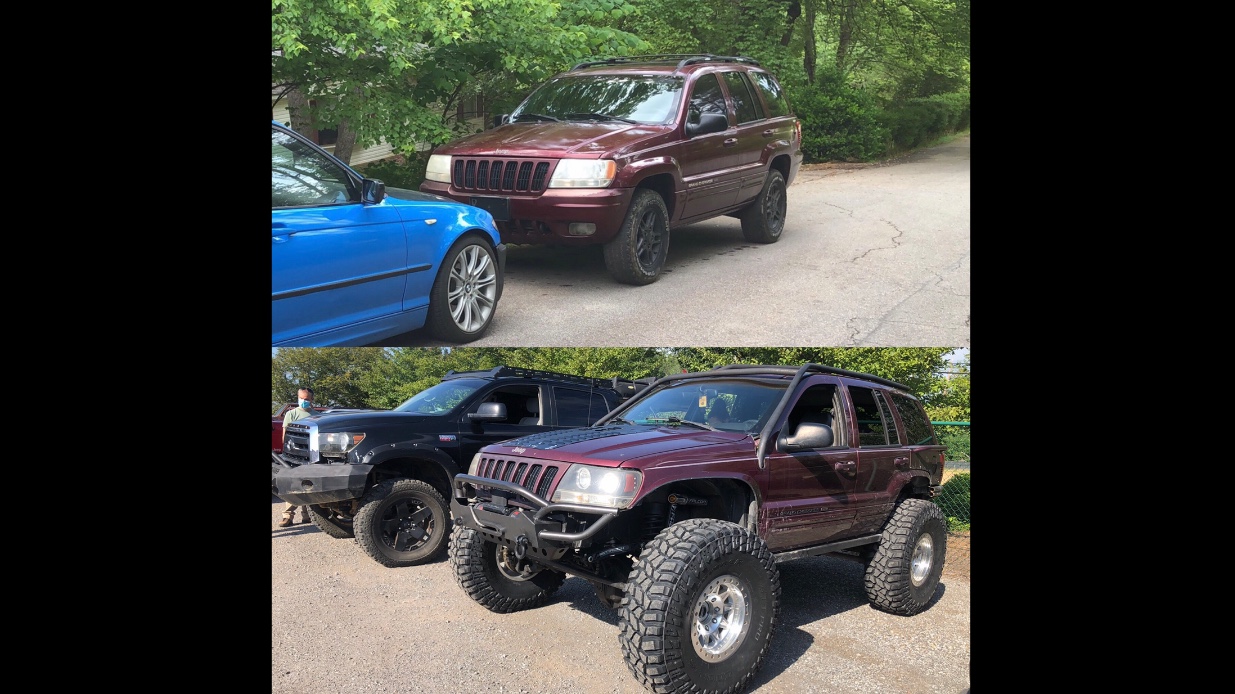

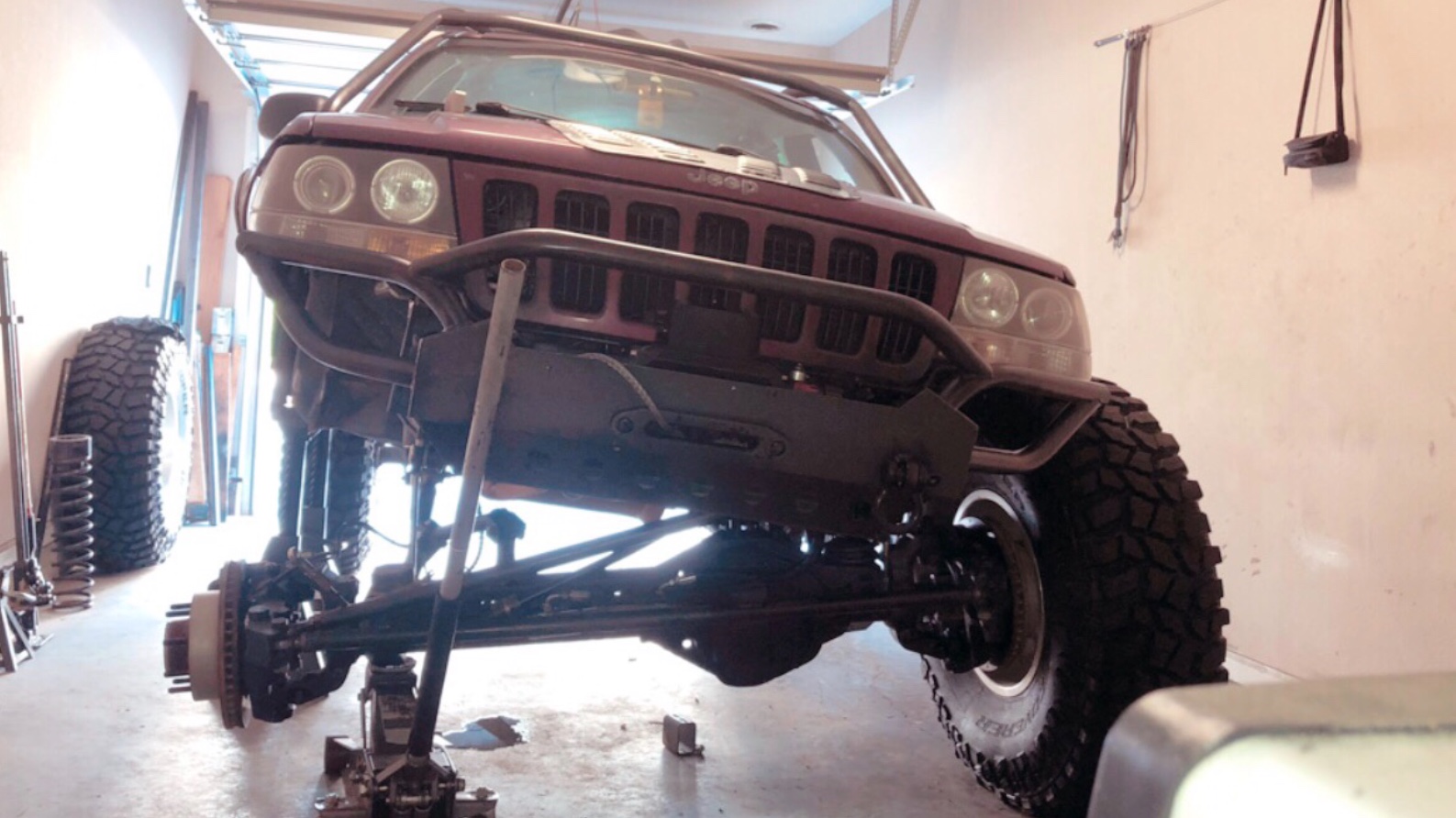

This Jeep started as a cheap daily, had no intentions of building it at all. Then I decided to throw a small 2” budget boost lift on it and some JK takeoffs...and we ended up where it’s at now somehow. Sitting on 6” lift and 40s with one ton axles, and it’s still a daily, just not so cheap anymore. I do all my own work on it, 99% of it has been done in my 10x20 single car garage, (I really need a bigger garage) and have definitely learned a lot from building it up to what it is now. She likes to party so if you don’t pass me on the street somewhere you can usually catch me at Windrock or AOP in East TN

2000 Jeep Grand Cherokee WJ Limited 4WD 4dr 4x4

Build Details

engine

  • 4.7L V8 crate engine

intake

  • THOR Cowl intake

exhaust

  • Dumped after cat

drivetrain

  • 06 F350 SD Dana 60 front
  • 78 F250 Dana 60 rear
  • Tom Woods driveshafts see it
  • Barnes4wd superduty steering
  • Barnes4wd weld on high steer arms
  • Barnes4wd D60 JK front truss
  • Genright Offroad rear D60 truss
  • Revolution 5.38 gears
  • Welded rear
  • ECGS rear axle shafts
  • Spartan locker on front
  • PSC hydro assist
  • DBM frame stiffeners
  • Xerofab Coil buckets
  • Teraflex Falcon 3.2s 12” travel
  • Teraflex Speed bump bumpstops

brakes

  • Powerstop big brake kit
  • Ruffstuff disk brake swap on rear

wheels & tires

  • 17” Dirtylife Beadlocks
  • 40x13.50 Cooper STT pros

suspension

  • 6” Clayton springs

lighting

  • Smoked lens headlights

exterior

  • DBM rear quarter armor
  • Custom built Rock sliders
  • DTill Fabworks front bumper
  • DTill Fabworks radiator skid
  • Rough Country 9k winch
  • Poison spyder JK hood vent
  • Hybrid cage built by myself

interior

  • Stock
