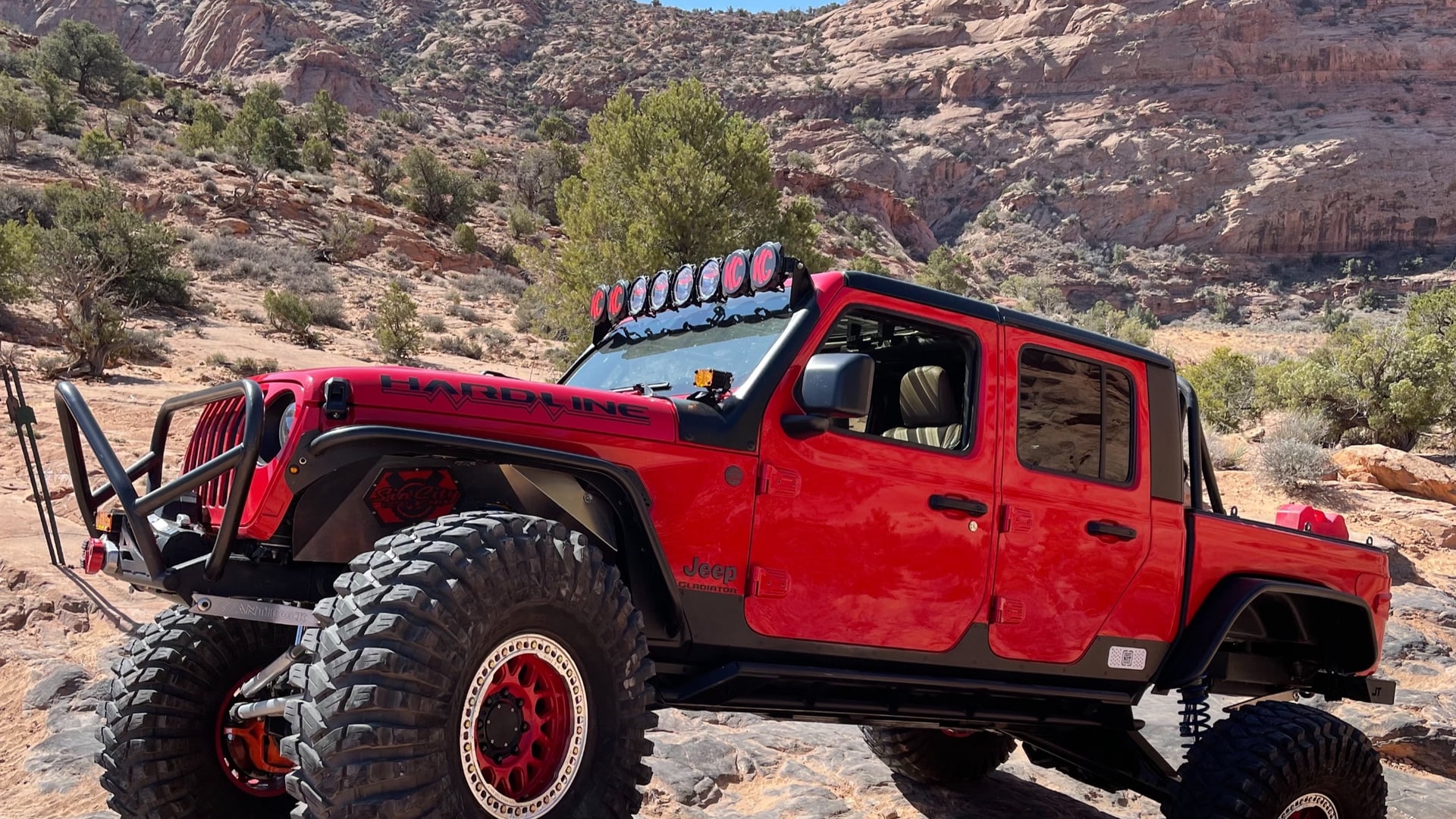

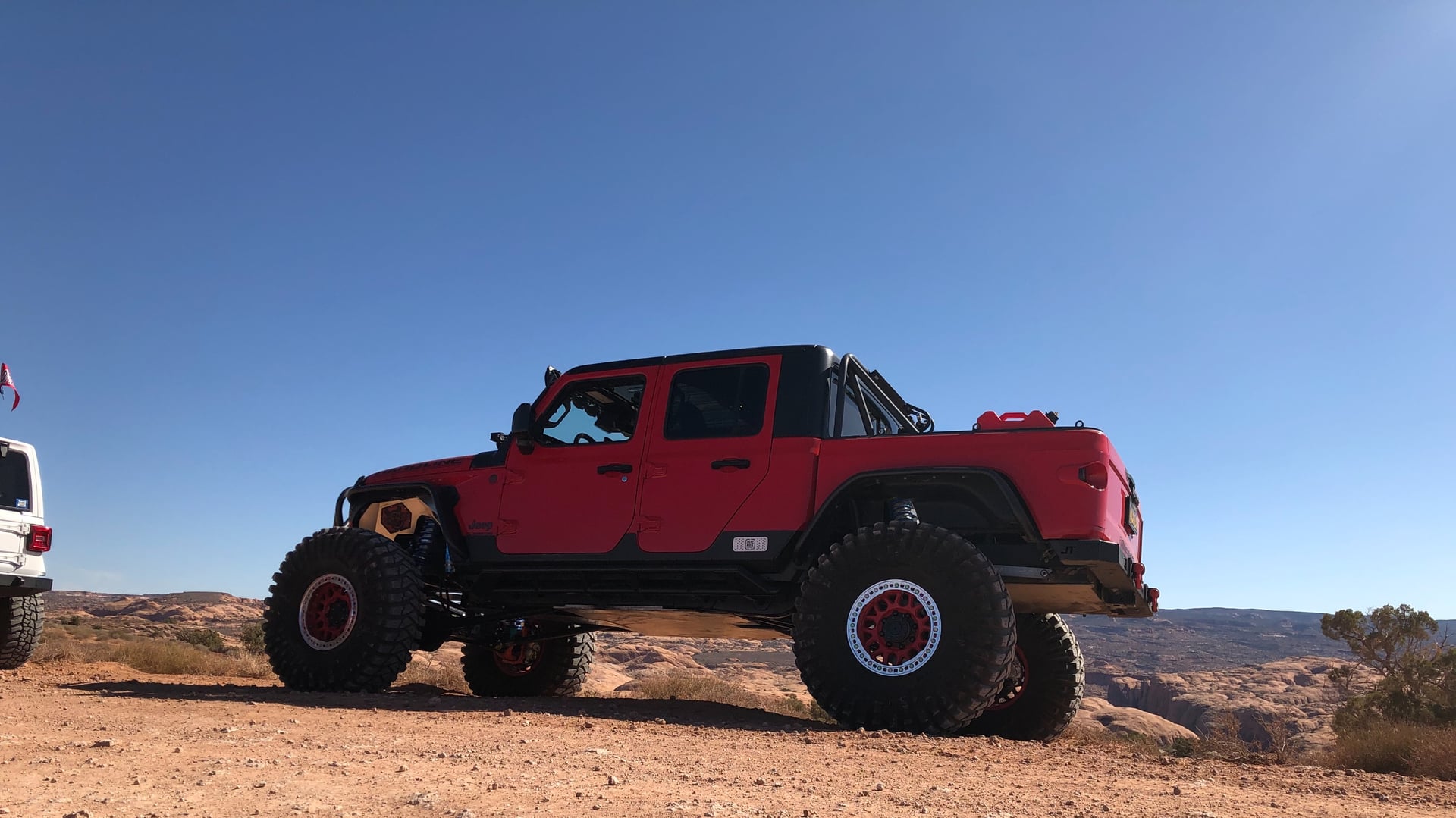

This is my dream build, its almost complete. Seats and harness next!
Brakes
1 Ton GM Brake Kit
Drivetrain
Real drivelines, with a 2 piece rear shaft
Performance Steering Components - PSC Full Hydraulic Steering System

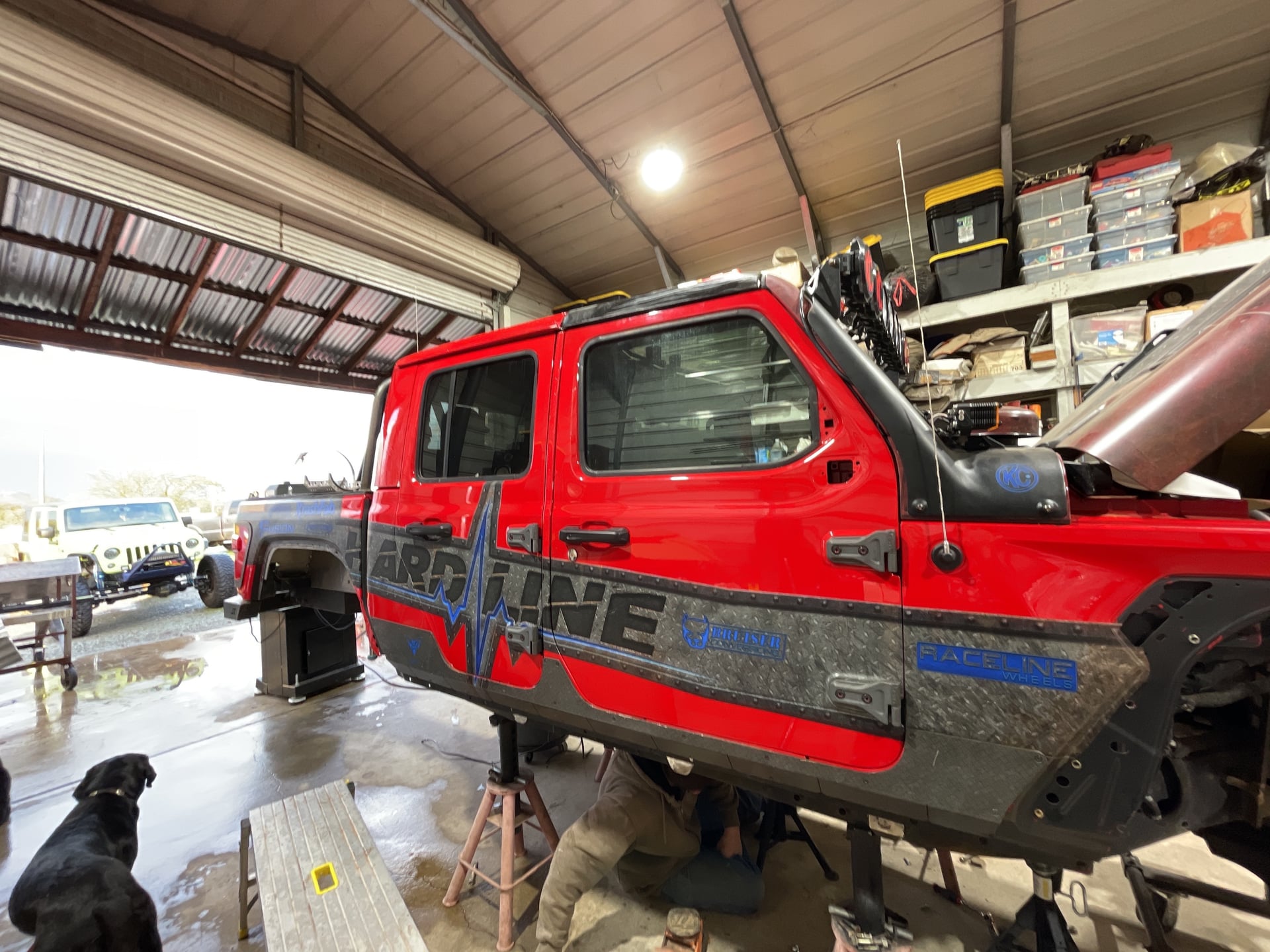

KrashFab custom made Triangulated 4 link front suspension with towers extended into the engine bay. All existing brackets and suspension removed off the frame, welded on KrashFab front 14" towers, bump stops. Moved batteries, air box, ABS box, Computer, custom cross tie bar between towers and through engine bay. Custom front 4 link suspension, custom made axle brackets and flat front crossmember. (4) 2"x.25 DOM steel links with Currie joints.

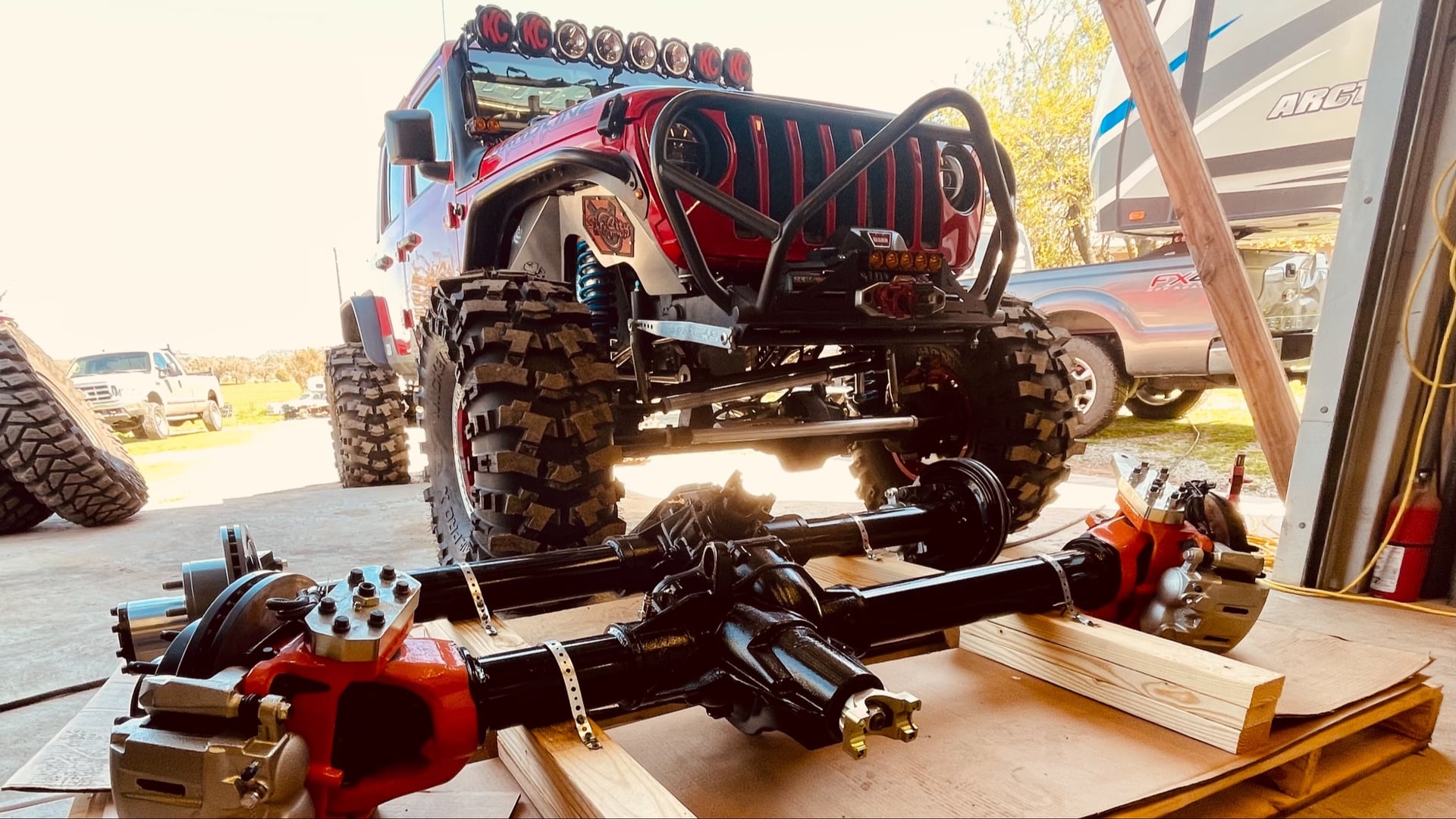

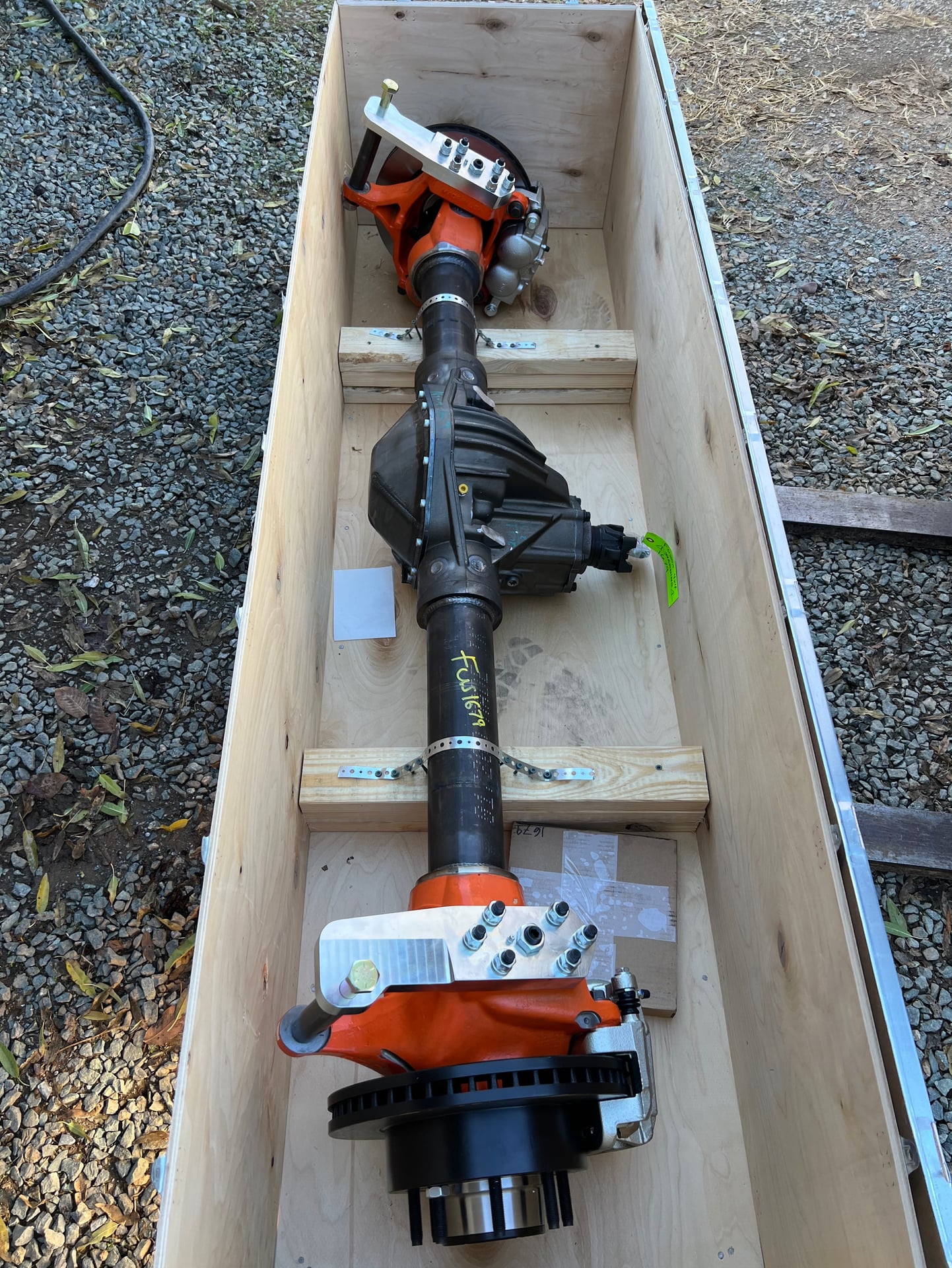

Elite Kingpin HP 60 High clearance, high pinion center section, HD inner Cs, and HD Knuckles 1 Ton GM Brake Kit Forged 35 Spline 1480 Chromoly Axle shafts Spicer Solid U-Joints Spicer 10.1" Super 60 Ring & Pinion 5.38 Yukon Hardcore Hubs 1350 forged u-bolt style yoke Eaton Lockers 4 pin 7075 Aluminum Steering and 2.5 Ton Ball Joints

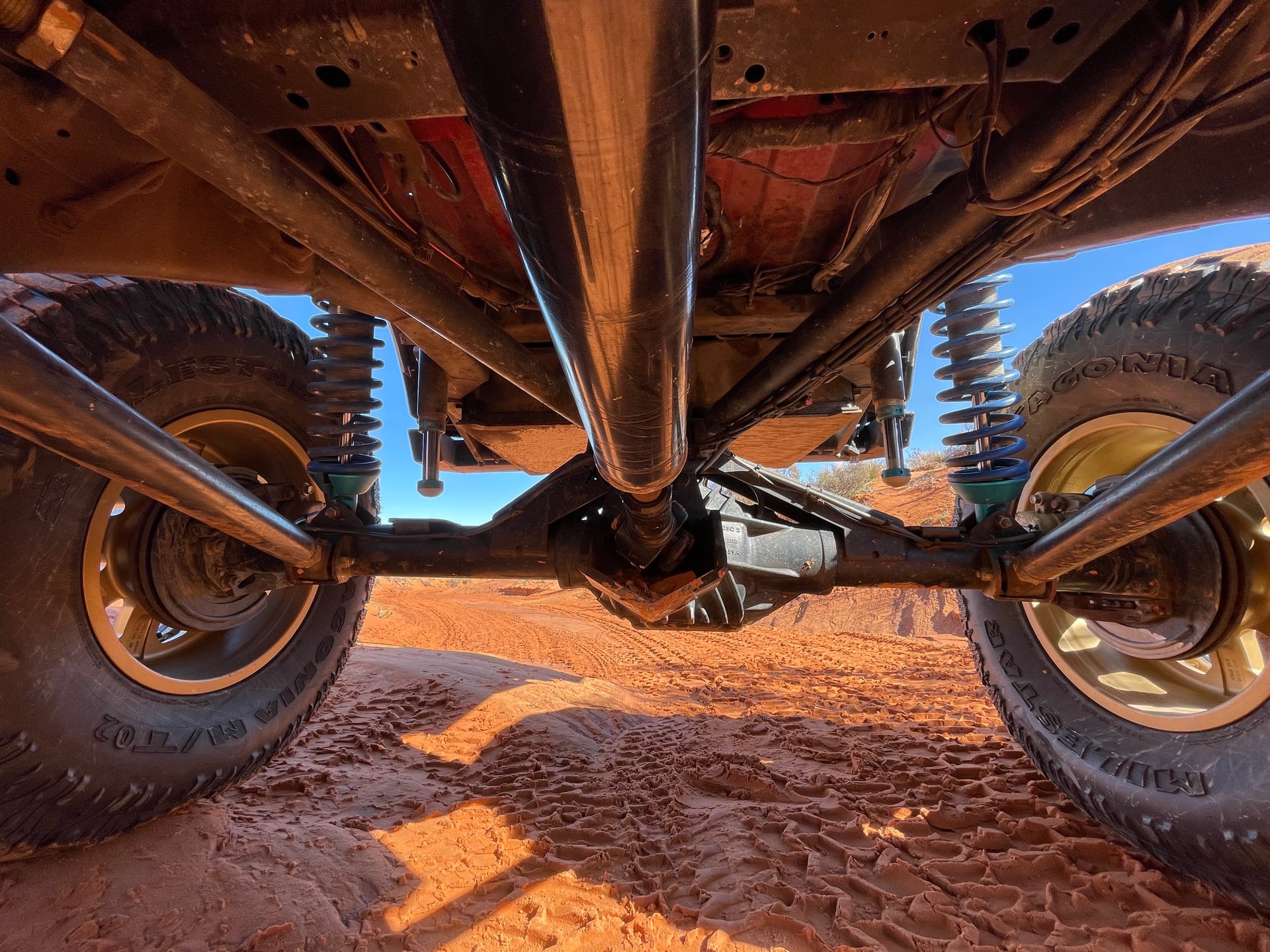

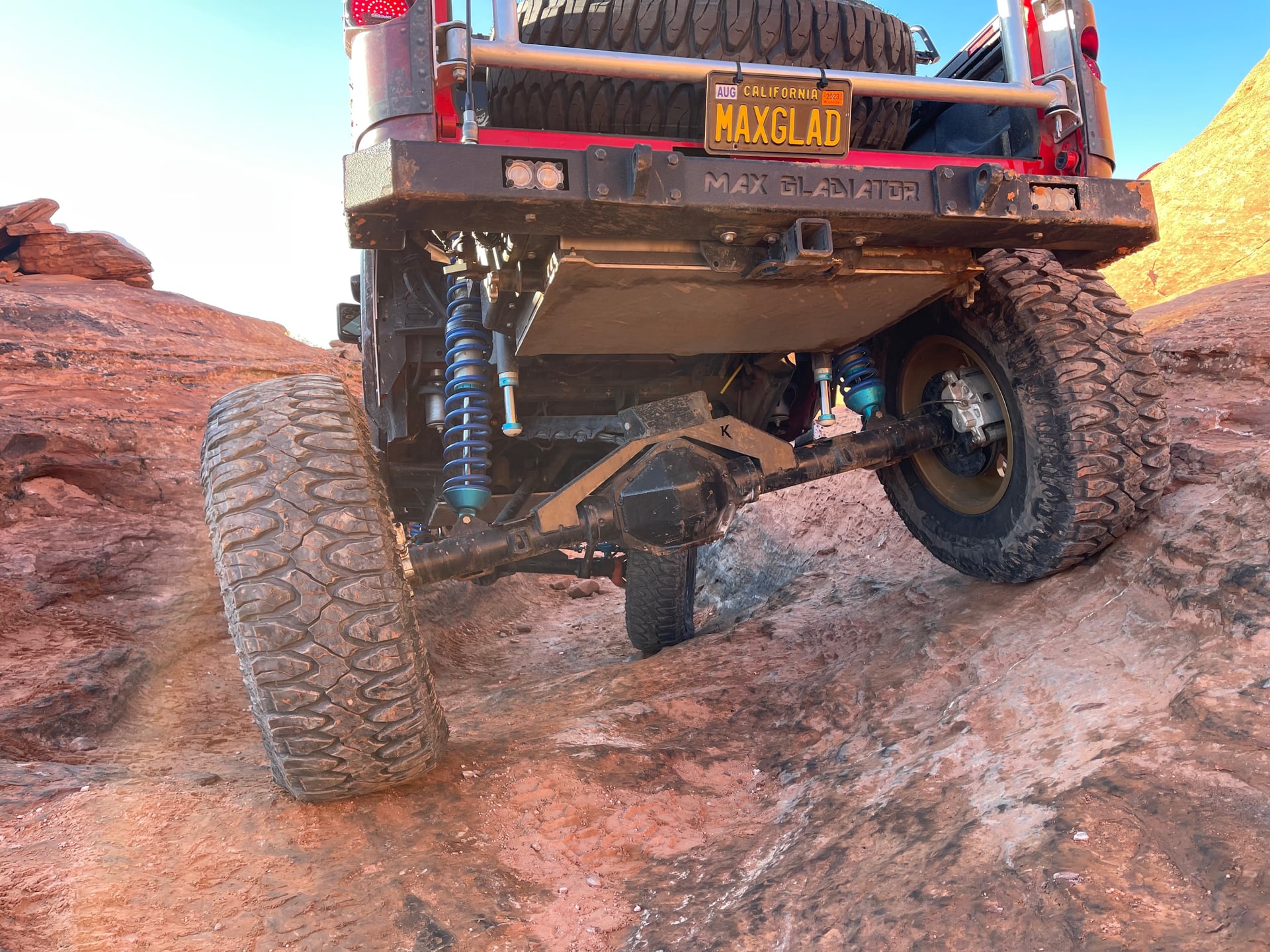

KrashFab dual Triangulated 4 link rear suspension. All (4) 2"x.25 DOM steel links with Currie Johnny joints, new crossmember for the 4 link mounts on frame. Custom 16” shock mounts fully integrated into a pre-runner style bed cage- which is also tied to a custom rear roll bar, complete new rear frame behind cab with extra supports. New brake lines and re-route ABS lines, Custom KrashFab rear axle truss and all axle brackets. Rock Jock Sway Bar with 20” Aluminum Arms with Summit Machine Links.
Engine

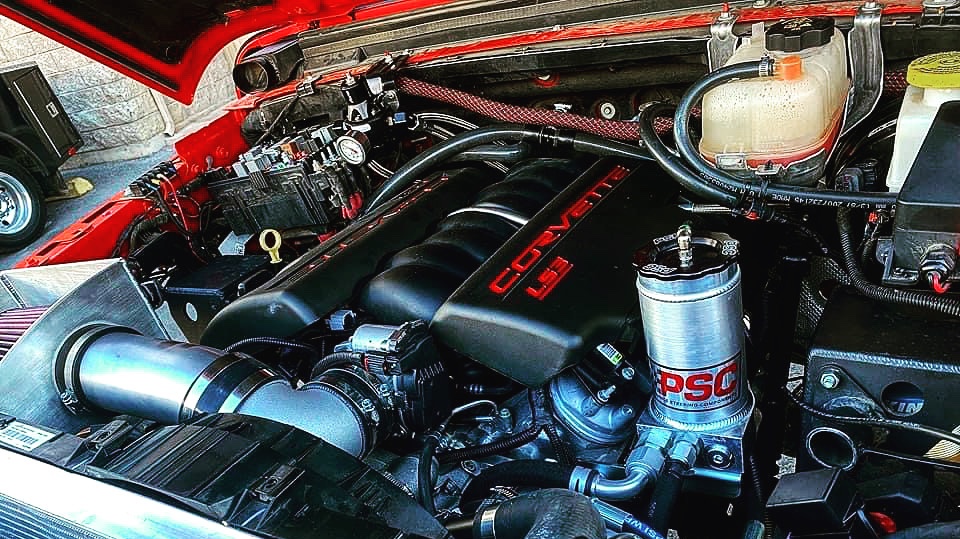

LS3 Bruiser Conversation kit
ZF 8HP75 transmission
Atlas Transfer Case
Exhaust
True dual exhaust coming off the LS3
Exterior

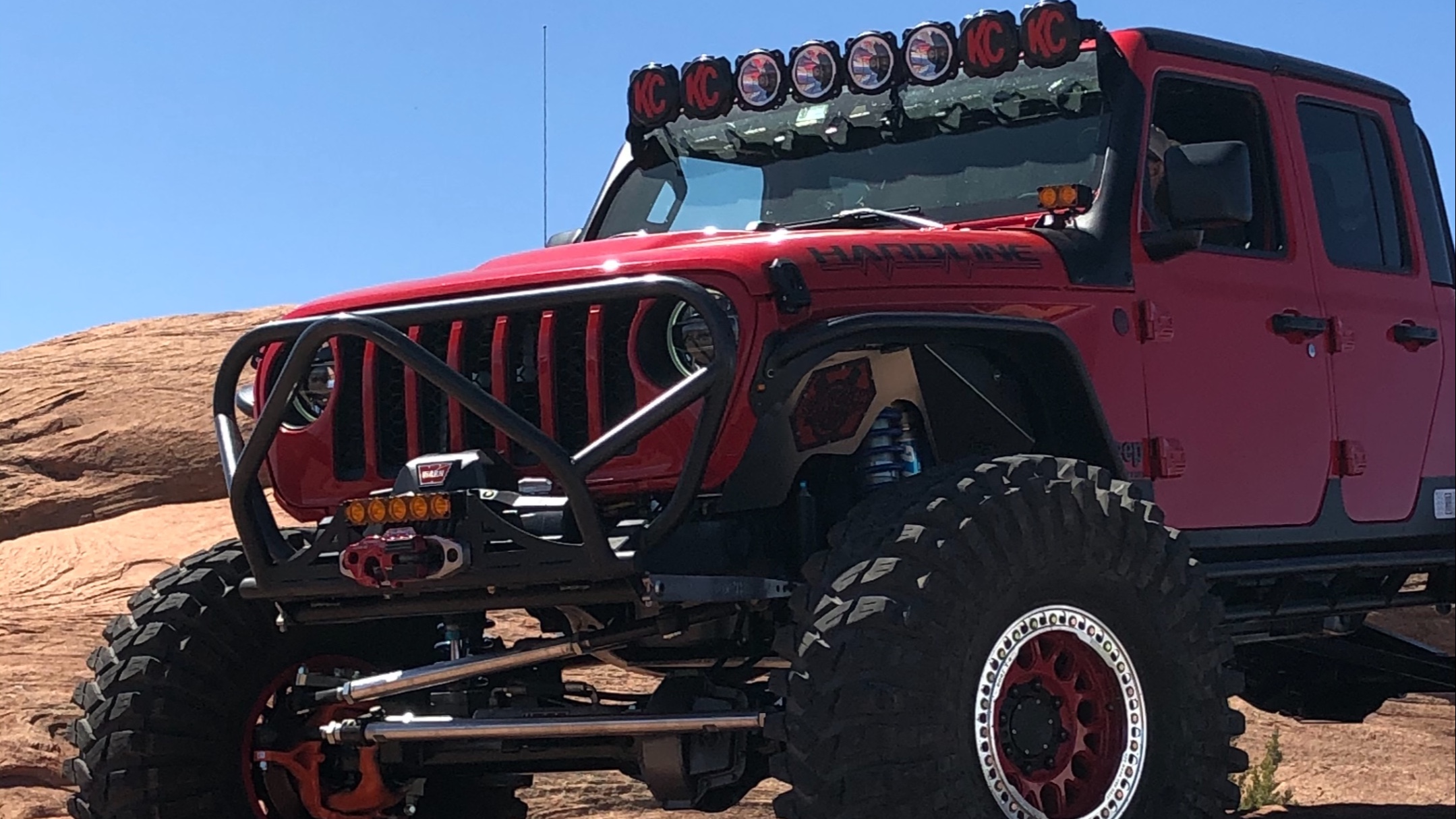

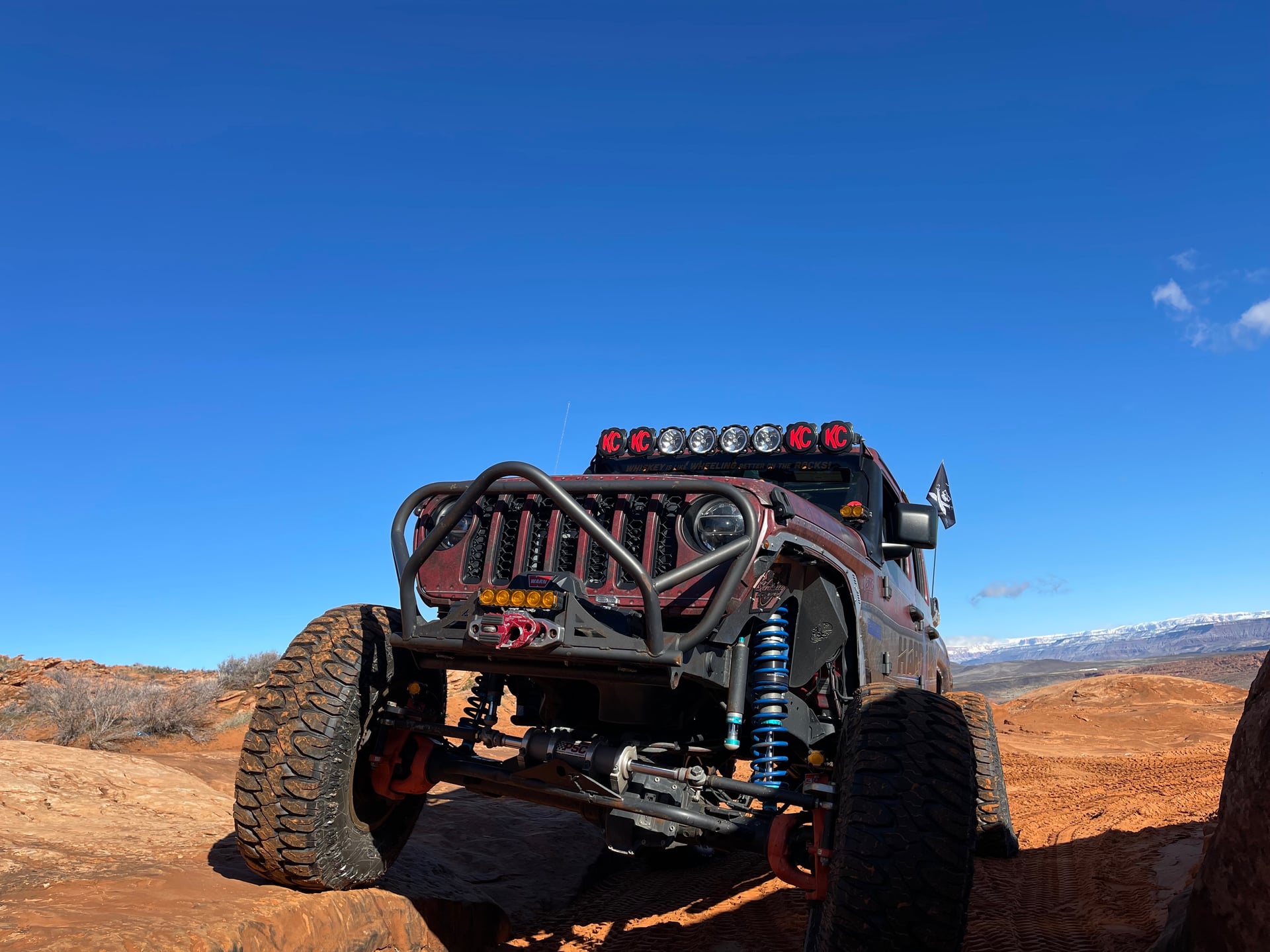

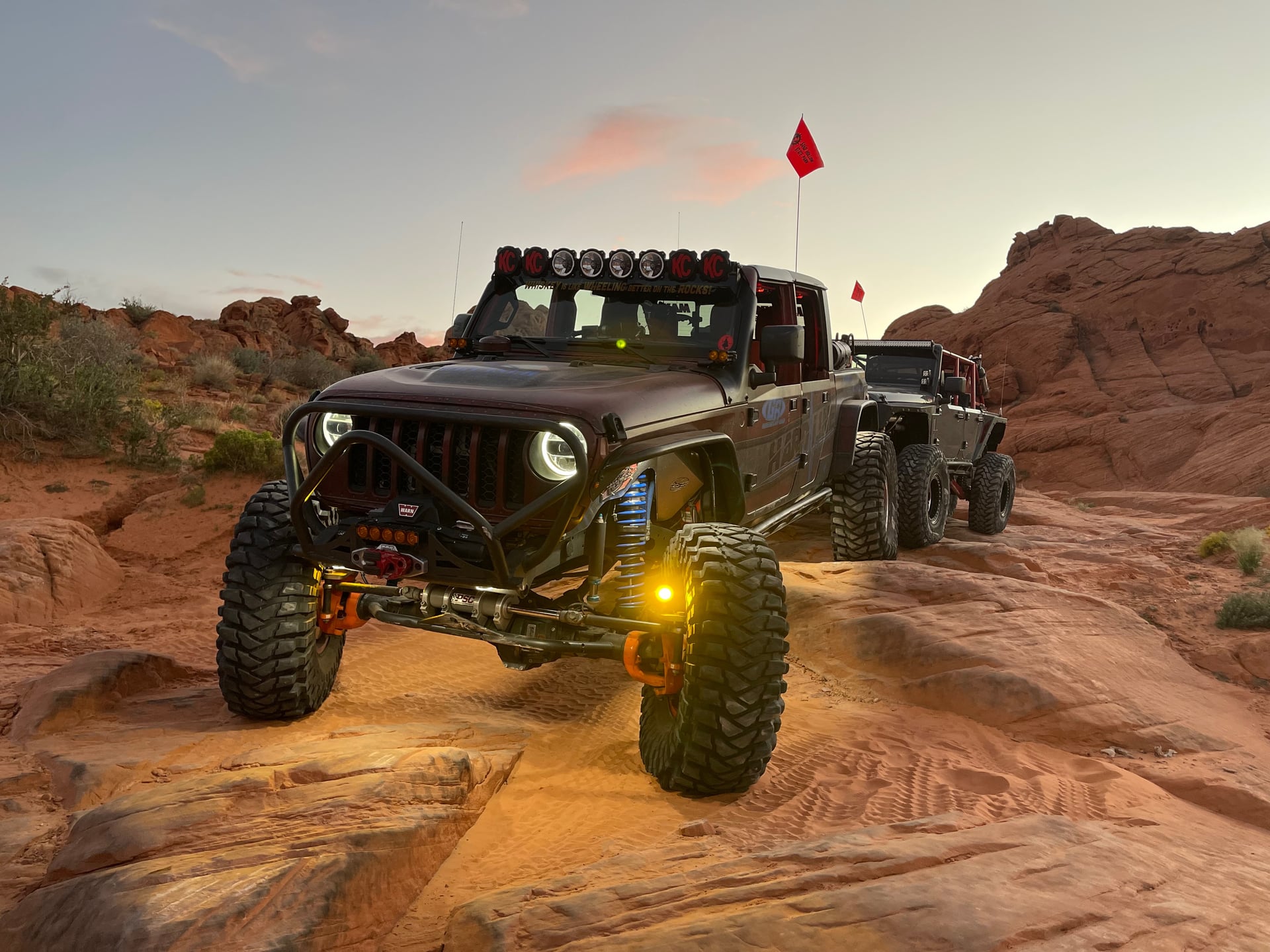

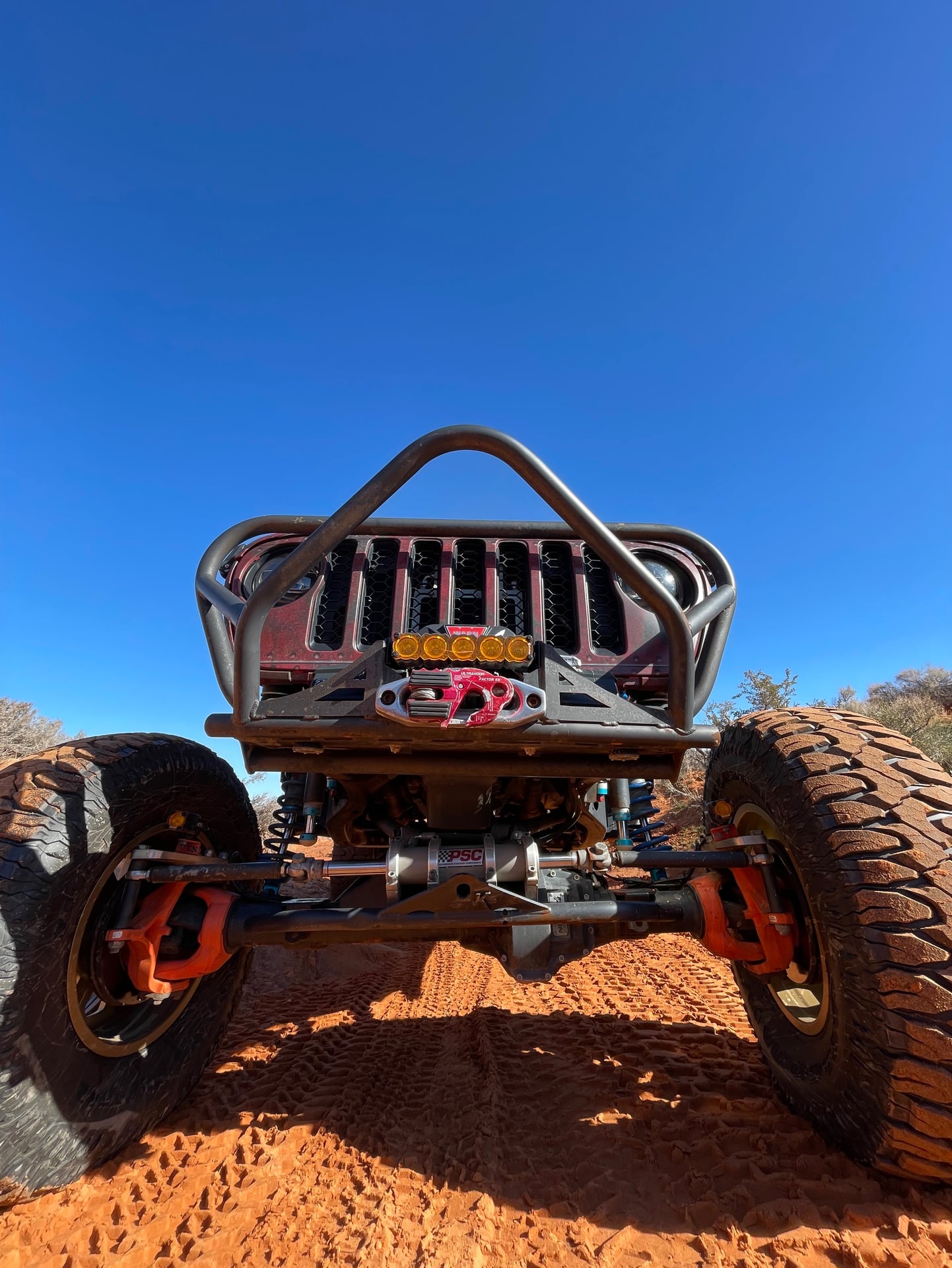

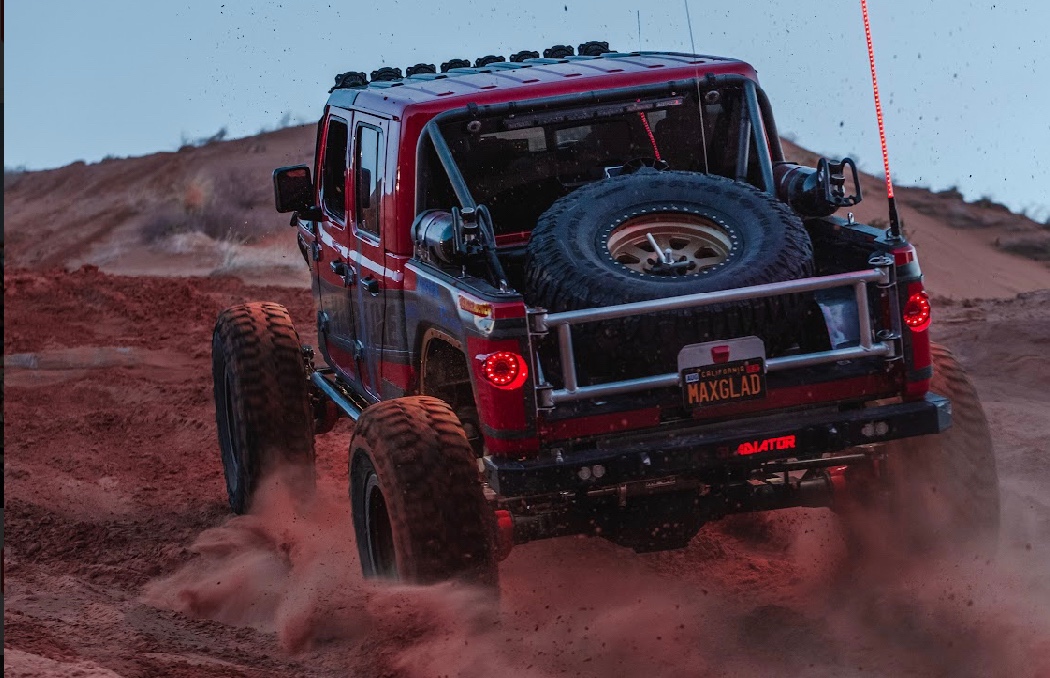

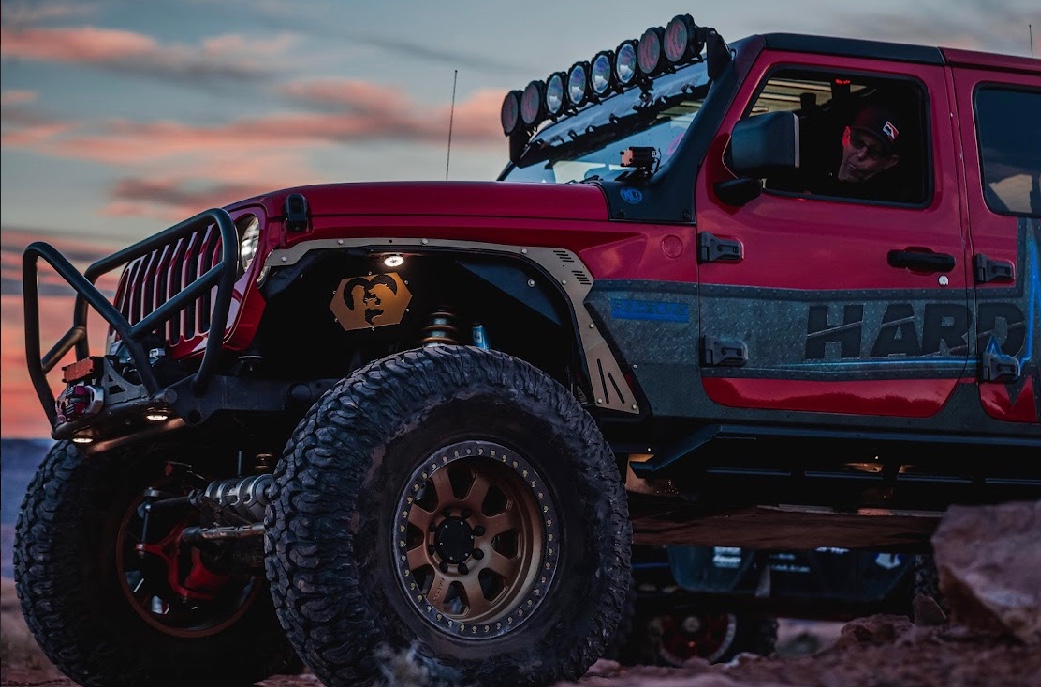

Krashfab Custom Front Tube Bumper with Warn Zeon 12-S with Spydura Pro-Synthetic Rope, integrated into the bumper is the front sway bar, KC 10” light and winch Factor 55 Ultra Hook Rear Custom bumper with receiver hitch and KC lights
Bed chopped 10” in the rear by Anderson Auto Body in Sonora, and factory fuel door removed
GenRight Rear Tube Fenders - Aluminum
GenRight Aluminum Half Doors (When Wheeling)
Intake
K&N filter
Interior

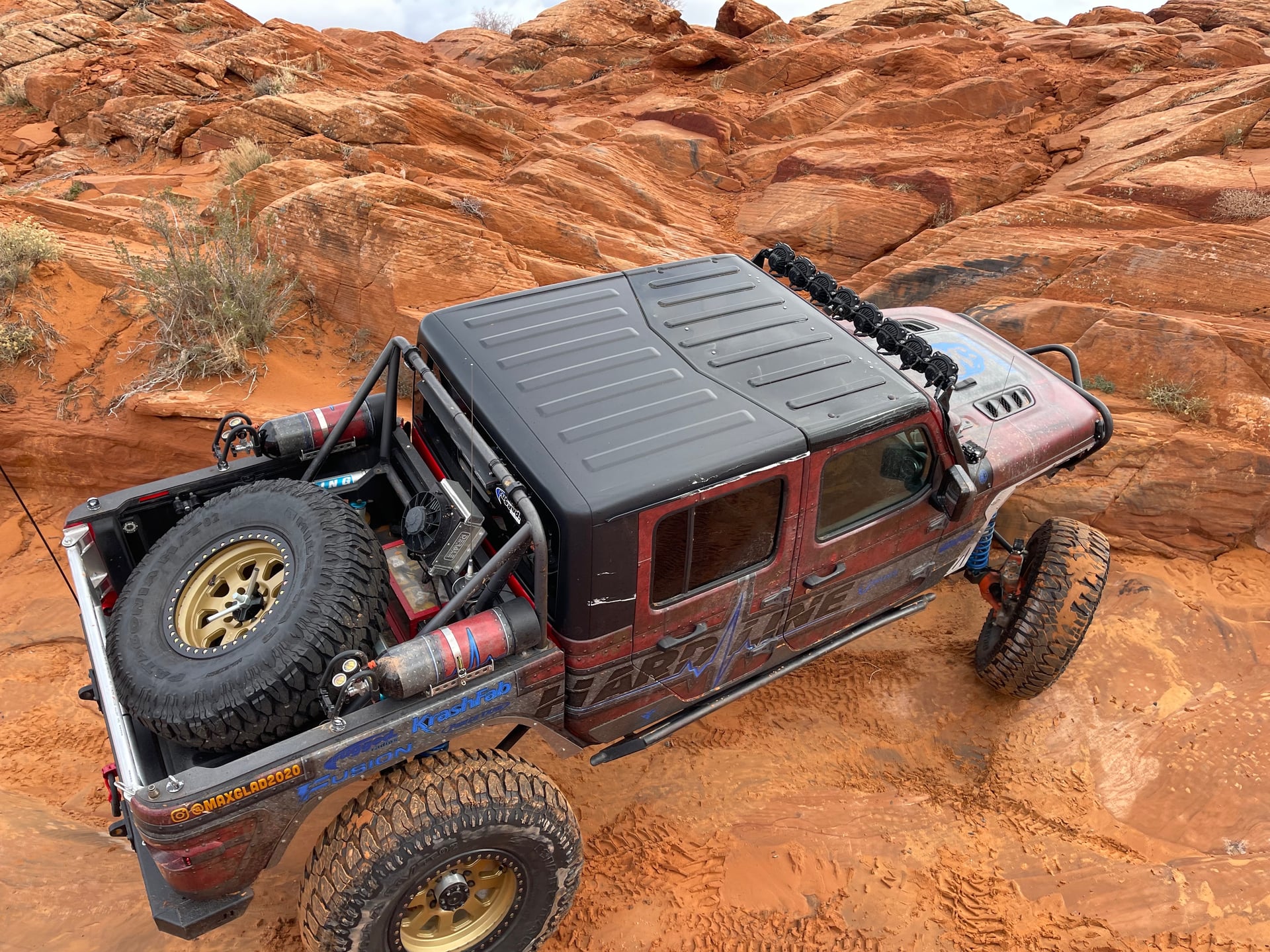

Clearlidz Front Hardtop Panel
Rugged Radio with Headset system
Lighting
S-Pod switching

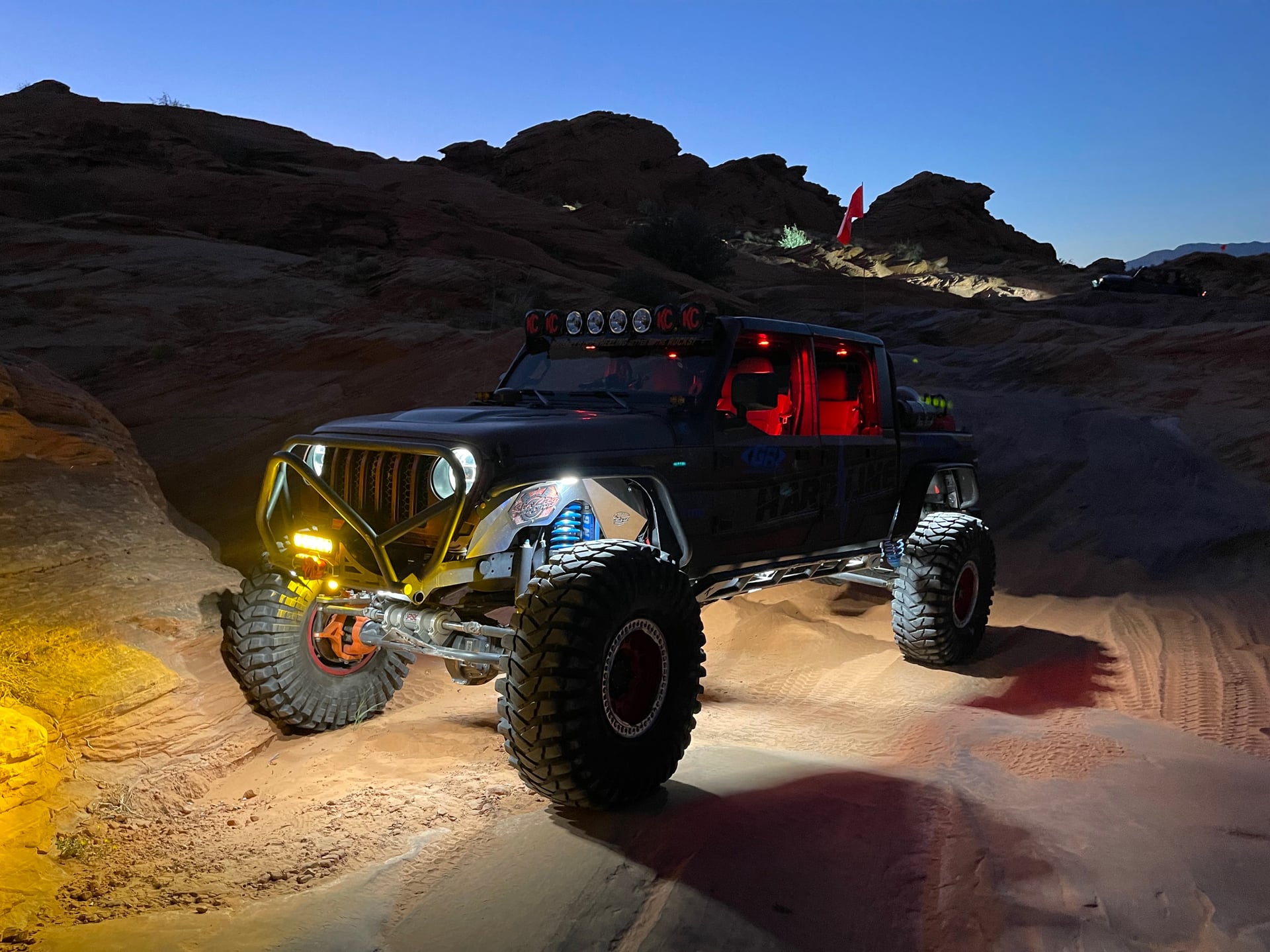

Rock Lights (15) CYCLONE V2 LED
KC HILITES PRO6 GRAVITY SERIES 50" LED LIGHT BAR SYSTEM, 8-LIGHT - COMBO BEAM
KC FLEX™ LED SINGLE PAIR PACK SYSTEM (Used on steering knuckles)
KC FLEX™ LED 10" Bar SYSTEM
28" CHASE LED LIGHT BAR - MULTI-FUNCTION - REAR FACING
Other
Warn 12s
ARB LX100 - ARB LINX Vehicle Accessory Control Module
ARB 63 Qt. Elements Portable Fridge Freeze

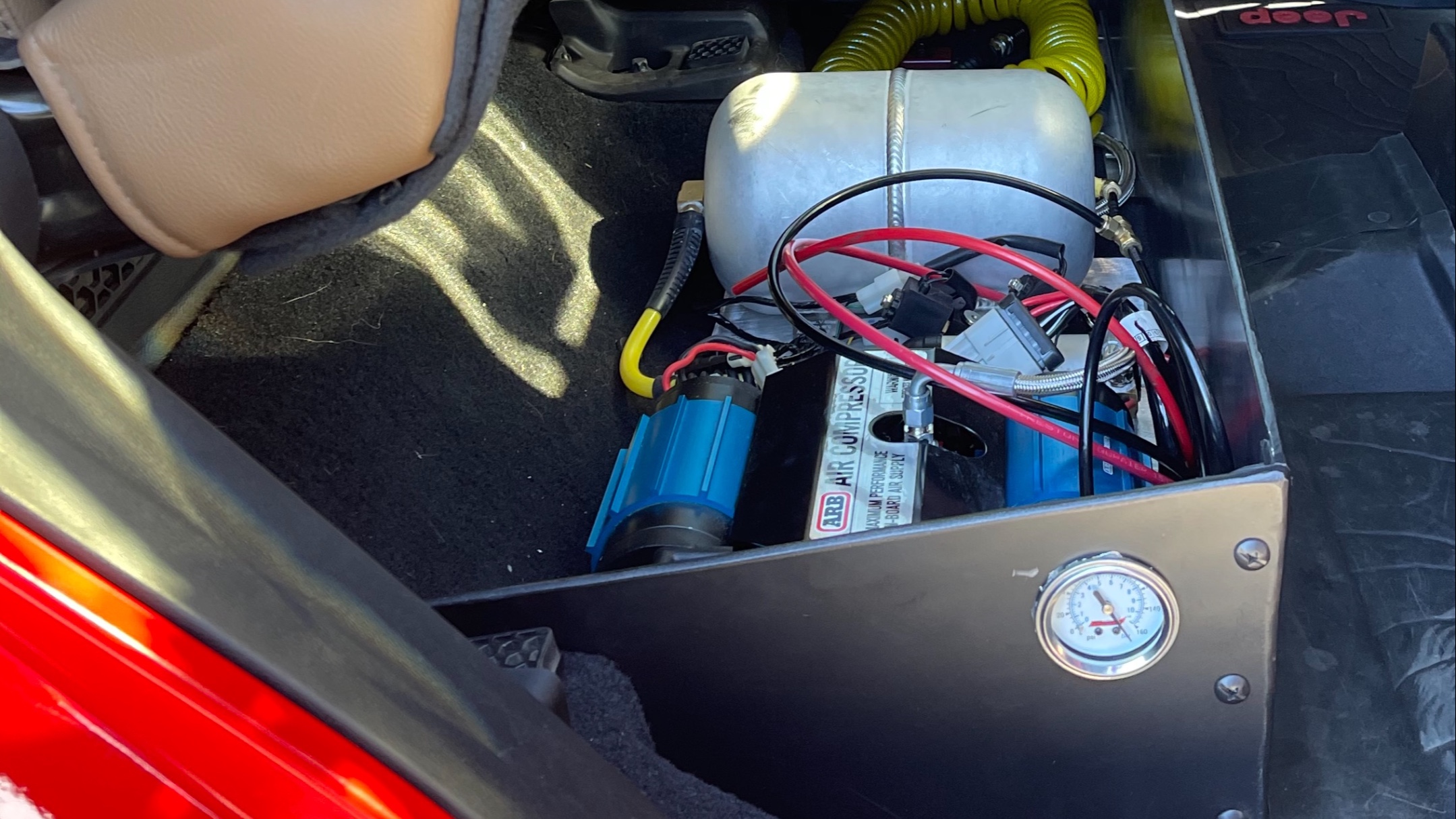

ARB 12V Twin On Board Air Compressor
Suspension

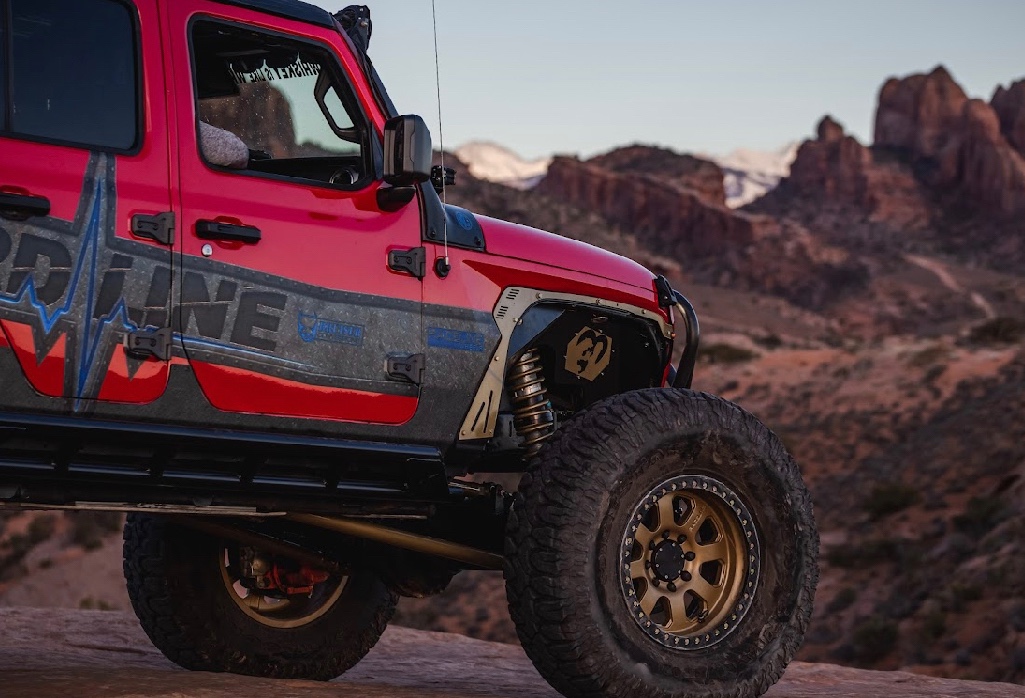

King Shocks 3.0 IBP coli-overs with remote reservoirs, 14" front, 16" rear, external compression adjusters
2” X 6" King Air bumps
Wheels
RaceLine 20” wheels
Power Tank Monster Valve (Air up & down in seconds)
