2017 Jeep Wrangler JK Unlimited

View profile

I have always been a car guy, especially Mopar muscle. When my wife and I got married she blew her engine and suggested we replace her car with a Jeep; I went a different direction. Fast forward 18 years and one Saturday afternoon we decided to look at Wranglers "just for fun”. By the end of the day we were driving away in our new Jeep. The first night I spent several hours online planning and buying parts. In less than a year, what had started as a simple driveway build would out grow my skills and abilities. From there the Jeep made it's way over to Red Clay Offroad and Teracon was born!

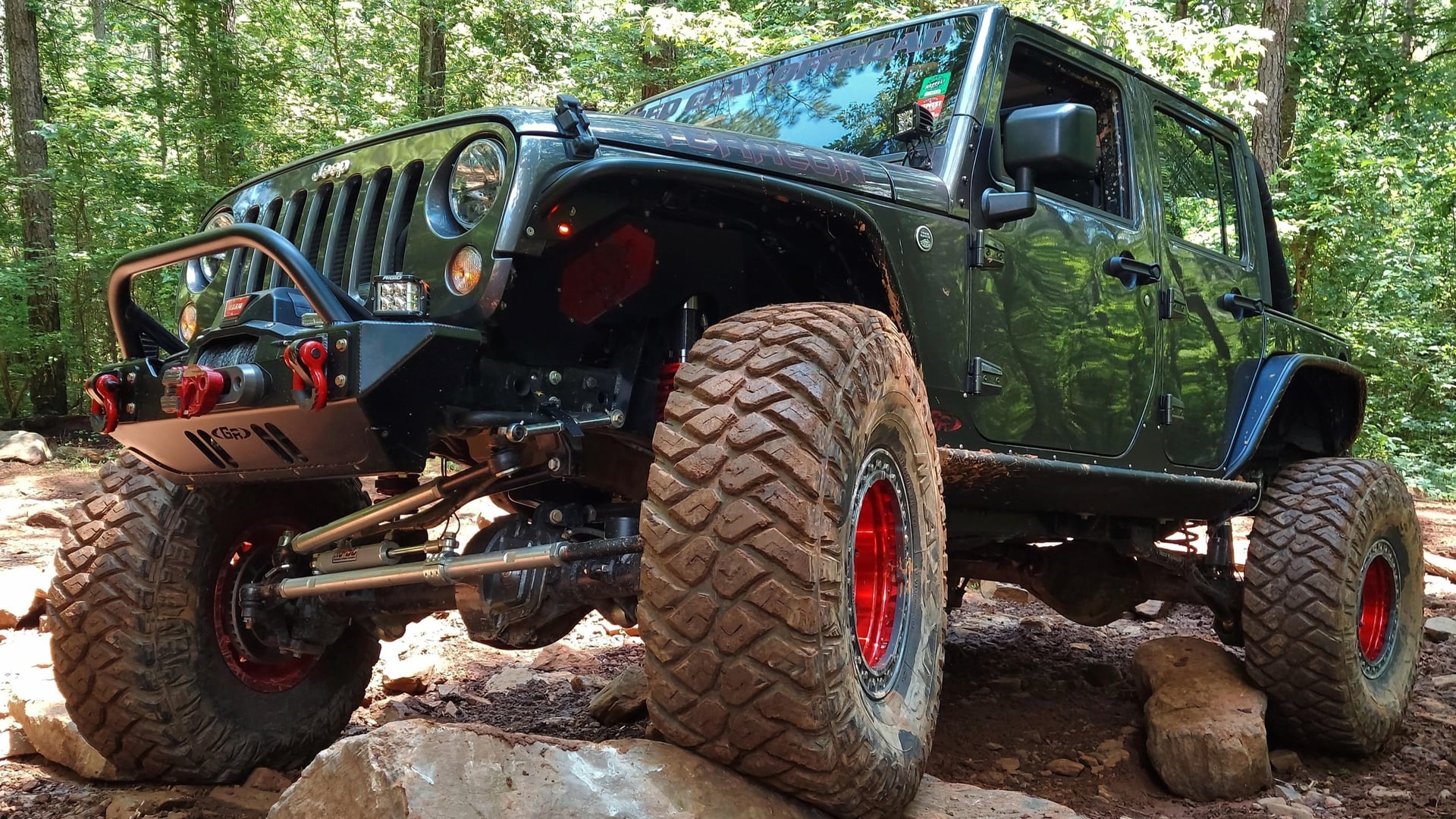

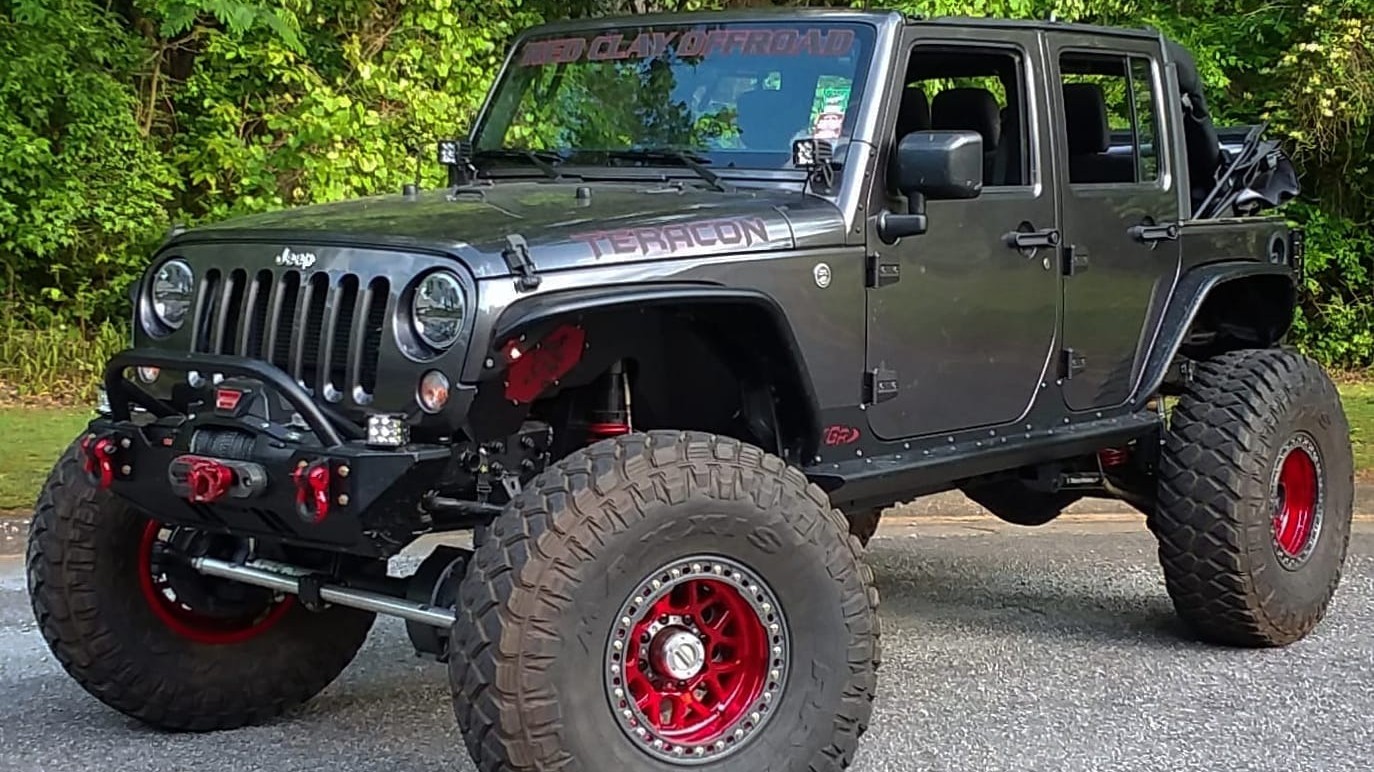

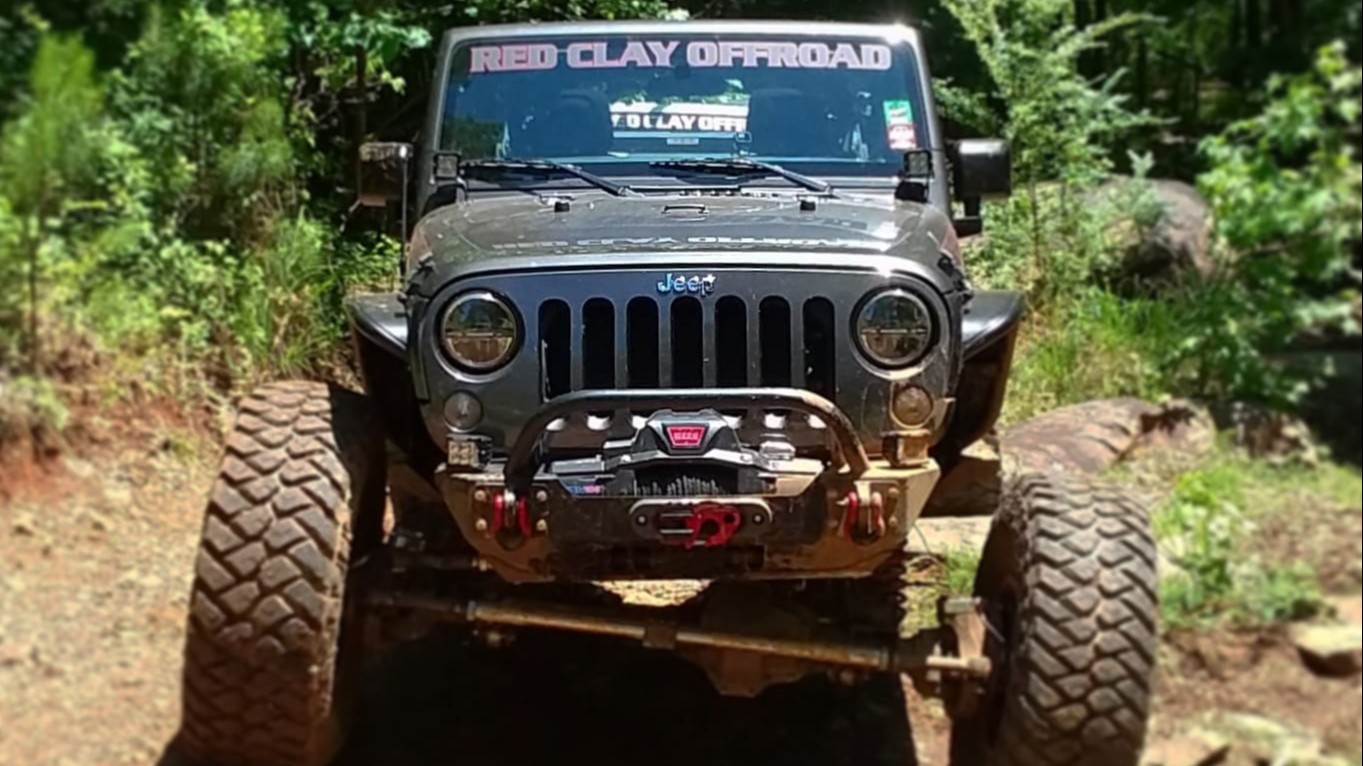

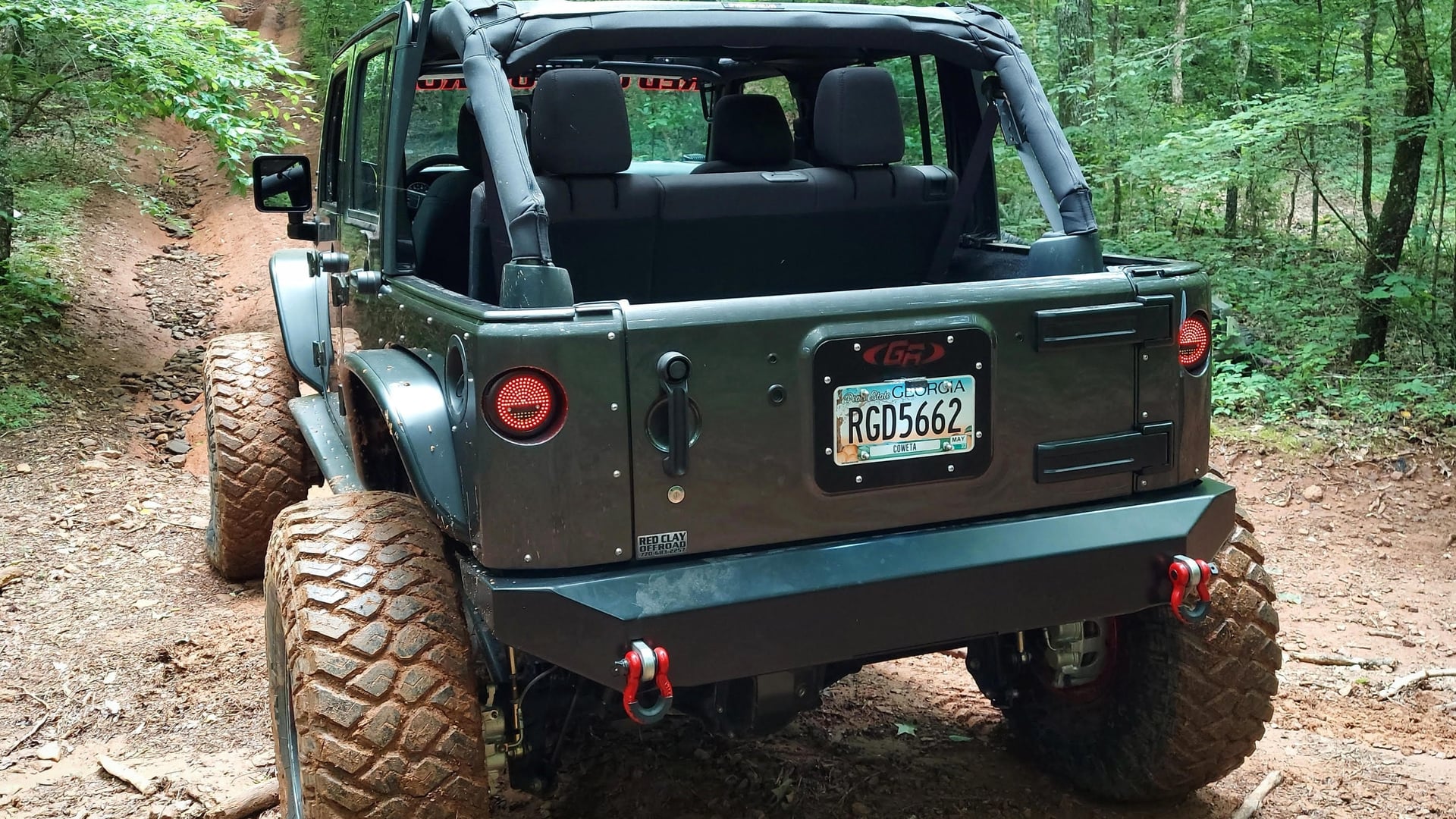

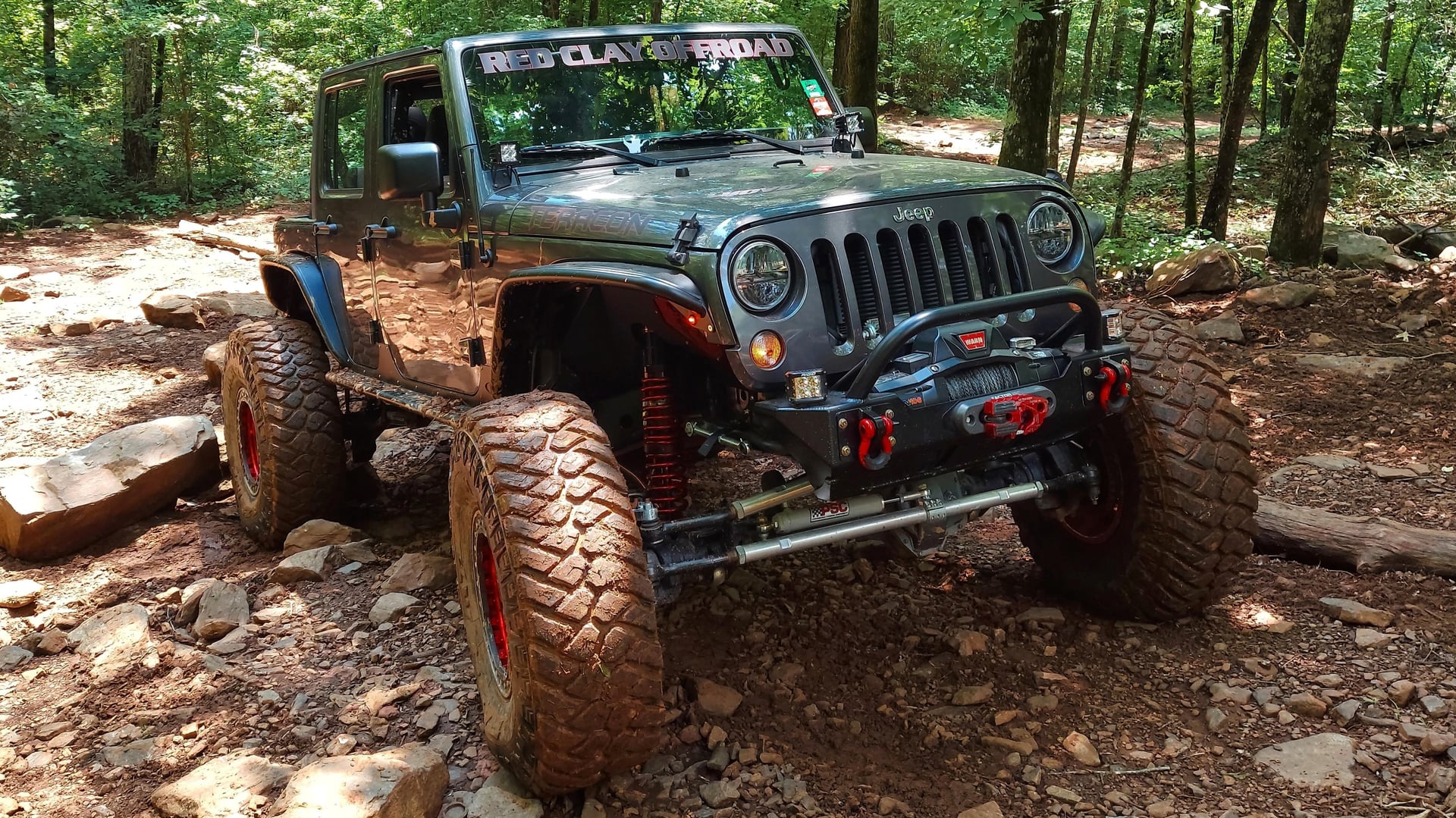

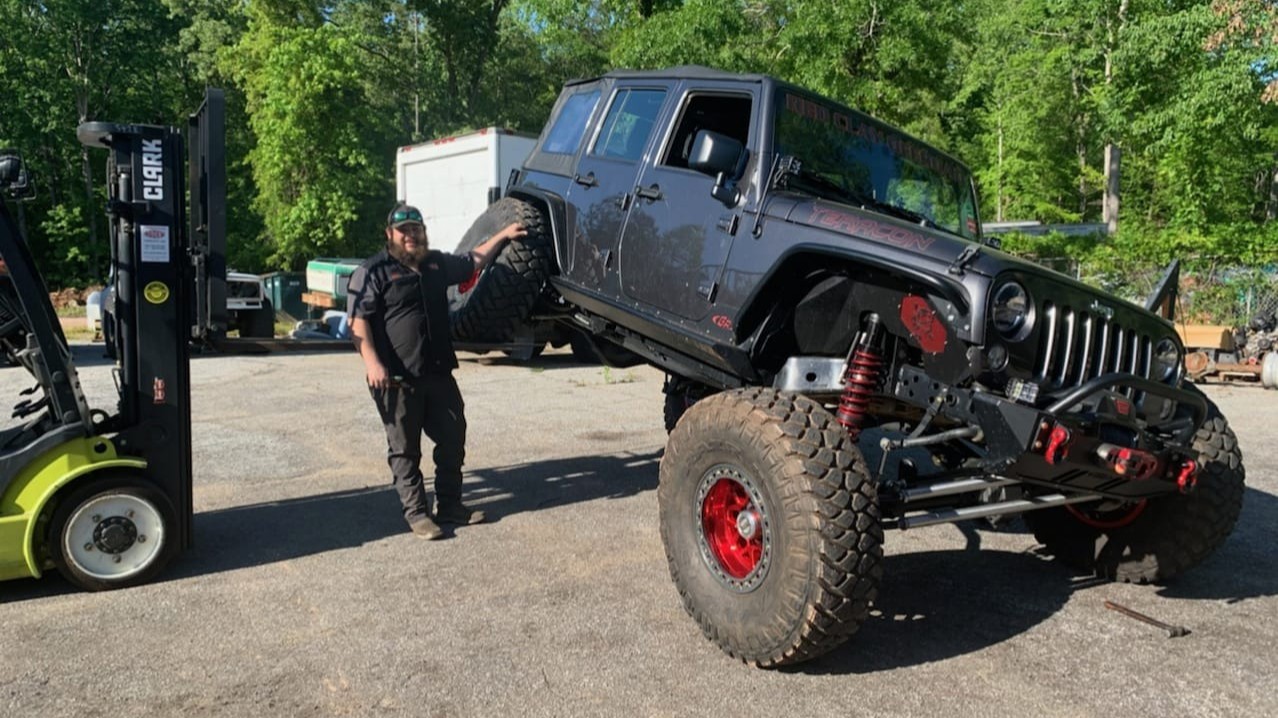

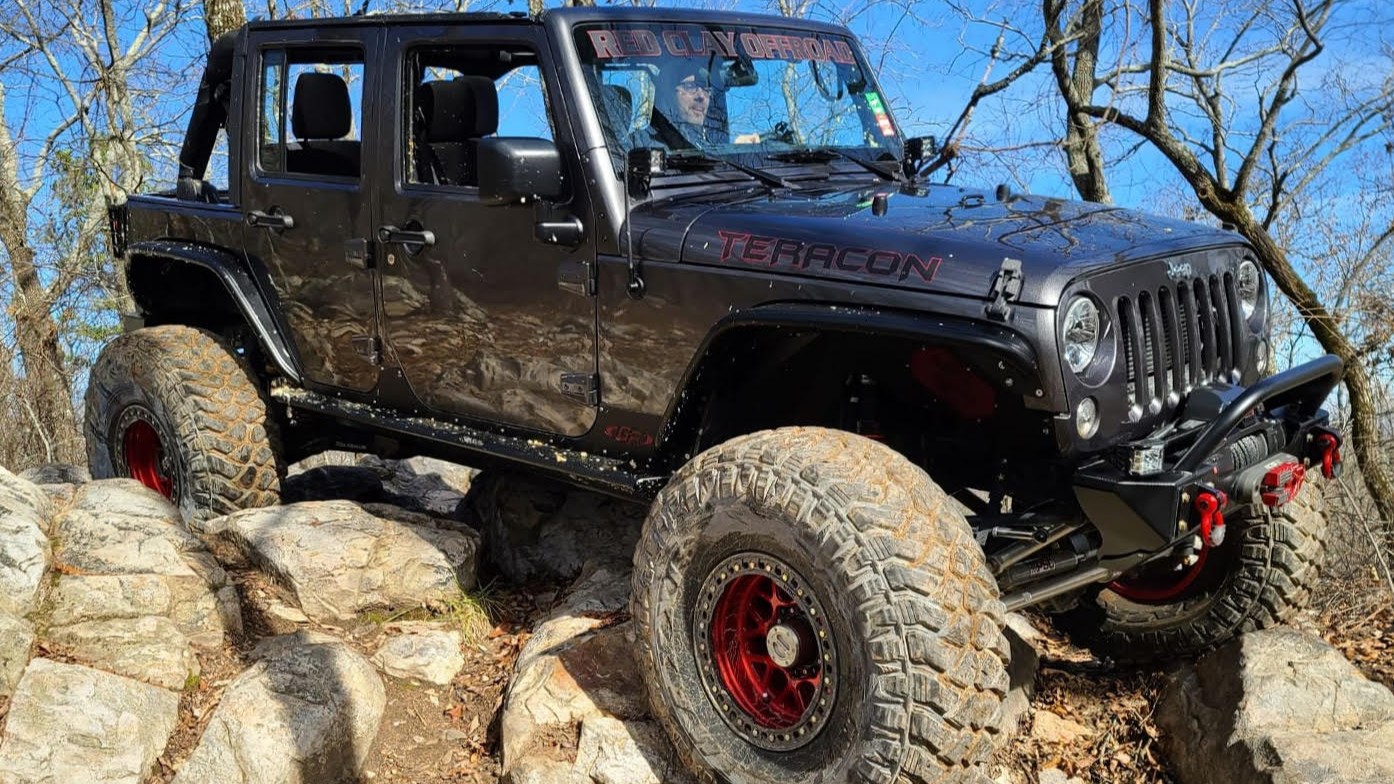

jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 1 of 12
Build specs: 52 parts40" tires4.5" lift

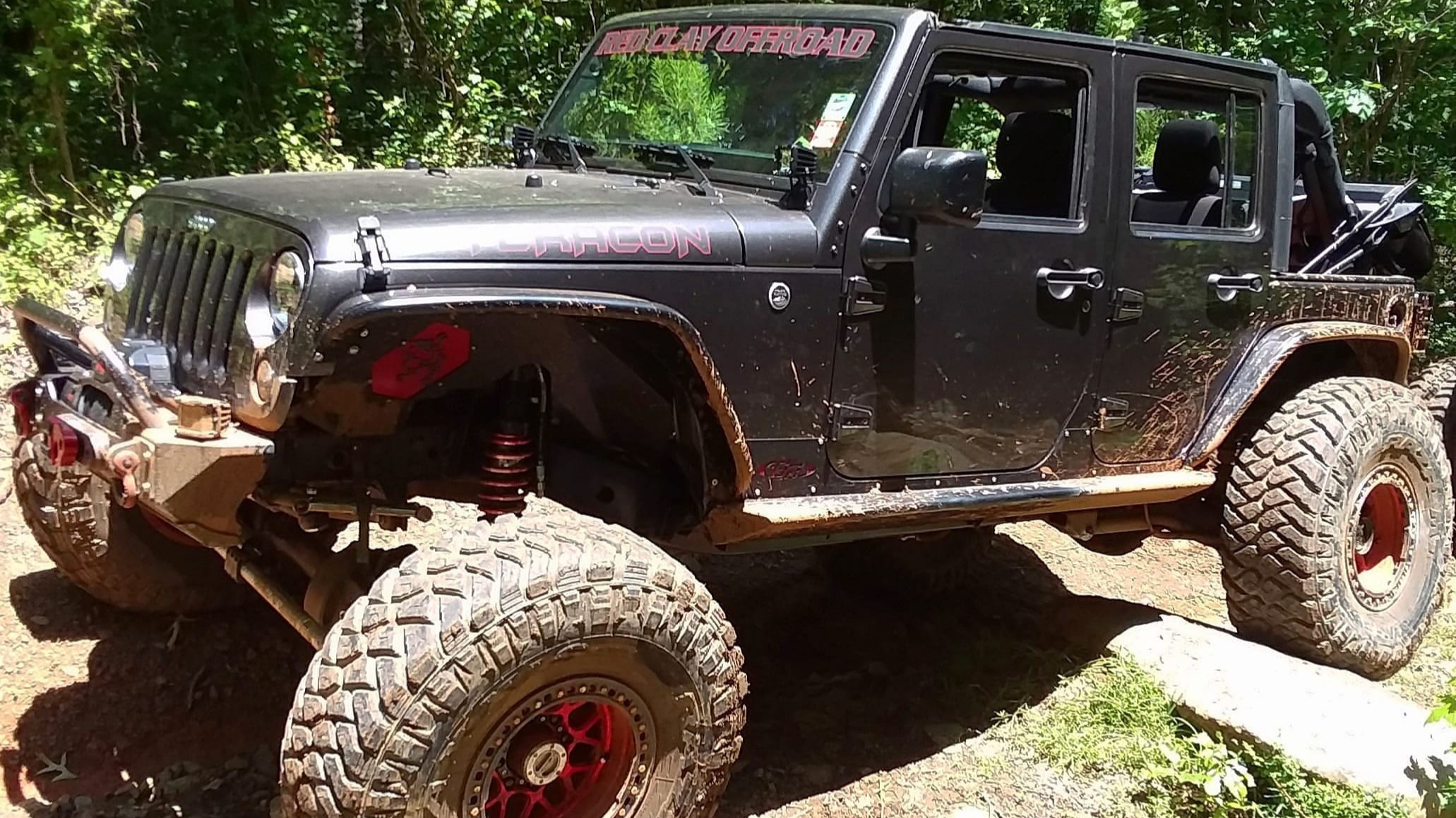

jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 2 of 12

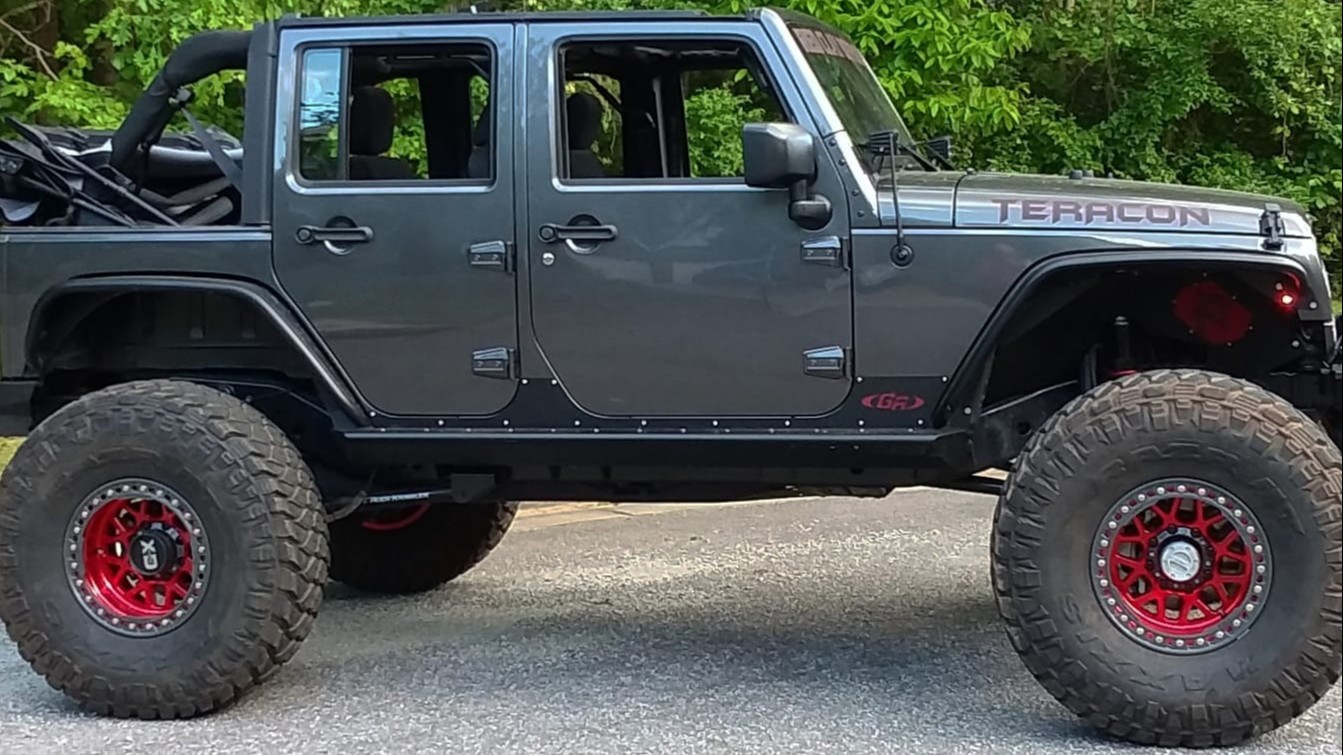

jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 3 of 12

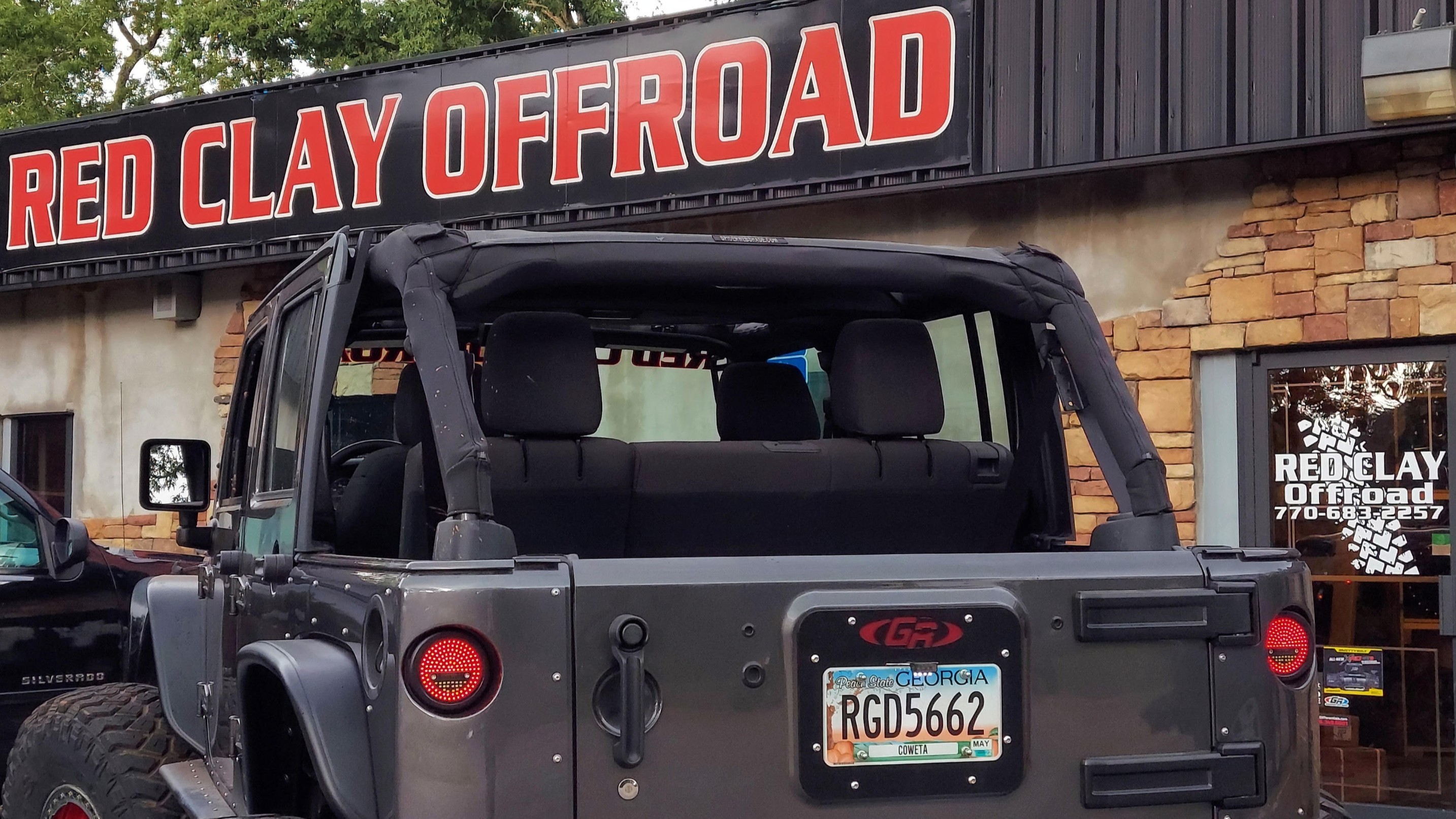

jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 4 of 12
jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 5 of 12
jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 6 of 12
jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 7 of 12
jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 8 of 12
jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 9 of 12
jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 10 of 12
jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 11 of 12
jku teracon, a gray 2017 Jeep Wrangler JK on 40-inch tires with a 4.5-inch lift, photo 12 of 12

Top mods

Parts

Suspension

Rock Krawler JKU 4.5 X Factor Coil Over - Stage 2
(2) Tuned 2.625 RRD front remote reservoir coil over shock assemblies
(4) Weld on coil over mounts
(2) Triple rate rear coil springs
(2) 2.25 remote reservoir Prodigy rear shocks
(4) High clearance-adjustable lower control arms made from 2" O.D. 7/16 Wall DOM alloy steel
(2) Double adjustable track bars made from 1.5" solid alloy steel with Anti-Wobble Joints
(4) Long arm mounts and cross member made from 1/4" thick laser cut steel
(2) High misalignment adjustable upper control arms made from 1.625" solid alloy steel
(1) Rear independent 3rd link mount made of 1/4" thick laser cut steel
(1) Weld on rear axle truss with adjustable anti-squat
(2) Track bar relocation brackets made from thick laser cut steel
(1) Adjustable front sway bar disconnects
(2) Rear extended sway bar links
(4) Long travel stainless steel brake lines
(1) Pair of sway bar straps
(2) Rear coil spring degree wedges
(2) Extended rear bump stops

Brakes

Mopar Big Brake Kit
Dual Piston Calipers
13.25" Front Brake Rotors
14.1" Rear Brake Rotors

Engine

3.6L Pentastar V6
PSC BIG BORE XD Cylinder Assist Steering Kit
Superchips
iDrive

Exhaust

Custom Straight Pipe Exhaust

Interior

GraBars
