GRDLOC

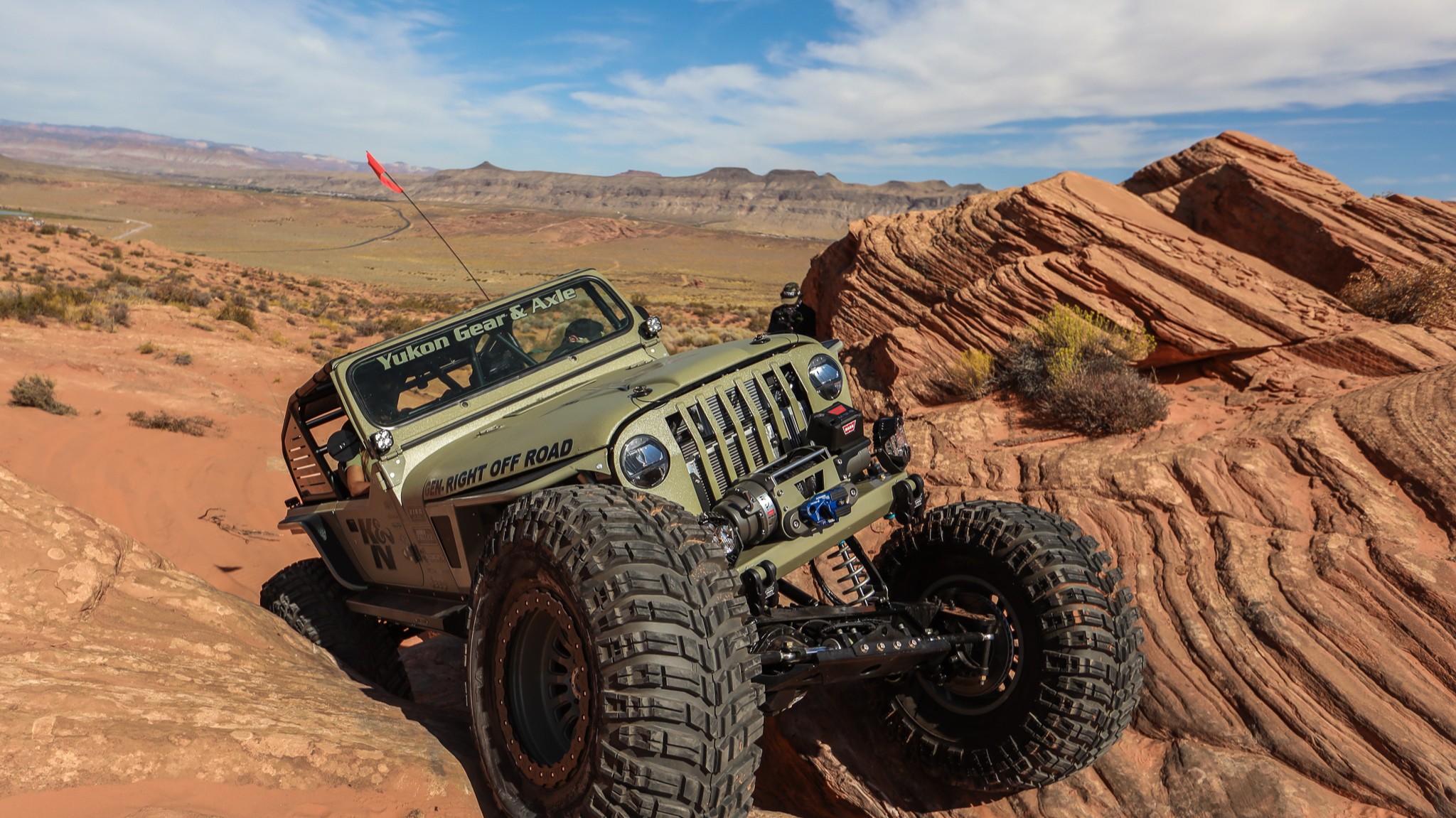

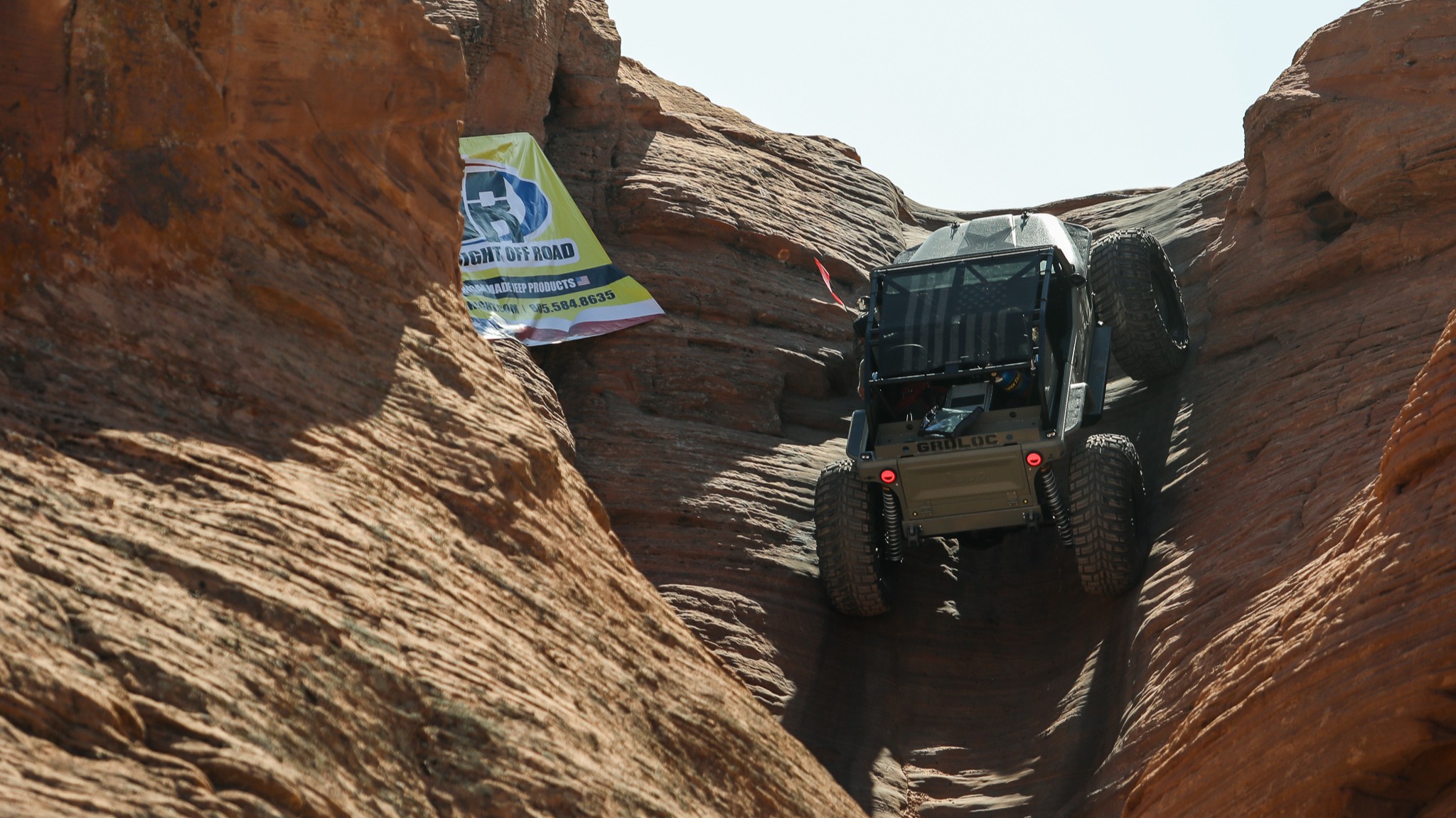

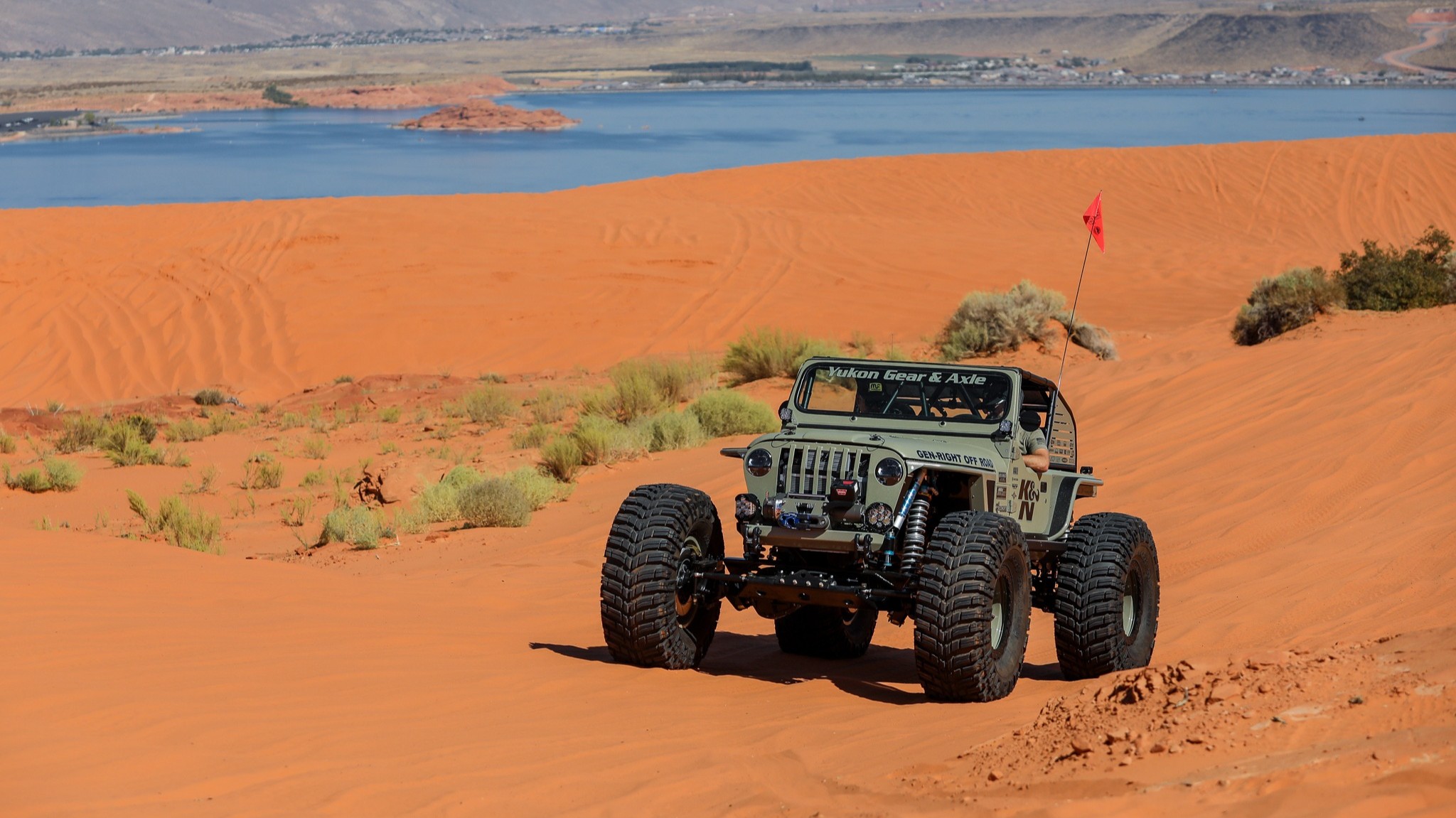

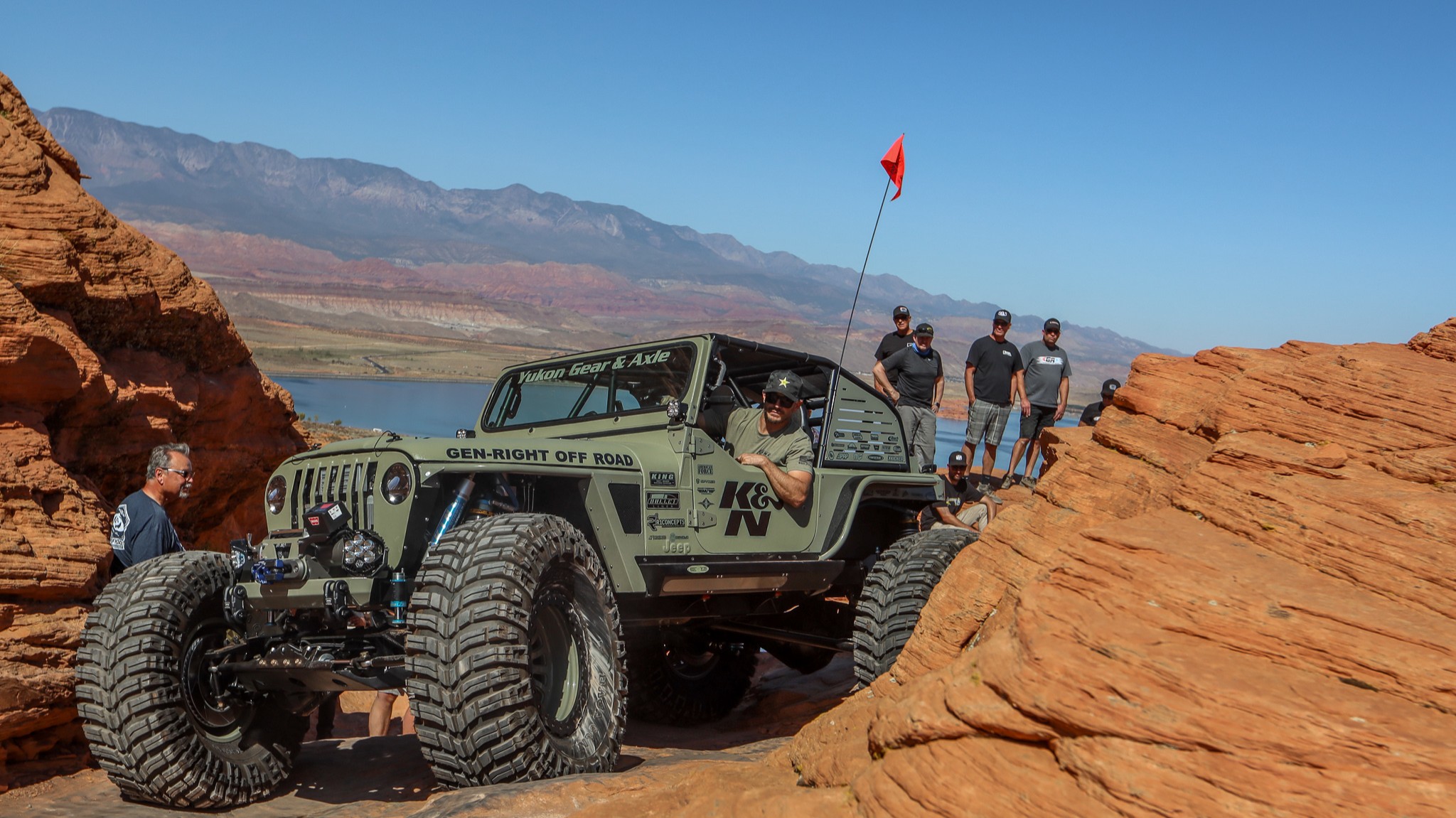

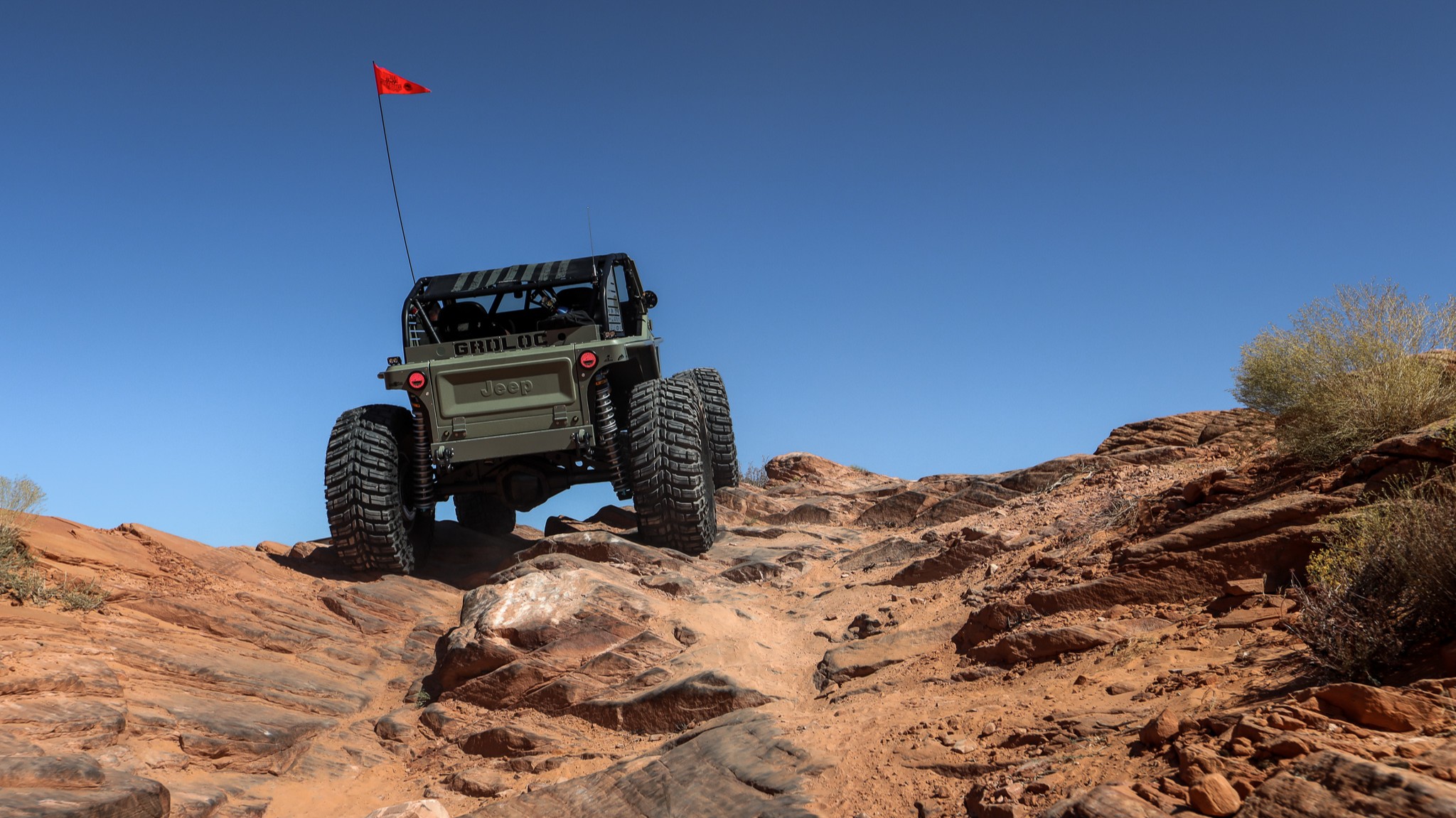

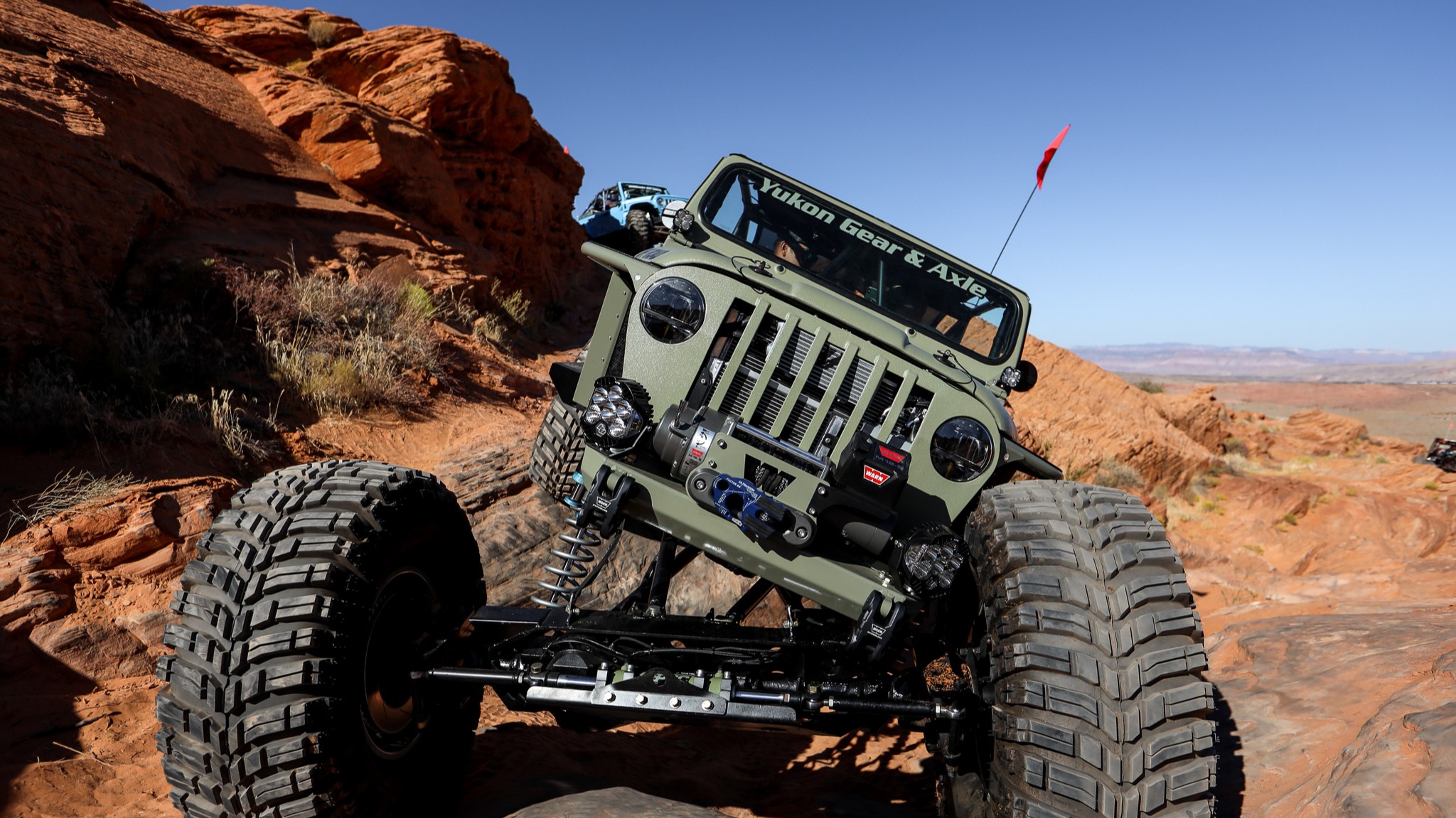

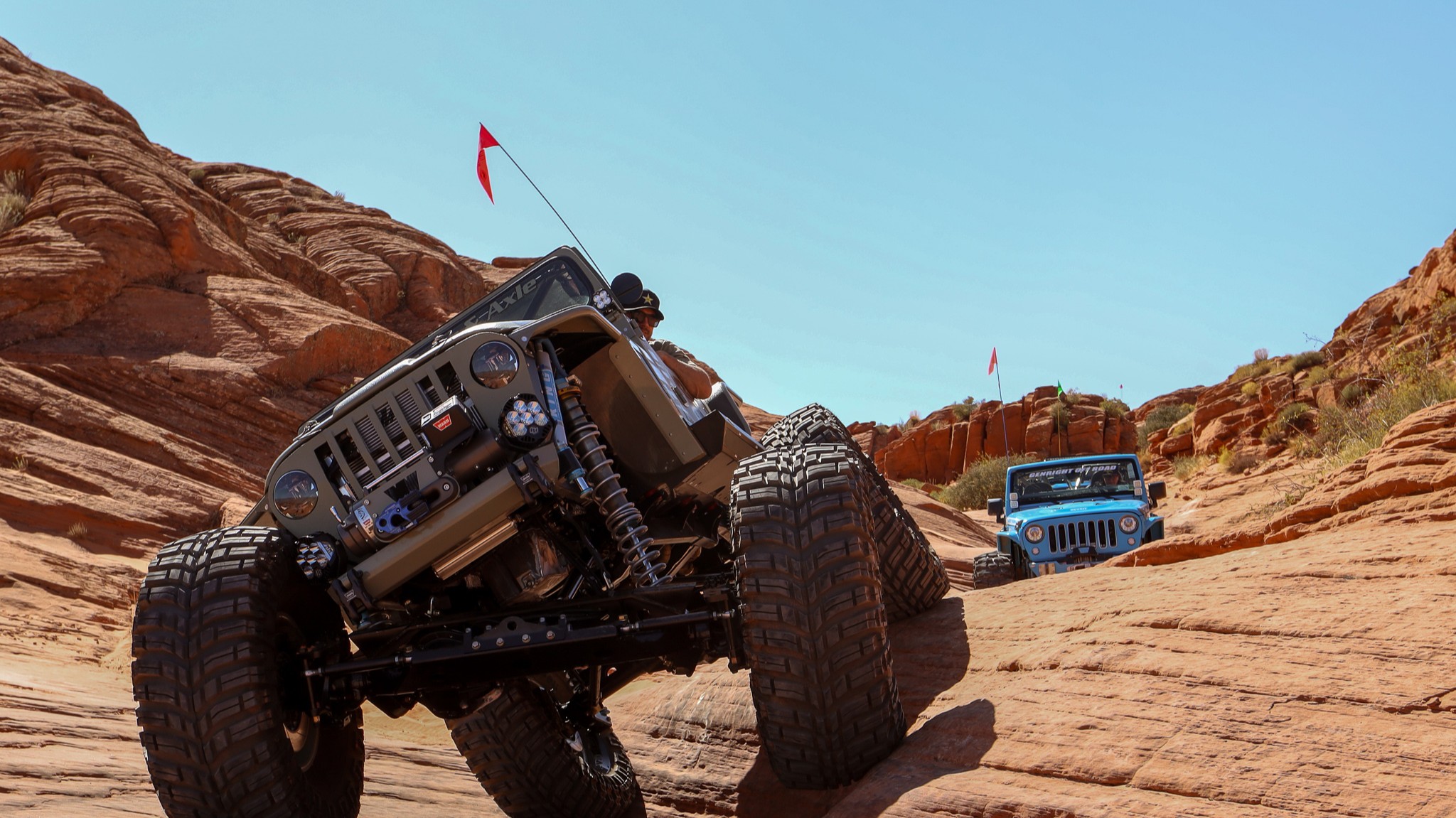

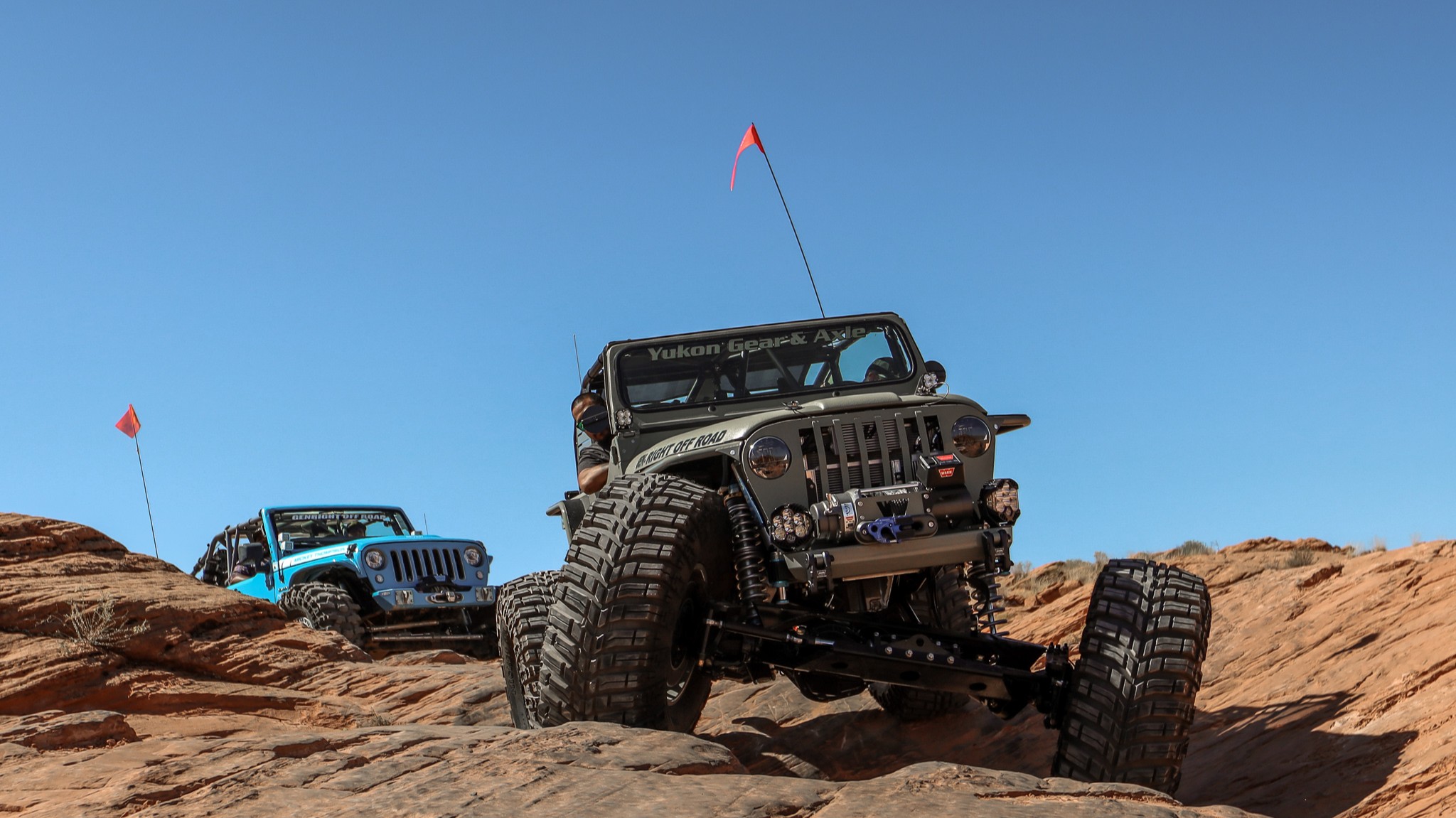

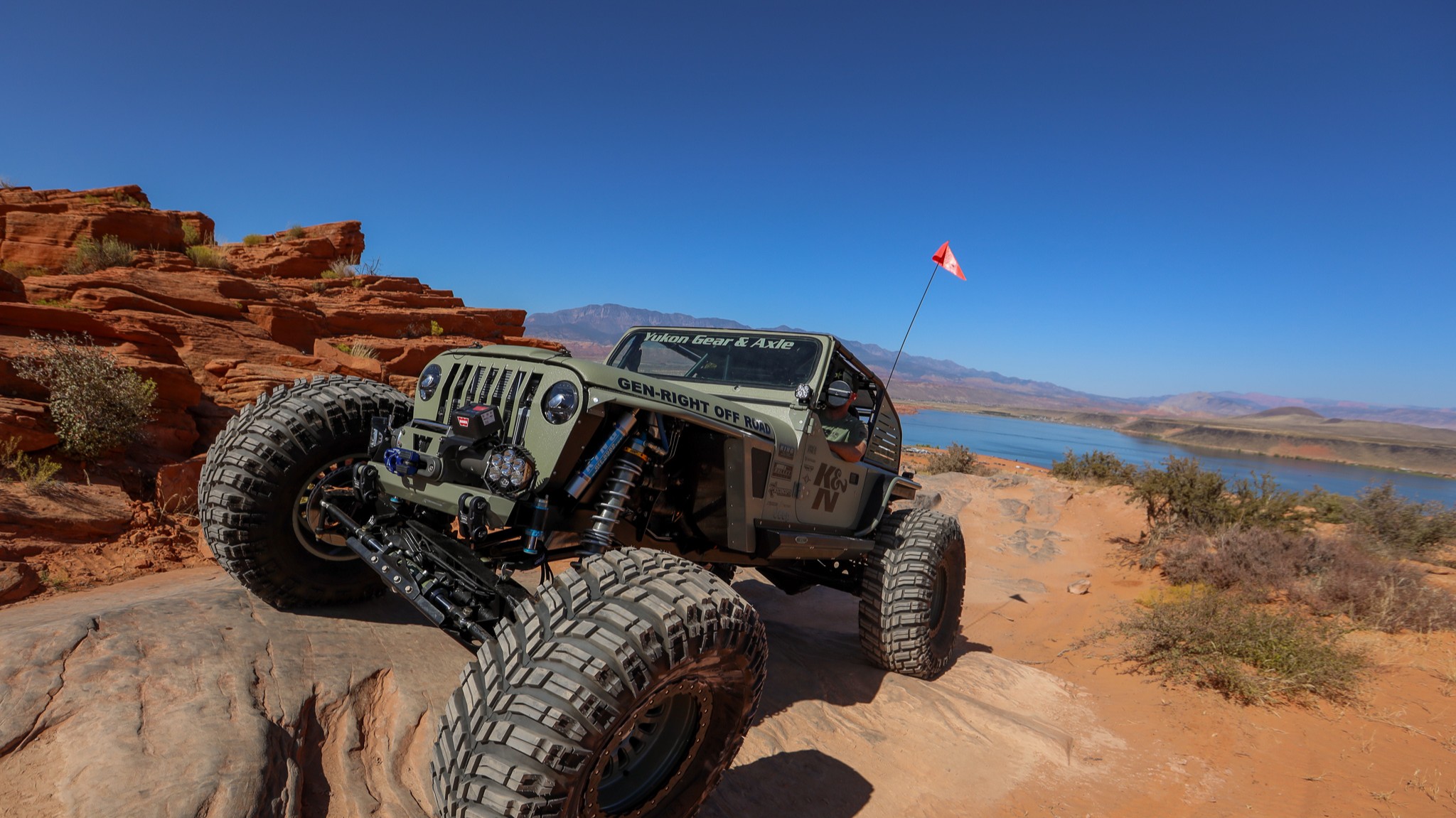

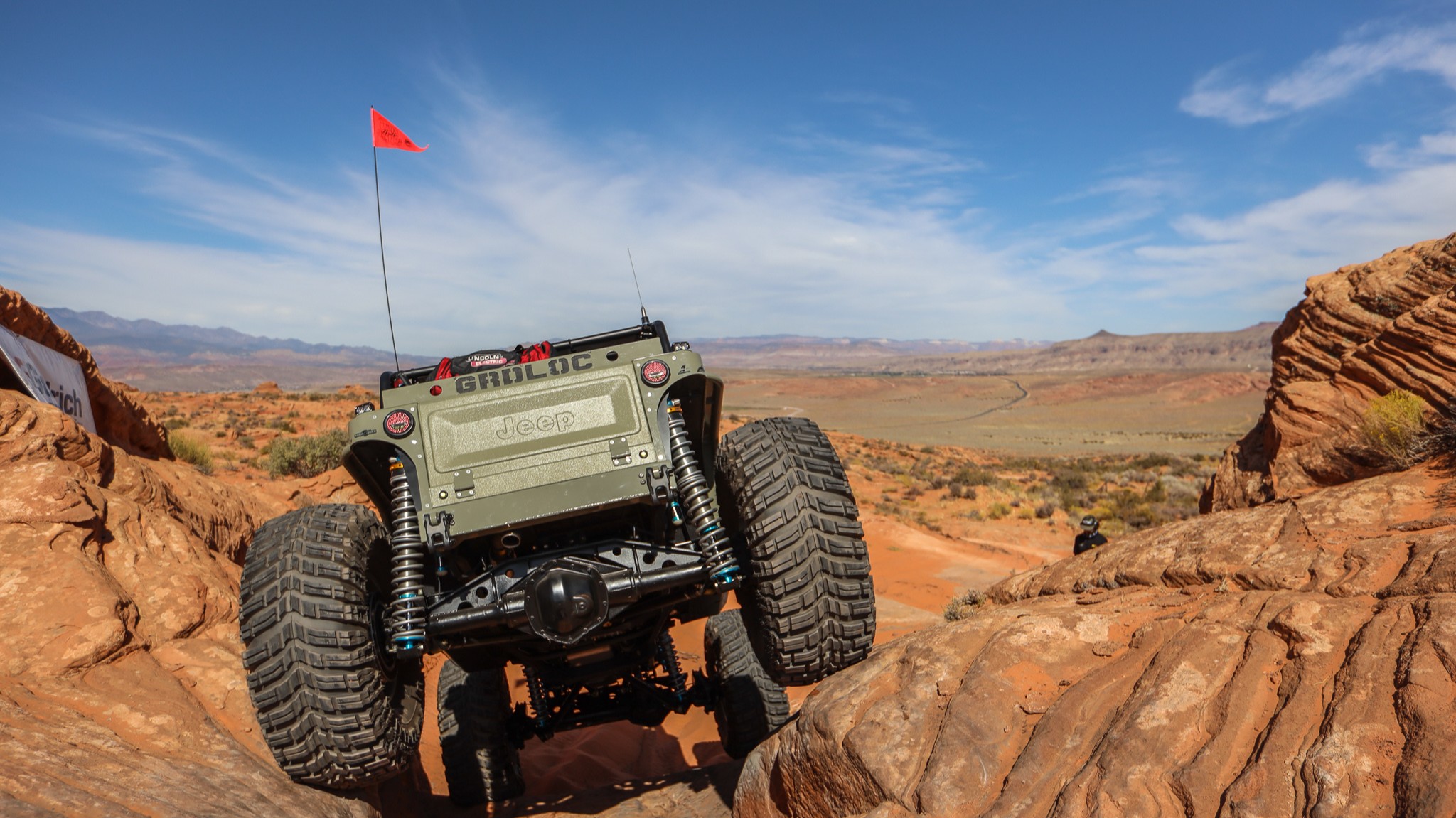

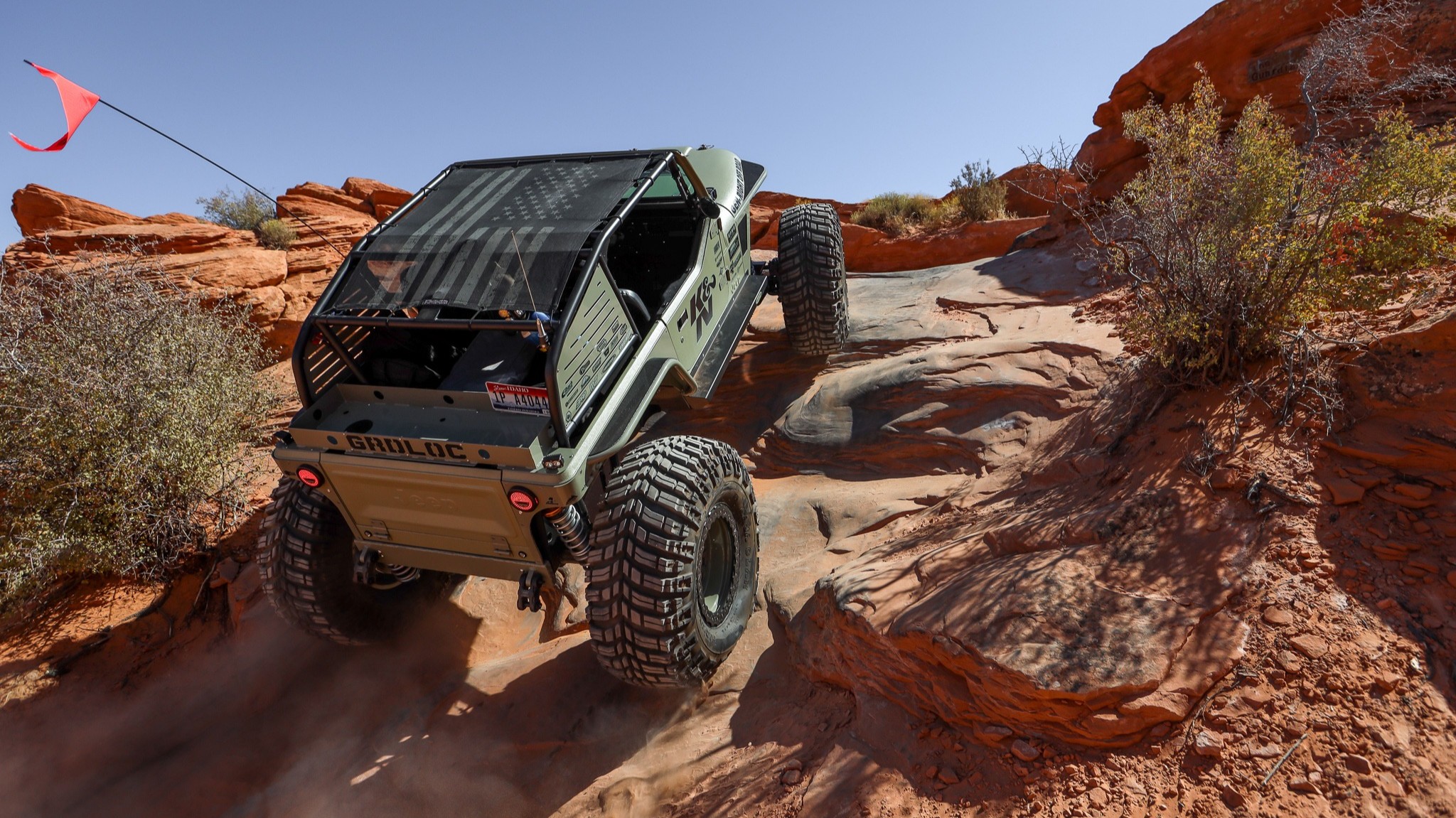

GridLoc is a 1983 CJ7 on 46" tires and stretched to 120" built by Nic Ashby from the Rockstar Garage.

Build highlights

62 parts
46" tires
3" lift
Tan

Wheels

Custom Grooved 46” x19.50 Mickey Thompson Baja Claws

20” Custom Forged American Force Beadlocks

Suspension

Dual Triangulated Suspension Front and Rear

3.0 x 16” IBP King Coilovers with triple rate eibach springs at each corner

King Bump Stops

Exterior

Fully Modified Body

Custom Cage

Custom built Front Grille, Grille Frame to allow for Mishimoto Coolers and Radiator

Genright front bumper

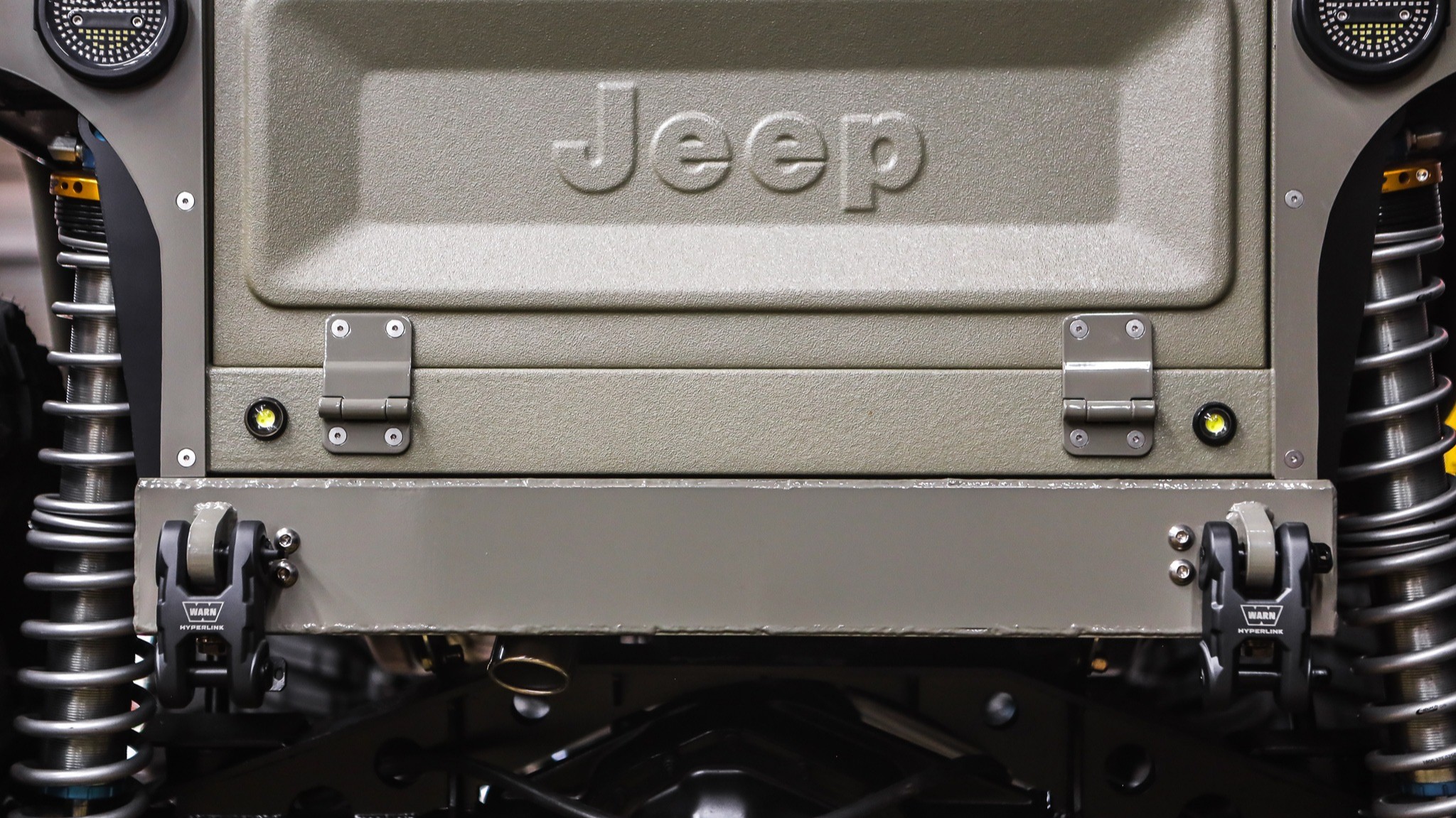

Genright rear bumper

GenRight Rockslide eng custom electric steps/sliders

Bulletliner OD Green Exterior with black interior

Lighting

Spyder Auto Headlights

Maxbilt Taillights

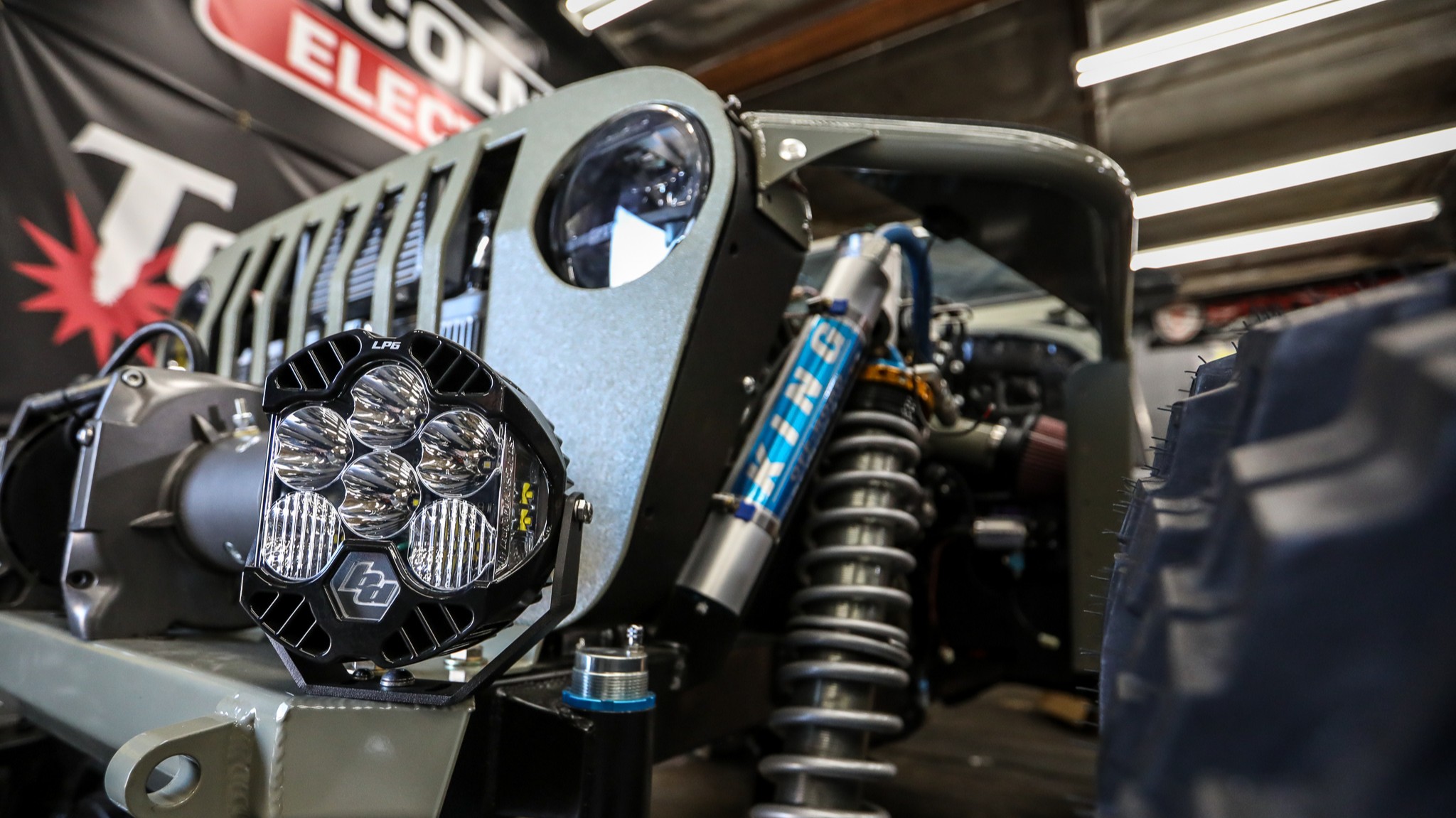

Baja Designs LED Lighting

Drivetrain

Atlas Transfer Case

Custom built mounts and axles mounts

Kingpin 60 Front Axle,YUKON Gear and Axle upgraded unibearings, hardcore hubs, chromoly superjoints, 35 spline with zip locker

Artec trusses and ram mounts

11.5” AAM Rear Axle with Yukon 38 spline shafts and Grizzly Locker

2 piece jackshaft front driveline custom

Custom rear driveline

Maximum offroad transmissions Manual valve body 4L60e

PSC custom mounted high pressure pump and full hydro steering

PSC Steering column with Quick Disconnect Steering Wheel

Brakes

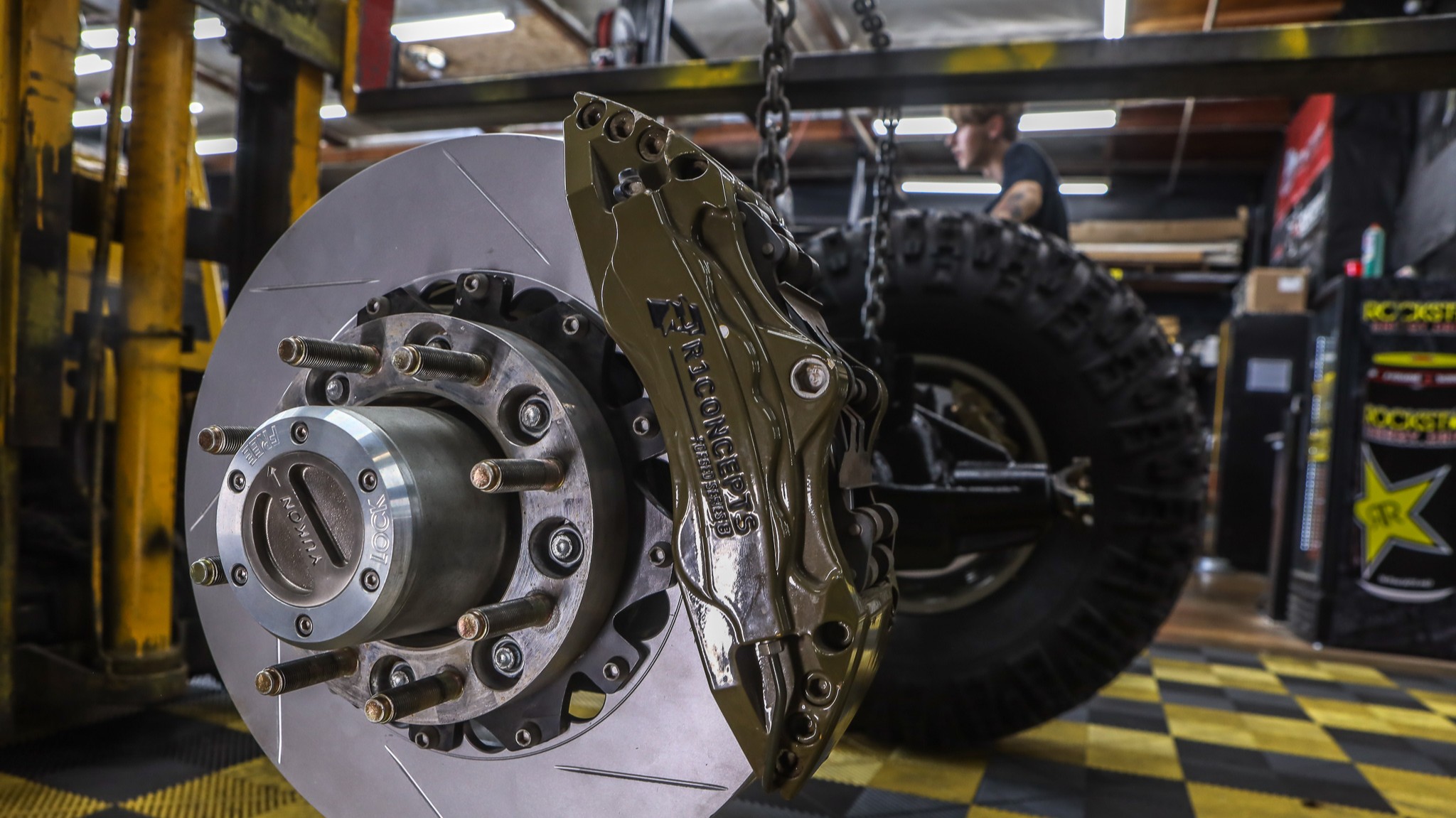

8 piston front brakes

6 piston rear brakes

Parking Brake line lock

Hydro brake booster with custom hardlined links and stainless brakelines with AN Fittings

R1 Concepts

Engine

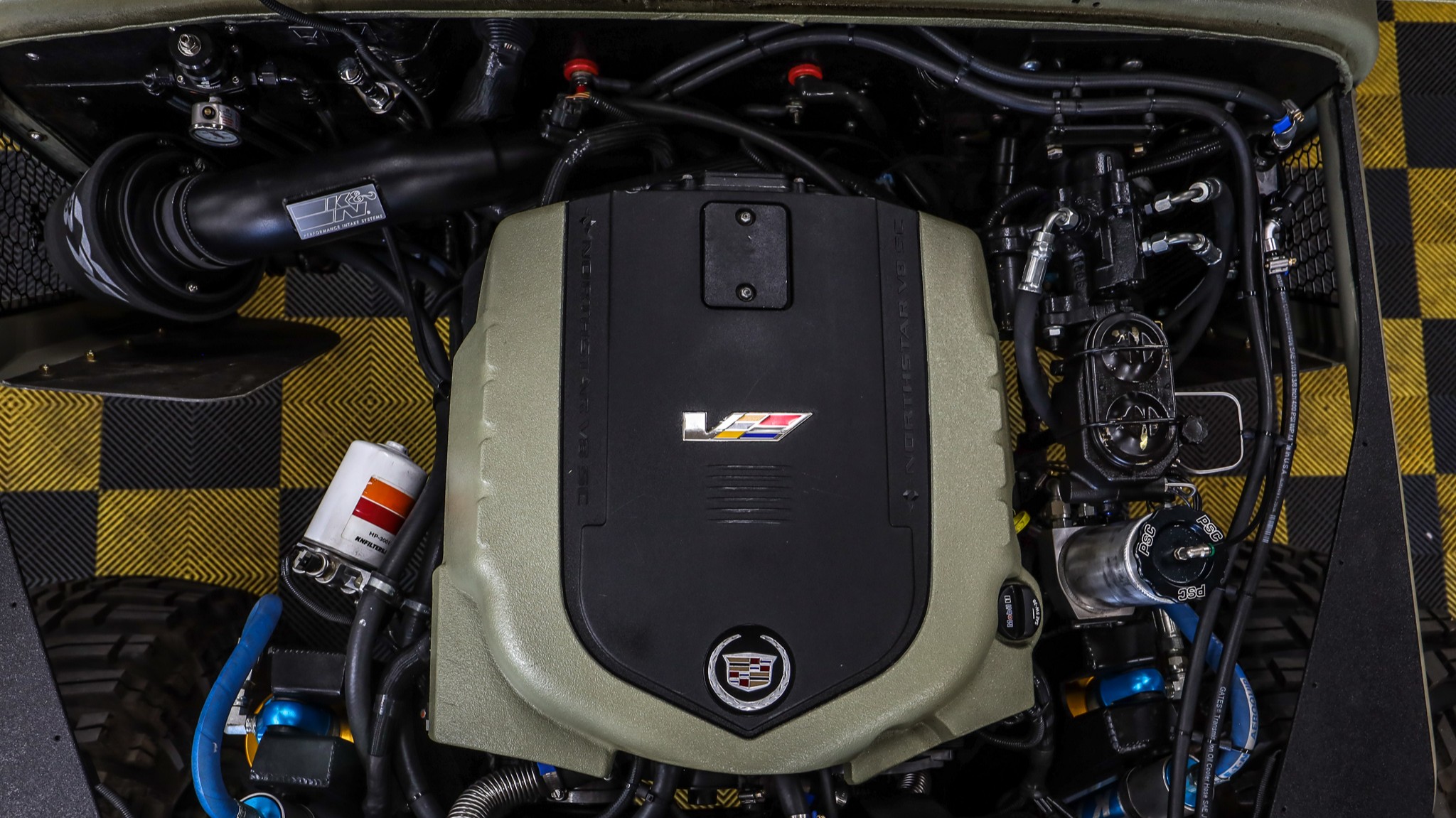

4.4L Supercharged with factory forged internals STS-V Motor

Custom remote oil cooler/filter setup

Mishimoto Radiator

Mishimoto Steering Cooler

Mishimoto Tranny Cooler

Mishimoto Oil Cooler

Mishimoto Supercharger Cooler

OEM 5 wire harness with reprogrammed stock ecu

Dual odyssey battery setup with battery isolation and low voltage turn offs

Aeromotive phantom pump with integrated oem fuel injection

sPOD dual bantam System with integrated oem controls, with dual HD panels

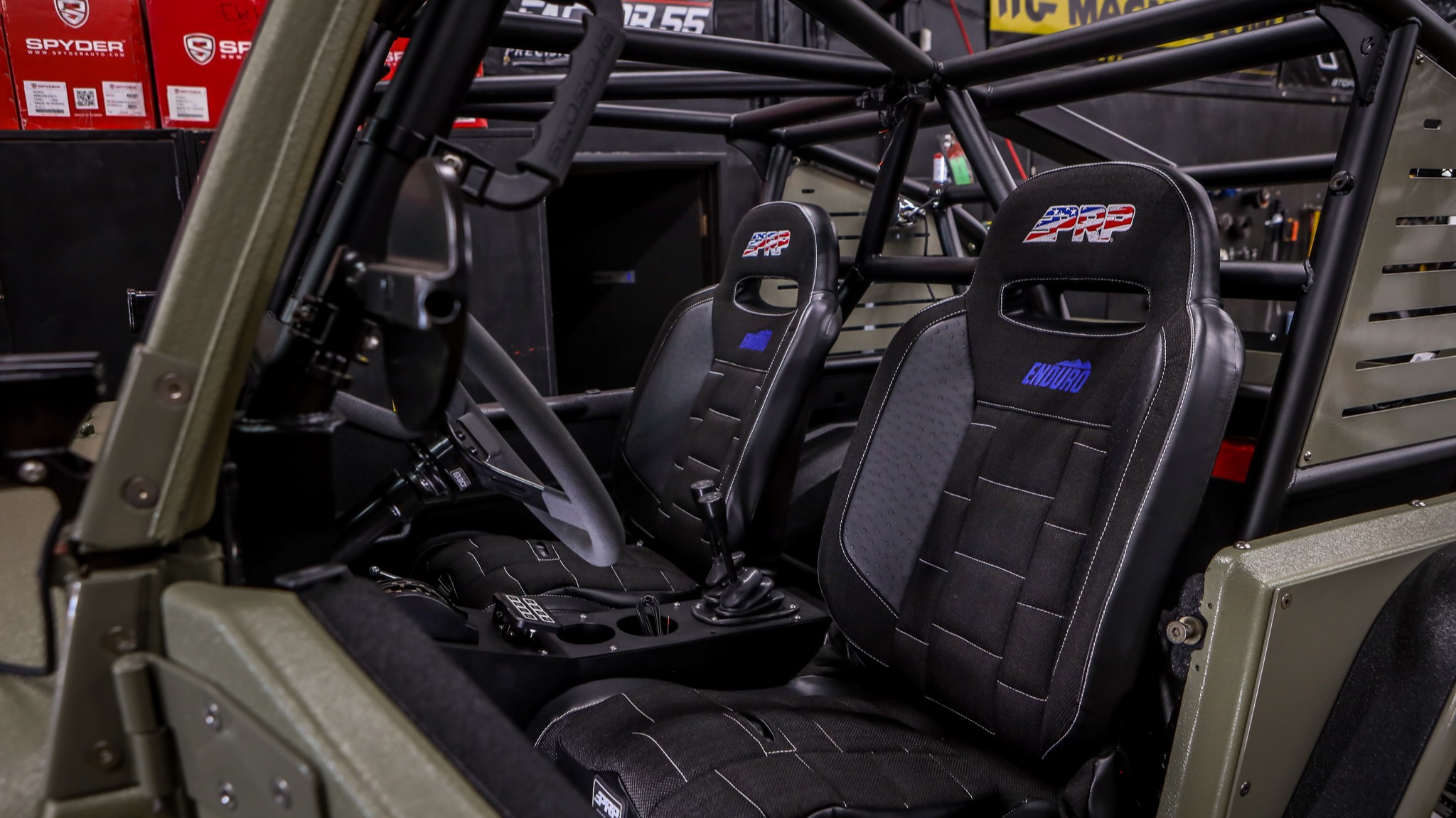

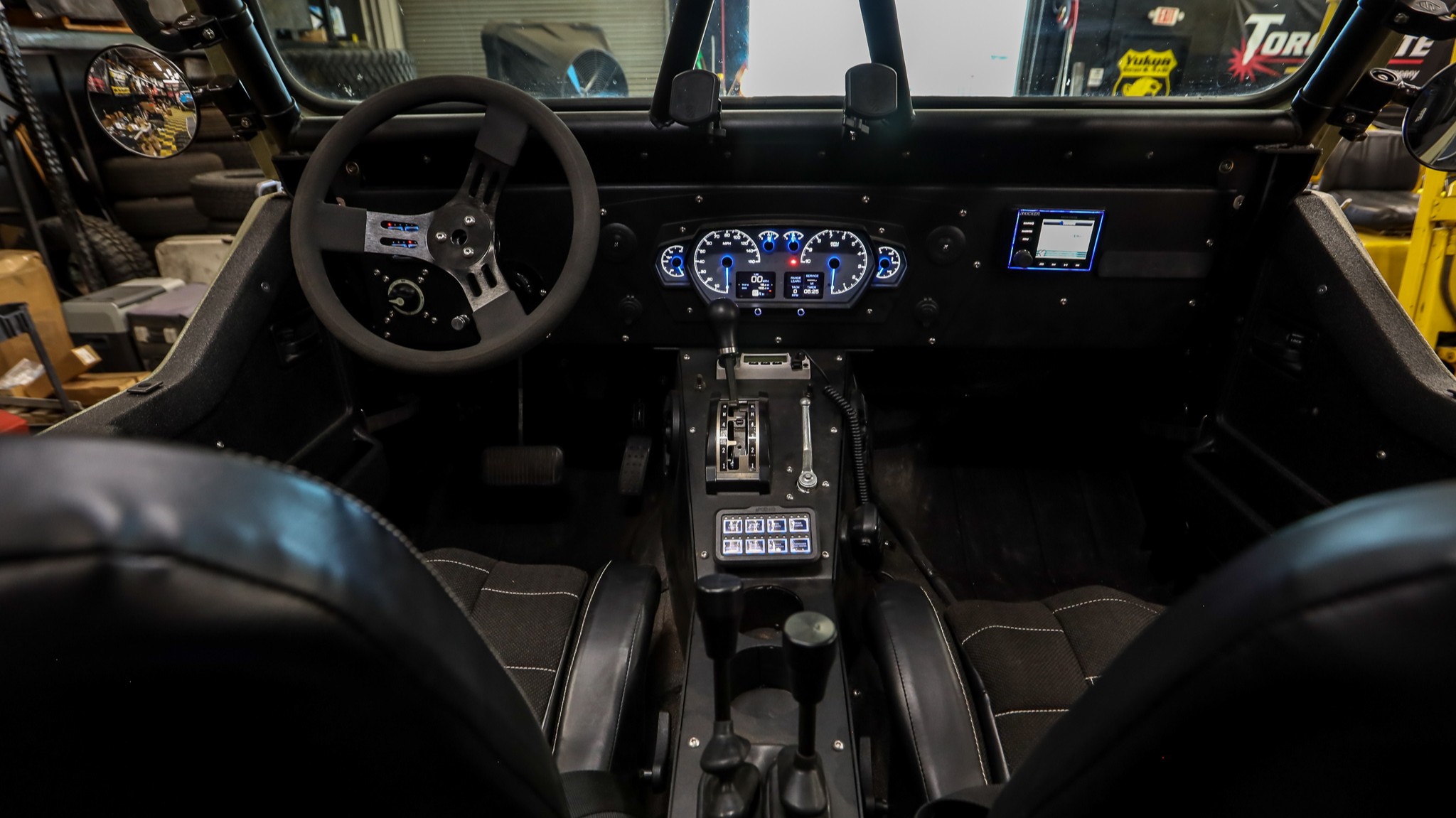

PRP Custom seats with ostrich trim and presidential stitching with seat heaters

PRP 5.2 harnesses

Dometic Fridge

Other

Throttle down customs race Frame

Stretched wheelbase to 120”

Reinforced tub in ¼” steel with fuel cell bulkhead

Military M12 Warn Winch with Custom mounting

Factor55 Fairlead and monster hook

Factor55 Monster Hook

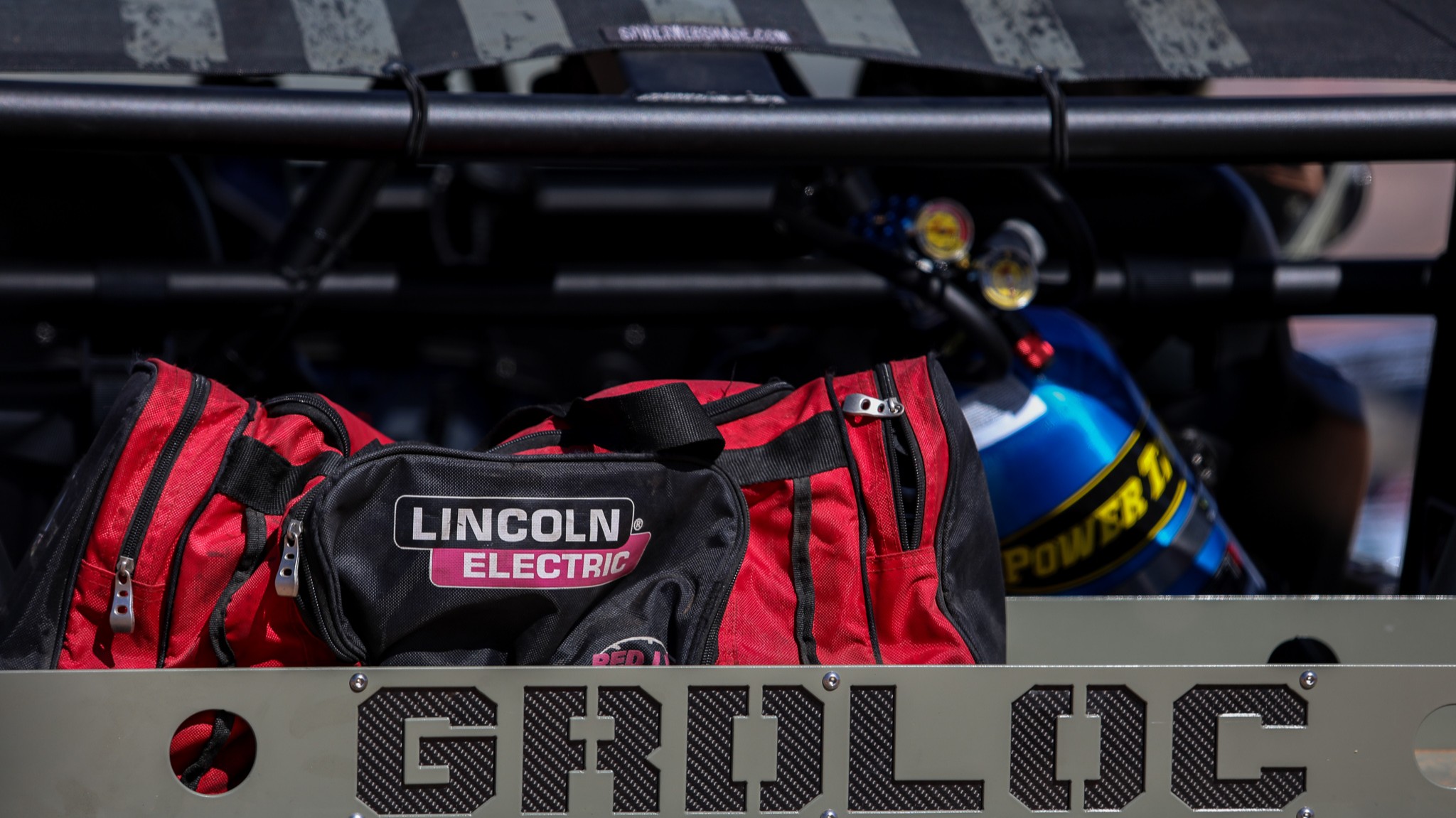

Custom basket with two tone powder coat(protects fuel cell)

Genright Fuel Cell

Powertank and Monster Valve System

Scosche Billet Handles, Mirrors and Magic Phone Mounts

Rugged Race Radio with dedicated Kicker speakers

Bluetooth Rugged radio and internal com’s
