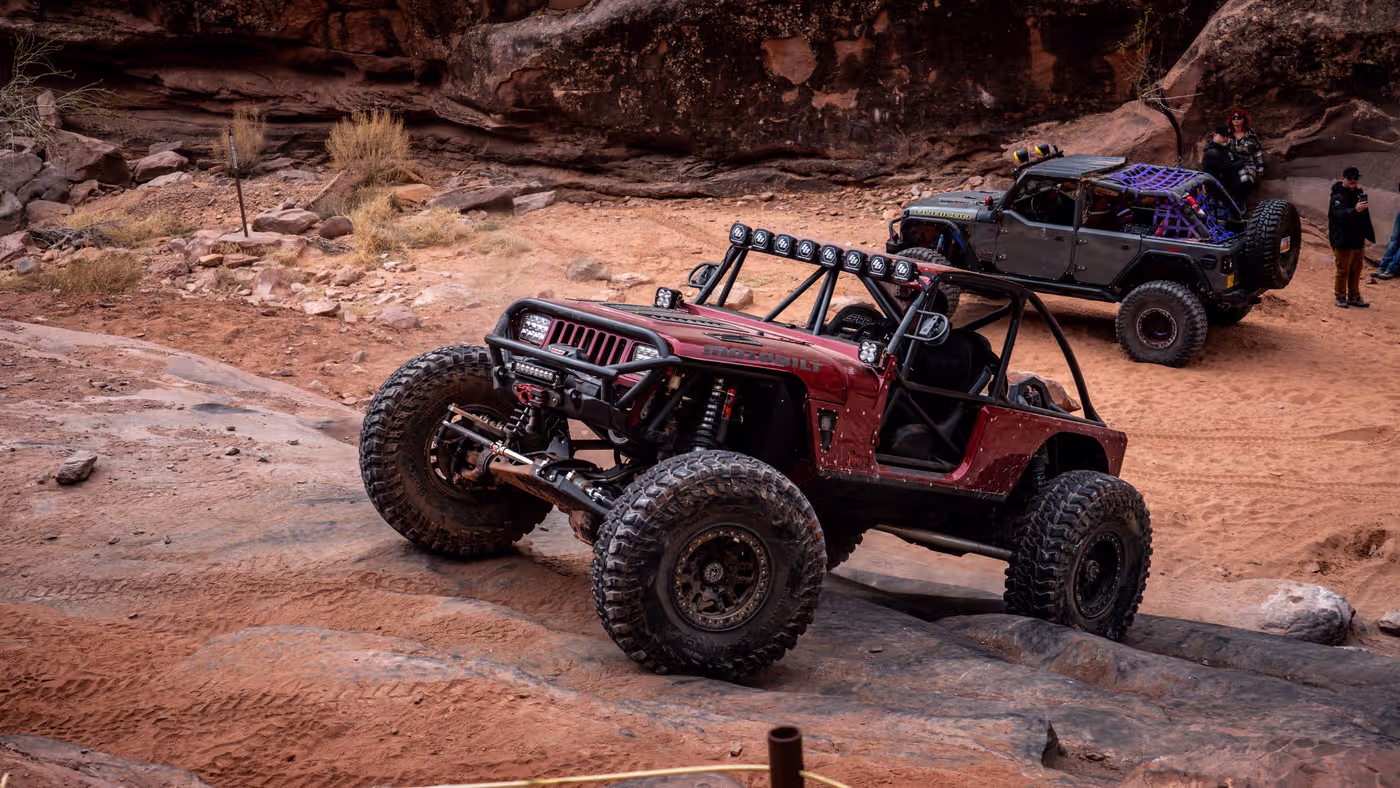

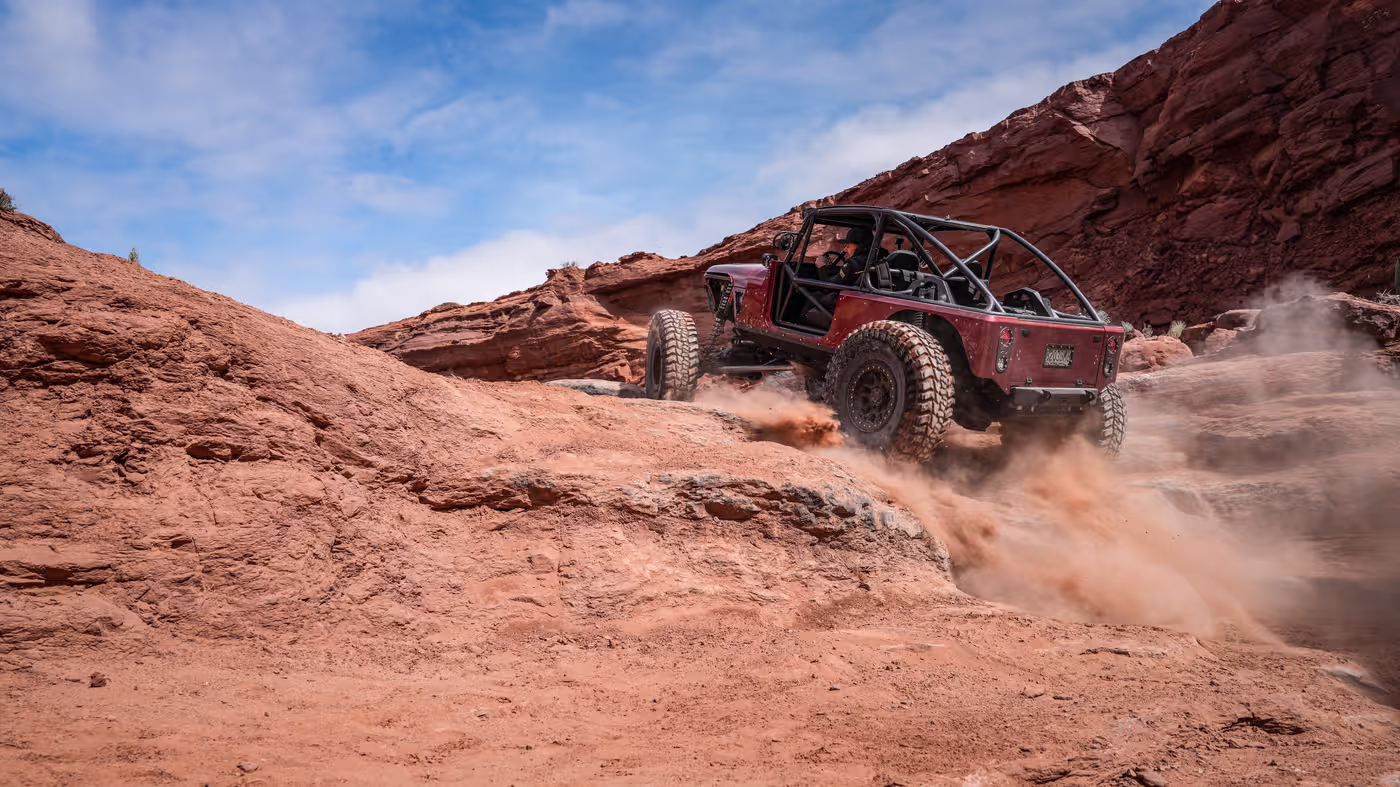

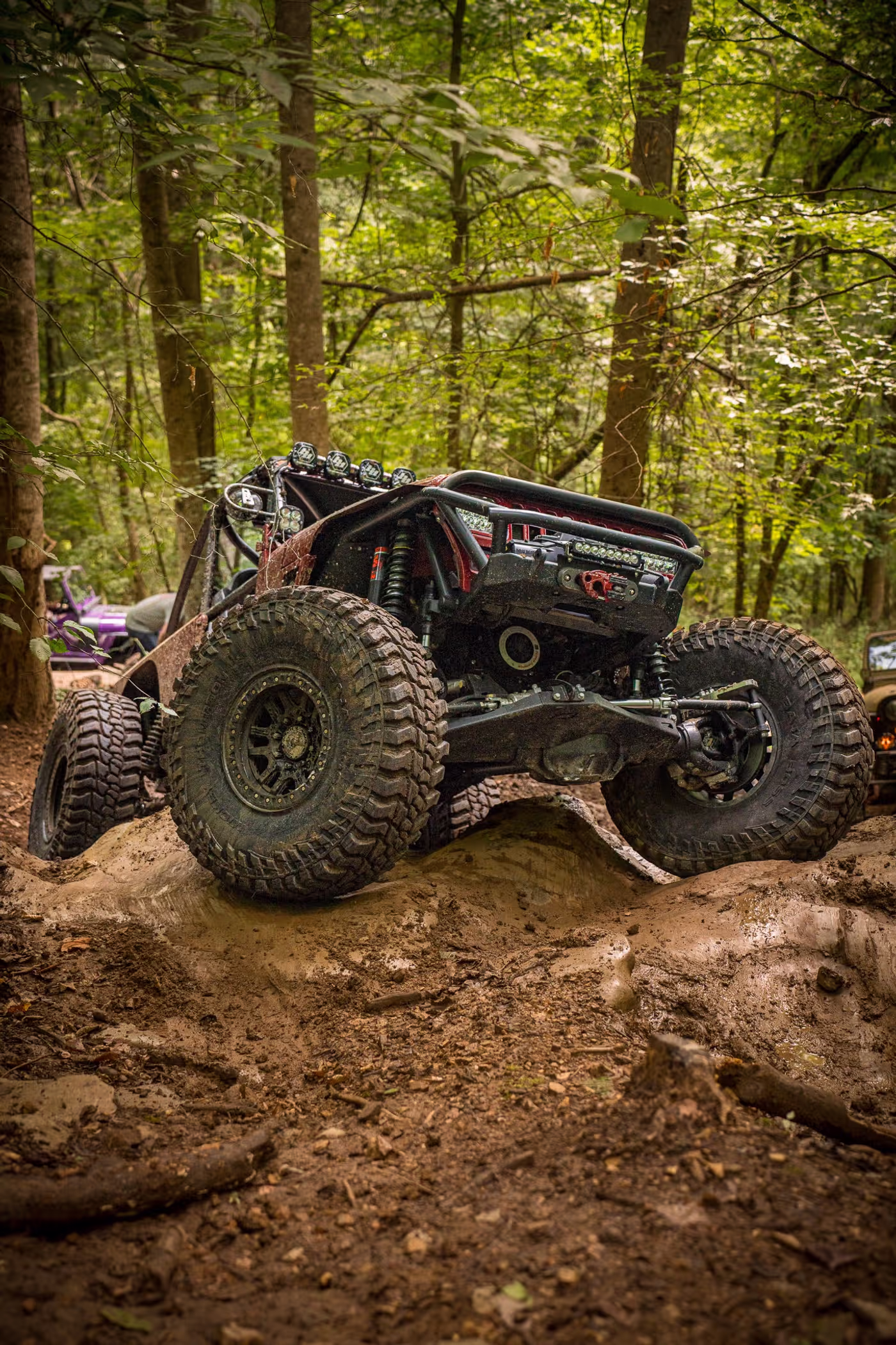

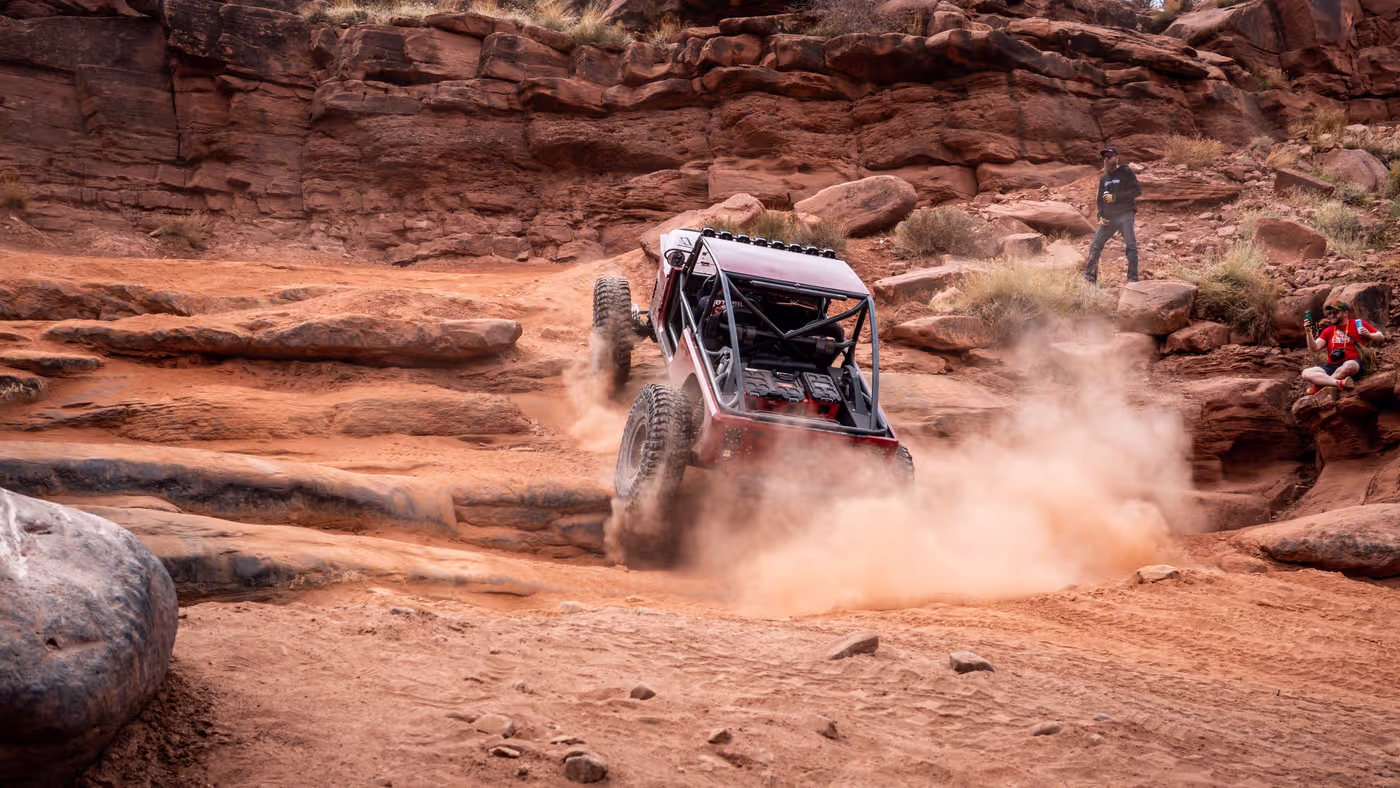

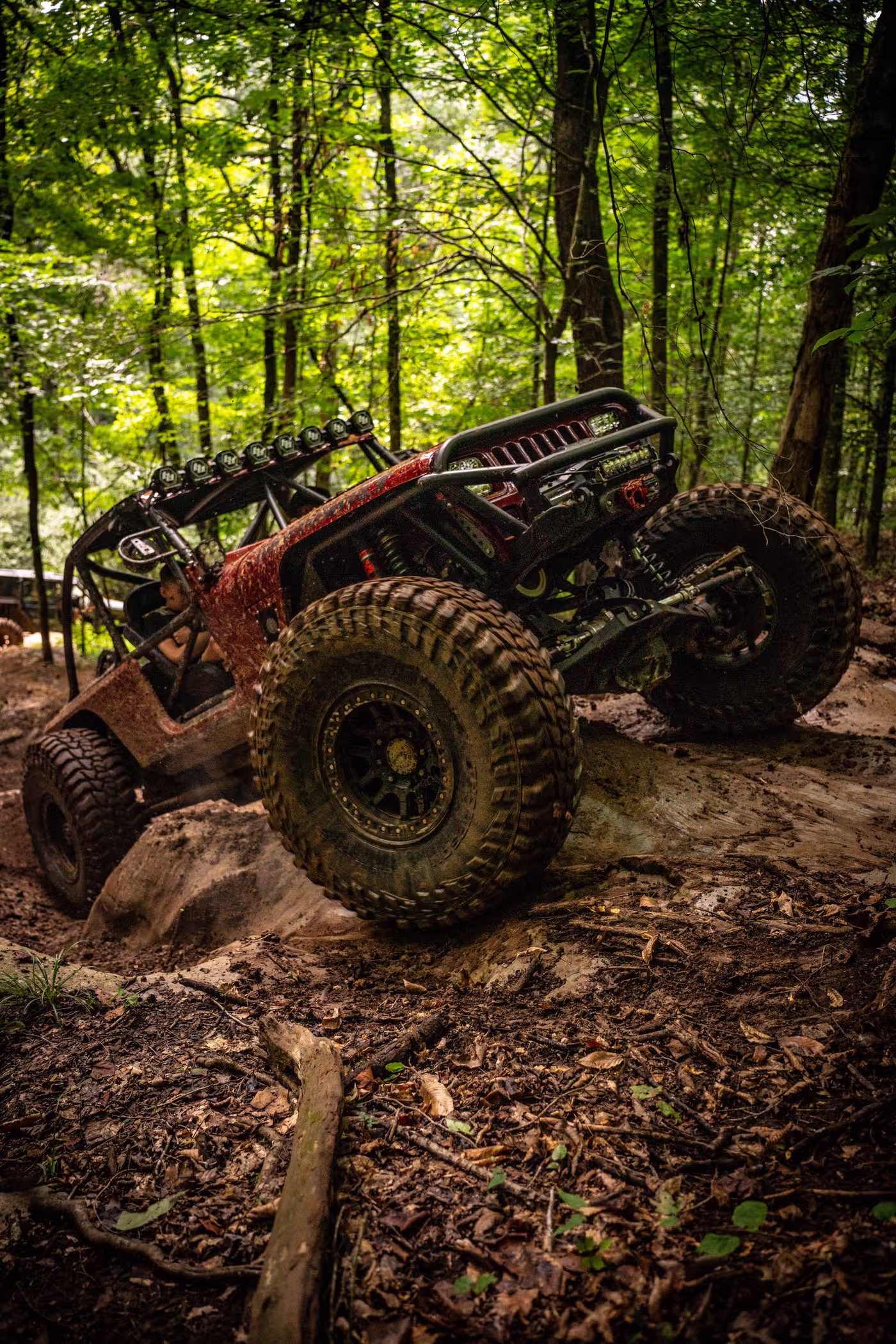

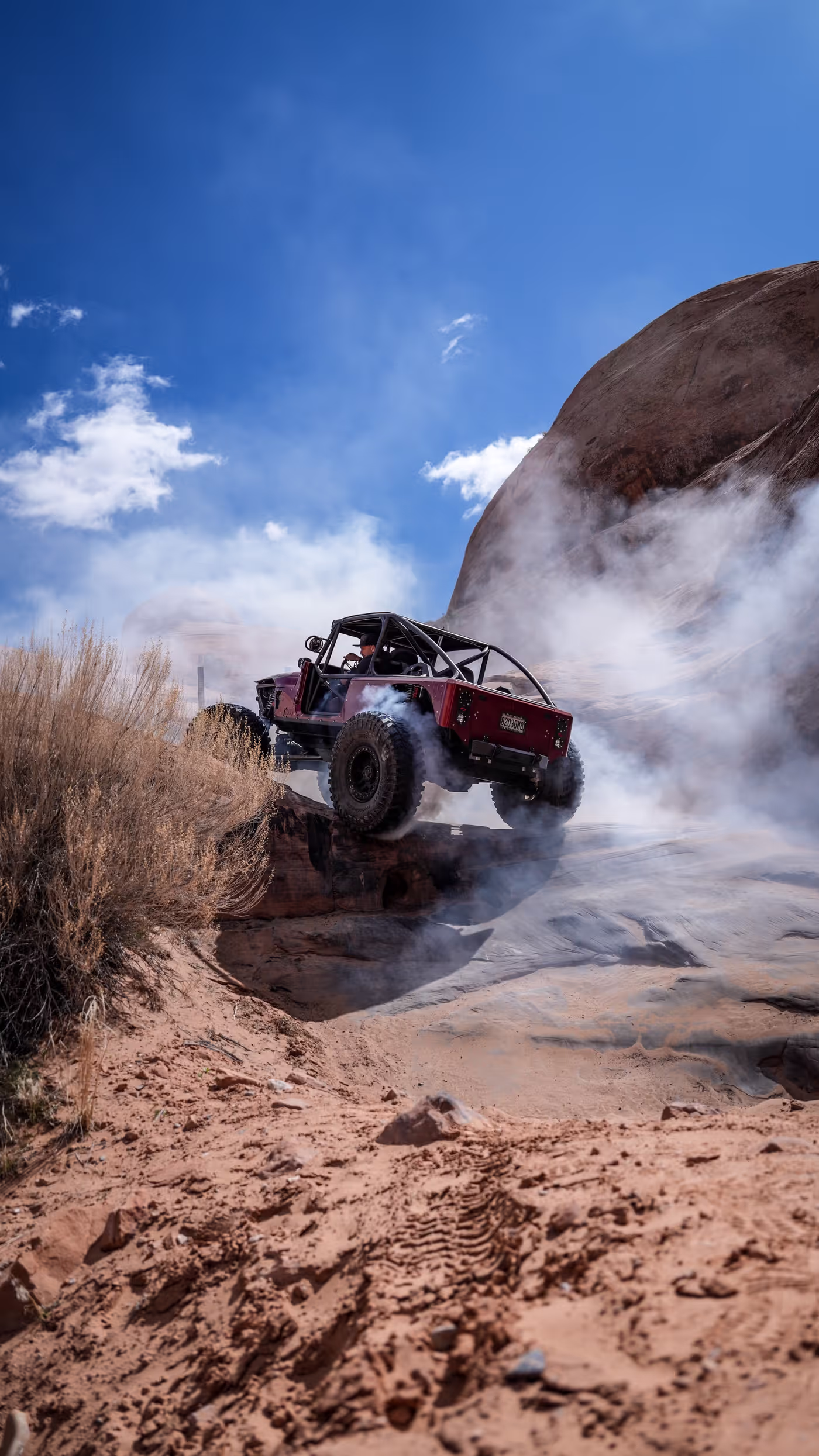

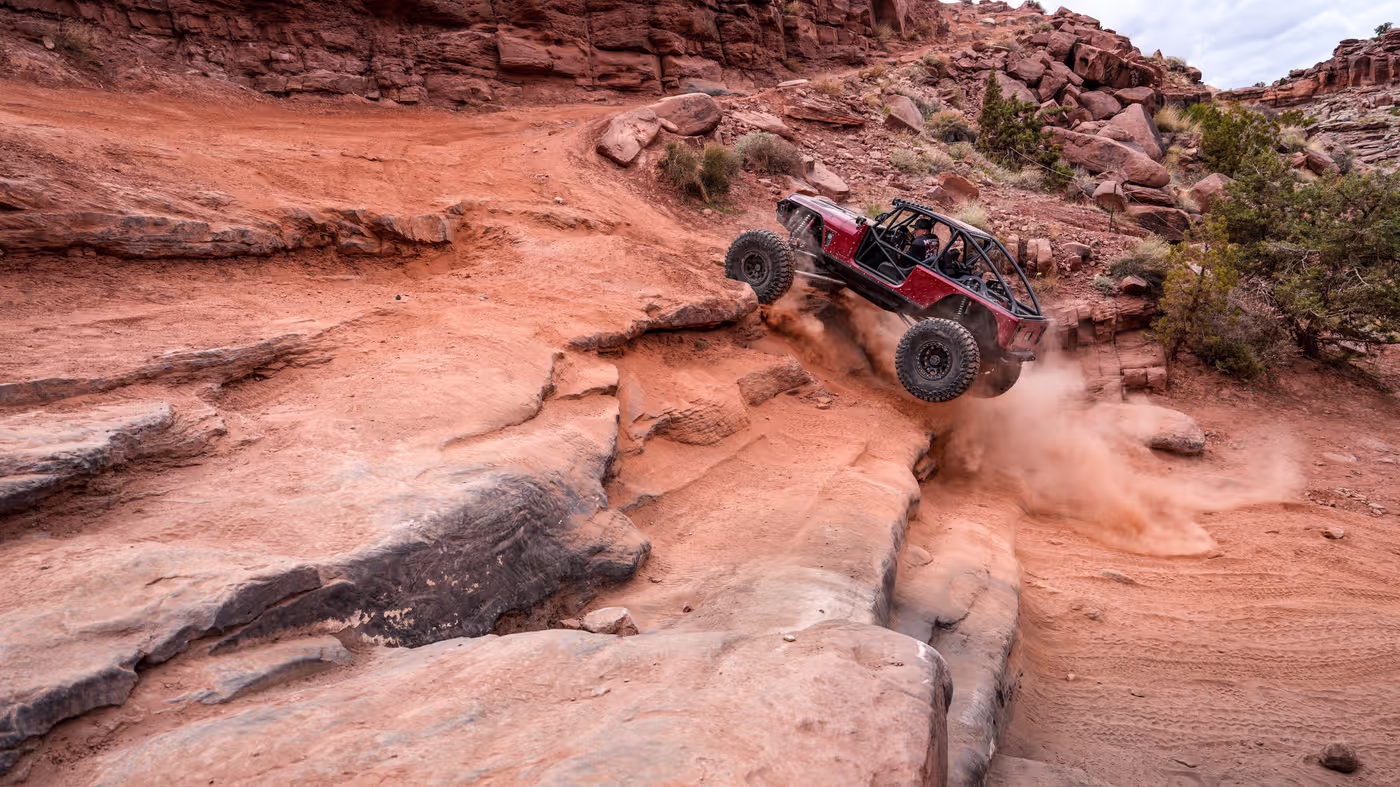

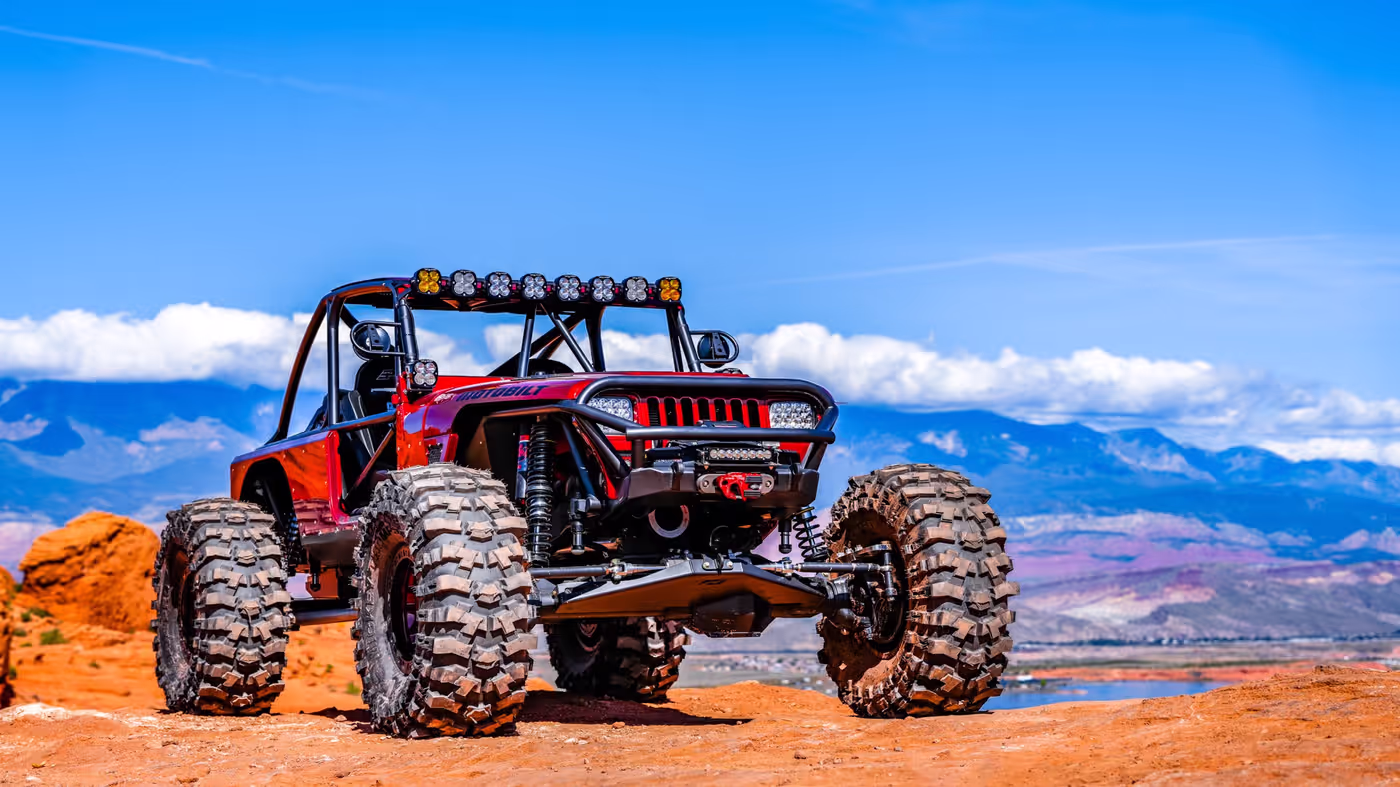

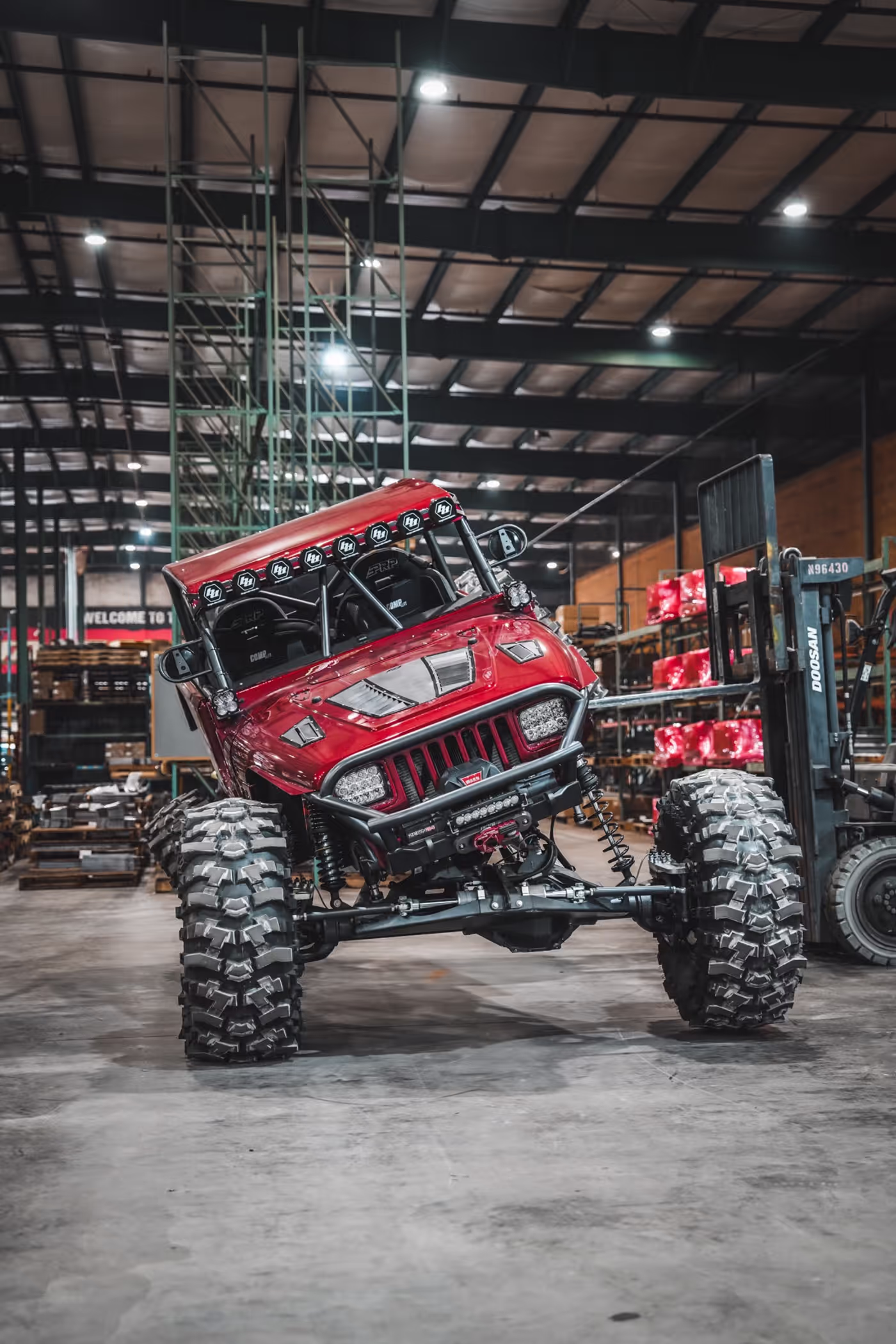

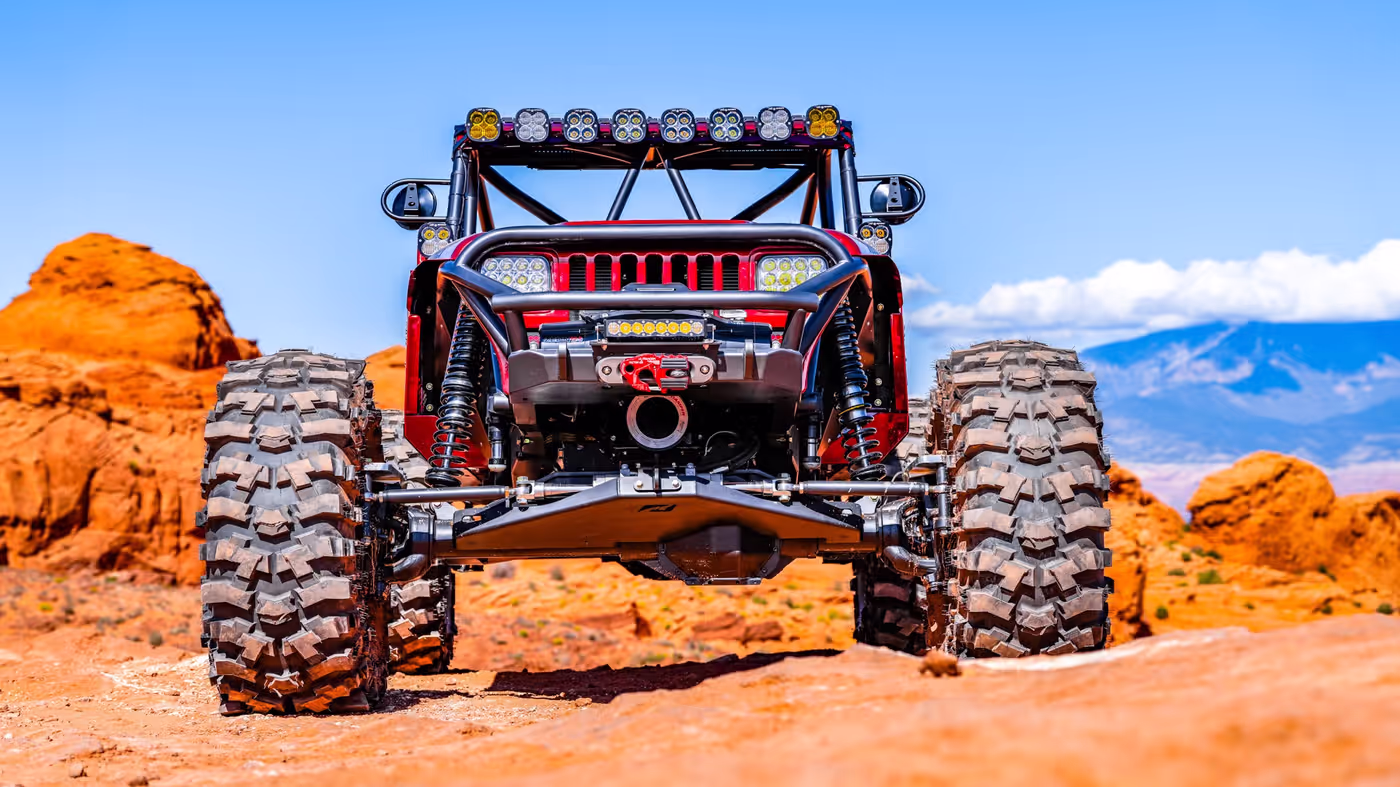

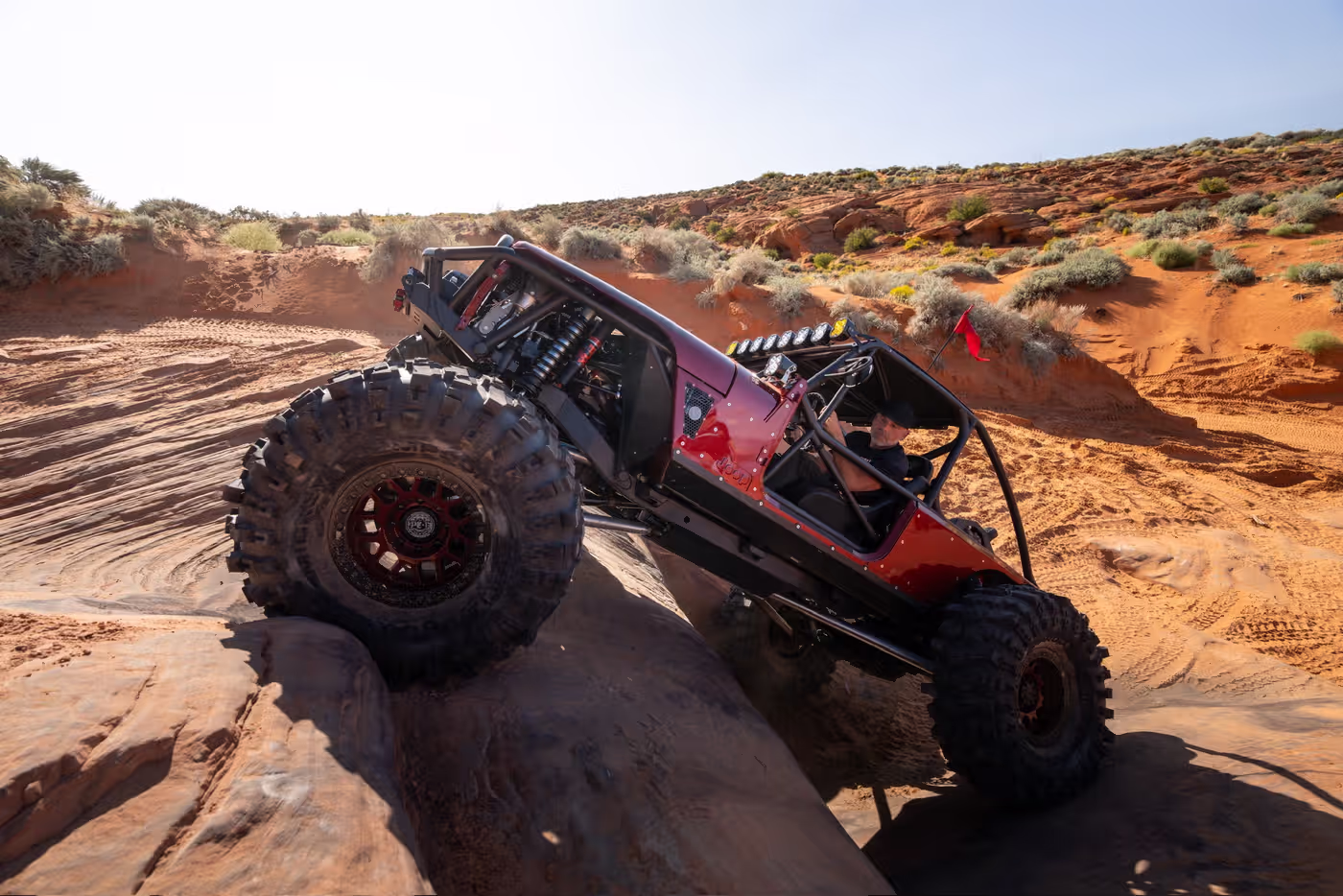

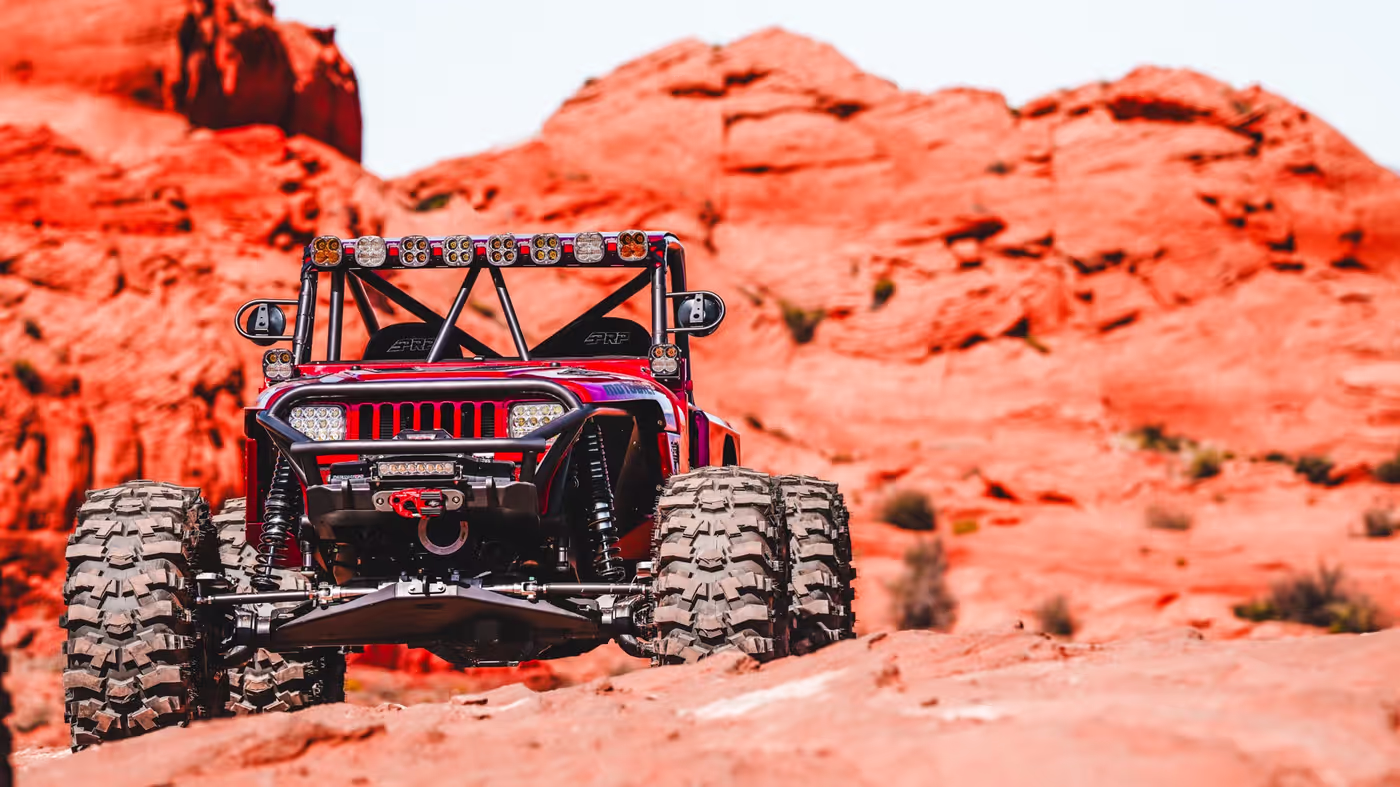

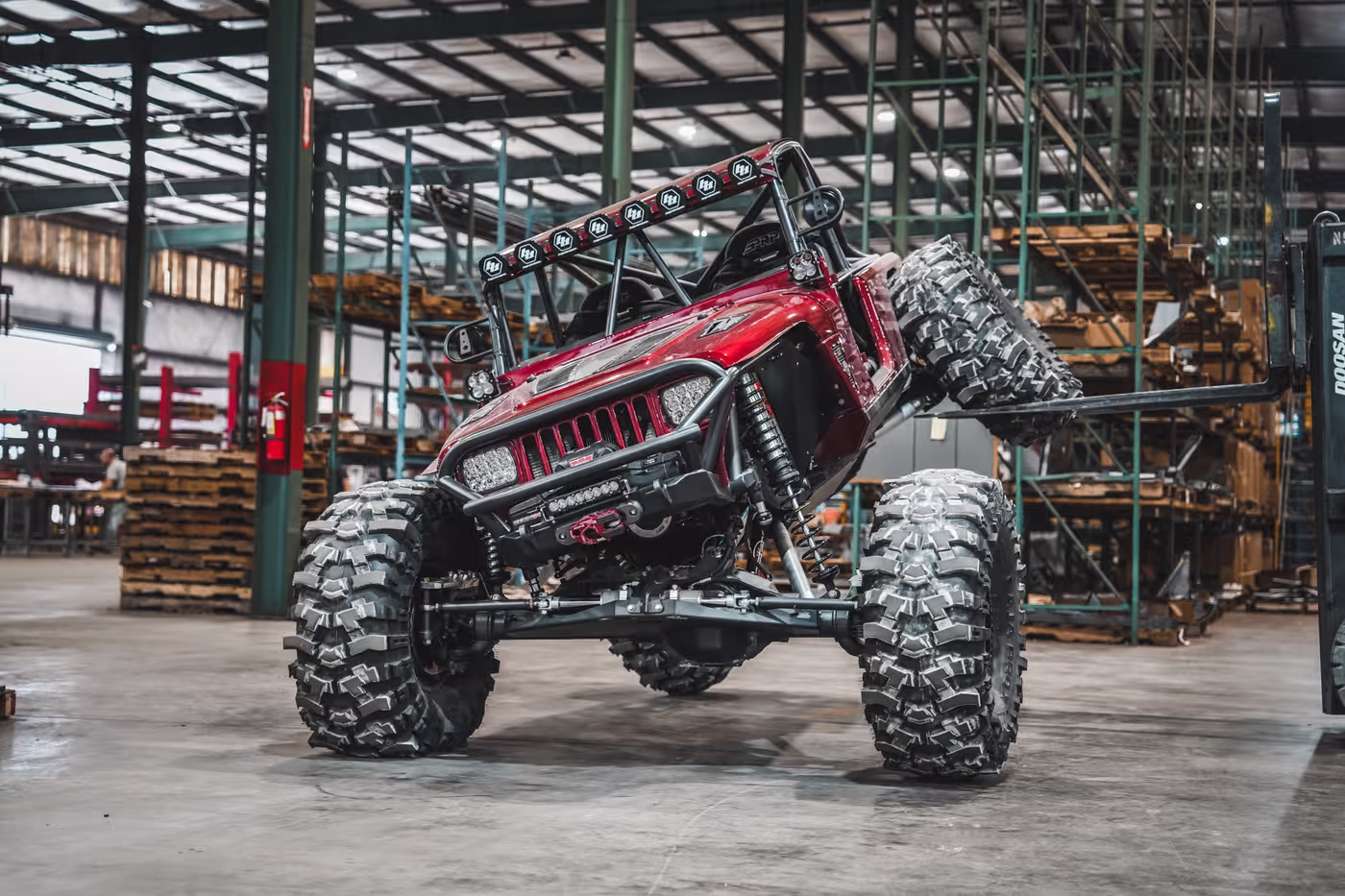

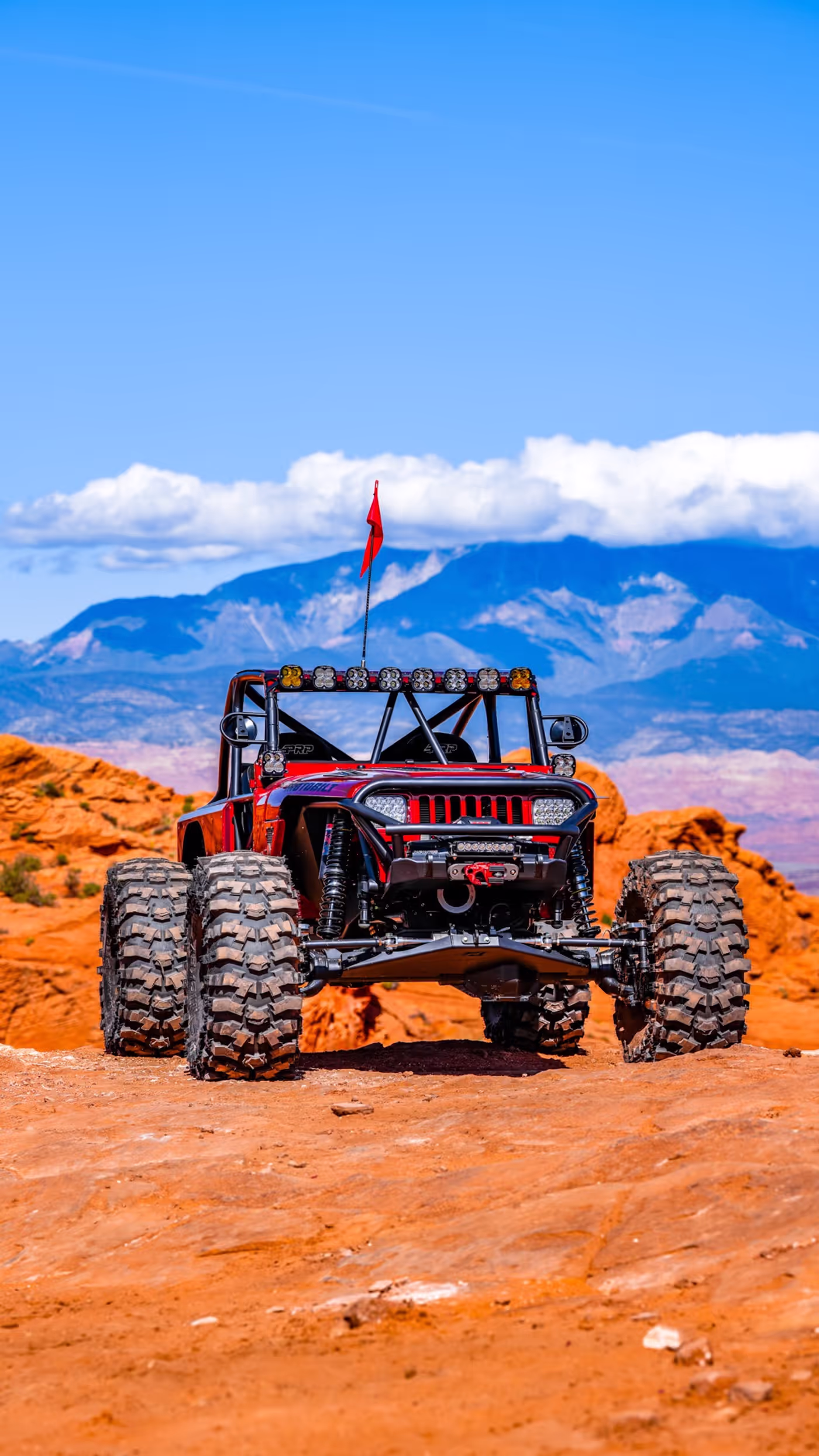

El-Jefe
1995 Jeep Wrangler YJ S Sport Utility 2D
More actions
Share
Comments
Save this build
Comment
Build highlights
39 parts
42" tires
Red
Wheels
17x9 Dirty Life Beadlocks -38 BS

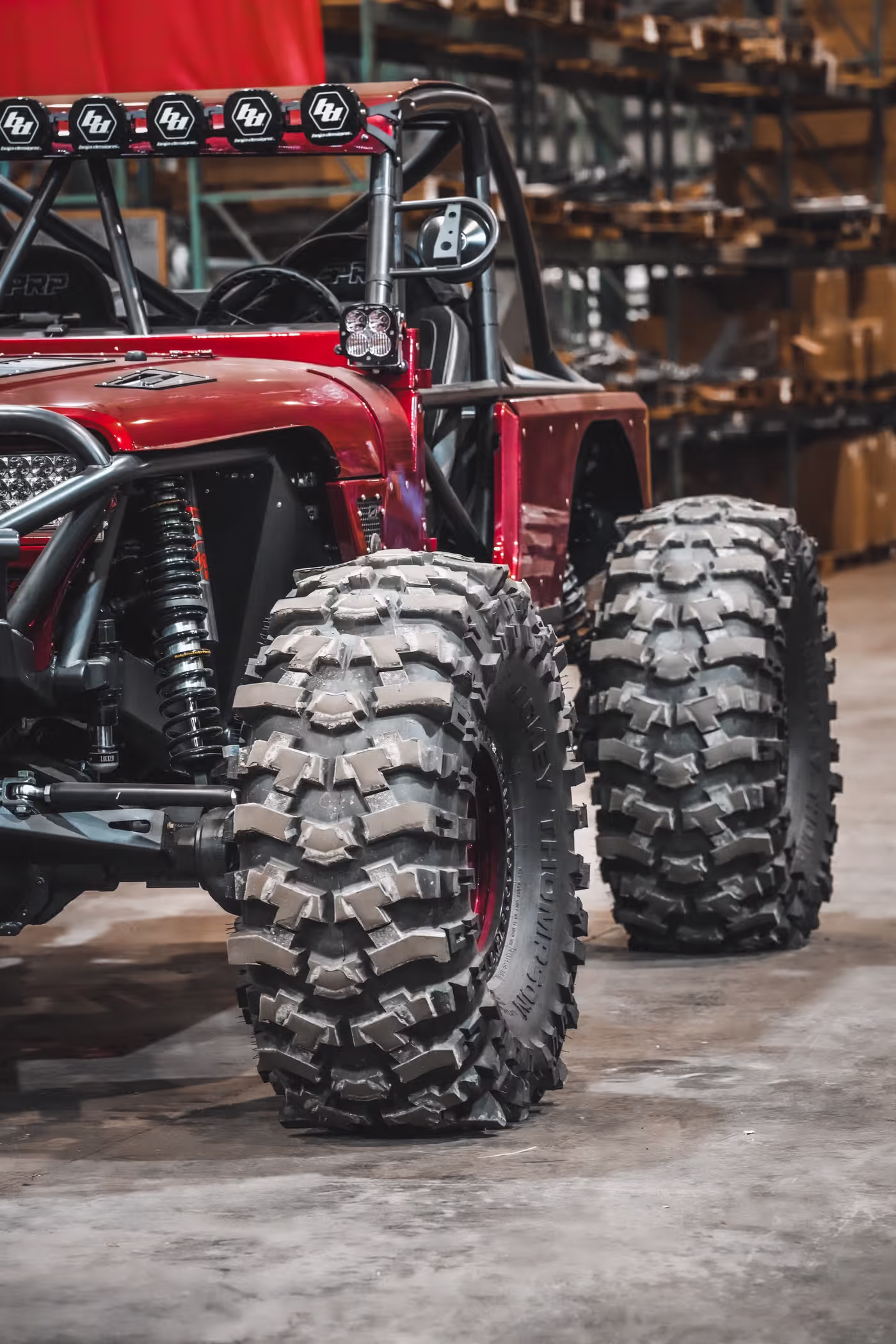

Tires
42x13.50x17 Mickey Thompson Baja Boss MT
Suspension
Summit Machine 2.5” Solid Aluminum Links with 1.25” FK Rod Ends
Locked4x4 Threaded Air Bumps with Motobilt Mounts
Fox 2.5” Piggy Back Coil overs with DSC adjusters 16” rear
Fox 2.5” Piggy Back Coil overs with DSC adjusters 14” Front
Motobilt Double Triangulated 4 Link Suspension Mounting System for Jeep YJ/TJ/LJ
Rear Upper Coil Over Shock Mounts for Highline inner fender
Exterior
Motobilt Cut-in Fender Flares for Jeep YJ
Motobilt Fold Down Aluminum Tailgate for Jeep CJ, YJ, TJ & LJ

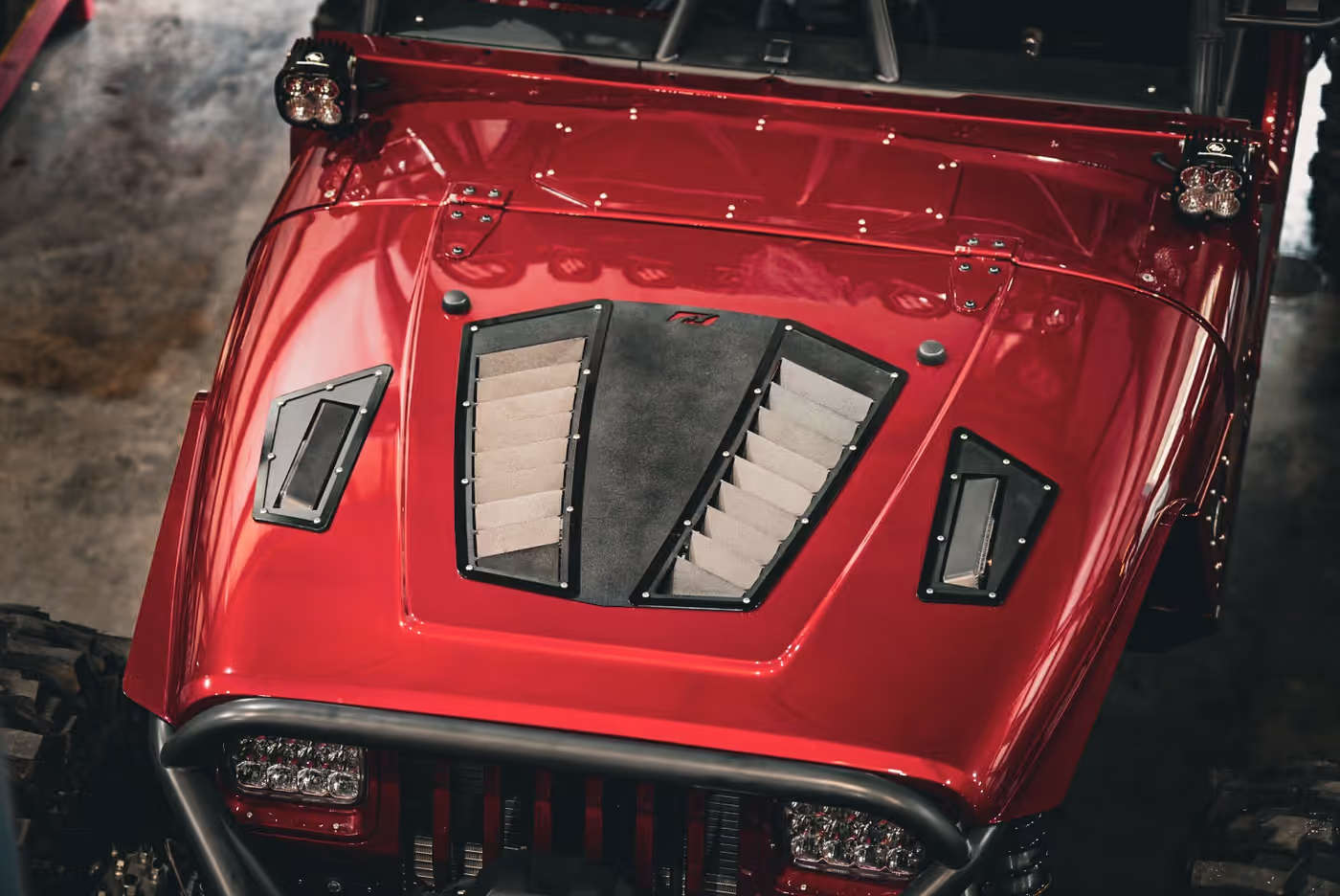

Motobilt Hood Vent Kit For Jeep YJ/TJ/LJ
Armor
Motobilt 15” Stretch Corners w/ high line for Jeep YJ
Motobilt Aluminum Cowl & Mini Fender Armor for Jeep YJ
Motobilt Front Half Frame Kit for Jeep TJ / LJ / YJ
Motobilt 15" Stretch Back Half Frame Kit for Jeep YJ
Motobilt Aluminum 15" Stretch Boat Side Rocker Guards for Jeep YJ
Lighting
Baja Designs Squadron rear lights
Baja Designs Linkable 8 Light bar
Drivetrain
FRONT AXLE TRUSS FOR FUSION/ECGS 14 BOLT AXLE
14 bolt rear axle truss for 4” diameter tubes
Adams 4x4 1410 CV heavy wall rear drive shaft • Adams 4x4 1410 2 piece front drive shaft with carrier bearing.
PSC Double-ended 2.75”x 8” Ram full hydraulic • Joes Racing Steering wheel with Motobilt center Cap and Sweet Mfg. quick release steer wheel mount.
Fusion Shaved 14 Bolt front and rear. 73
4340 40 spline chromoly axle shafts with 1550 U-Joints and 40 spline drive flanges.
5.38 Yukon Gears with 40 spline ARB air lockers
Atlas II Pro 3.0 300M gears Driver Drop with cable shifters. 32 spline.
Custom Reid Housing Turbo 400 by Maximum Transmission. 3500 RPM Stall converter
Audio
Rugged Radios
Brakes
Hydro Boost brakes from WOD
Engine
LSX 454 based on a Dart block
Holley Terminator X Fuel Injection system
Exhaust
Custom headers and exhaust
Interior
Universal Rear Seat Mounts
15” Stretch Floor Pan
15” stretch highline rear inner fenders
Custom designs with PRP seats, harnesses, and unique El Jefe engravings • 2 sets of Switch Pros 12 panel units • Key Fob push button start • Rugged Radios 696 + Coms system
Recovery Gear
Factory 55 Ultra Hook
Warn Zeon 12,000 S
Steering
PSC Double-ended 2.75”x 8” Ram full hydraulic • Joes Racing Steering wheel with Motobilt center Cap and Sweet Mfg. quick release steer wheel mount.
