Deuce the Willys Buggy
2019 Buggy Willys
More actions
Share
Comments

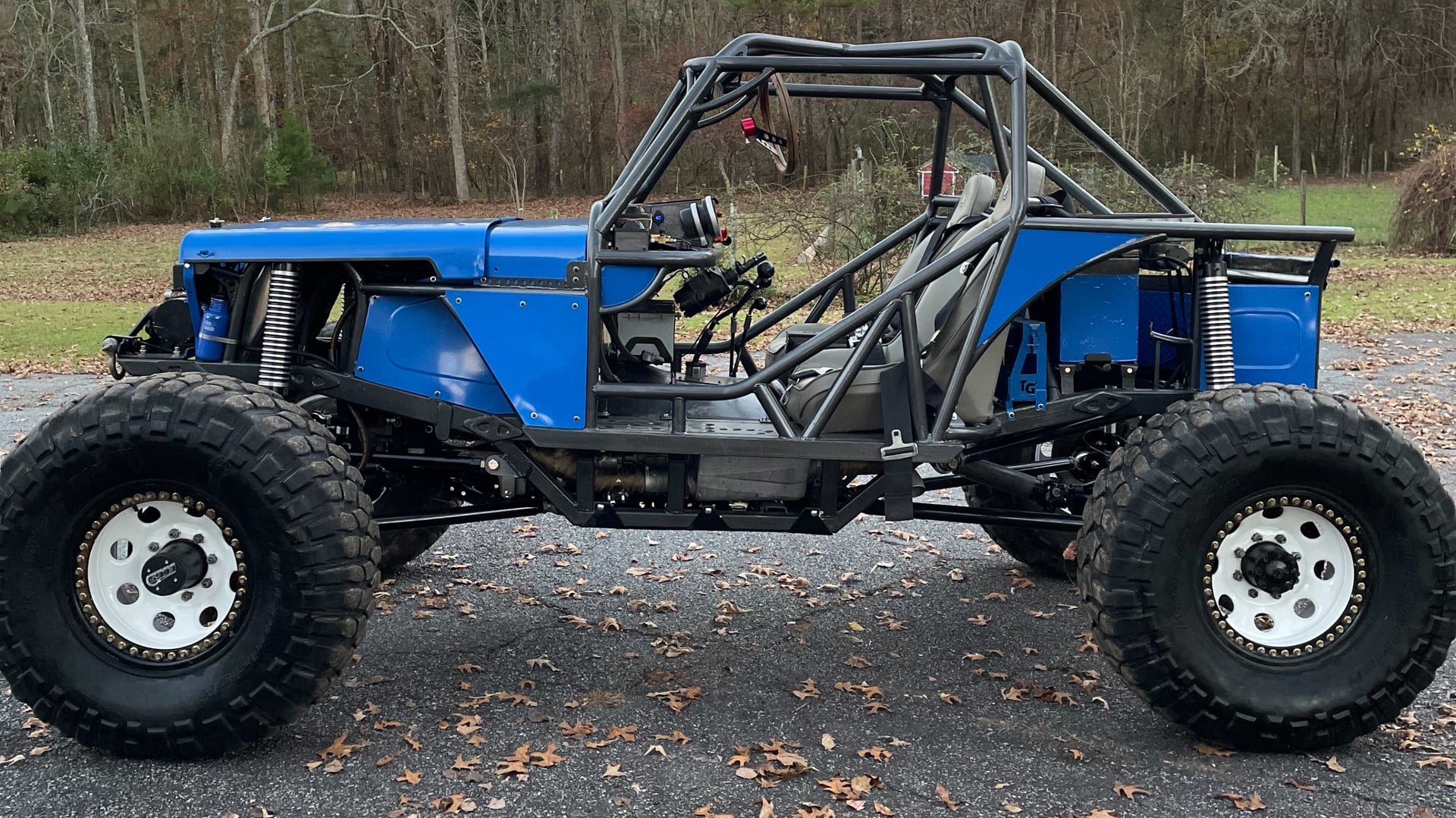

Custom build from the ground up. Built to have the style of a Flatfender with the performance of a buggy.
Show more
Save this build
Comment
Wheels
39” BFG Red Label Krawlers
40 bolt MRW beadlocks
Suspension
14” ORI STX Struts at all corners
1.25” heims
double triangulated 4 link front and rear
Exterior

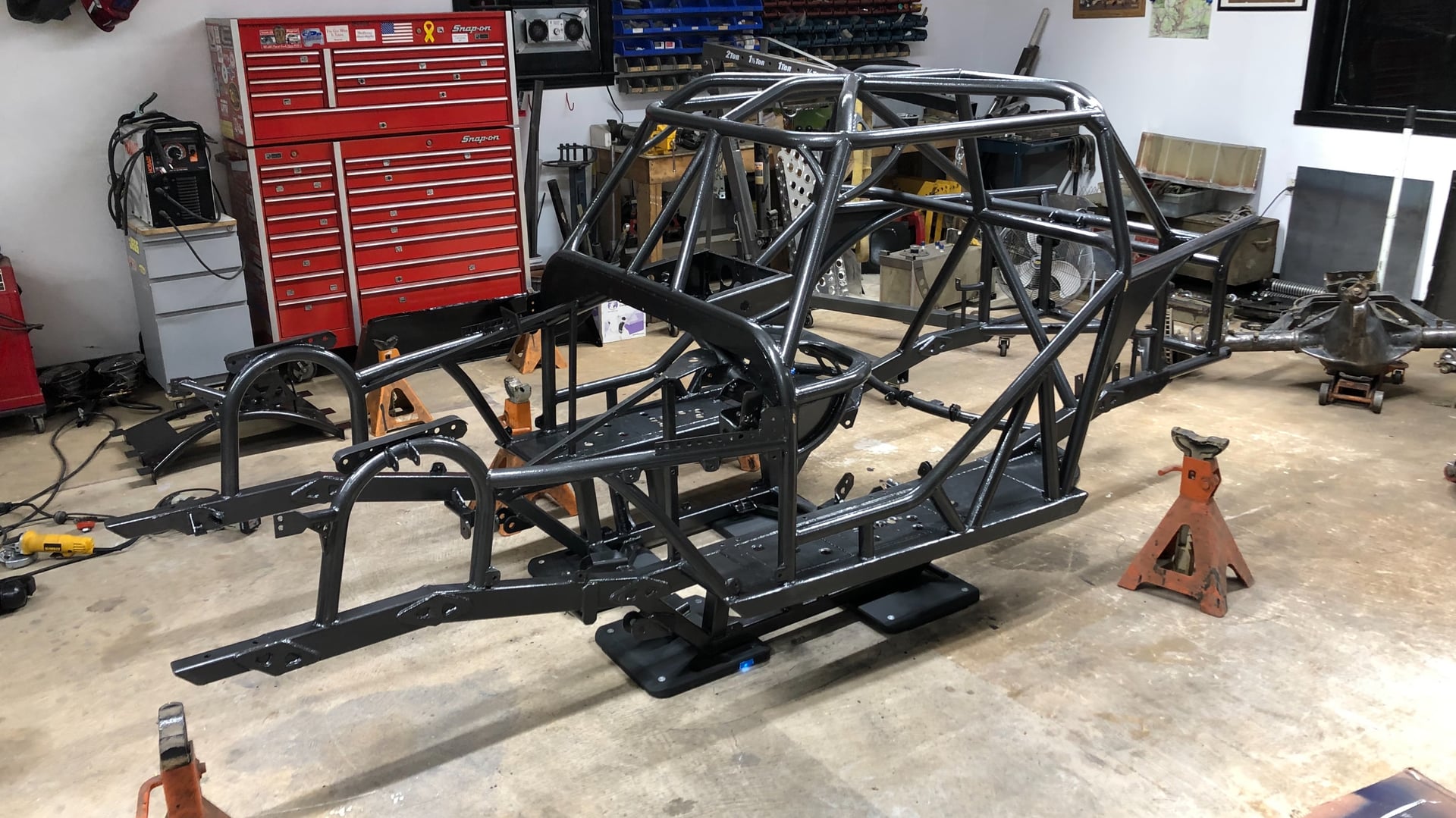

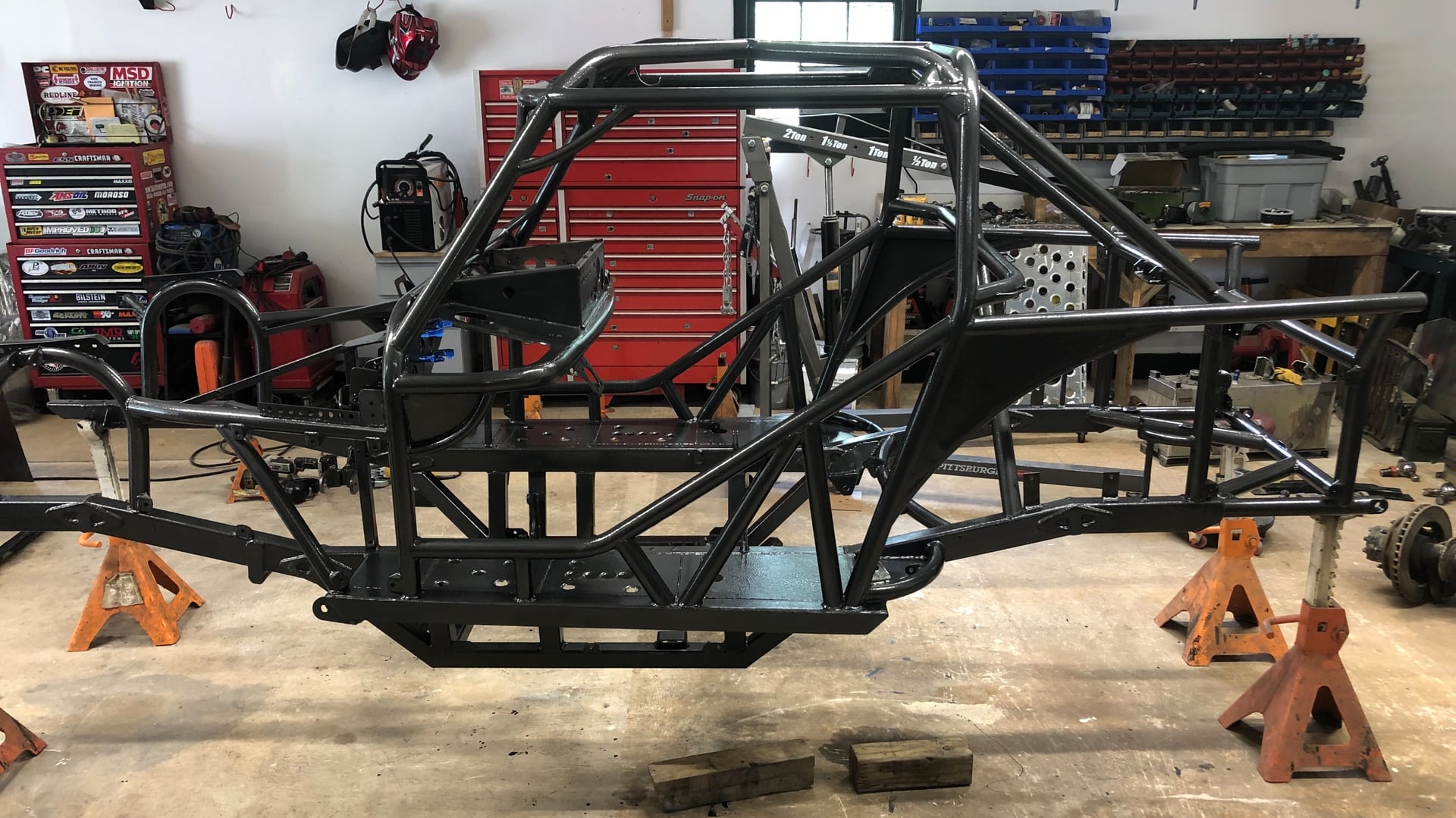

Custom made chassis withWillys CJ-2A hood grill and tailgate
custom aluminum body panels
Lighting
Cheap LED headlights and rock lights
Drivetrain
Chevy Dana 60 front axle 4.56 gears Yukon Grizzly locker Chromoly Axle shafts Yukon 1480 Super Joints-ECGS drive flanges-Branik 14” lightweight rotors and hats & Wilwood 4 piston calipers-Barnes4wd diff cover-PSC 2.5” full hydraulic steering ram- Barnes4wd axle truss-Artec double shear steering arms-ARP studs

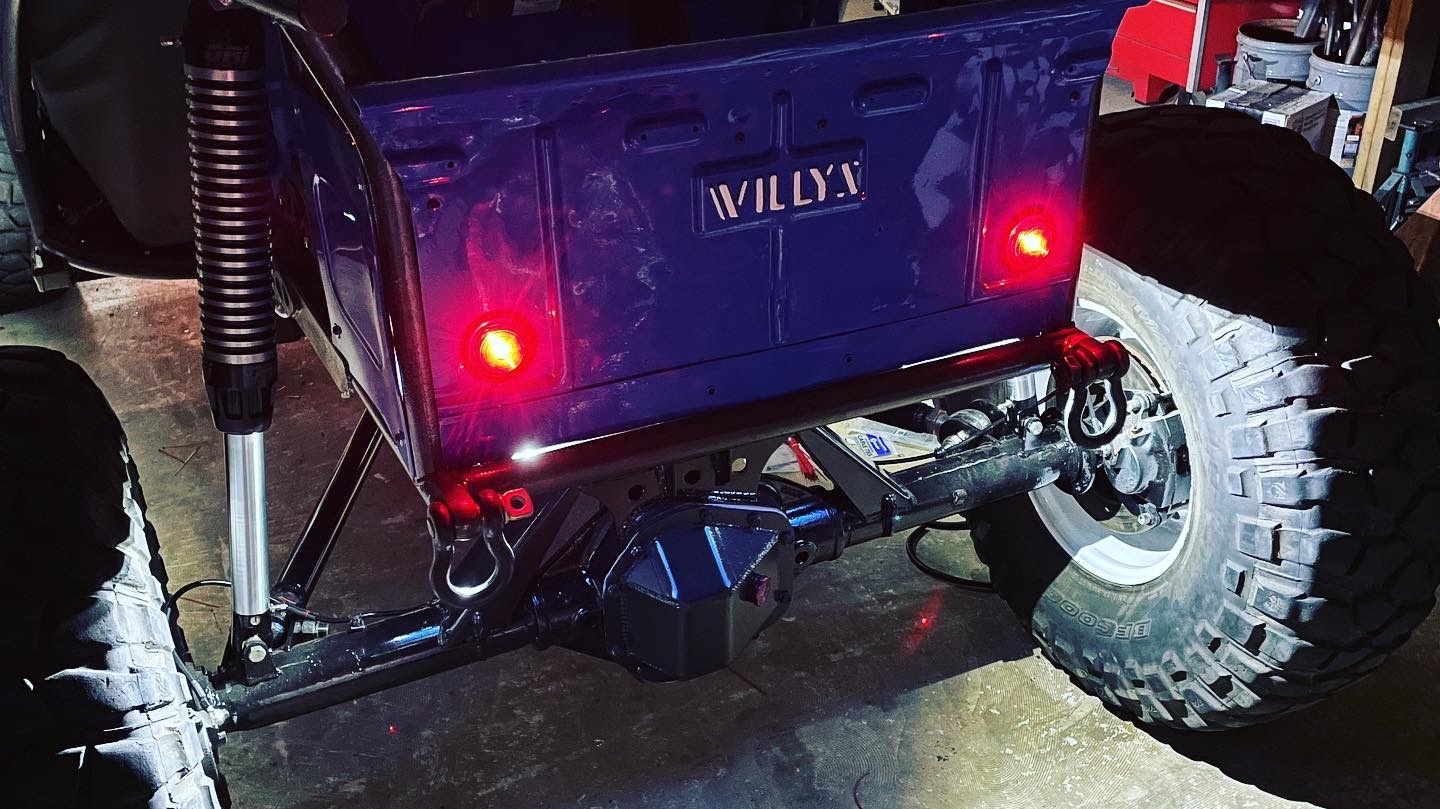

Dana 70U rear axle-Ruffstuff axle bridge-4.56 gears-Dana 80 spool-Moser 35 spline shafts-Chevy 3/4 ton brake kit
All 1410 driveshafts
NV4500 transmission
Atlas 4.3 two speed
Wide Open Design carrier bearing
Brakes
Front-Wilwood 4 piston Dynalite and 14” Branik lightweight rotors
Rear-Chevy 3/4 ton front rotors and single piston calipers
Engine
LM7 5.3 Chevy
PSI Conversion harness
Dual pass radiator & Taurus fan
Exhaust
2.5” DynoMax muffler
Custom made 2.5” Y pipe and exhaust
Intake
Airaid Filter
Custom 3” AL tubing
6.0 truck intake
Interior
Custom with full steel floor
Corbeau Baja SS seats
5 point harnesses
Other
Ramsey REP 8000 circa 1999
