REVKIT
CTrain photo 1

CTrain

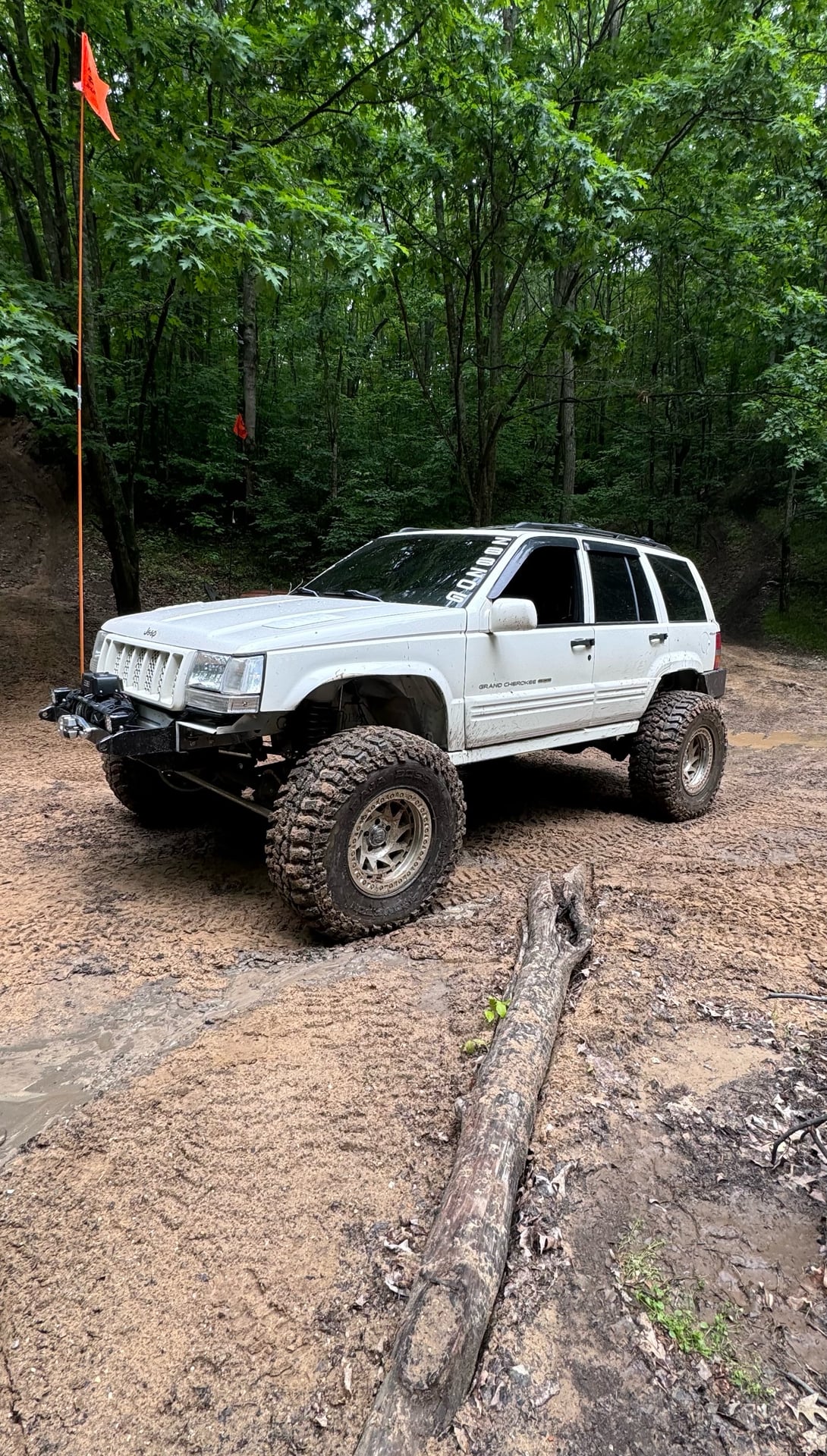

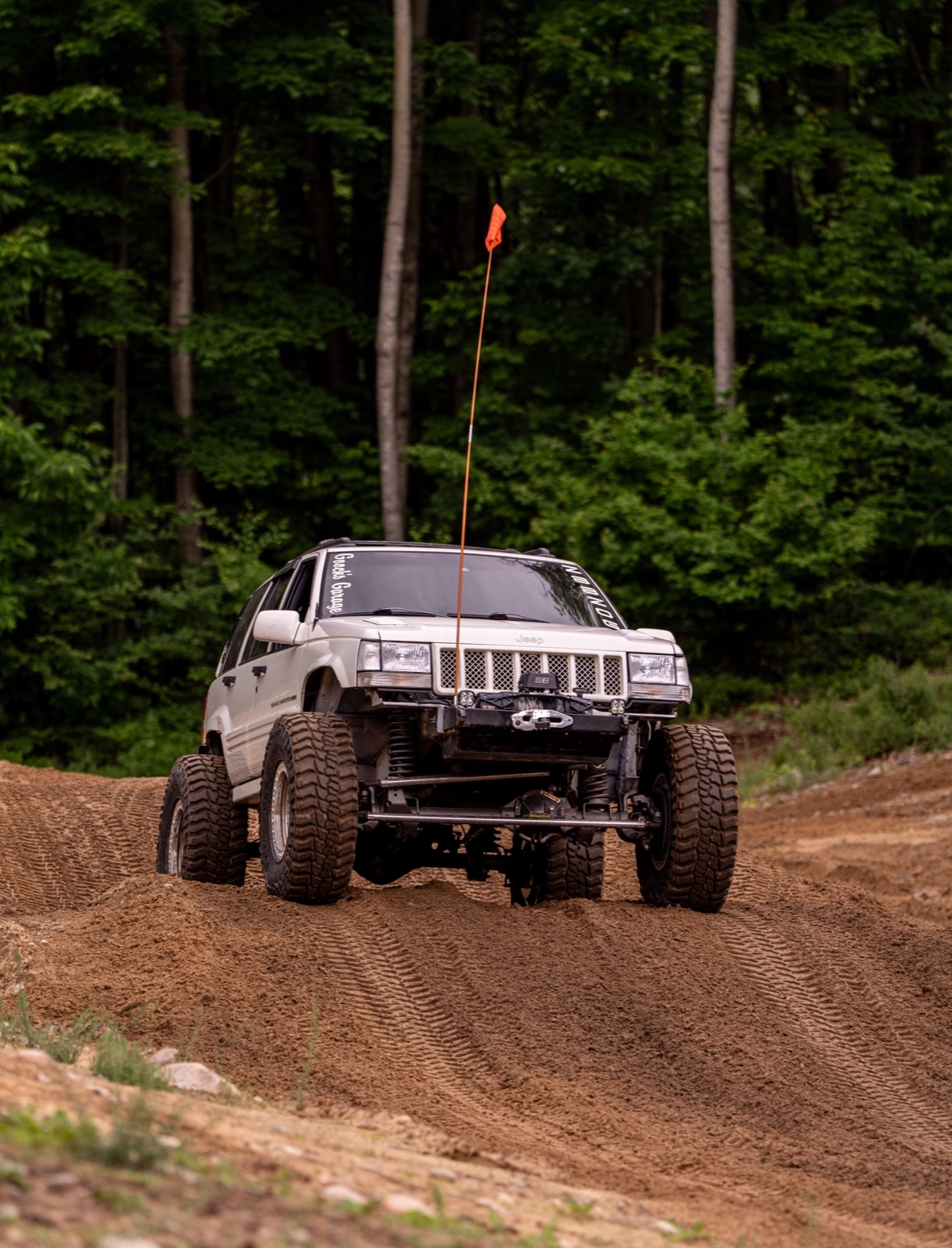

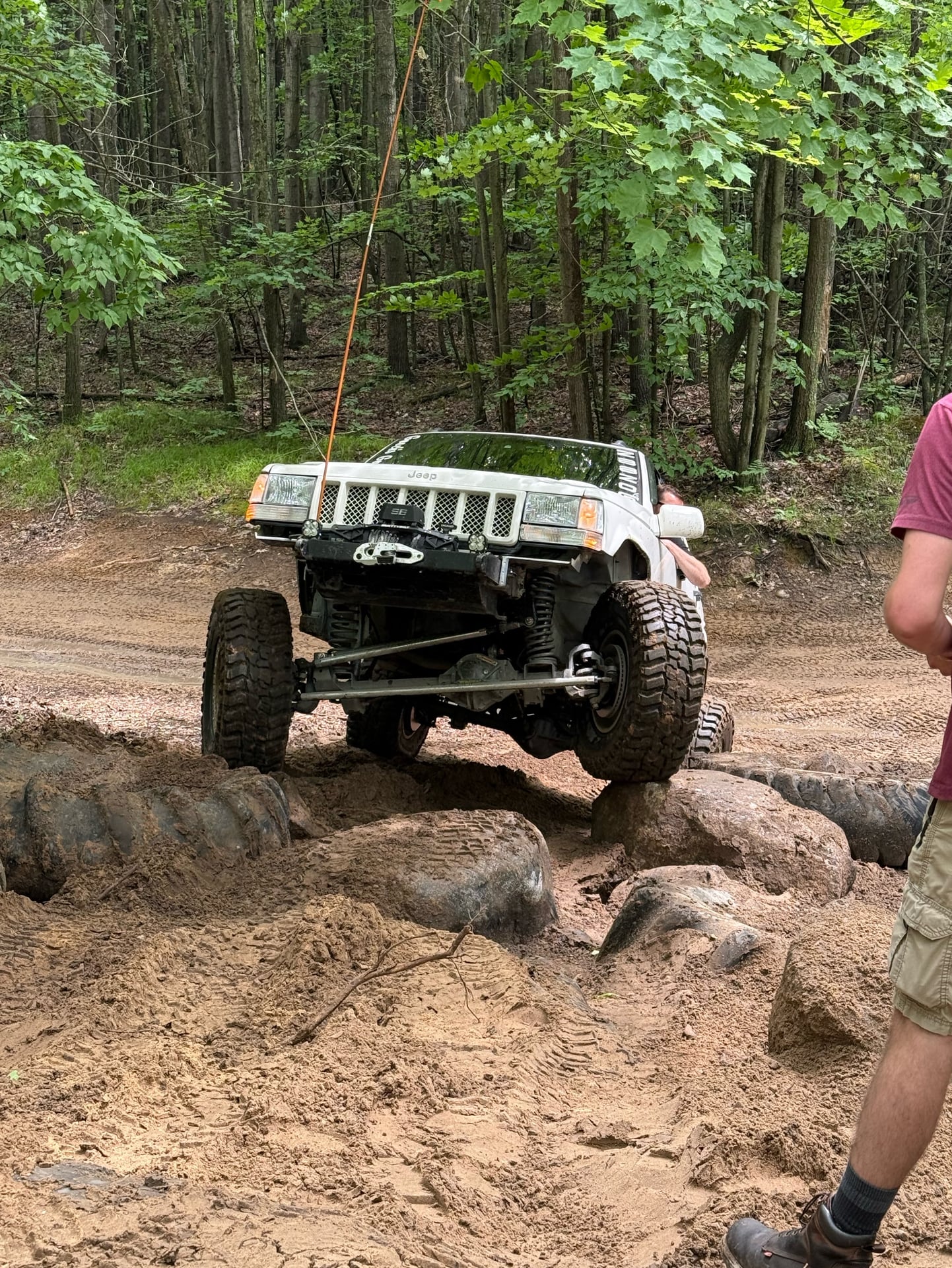

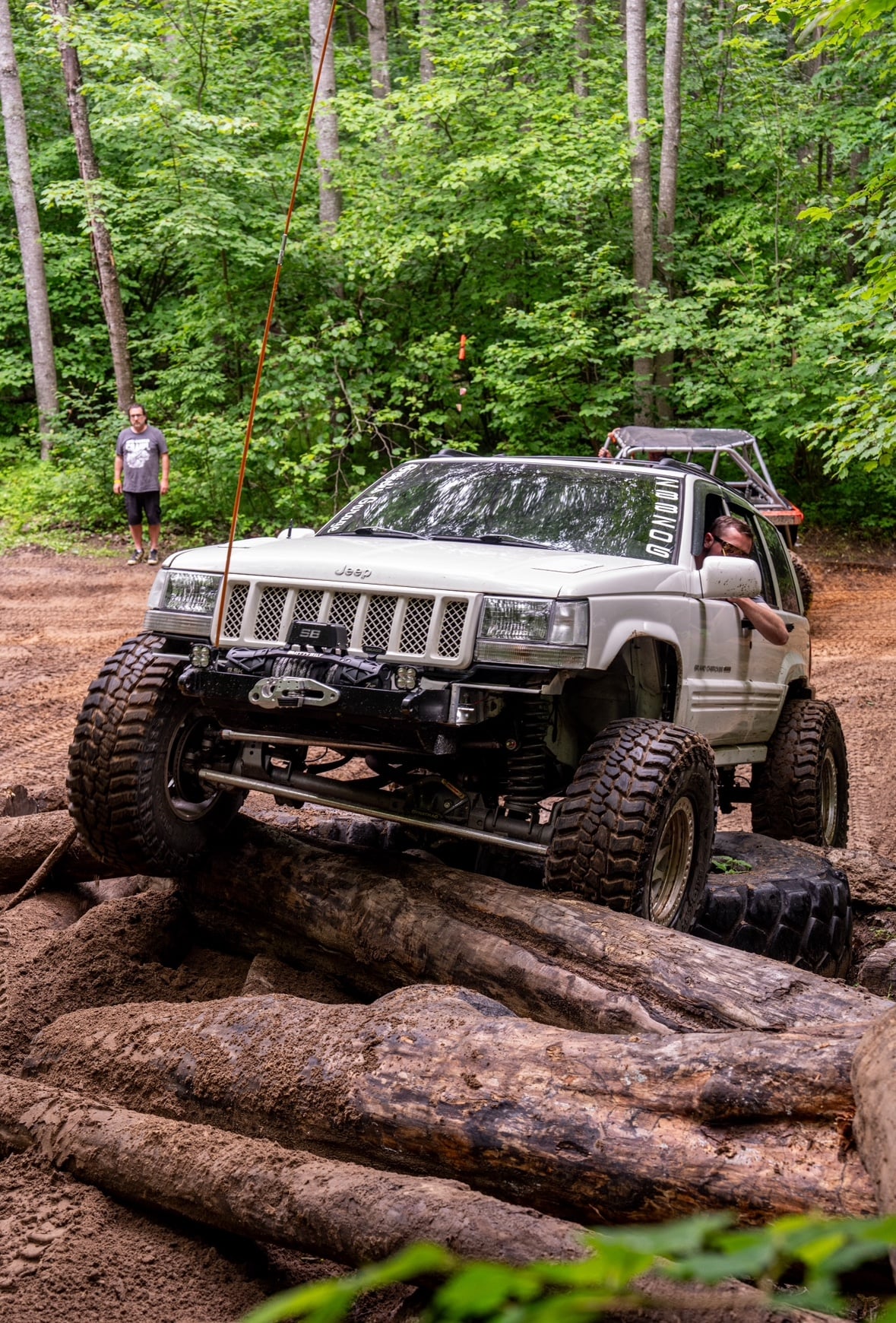

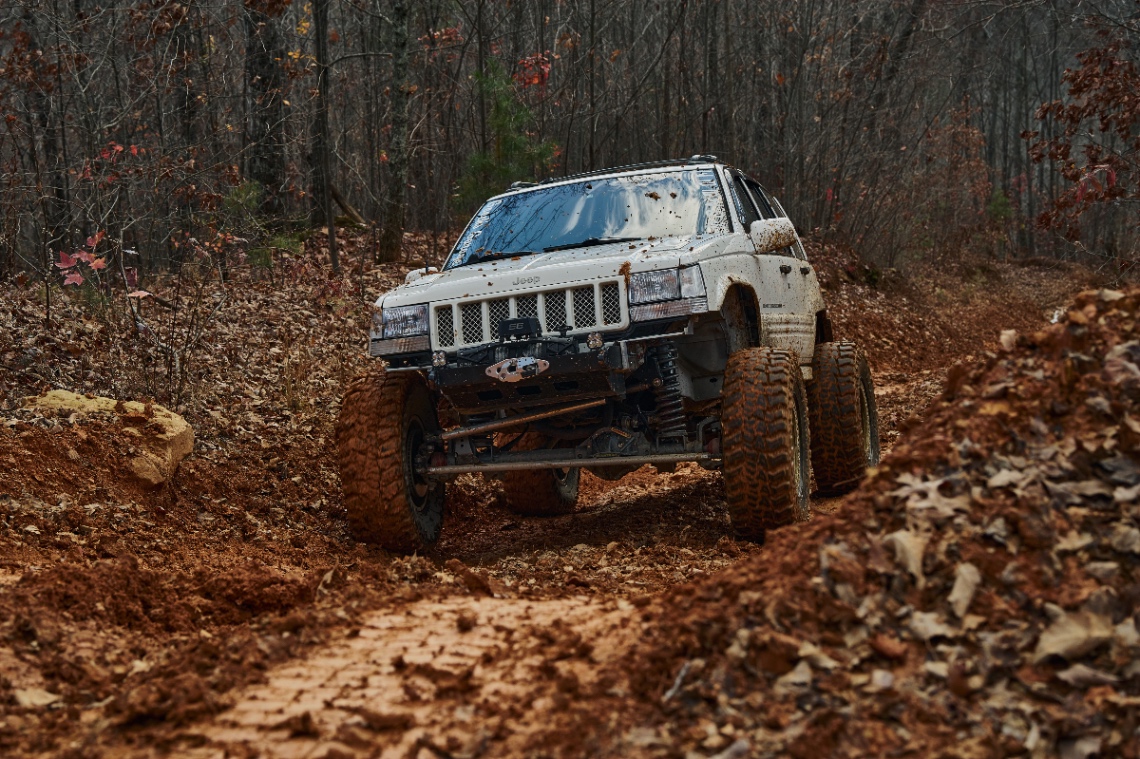

1998 Jeep Grand Cherokee 5.9 Limited Sport Utility 4D

Wheels

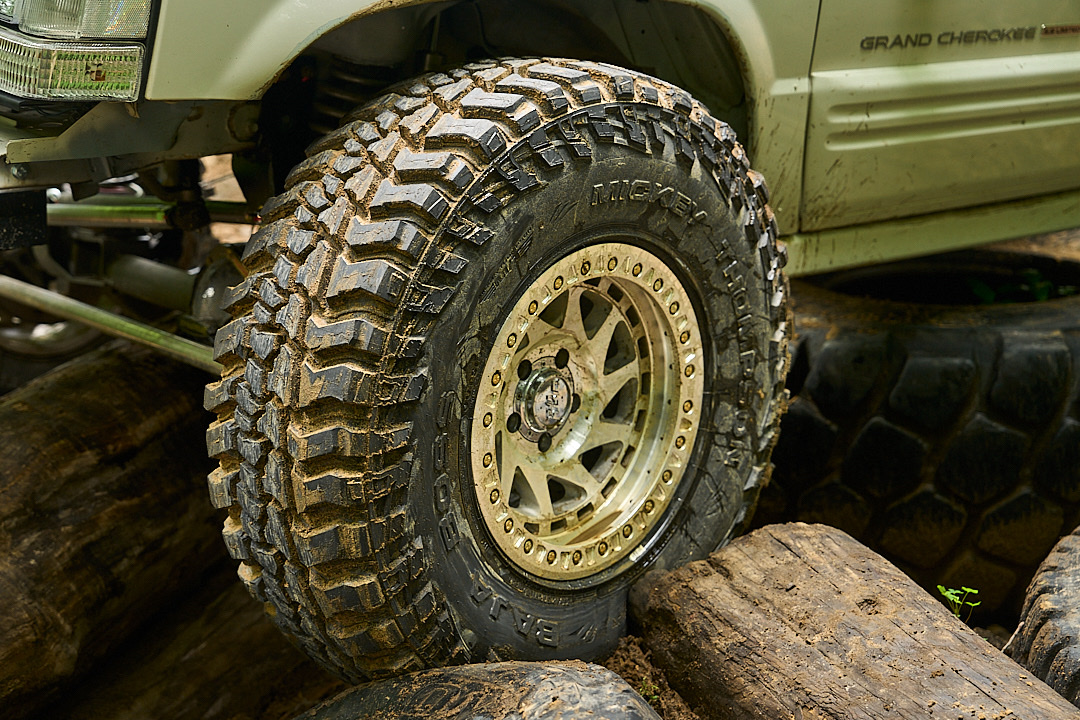

Dirty Life 9313 Enigma Race Beadlock Wheel 17x9 5x5 38mm Offset Machined

Tires

LT37x12.50R17 Mickey Thompson Baja Boss M/T Tire

Suspension

IronRock Offroad long arms
5.5” springs
JK spec Bilstein 5160’s
1.5x.25” track bar with TMR frame side bracket
Mixture of Artec, Ballistic, and Barnes coil buckets, shock mounts, control arm mounts
Rear upper spring perches moved back on frame
PRP limit straps
Artec Industries rear truss

Armor

Homemade bumpers, rock sliders

Lighting

Baja Designs Squadron Pro Driving/Combo x2
KC Cyclone rock lights x8

Drivetrain

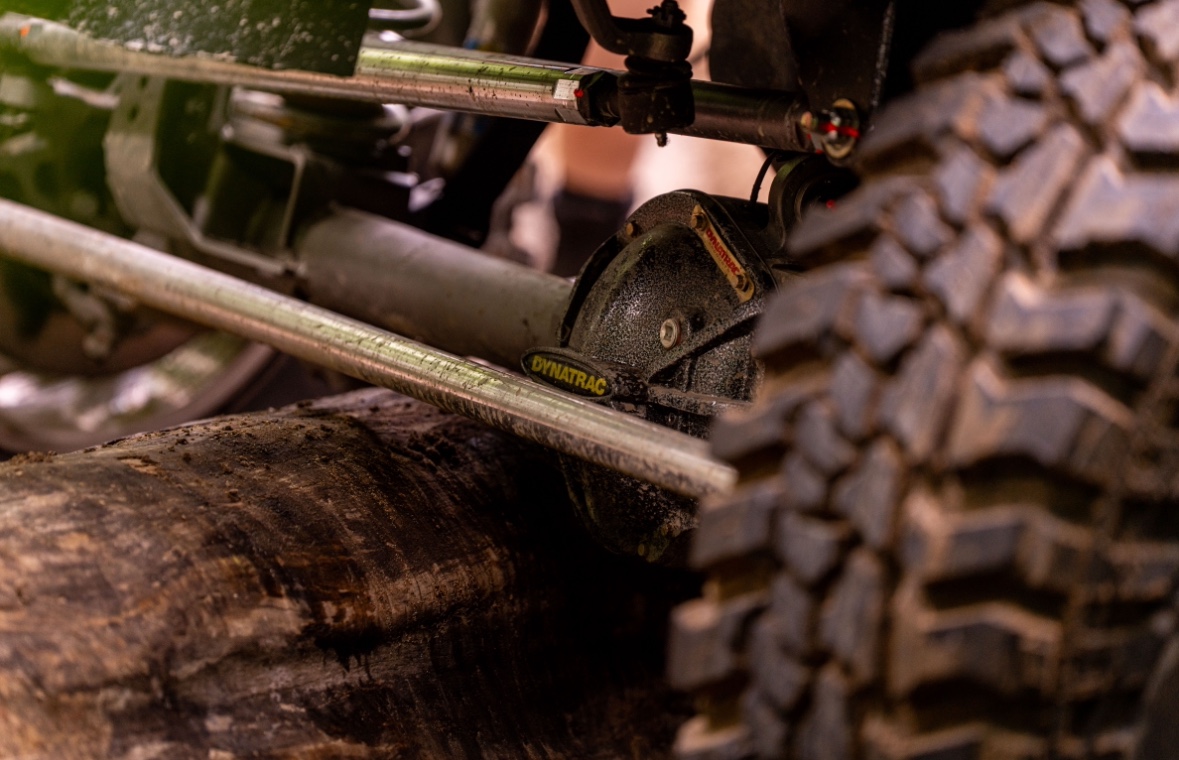

Dynatrac ProRock44 JK spec, Unlimited housing for more pinion and caster separation, Yukon 4.88’s, Eaton E-Locker, ECGS chromoly shafts, American Iron Ball Joint Deletes
JK Sport 44 rear axle, Yukon 4.88’s, Yukon Grizzly, Yukon cover, ECGS chromoly shafts
Tom Woods front driveshaft
Adams 1350 rear driveshaft
NP231 w/ SYE and MVF linkage

Brakes

JT Brakes
Dodge ‘99 Ram van master cylinder

Exhaust

3” Magnaflow Catalytic Converter

Interior

sPOD SourceLT with Mini 6 For Universal and 36in Battery Cables

Recovery Gear

Smittybilt XRC Gen 3 9500
Poly Performance fairlead

Steering

RPM TJ to JK aluminum tie rod and drag link
Redhead replacement box
MVF Basic Steering Box Brace
