1998 Jeep Wrangler TJ Sahara Sport Utility 2D

View profile

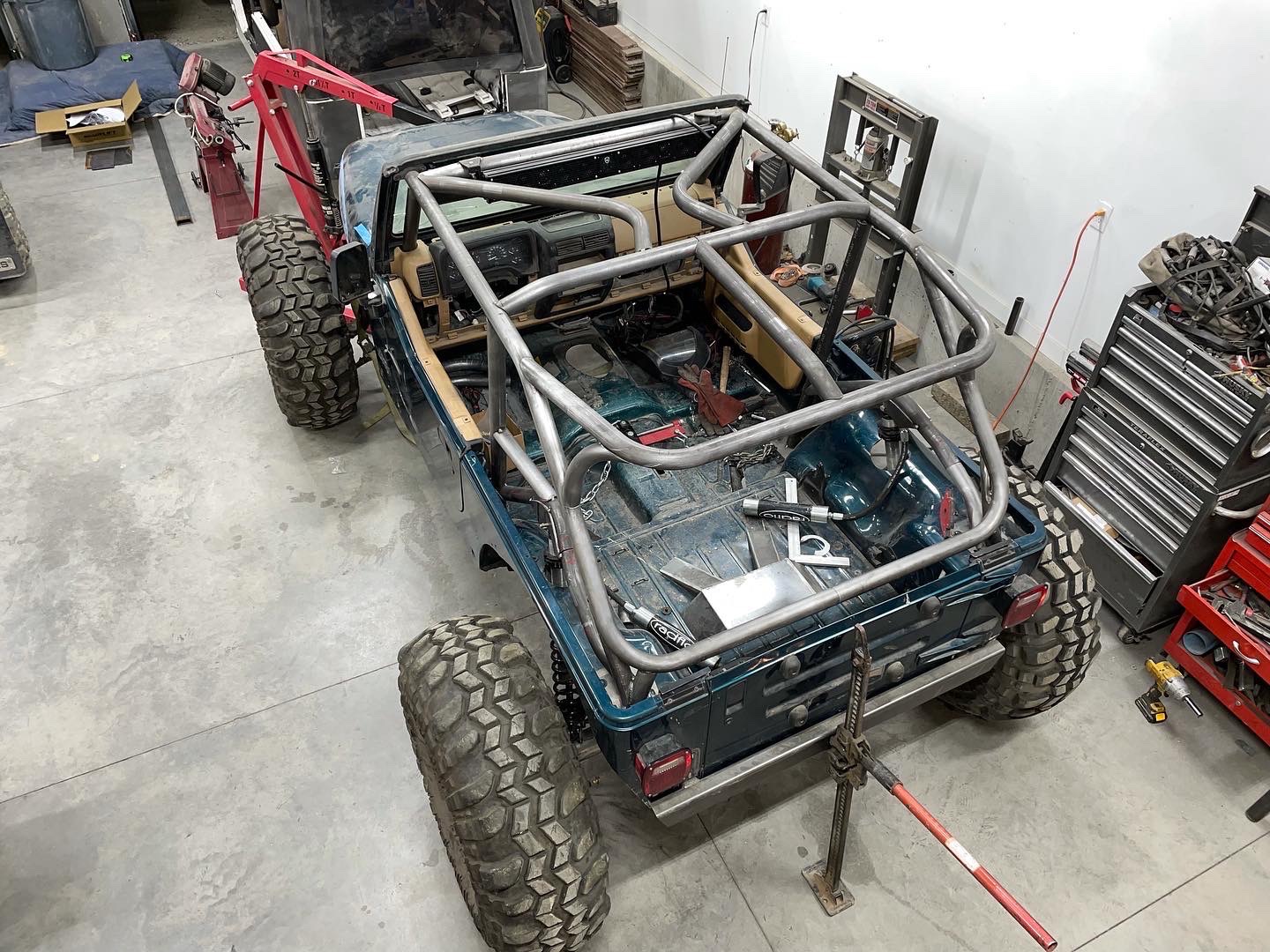

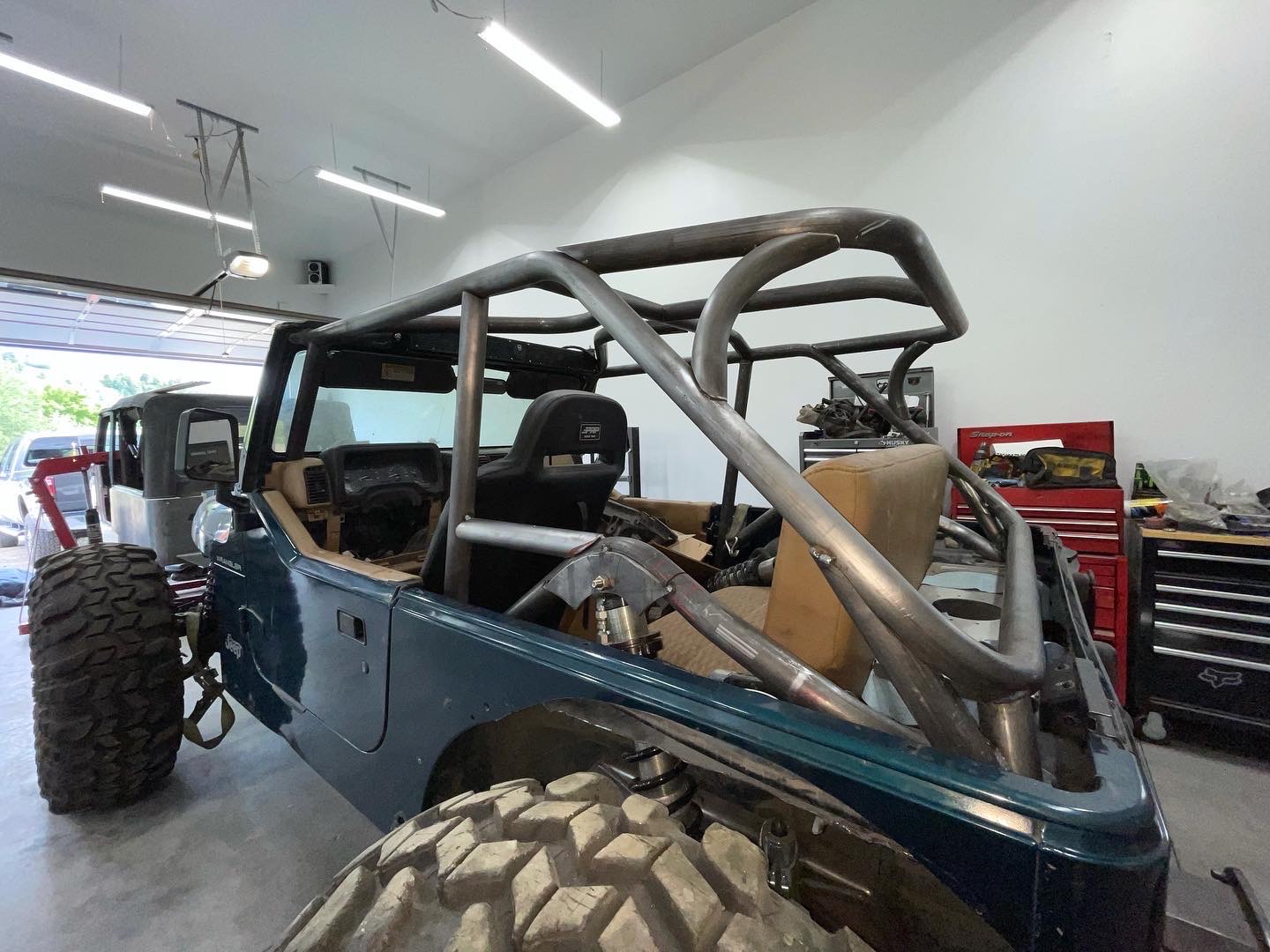

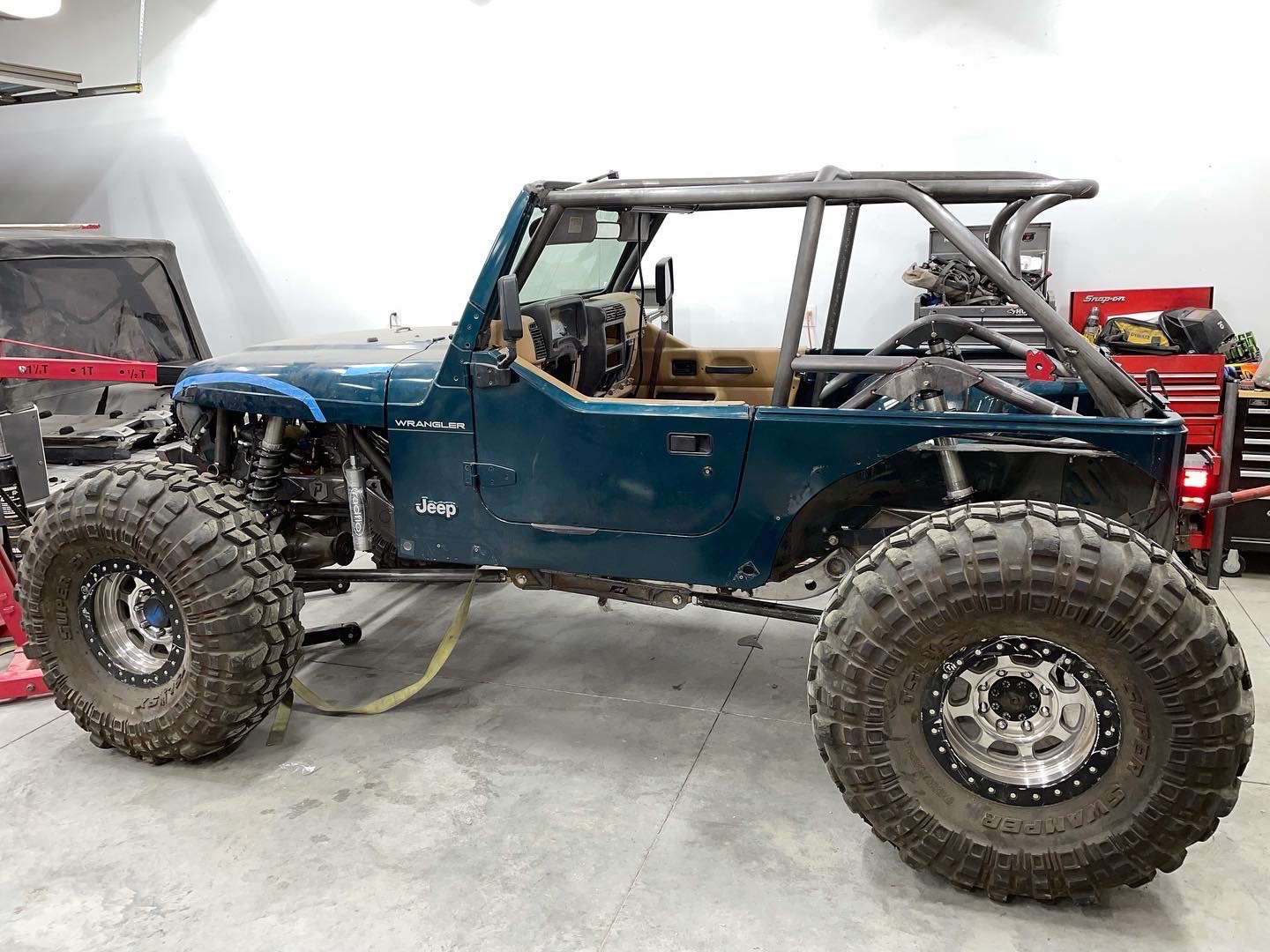

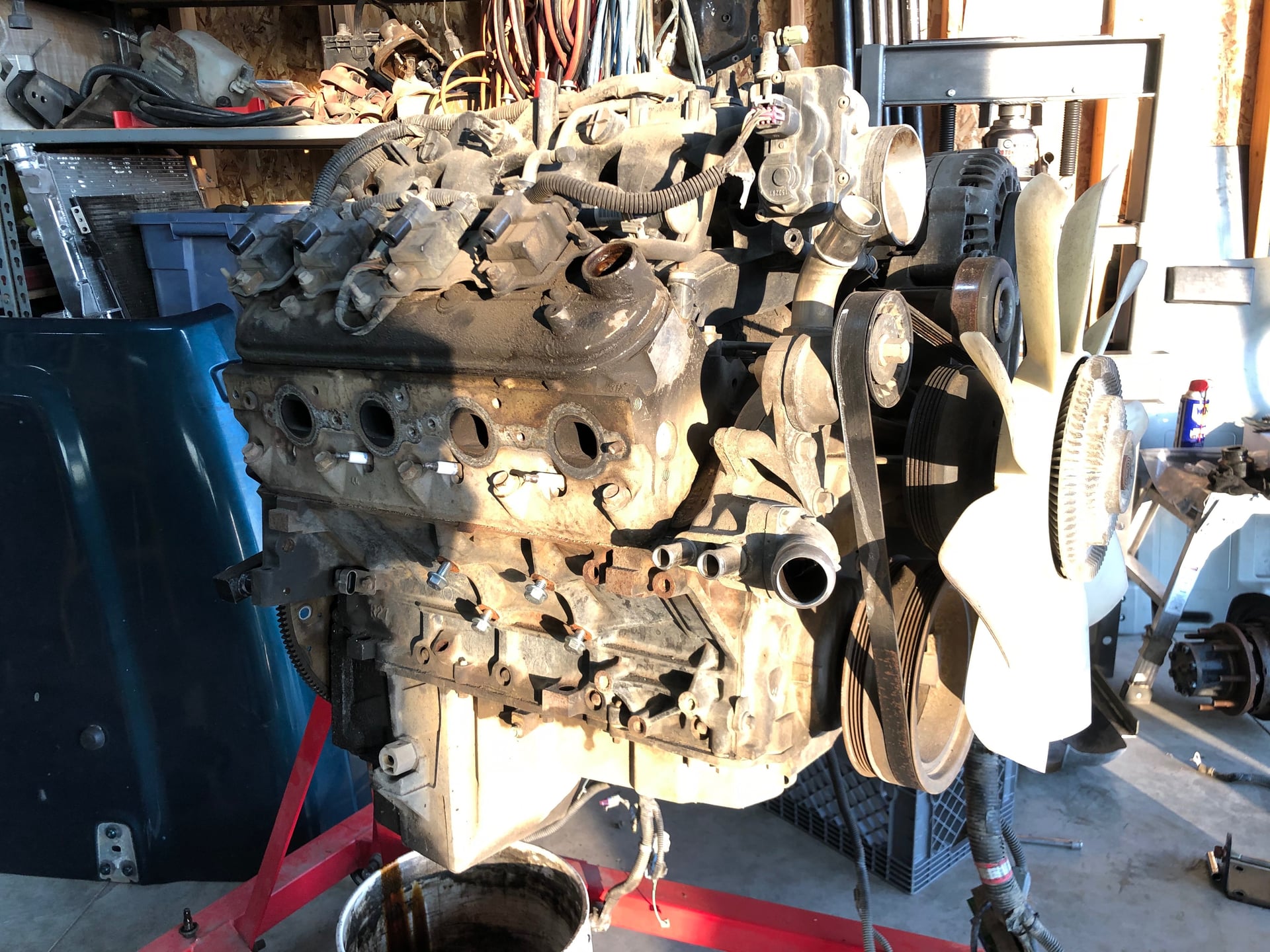

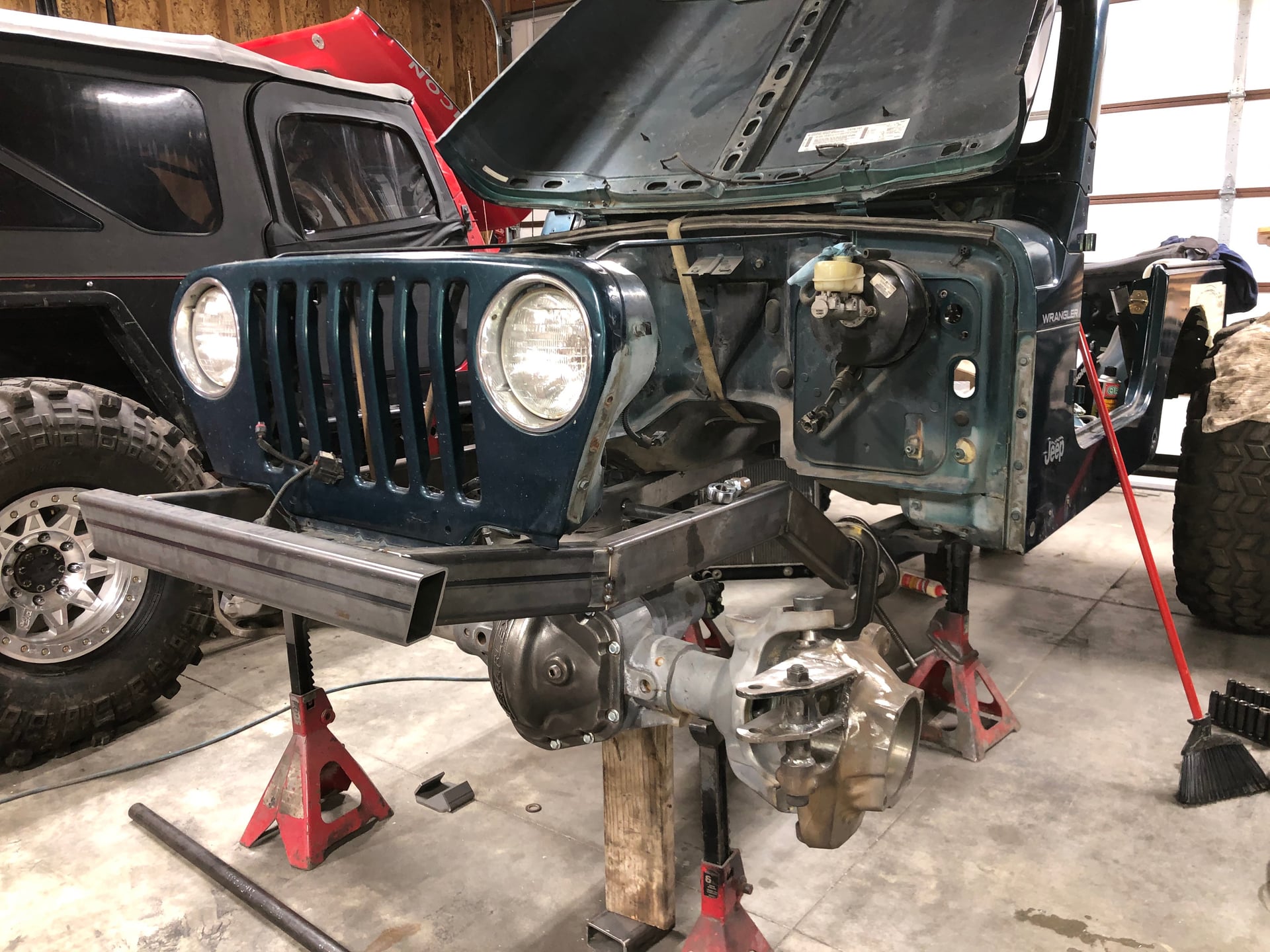

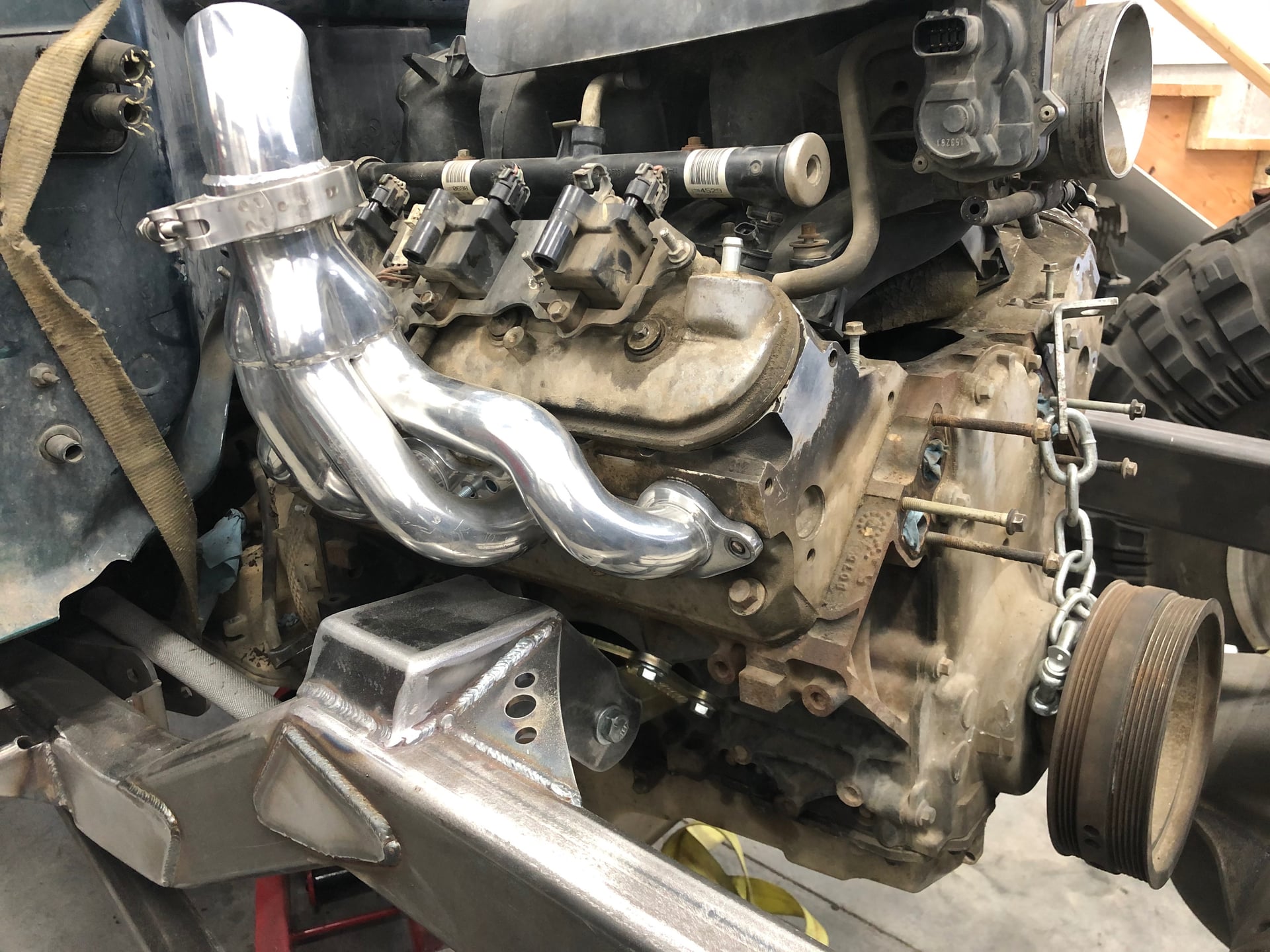

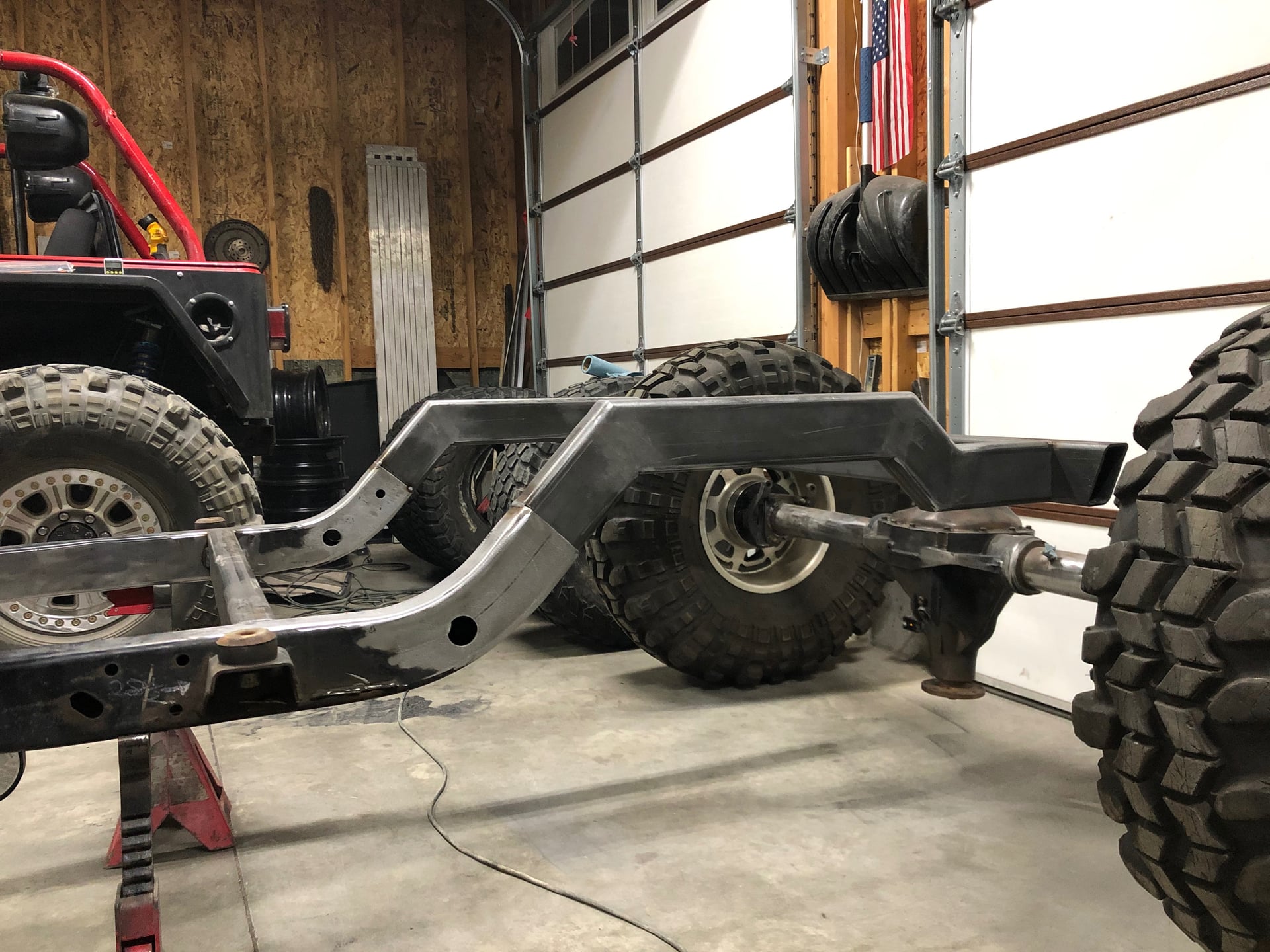

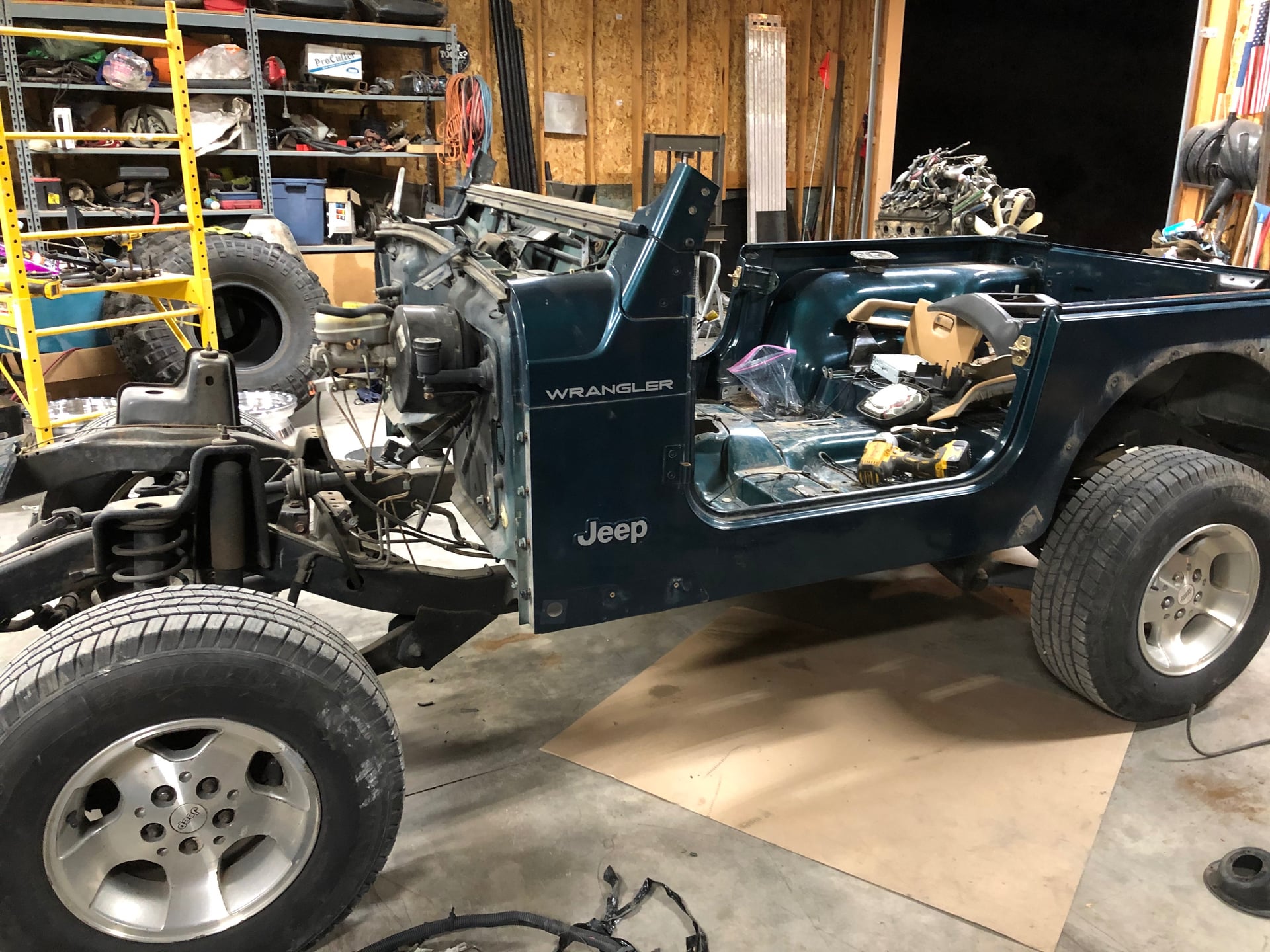

This is a 1998 Jeep TJ wrangler we picked up on a roadtrip, completely stock. It had a 4 cylinder engine that was blown so we immediately disassembled the entire jeep and sold the trans, transferase, axles and some other stock stuff. I cut the back half and the front half of the frame off and custom built the front and rear section for more up travel. I built an LQ9 with a 4L80E and an Atlas transfercase. The engine has flat top pistons, 706 heads with dual valve springs, Brian Tooley cam, Mast Motorsports oil pan and a Melling oil pump. The axles are 2005 Ford Super Duty axles. On the front we did Jesse Haines high steer arms, PSC hydro assist, 35 spline shafts, Yukon Zip Locker with 5:13 gears. The rear Sterling has a Motobilt Truss, 35 spline shafts, Yukon Zip locker with 5:13 gears. I bought the Motobilt 4 Link Kit for the TJ and converted it to a 3 link front. I used 2.5x14" Radflow coilovers along with Radflow bumps. Built a custom roll cage, custom center console, and put in some PRP seats. I painted the green tub a custom maroon color after putting on the Motobilt corners. 43x14.50r17 Interco Super Swampers, 17x8.5 Racine Monster Beadlocks
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 1 of 21
Build specs: 44 parts43" tires2.5" lift
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 2 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 3 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 4 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 5 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 6 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 7 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 8 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 9 of 21

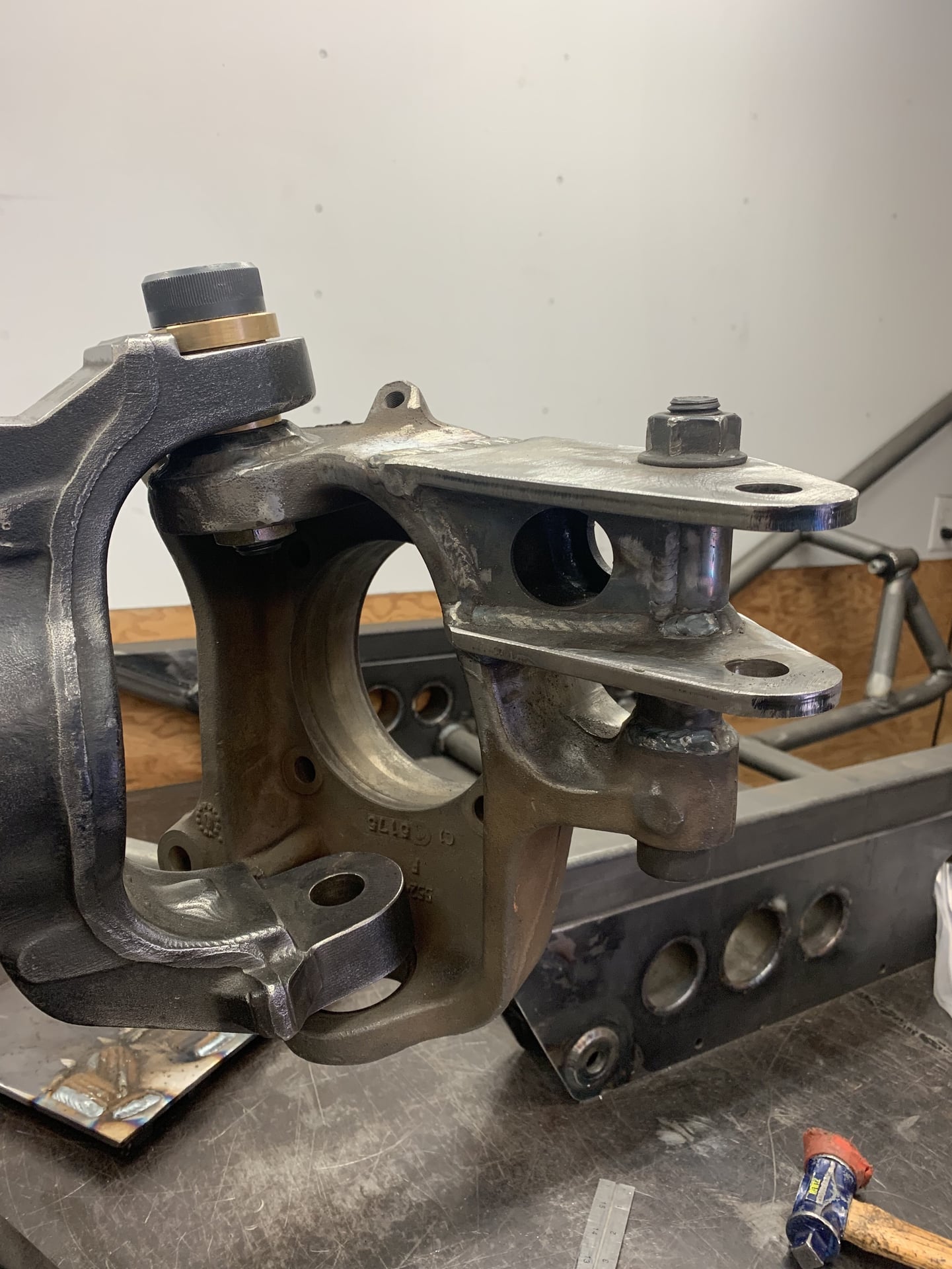

caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 10 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 11 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 12 of 21
caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 13 of 21

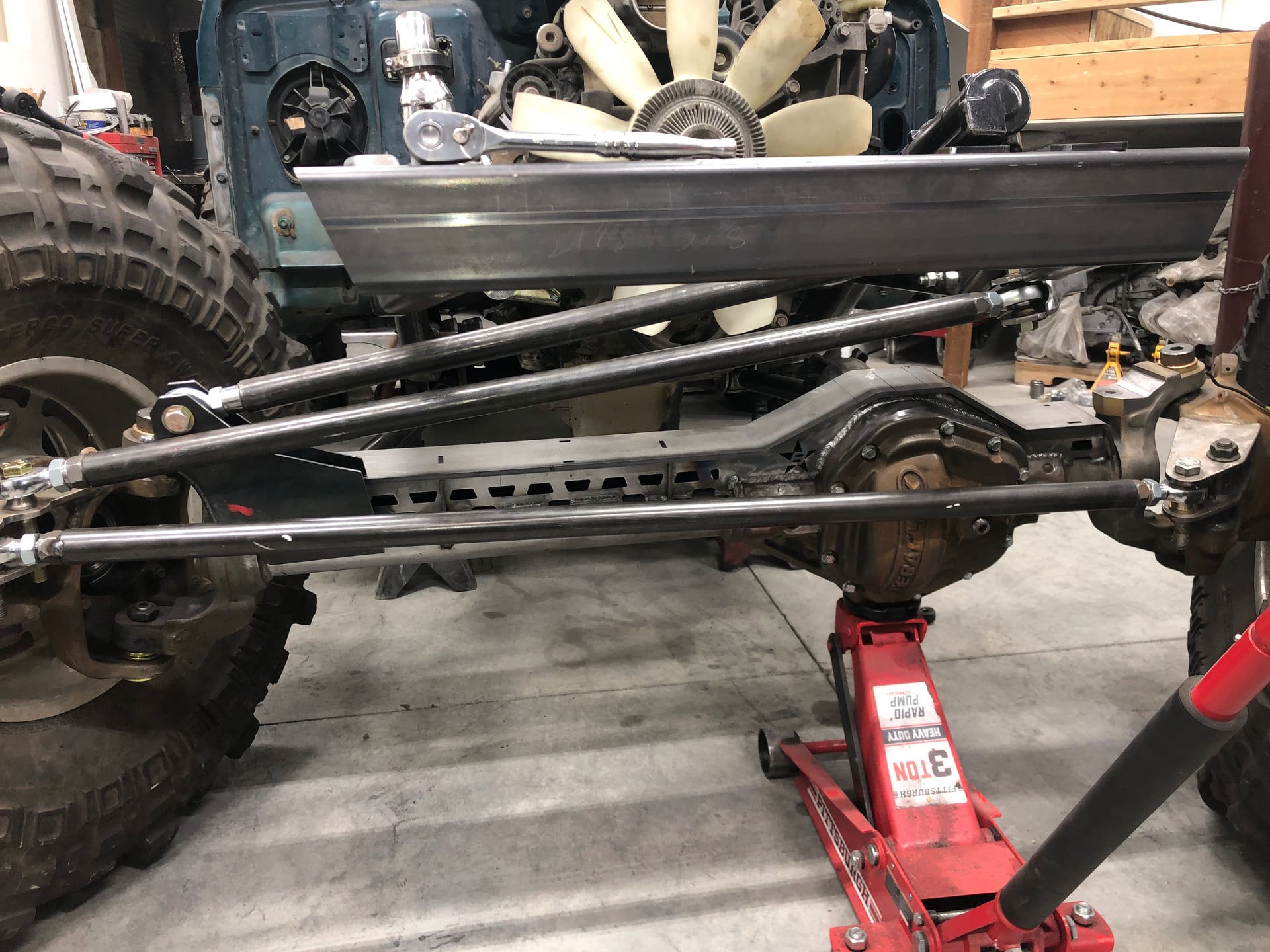

caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 14 of 21

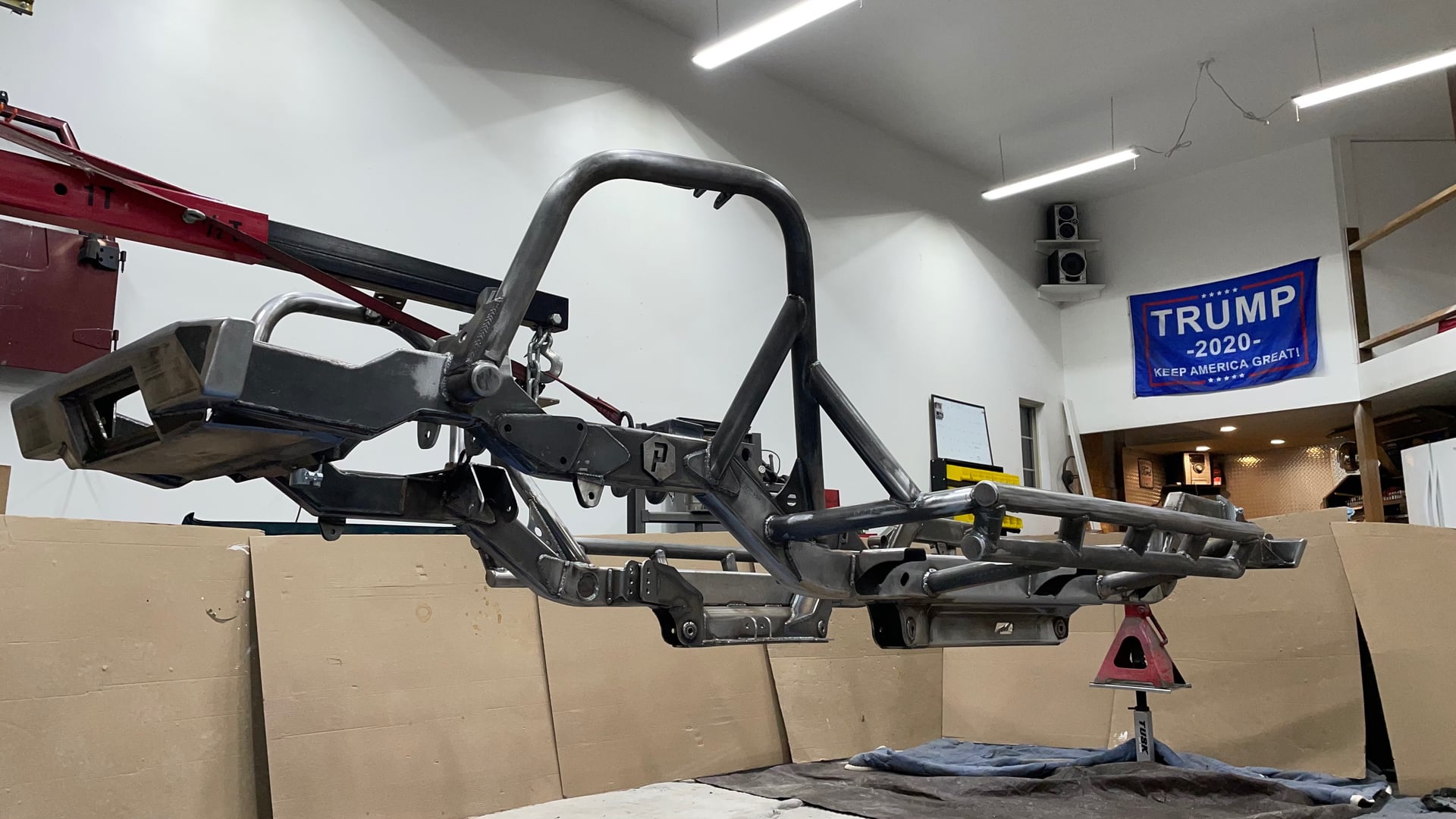

caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 15 of 21

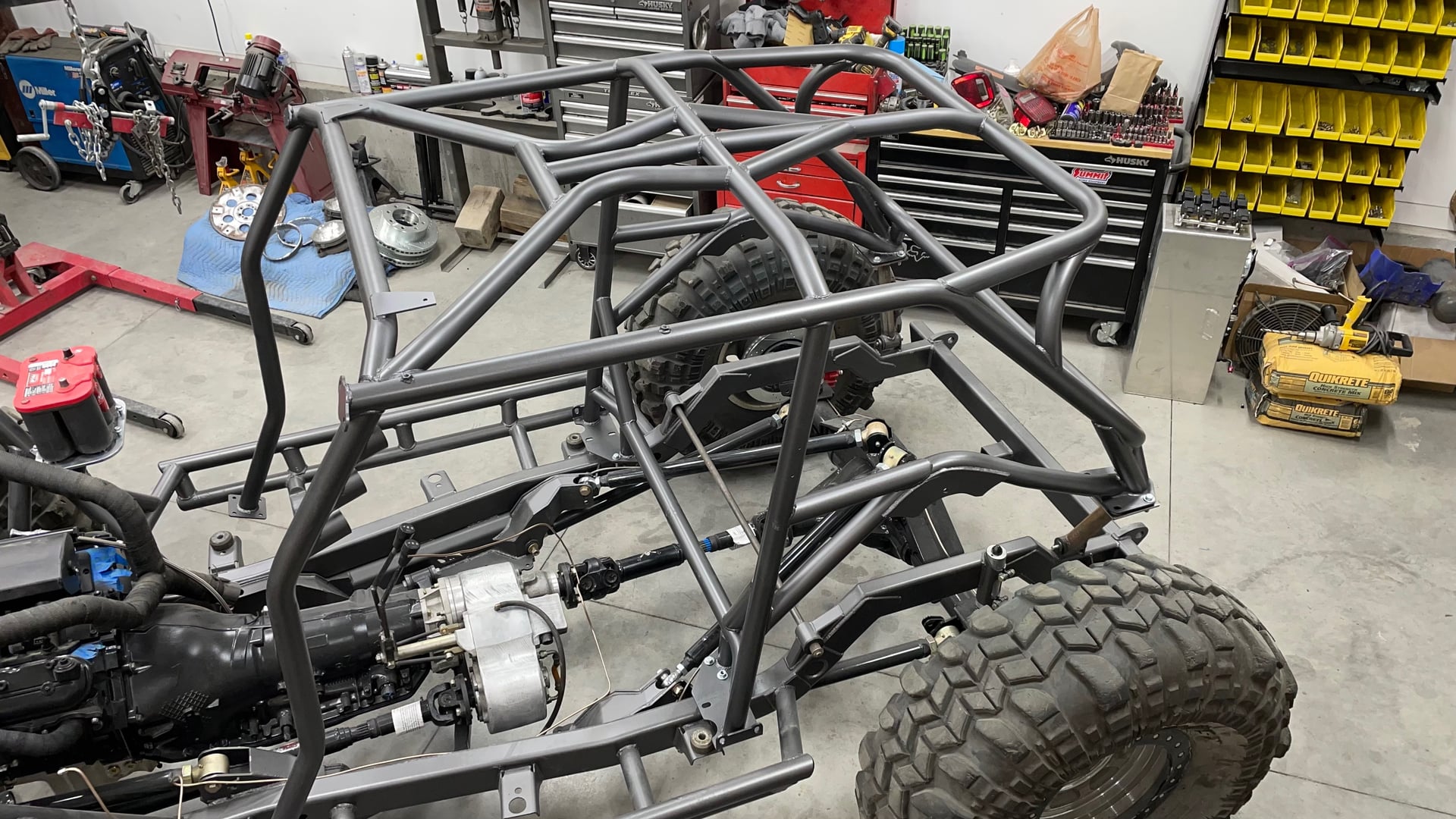

caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 16 of 21

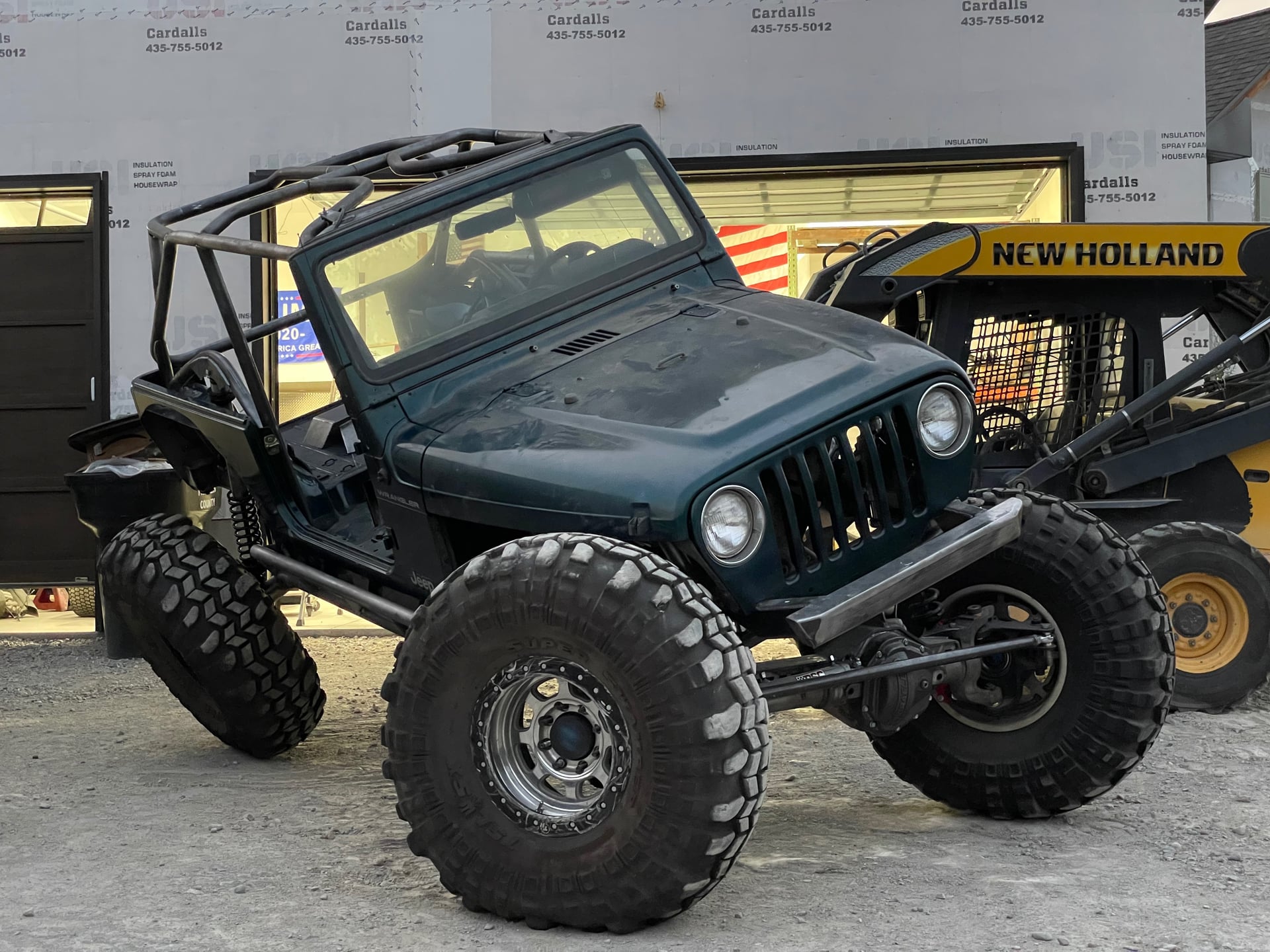

caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 17 of 21

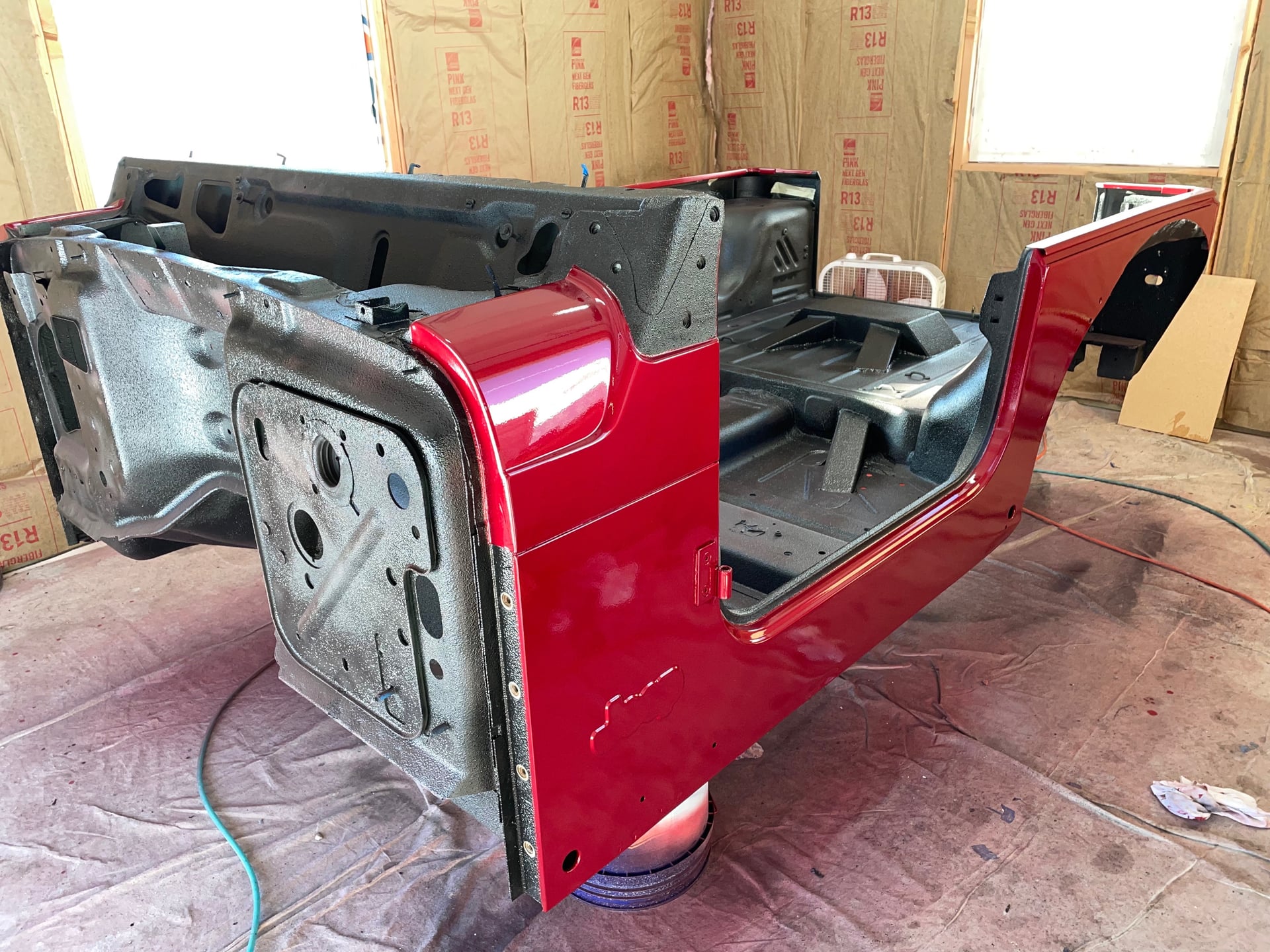

caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 18 of 21

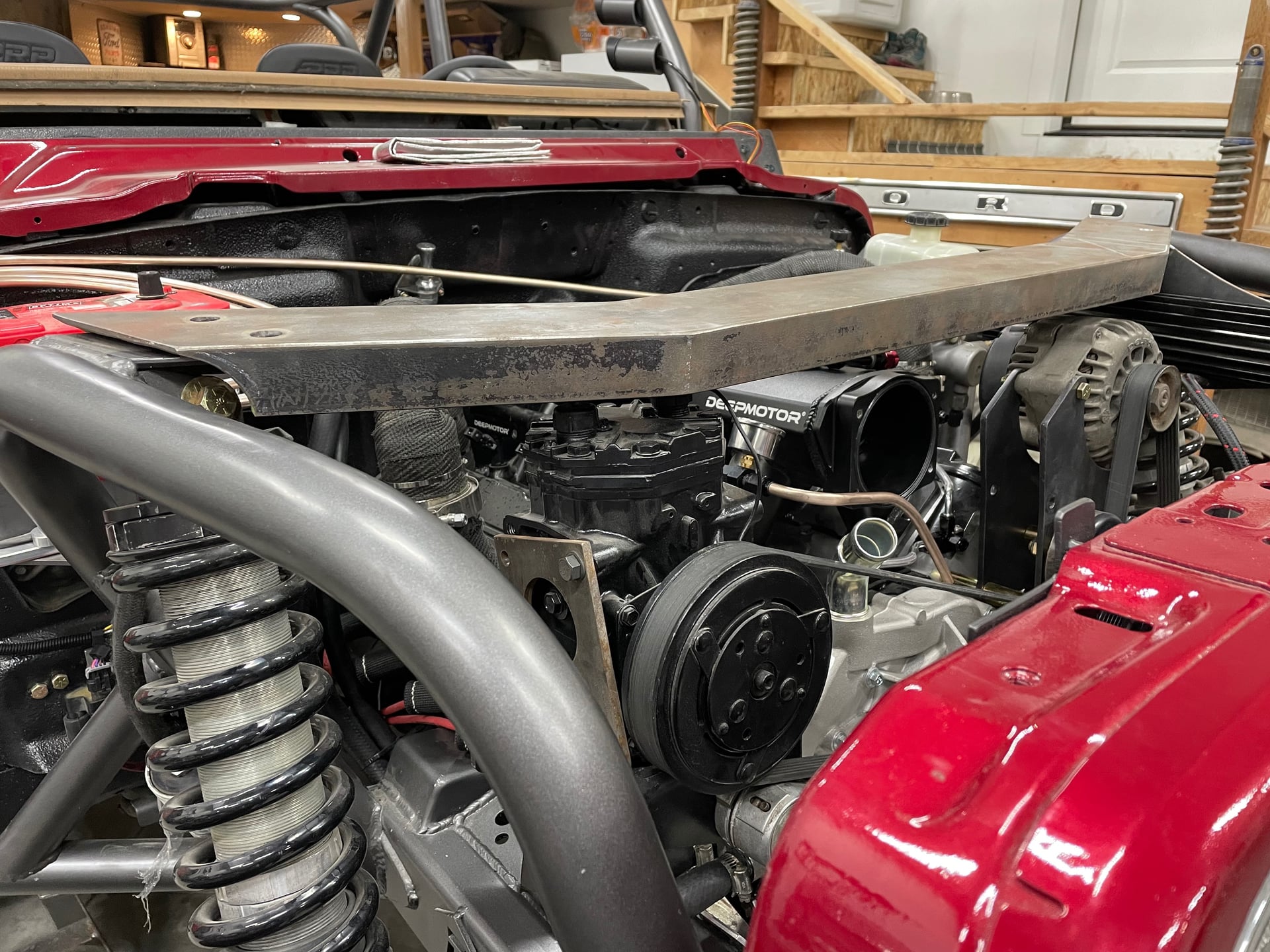

caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 19 of 21

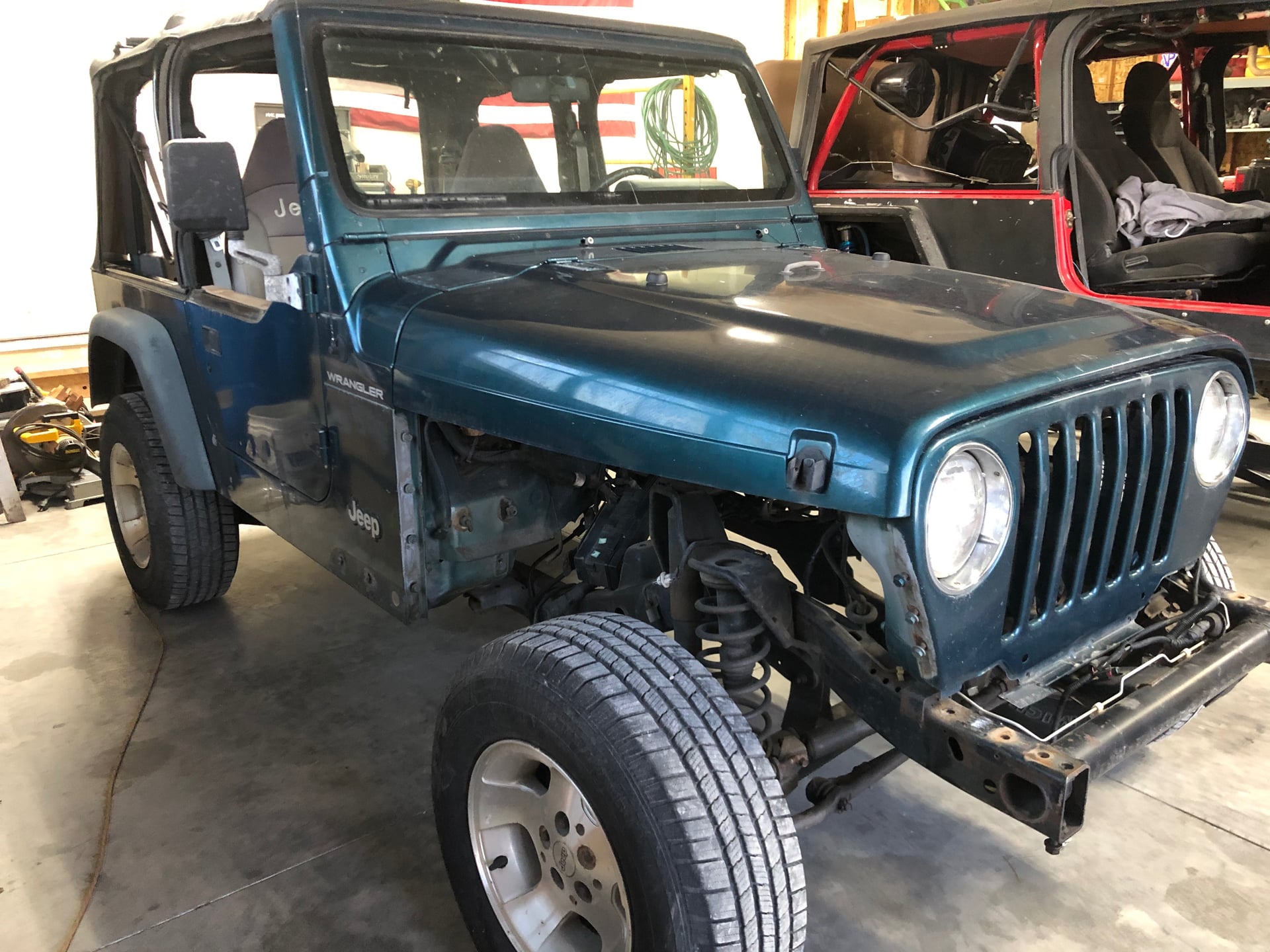

caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 20 of 21

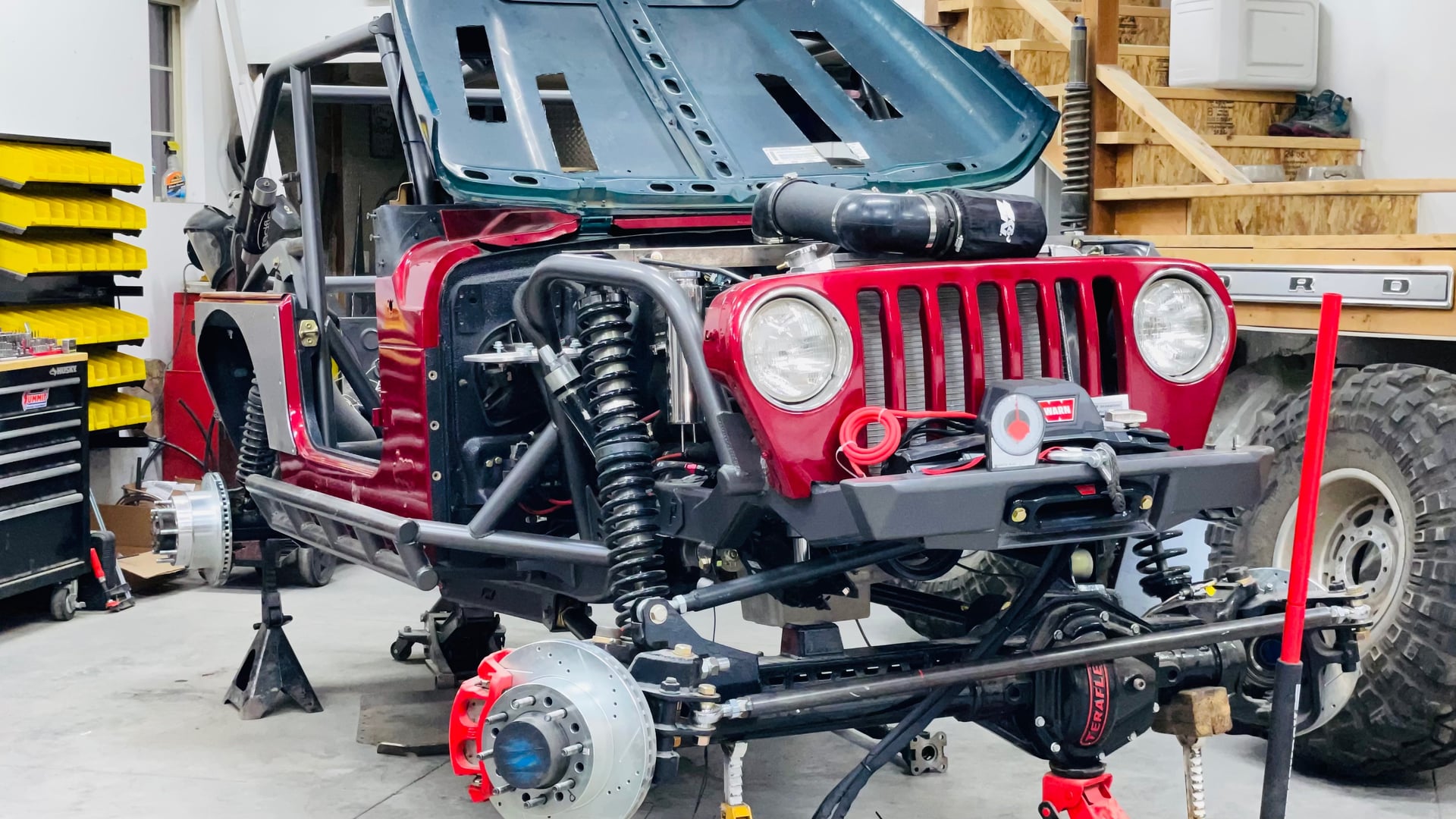

caylebpeck, a red 1998 Jeep Wrangler TJ on 43-inch tires with a 2.5-inch lift, photo 21 of 21

Top mods

Featured build No. 164

Hand-picked by REVKIT

See all featured builds

Parts

Brakes

PowerStop Super Duty Brake Kit
Cutting Brake From Alex's Toolbox

Engine

6.0 LQ9 LS
4L80E Transmission
Atlas 2 4.3:1 Transfercase

Exhaust

Magnaflow 4” stainless diesel muffler
Cast Stainless turbo manifolds
