Brad's tj · 2000 Jeep Wrangler TJ Build

The Original Black Jeep of the Family

Build highlights

100 parts
35" tires
3.5" lift
Black

Wheels

15x10 DC1 Wheels

35" Trepador Radials

Suspension

MetalCloak 3.5" Dual Rate Coils

MetalCloak RockSport Shocks

MetalCloak Front Big Bolt Trackbar

ZJ Steering Upgrade

Durango Gearbox

RRO Fixed Short Arms

HomeMade Sway Disconnects

Exterior

Kentrol Stainless Hood kit

Drake Offroad Hood Pins

Homemade Rock Sliders

Rampage Rear Bumper

Rampage Frameless Top

SpiderWebShade

Warn Gearbox Skid

FireStik II mounted in factory antenna location

Lighting

Chinese 12" light Bar

Custom Projector Retrofit (upgraded)

JW Speaker Knockoff Headlights

Smoked front signal lights

Rear LED flush mount lights

Blue Dash, stereo, HVAC, and accent lighting

Drivetrain

No Body Lift Tummy Tuck

AX15 Swap w/ Advanced Adapters kit

B&M Short Throw Shifter

NP231 w/ JBC SS SYE

Savvy Cable Shifter

Custom Built Shift Lever

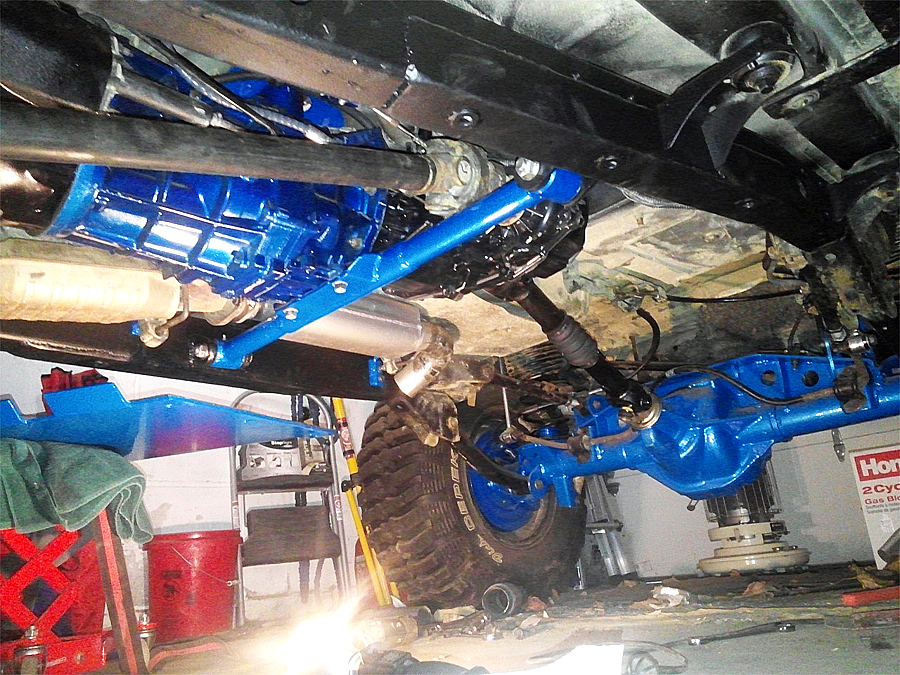

TMR Customs Transmission Crossmember Powdercoated

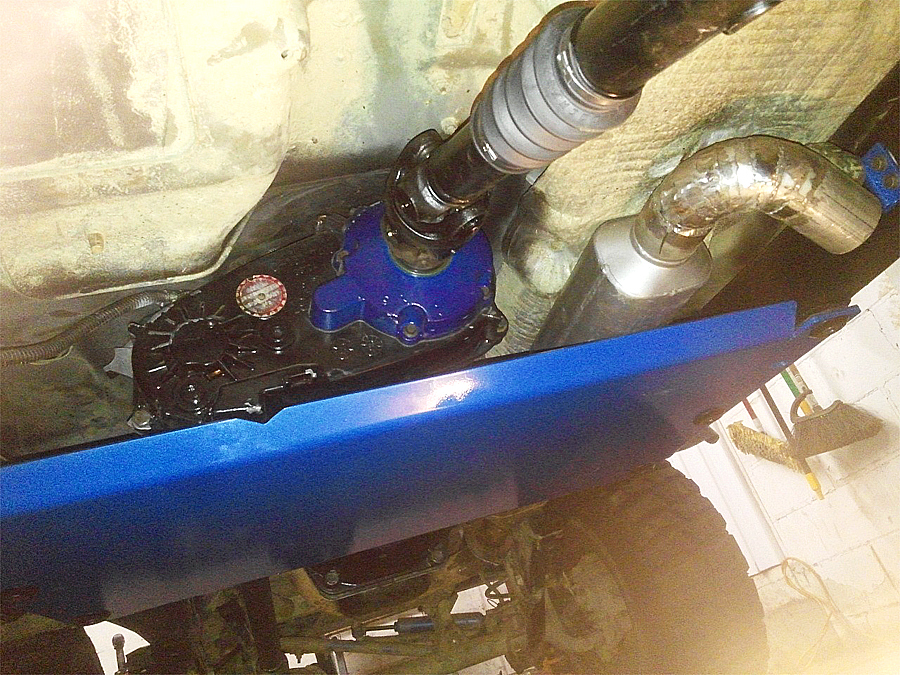

Barnes 4x4 Flat Skid Powdercoated

Custom Double Tapered Bolt Sliders

Tom Woods Rear Shaft (22.5" length)

Extended Front Driveshaft

Rear 8.8 Disc axle POWDERCOATED

Artec 8.8 Swap Truss & Mounts

G2 4.88 gears

ARB Diff Covers Powdercoated

ARB Lockers front and rear

Speedo Healer module

Brakes

Rear Disc Brakes (8.8)

Rubicon Ebrake Cables

Custom Bent hard lines (8.8)

YJ Front Brake Hoses (4" extension)

IRO Rear Brake Extension Hose

Engine

2.5L bored .030 over - increased to 2.7L & lowered compression to 8.8

Custom Eaton m62 setup (in progress)

Optima Yellow Top

FlowKooler Hi Flow Water Pump

WJ Steering Pump

4.0 Resevouir

Durango 160amp Alternator

Ported Thermostat Housing

Sanden 701 A/C Compressor OBA Mod (Grease - Reverted)

Custom AUX PDC

Bussman 10 Relay Box

Dual Plow Solenoids

Tarus Fan Mod (replaced flex-a-lite)

Custom Build Fan Controller with Off/Auto/Lo/Hi control

SpeedDaddy 3Core 3Row Aluminum Radiator

Temp Gauge Radiator Cap

Big 3 Upgrade

Exhaust

1' Shortedned Down Pipe

Magnaflow High Flow Cat

FlowMaster Super Short HP2 Muffler

Turndown Tip

Custom Hangers

Intake

Custom PVC Firewall Mod Intake

Mr Gasket Valve Breather Filter

Hood Scoop

Interior

Jensen VX4012

Crescendo 8" mid woofers

Custom Sound Pods

Crescendo 300watt A/B Amp

Kicker 1200watt amp pusing 600watts @ 2ohm

Sundown SD-2 8" @ 600watts in

Dual Audio Single 10" Bandpass

Earthquake SWS 8" Custom Rollbar Sub

Kicker 600watt amp 150watts @ 4ohm

Bass Shakers under front seats

Custom Build TC Shifter

Custom Powder Coated Shift Knobs

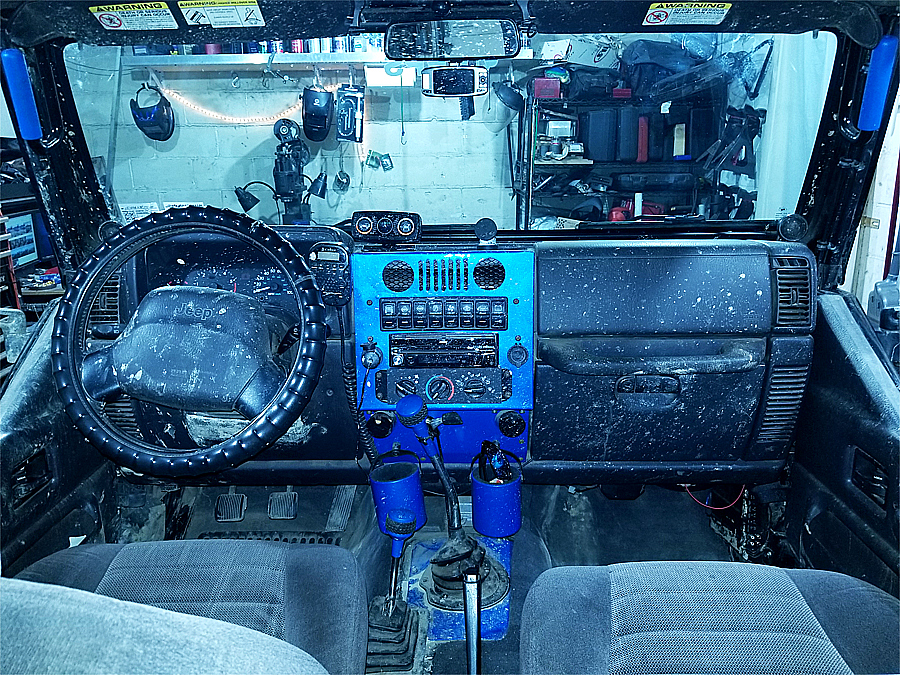

Custom Made Center Dash Powdercoated

8x OTRATTW custom switches

ARB Twin Compressor (under brake booster)

Viair 2.5gal 200PSI tank (drivers rear wheel well)

Copper Hardpipe between

Viair Air Horn Solenoid

Custom Built PVC Air Horn

HF self-retracting air hose reel mounted in rear

Teraflex Hand Throttle

Custom Built LED Lit Ashtrays

Boat Style Gimbaled Cup Holders

Custom Transmission Tunnel Cover

ZJ front seats

GraBars

Fire Extinguisher and First Aid on rollcage

8" truck fan mounted to rollcage

Cobra 75WXST CB

$5 bluetooth speaker mounted to rollcage for CB
