Blueyxj

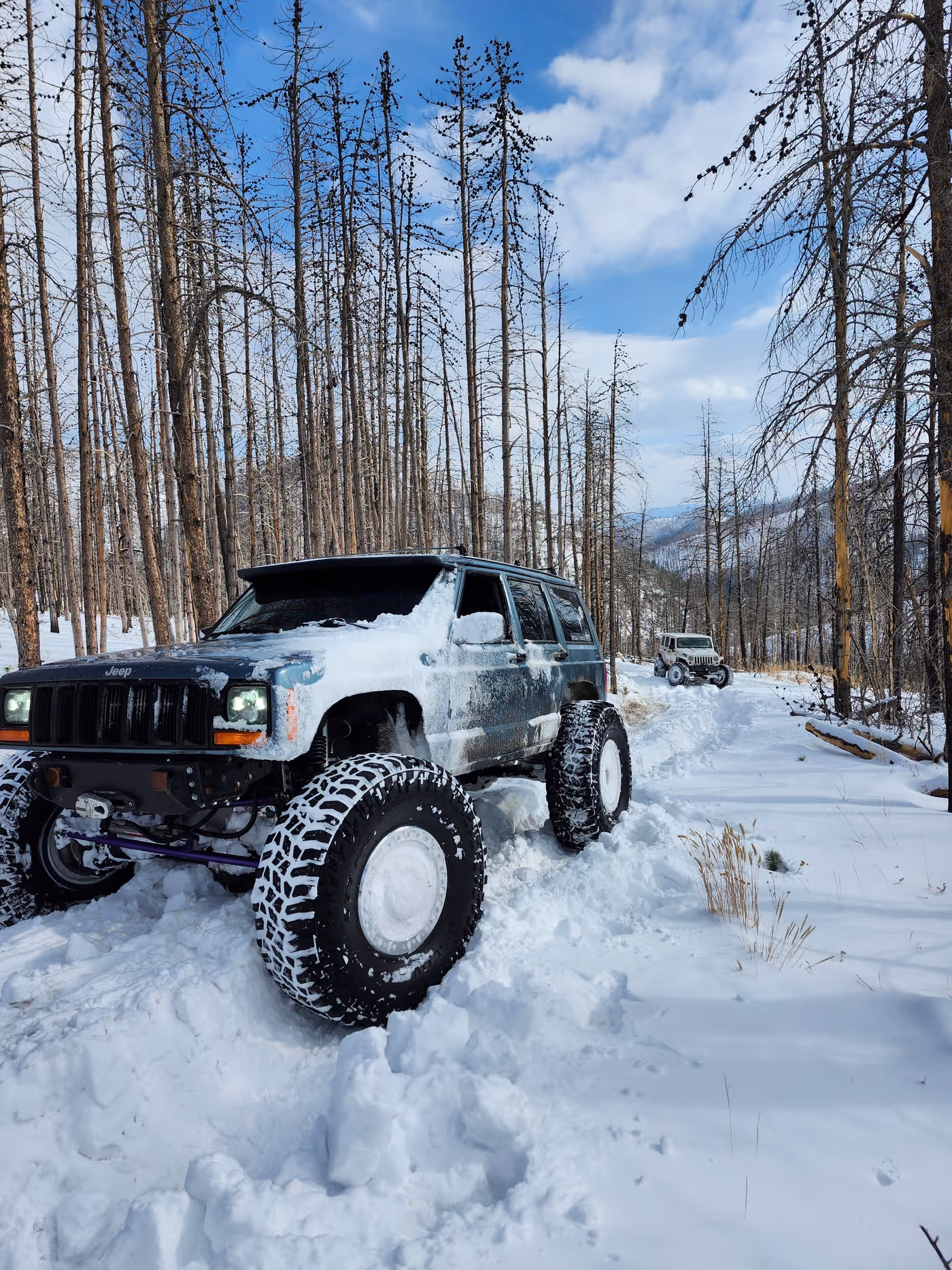

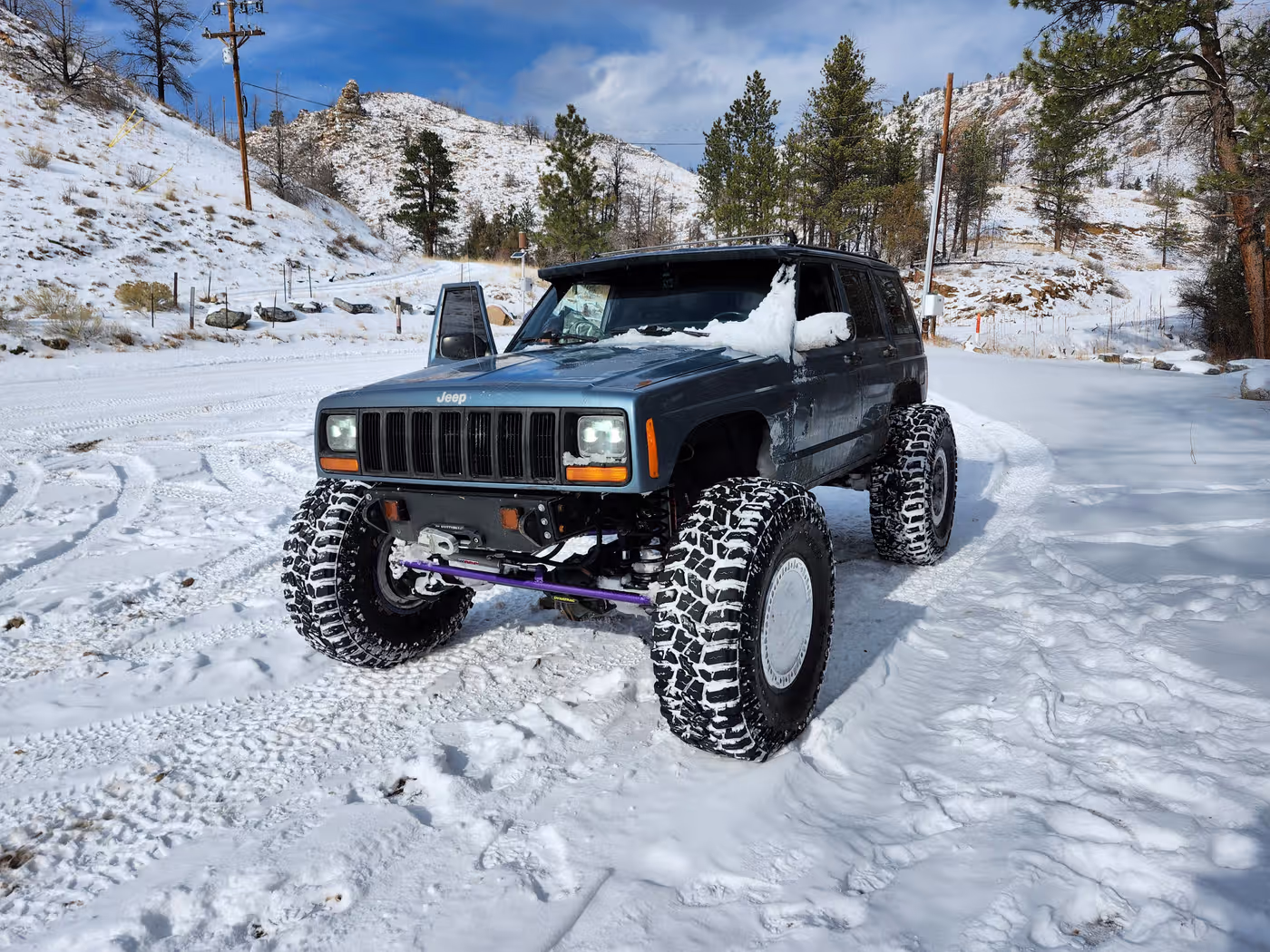

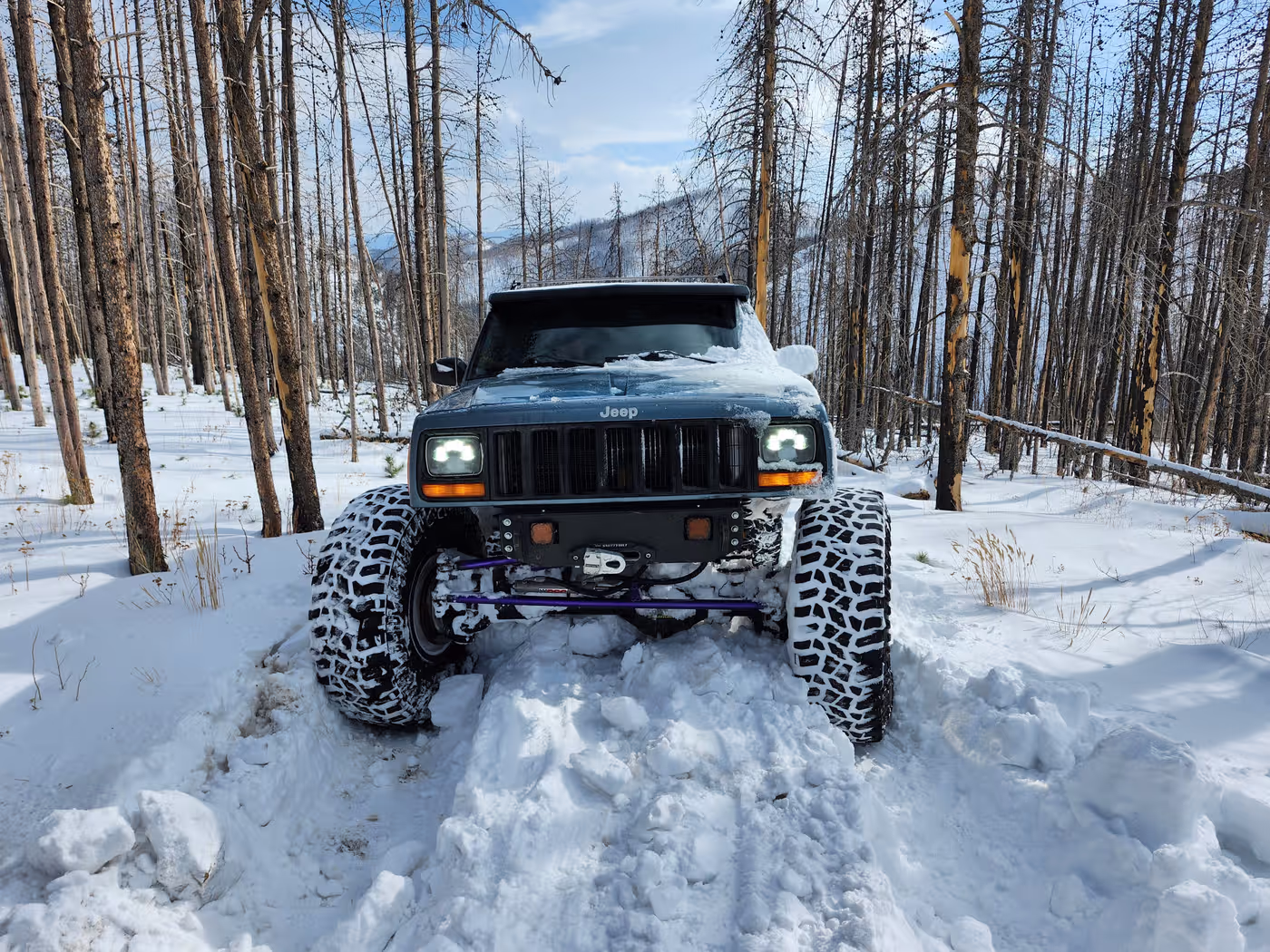

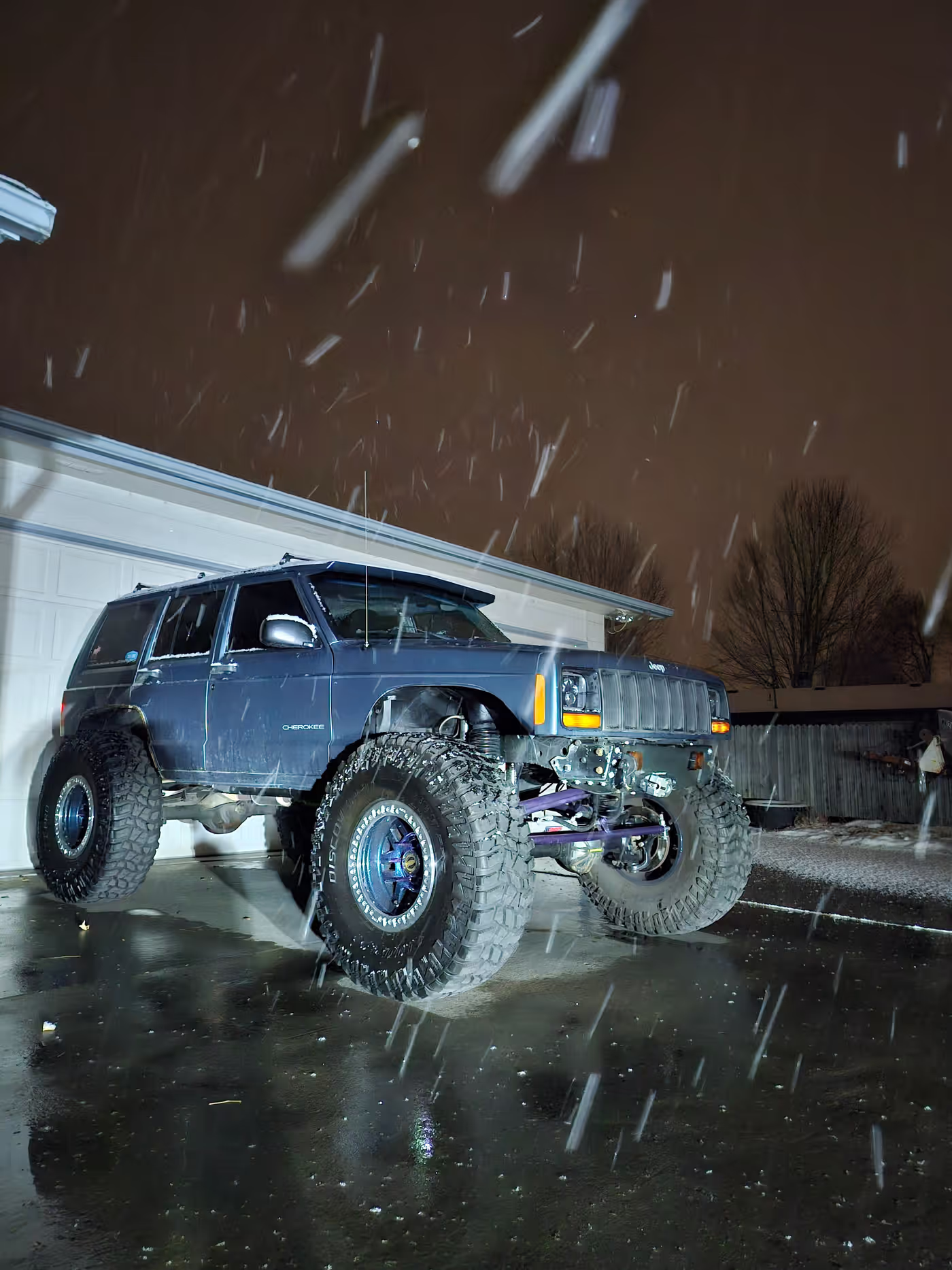

Not an 89. Had an 89 I rolled which is where alot of the parts came from. It's a 98 cherokee sits at 108" wheel base on 40s built in 2024 by me.

Build highlights

75 parts
40" tires
6" lift
White

Wheels

KMC Wheels KM229 Machete Beadlock Satin Black Wheel and Lug Nut Package

Powertank Monster Valve Kit

Tires

Cooper Tires Discoverer STT Pro Tire, 40X13.50/R17LT

Suspension

Alpine peak precision track bar brace and bracket

Custom OTA 7/8 heim track bar

Custom OTA mount

Iron rock 3 link x member

2.5" 7075 LCAs with 1.25" heims

Custom built uca

6" metalcloak coils

14" 2.0 fox 7/8 shaft w/resovoirs front

Locked 2.0 2" travel hydraulic bumpstops front

S10 leaf springs

Flipped Ironman fab SRBs

Stinkyfab shackles

Rear outboard shock towers

12 travel bilstein 5125s rear

I have lockers

Drivetrain

Dynatrac 44/60 hybrid

Emf balljoints

35 spline Arb front

5.13 gears

Warn Premium Locking Hubs Chrome

Dynatrac 1480 35 spline inner and outer dana 60 chromoly shafts

35 spline inners & outers

Ford 8.8

.500" thick tubes

Yukon ultimate 8.8 flanges

35 spline custom Dutchman shafts

Mark Williams 35 spline spool

Dana 44 Front Ring and Pinion Gear Set 5.13

Azzys shift linkage

Tom woods superduty sye

Adams Driveshaft Extreme Duty Rear 1350 CV Driveshaft

Audio

Kenwood double din

Kenwood dash cam

Backup camera

Kicker coaxial f+r

12" shallow Sundown sub

Alpine mrv500 amp

Brakes

Wilwood adjustable proportioning valve

Xj booster and master

Powestop z36 extreme kit ford 8.8

Dana 60 big breaks front

Engine

Mechman 320 amp alternator

Stinky fab mounts

Exhaust

2.5" from header back

Banks revolver

Vibrant resonator

Interior

Corbeau trailcats

Nrg quick release wheel

Auxbeam 8 position switch panel

Milwaukee packout

Battery relocation

Bulletproof mounting phone mount

Recovery Gear

Factor 55 Rope Retention Pulley

Factor 55 Standard Duty Soft Shackle

Factor 55 FlatLink E - Silver

Smittybilt gen3 xrc comp 9.5k

Steering

PSC Assist Cylinder Kit 1.75in x 8in

Custom heim highsteer

Other

1/0 custom battery cables

Interstate platinum AGM

King offroad front+center stiffeners

Barnes 4wd rear stiffeners

Venum lugnuts

6 row trans cooler

6 row powersteering cooler

Stinky fab trans mount
