BK392 JLU
2021 Jeep Wrangler Rubicon 392 4dr 4x4
More actions
Share
Comments
Join in on the excitement as we take you through the thrilling build process of BK392 together!
Show more
Save this build
Comment
Build highlights
80 parts
44" tires
2.5" lift
Gray
Wheels
Kmc - KM235 Grenade Crenade Beadlock 20x10 8x165.1 -48mm Offset Satin Black
Kmc - KM235 Grenade Crenade Beadlock 17x9 8x165.1 -38mm Offset Satin Black
Power Tank - Monster Valve Flat (KMC Edition)
Tires
Mickey Thompson - Baja Boss M/T Tire 44x13.50x20
Maxxis - Trepador Competition 42x14.50x17
Suspension
RPM Steering - Front 3-Link Long Arm(2.5”)

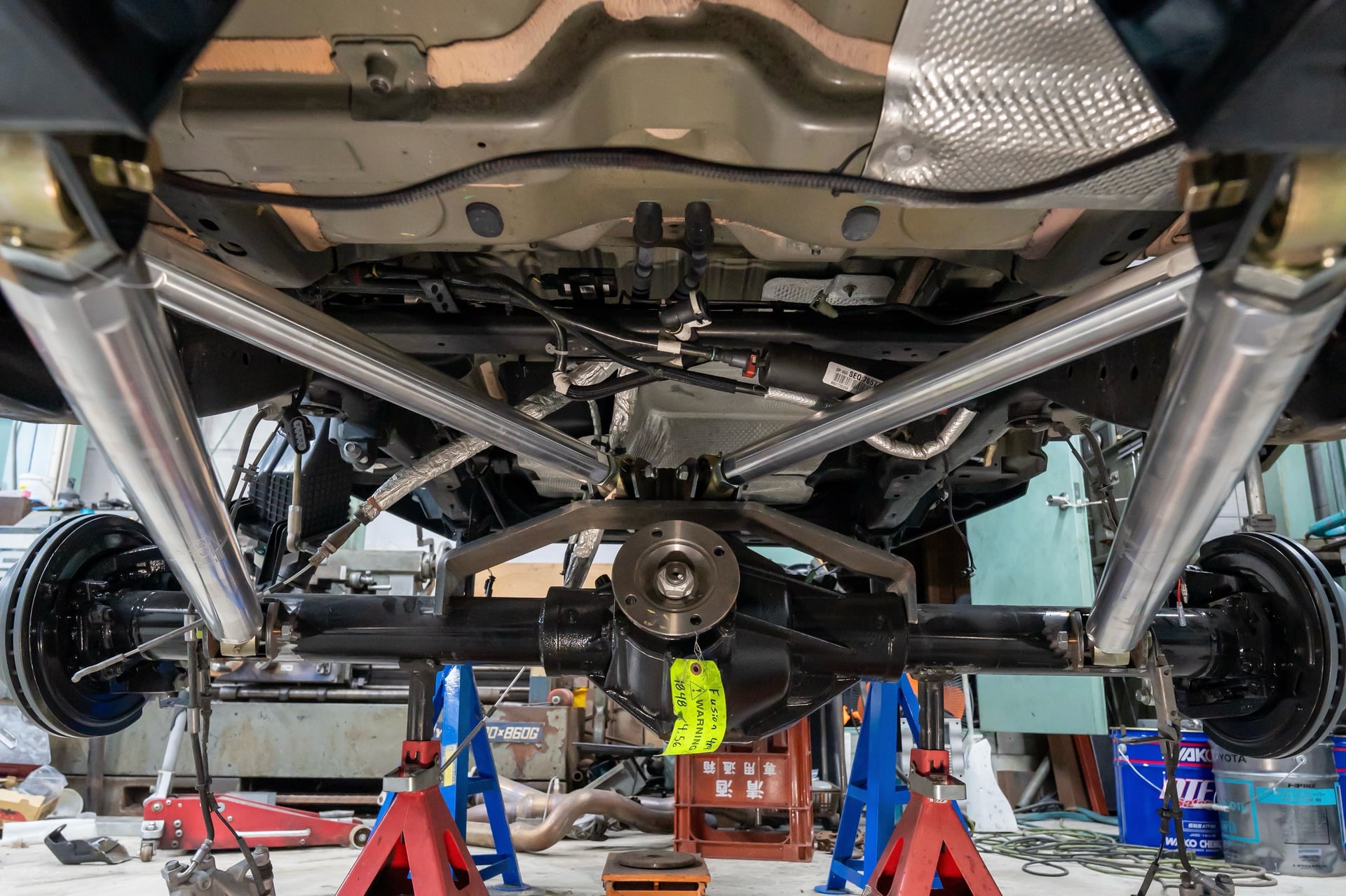

RPM Steering - Rear Double Triangulated 4-Link Long Arm(2.5”)
RPM Steering - Front Coilover Bracket
RPM Steering - Front Adjustable Track Bar Bracket
King Shock 2.5 Front 14”Coilover with Compression Adjuster＆Bypass Finned Reservoir(King Black Color)
King Shock 2.5 Rear 14”Coilover with Compression Adjuster＆Bypass Finned Reservoir(King Black Color)
King Shock 2.0 Air Bump, 4.0″ Travel (Front - Rear)(King Black Color)
Genright - Bump Stop Can
Motobilt - Rear Upper Shock Mounts 16"Travel
Fusion 4x4 - 2.5 F-Ton Tie Rod
Fusion 4x4 - 2.5 Drag Link
RockJock 4X4 - JL Antirock Rear Sway Bar Kit (forged arms, .850 in. bar)
Exterior

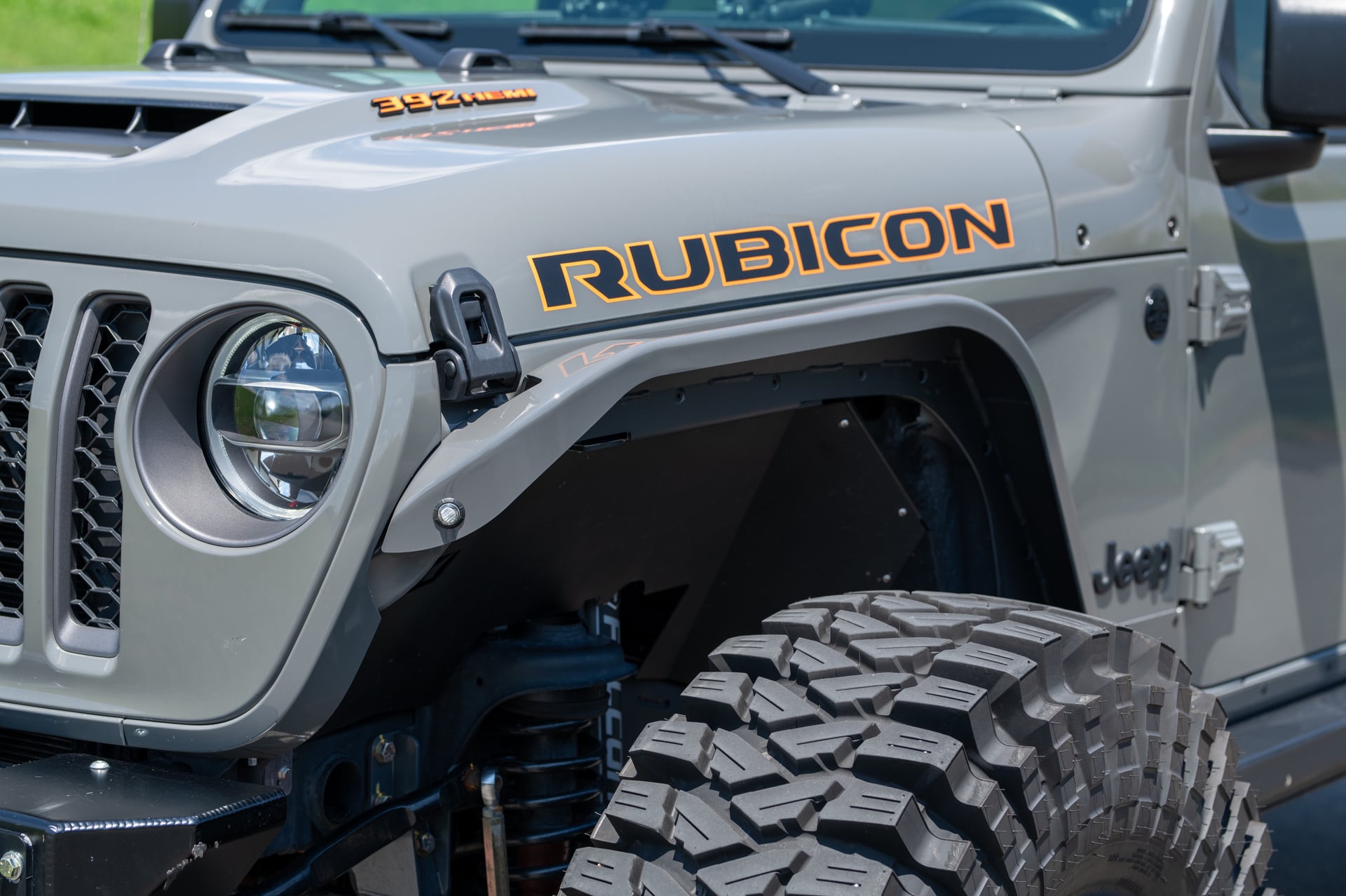

Motobilt - Front Highline Fender
Motobilt - Rear Highline Fender
Motobilt - Front Inner Fender
Motobilt - Rear Highline Inner Fender
Motobilt - Unlimited Rocker Armor
Motobilt - Spare Tire Delete
Motobilt - Windshield Washer Tank Relocation Kitt
Warn - VR EVO 10-s
Factor 55 - UltraHook Limited Edition Silver
Factor 55 - UltraHook Rope Guard
Factor 55 - Hawse Fairlead 1.0
Armor
Motobilt - Tomahawk Frame Chop Bumper
Motobilt - 14 Bolt Heavy Duty Pinion Guard
Motobilt - Rear Lower Corner Armor
Rock Slide Engineering - Step Slider 3rd Gen
Motobilt - Micro Series Rear Bumper
Rock Slide Engineering - Step Slider Rocker Guards
Custom built - Steel Oil Pan/Transmission Skid Plate
Motobilt - 21-Gal Rear Mounted Fuel Tank & Skid
Lighting
KC Light - Cyclone V2 Rock Light KitLens
AlphaRex NOVA-Series LED Projector Headlights Alpha-black
Drivetrain
【Gear Ratio】5.38 - 10.1” Super 60 Ring - Pinion
【Gear Ratio】5.38
Fusion 4x4 HP Dana 60 Super Kingpin Front Axle
【Axle Width】73.5"
【Tube Size】 4"
【Axle Shafts】RCV Big Bell (40 spline)
【Locking Hube / Drive Flange Kit】Fusion 40 Spline Drive Flange Kit
【Yoke】1350 U-Bolt Style
Tom Wood's 1350 Front Drive Shaft
Fusion 4x4 Elite Kingpin 60 Big Tube 14 Bolt Full Shave Rear Axle
【Tube Size】4"
【Lockers】ARB Air Locker - 40 Spline
【Axle Shafts】40 Spline Forged 4340 chromoly axle shafts
【Yoke】1410 Round Flange
Tom Wood's 1410 Rear Drive Shaft
Brakes
【Front】Super Duty Brake Kit with Double Drilled Rotors
【Rear】1 Ton Brake Kit
Engine
6.4L HEMI®︎ V8 - 520HP
HP Tuners
Transmission - 8HP75
Exhaust
Custom Built - Dual Exhaust with Variable Valve System.
Intake
aFe Power Momentum GT Cold Air Intake System w/ Pro 5R Filter
J&L 3.0 Oil Separator
Interior
sPOD - BantamX HD for Jeep JL V8
CMM Offroad - A-Pillar Ball Mount Solution
Ram Mounts - Composite Short Double Socket Arm for 1" Balls
Ram Mounts - 1/4-20 Female Threaded Hole with 1" Ball
Bulletpoint - Dual Universal Jeep Phone Mount
Bulletpoint - Passenger Side Dual Ball
Quad Lock - MAG Wireless Charging Head
JcrOffroad - Wrangler Tailgate MOLLE Panel
XG Cargo - Gama Mounted Sportsbar Side Storage Bags
Mopar - Removable Herdtop Headliner
Mopar - All-Weather Floor Liner Set
Mopar - Trail Rail Reversible Cargo Mat
Mopar - Brushed Pedal Pads
Tiger Auto - JL Wrangler Rear Seat Reclining Kit
Mountain Off Road - Fire Extinguisher Bracket
Steering
PSC Big Bore XD Steering Cylinder Assist Kit
Other
ARB Portable Twin Air Compressor
Z Automotive - Tazer JL Mini
Z Automotive - No Limitz JL
