t-quattro-r

A 2019 Toyota 4Runner build by Jason Varelli

This is an amazing 5th Gen 4Runner with only 19,000 miles. It has been and still is a labor of love. A huge shout out to #Budbuilt #wideopendesign #wheelinwithwillie

2019 Toyota 4Runner

Build Details

engine

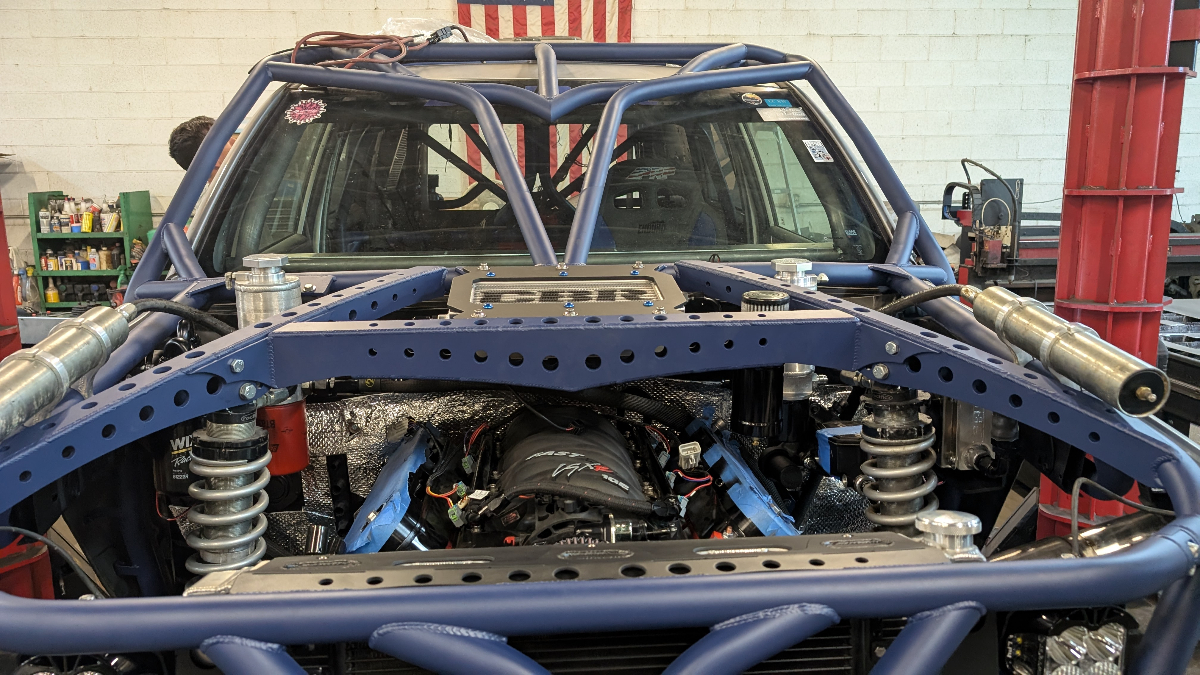

  • 4.0 Liter stock engine with URD Whipple 2.3l Super charger

intake

  • Custom

exhaust

  • Custom to match 4 link set up

drivetrain

  • SAS with front and rear
  • Crane 14 bolt 72" wide axles with 4" axle tubes and 5.38 gears. Shaved to 13 bolt
  • RCV big bell 40 inner and 47 outer spline front and 40 spline in rear axles
  • Atlas 4sp transfer case.
  • 2 piece front drive shaft
  • Rear drive shaft with .188 wall tubing 1410's.

brakes

  • Wilwood 4 piston

wheels & tires

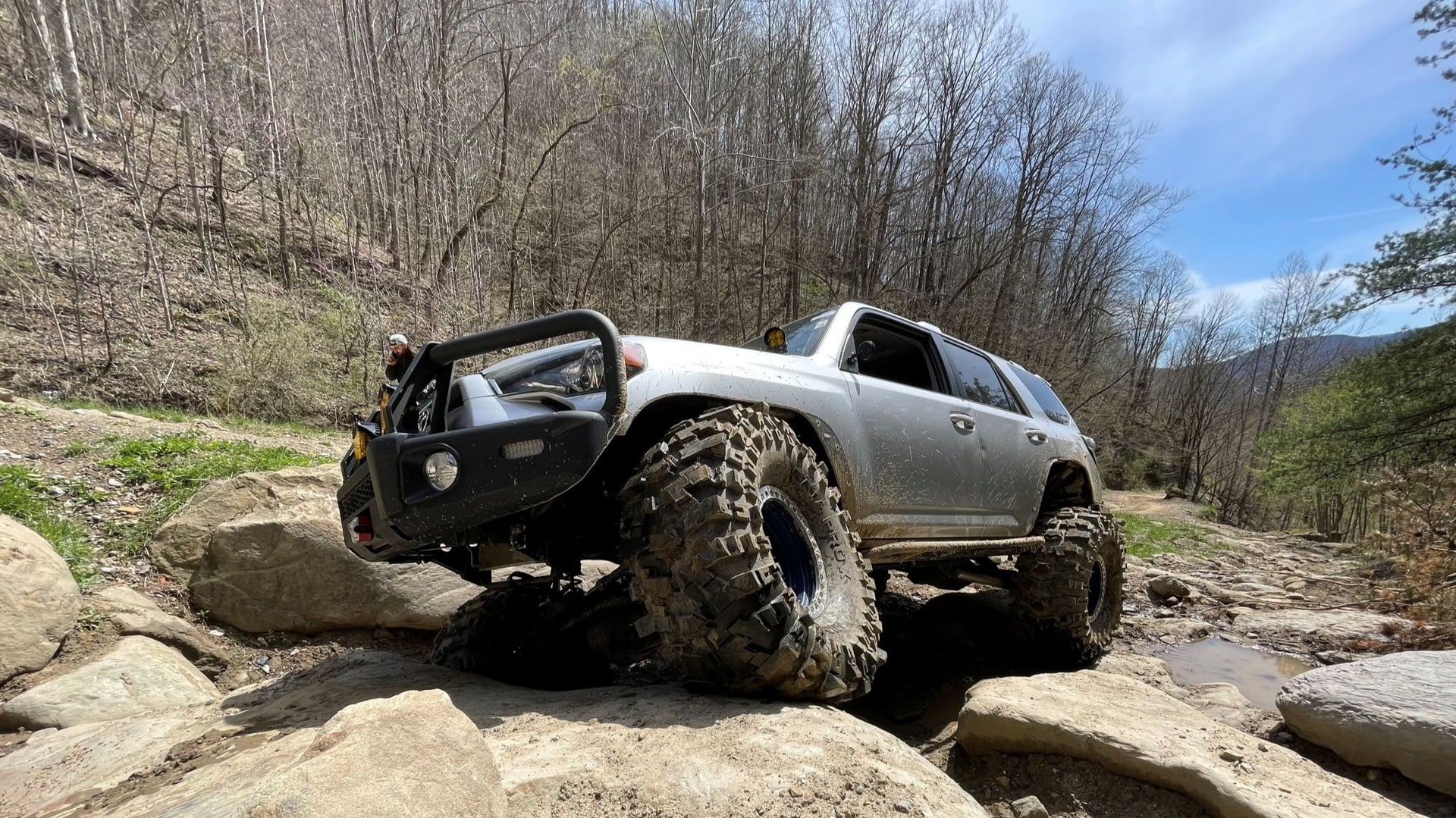

  • 43" Sticky Micky's with 17" Raceline wheels power coated matte blue

suspension

  • Radflo 16" 2.5" emulsion shocks

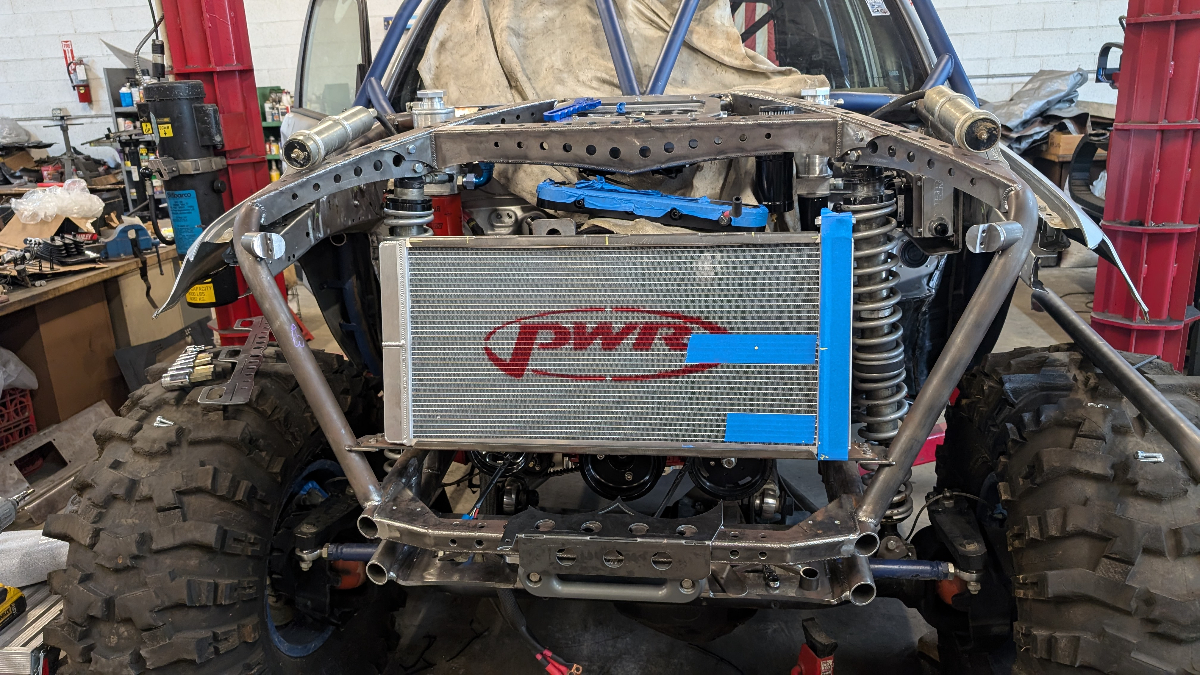

  • 4 link front and rear with 7075 Aluminum links 2.5
  • Radflo bumps. Two limit straps in back and one in front in middle behind pumpkin

lighting

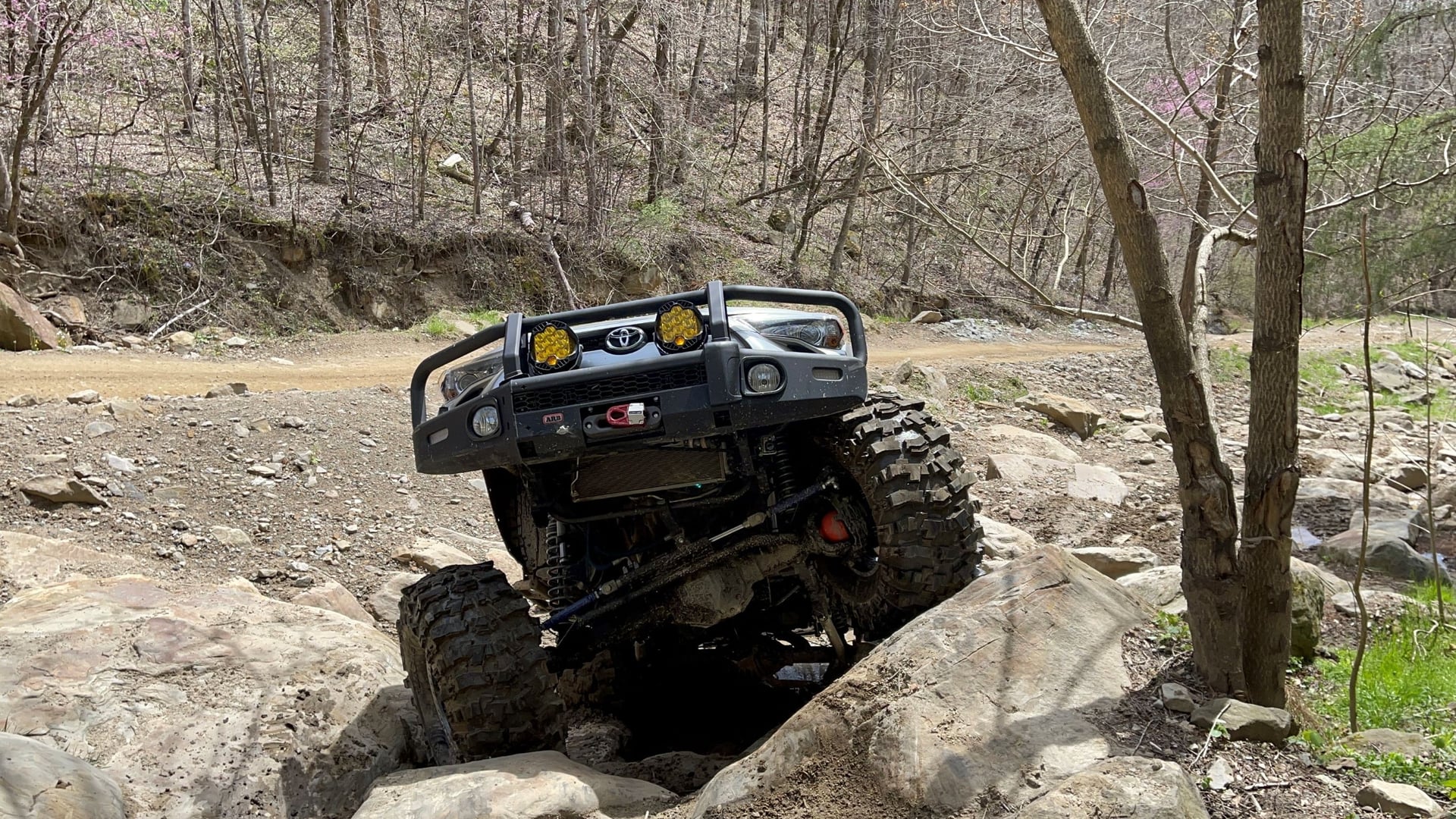

  • mostly stock with some Baja Designs lights on front

exterior

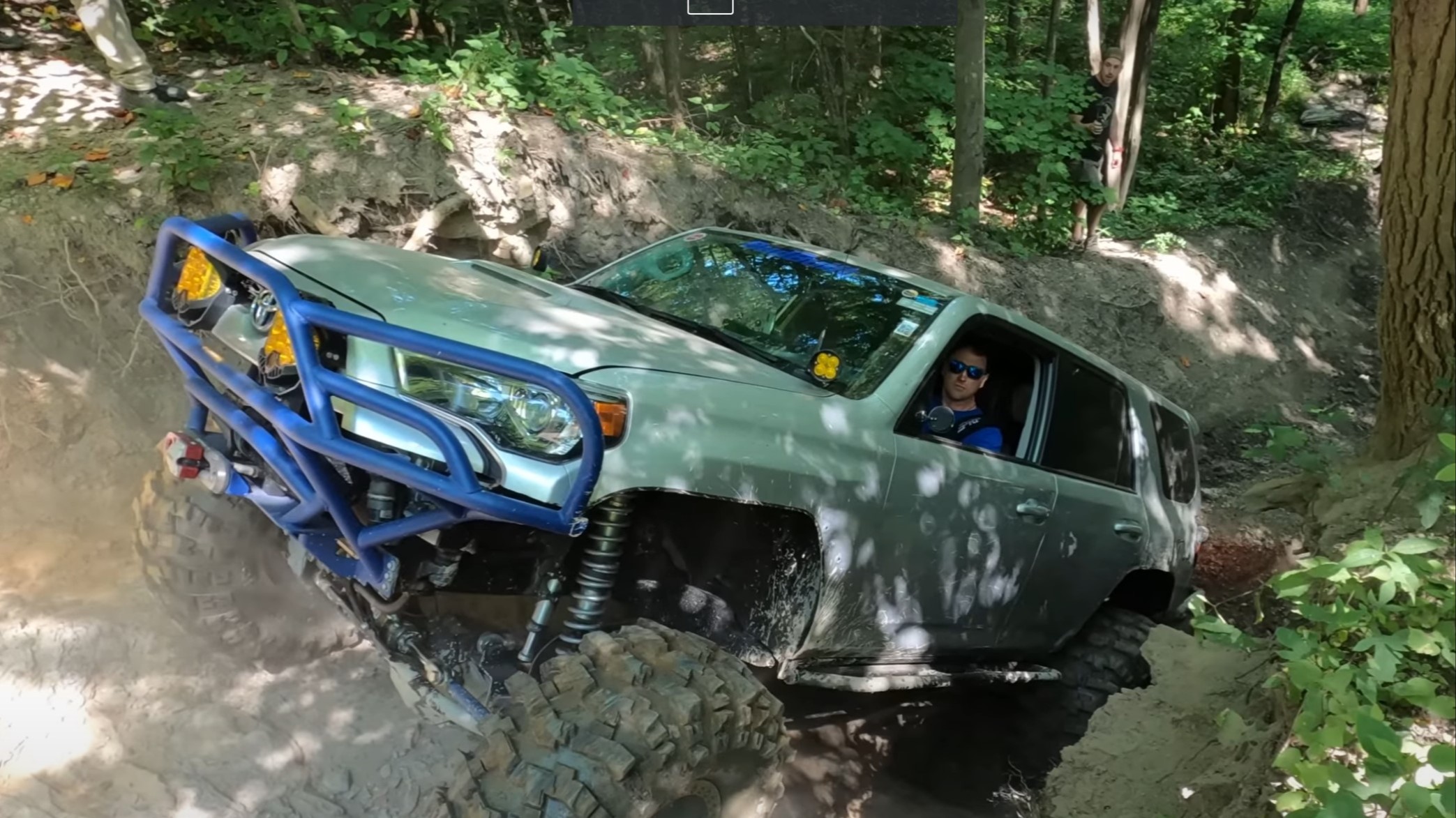

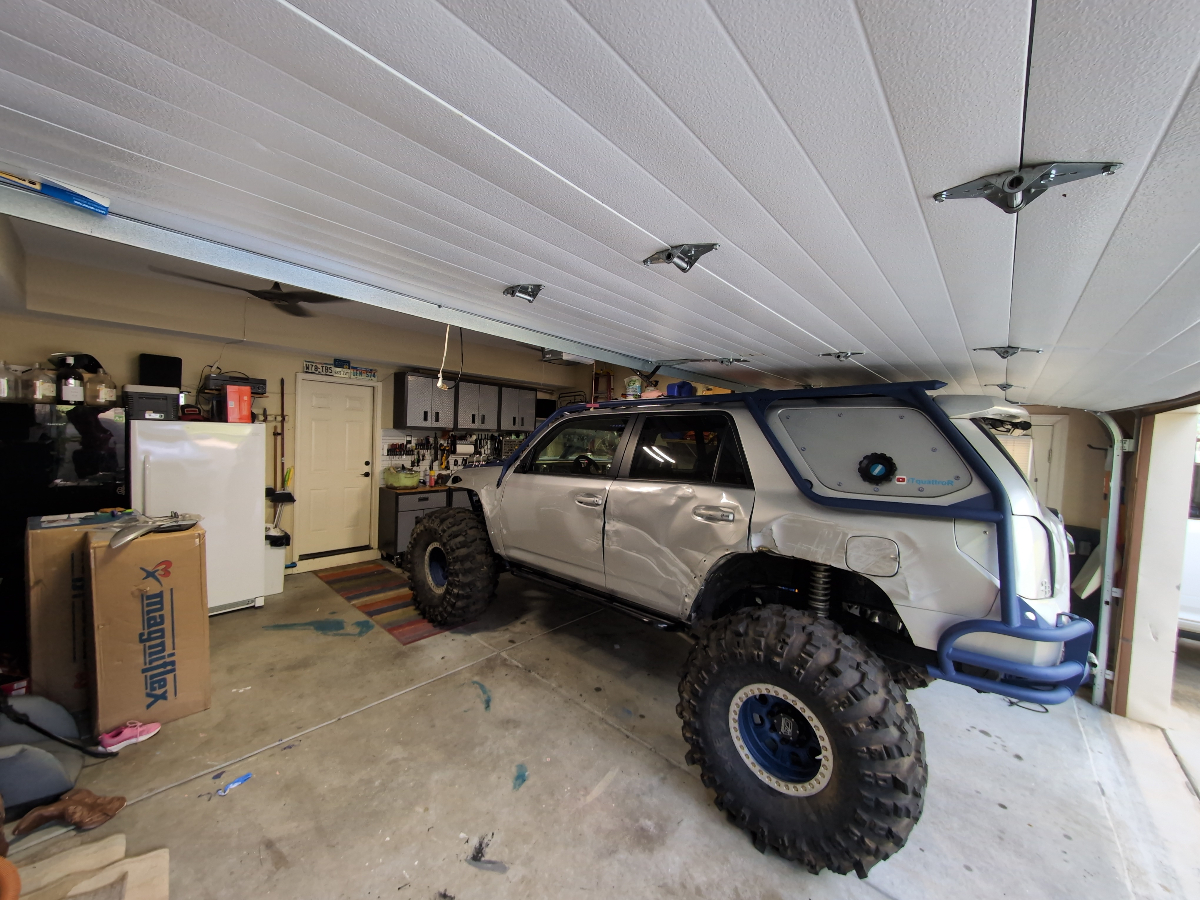

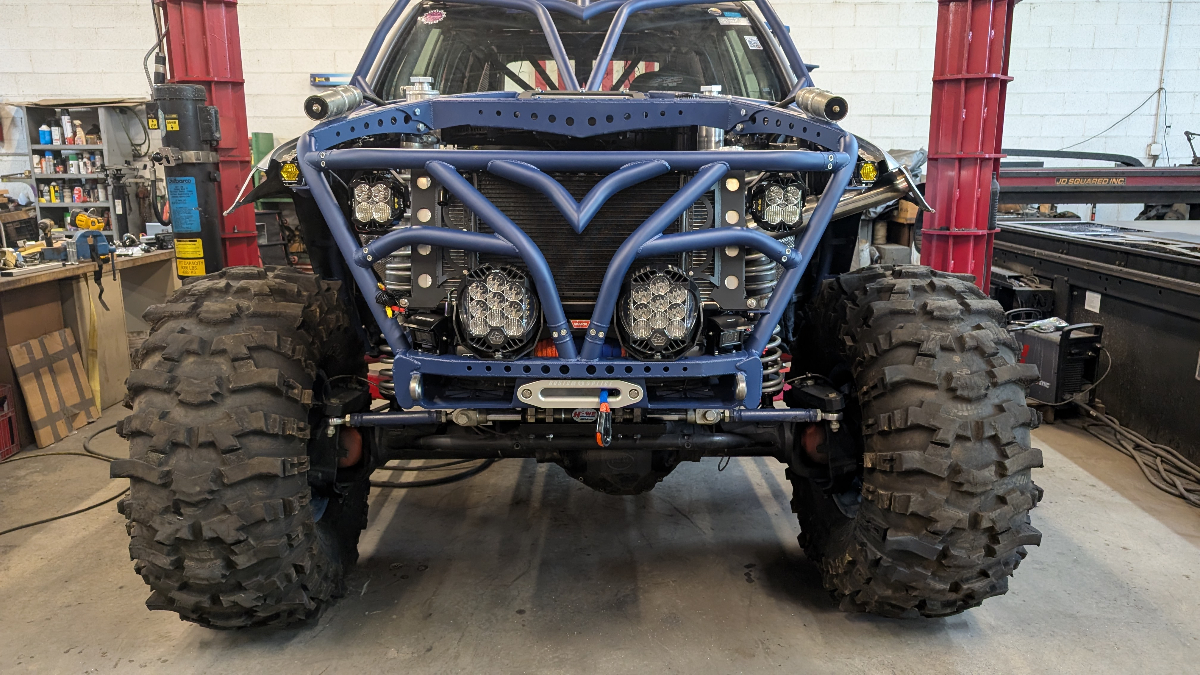

  • Custom Tube bumpers front and back which has reduced length of vehicle about 11"
  • Budbuilt sliders welded to frame

interior

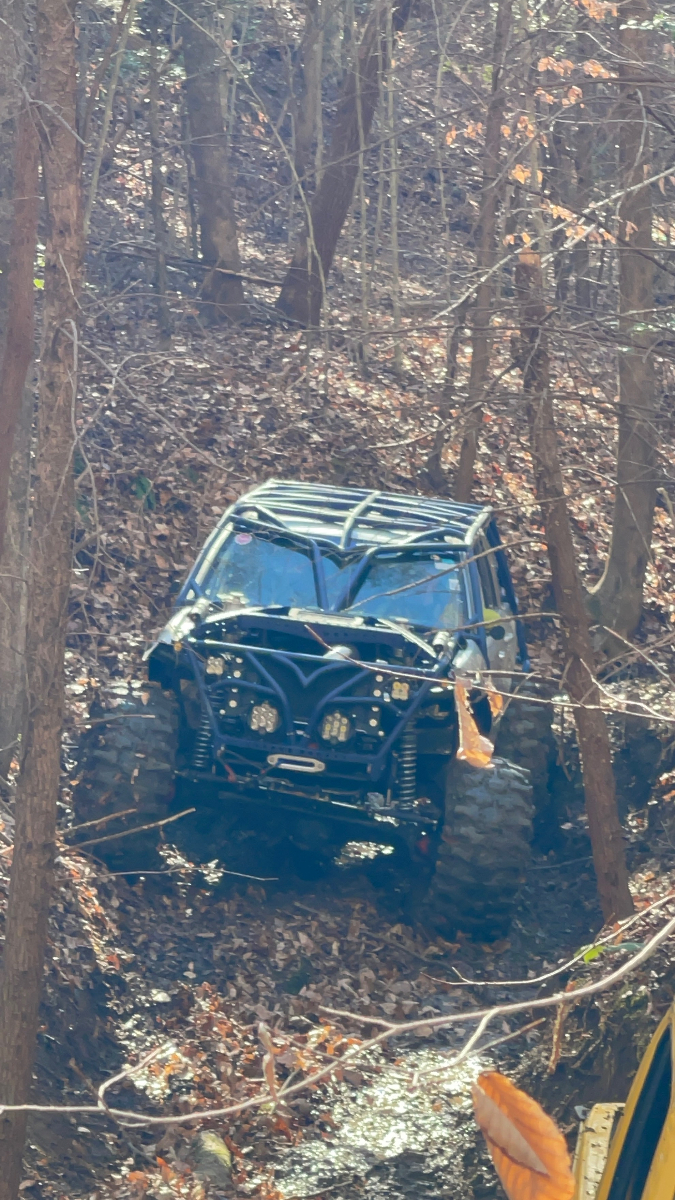

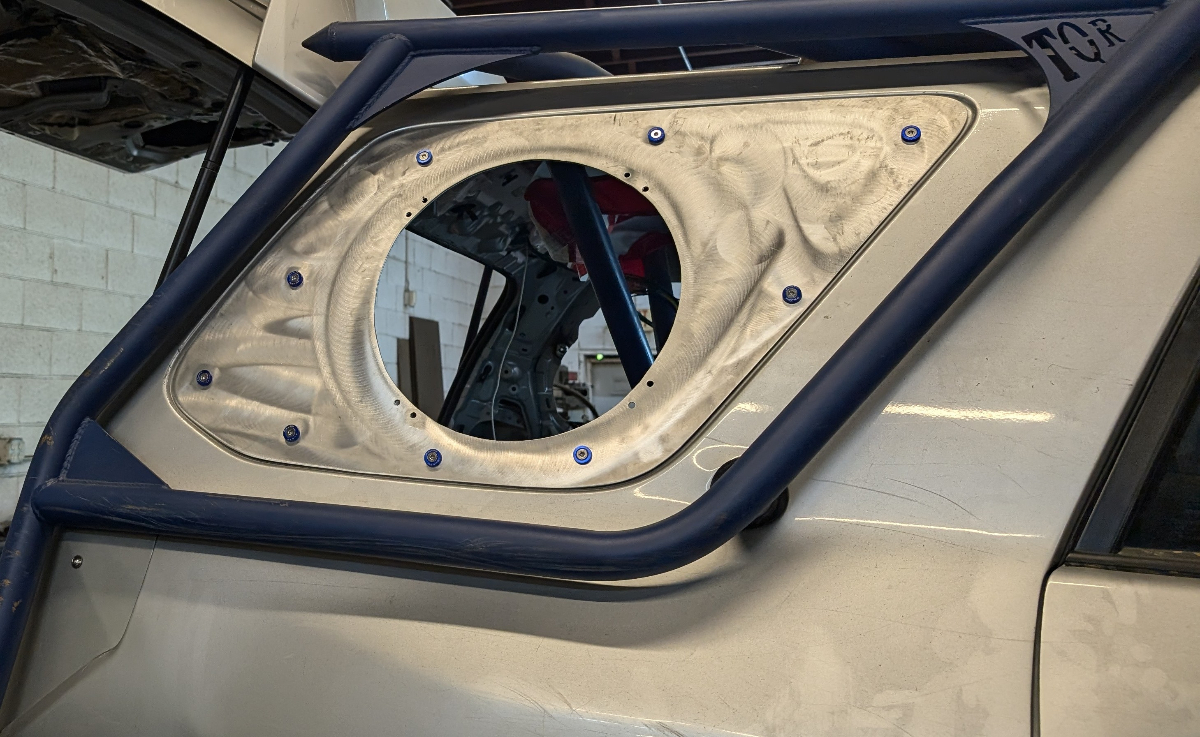

  • Interior Cage on B & C Pillar running back to rear shock hoops

other

  • Front Warn Platinum 12s and Rear Platinum 10s
  • Extensive frame stiffening from frame horn to front door and rear to back door.
  • Custom relocated gas tank, fuel pickup and filter.
  • Engine relocated up about 3"
  • Batteries moved to rear of the vehicle with Redarc charge controller.

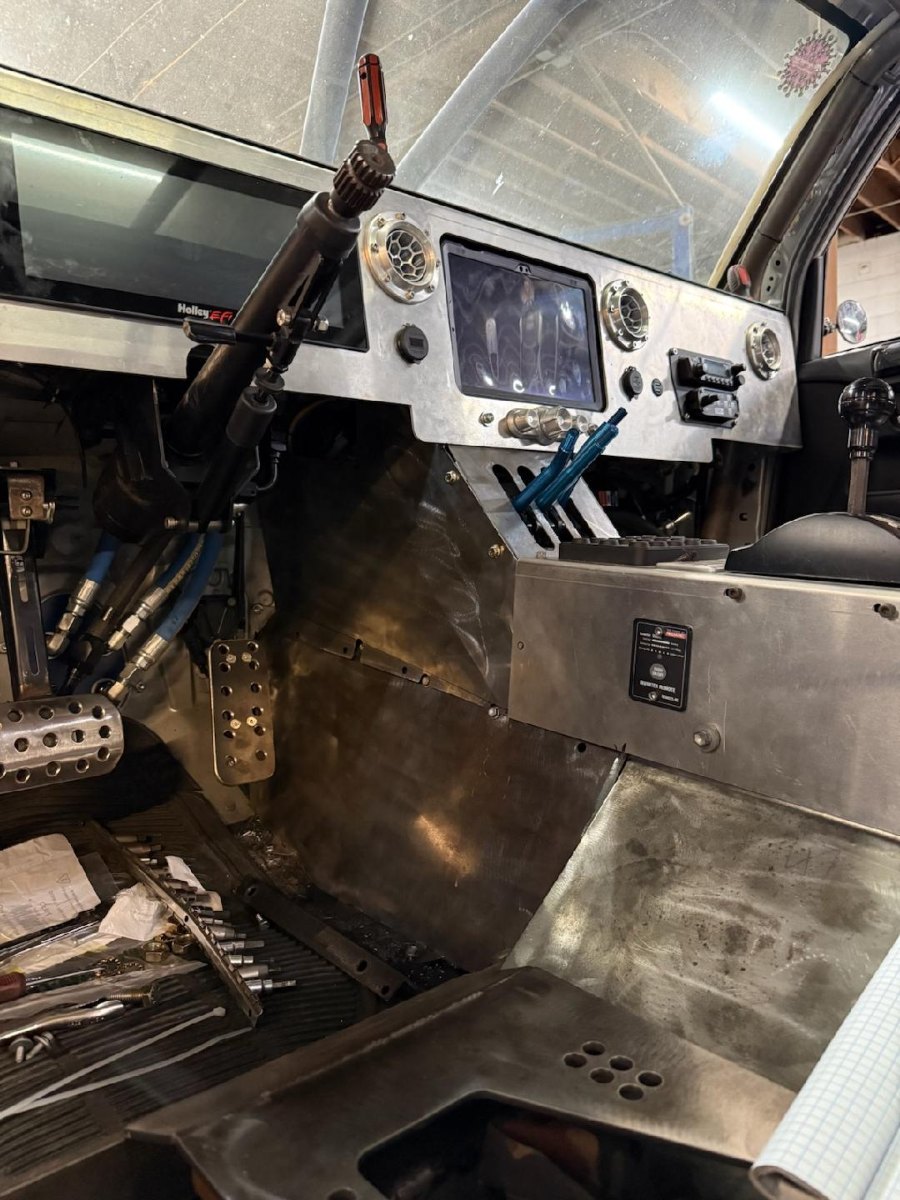

  • Howe Performance full hydro steering with 2.5" ram
  • Fuse box relocated to make room. Remote oil filter to make more room underneath
  • Wide open design axle truss and pinion guards front and rear.
  • Custom link skids and skid plates to protect tranny and atlas
  • Not a single stock crossmember is left!
  • Air Down Gear Up modified drawer system to hold all my tools and spare parts.
