SulleyTheJeep

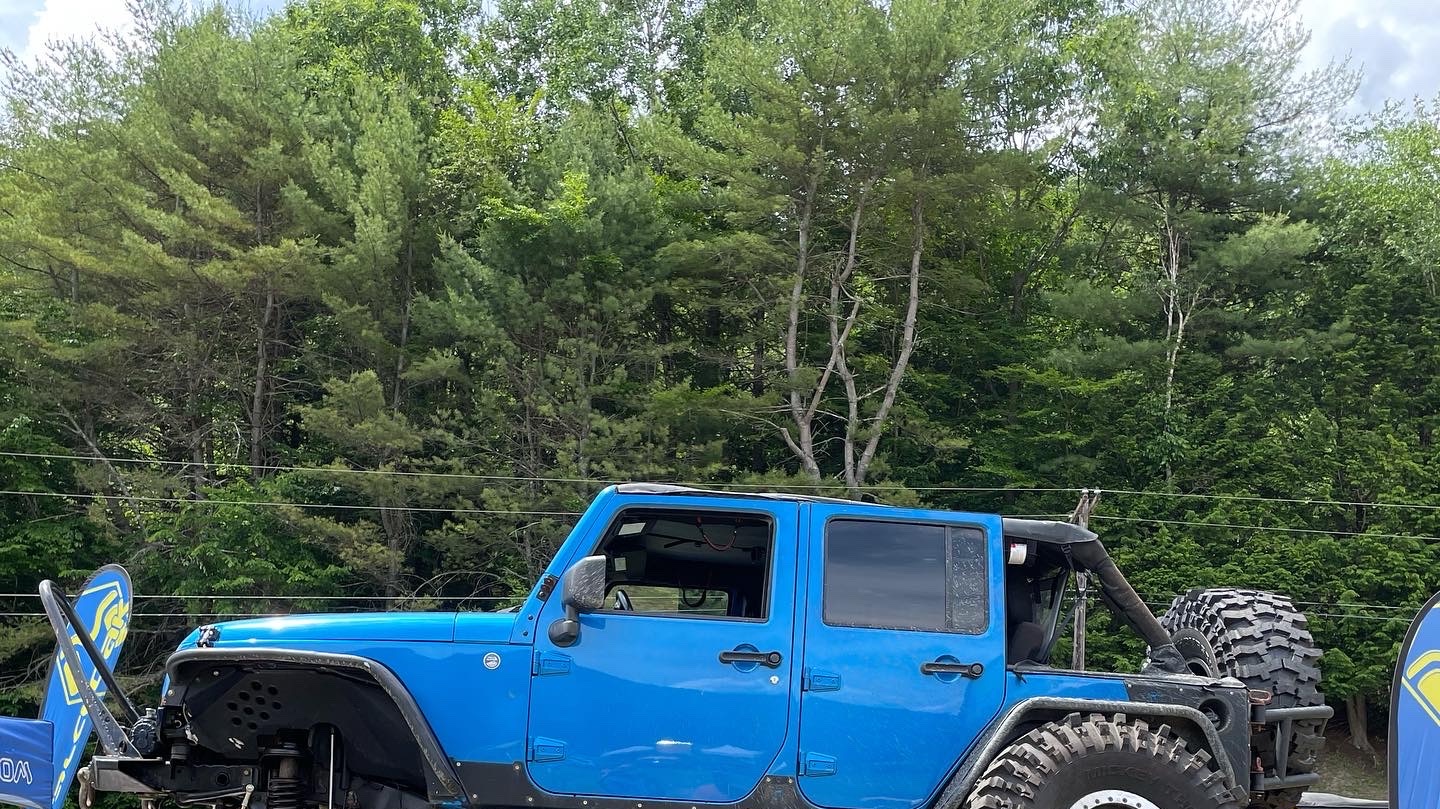

A 2014 Jeep Wrangler Jku Willys Edition build by @sulleythejeep

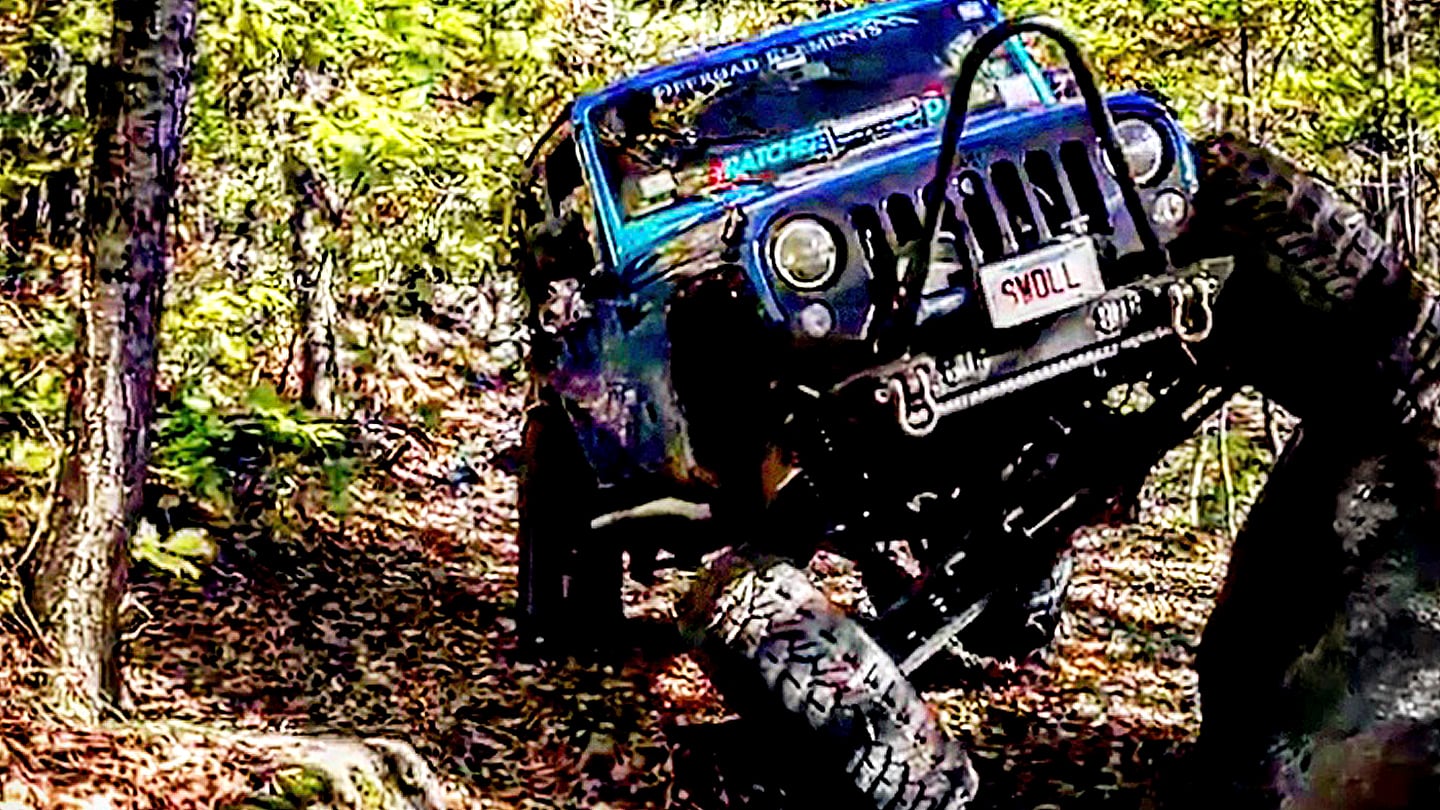

Starting life as a 2014 WILLYS aka “what chu talkin bout”, this Jeep had no idea what transformations were in its future. Torture testing parts along the way, SULLEY has tackled many of the most difficult trails in New England. This journey has been a blast & I don’t know where it will take me next. There are too many people to thank; however, huge shoutout to the crew at Ratchets Offroad in Auburn NH

2014 Jeep Wrangler Jku Willys Edition

Build Details

engine

intake

  • Volant F5 Air Intake w/ K&N filter

exhaust

  • Ratchets Offroad Hi-Clearance Catback

drivetrain

  • 05+ Super Duty Dana 60 Front Axle Housing w/1550 axle shafts
  • Barnes weld on steering knuckles
  • Barnes front axle truss SD to JK
  • OX Front and Rear E-Locker
  • Revolution 5.38 Ultimate Gear Package
  • ‘05+ Sterling 10.5 Rear Axle Housing w/stock F350 axle shafts
  • Artec rear axle truss SD to JK
  • Adams 1350 Front Driveshaft
  • Custom 1350 Rear Driveshaft
  • Rock-Trac Transfer Case

brakes

  • TeraFlex 30” brake lines at all 4 corners

wheels & tires

  • Battleborn Bootlegger beadlocks

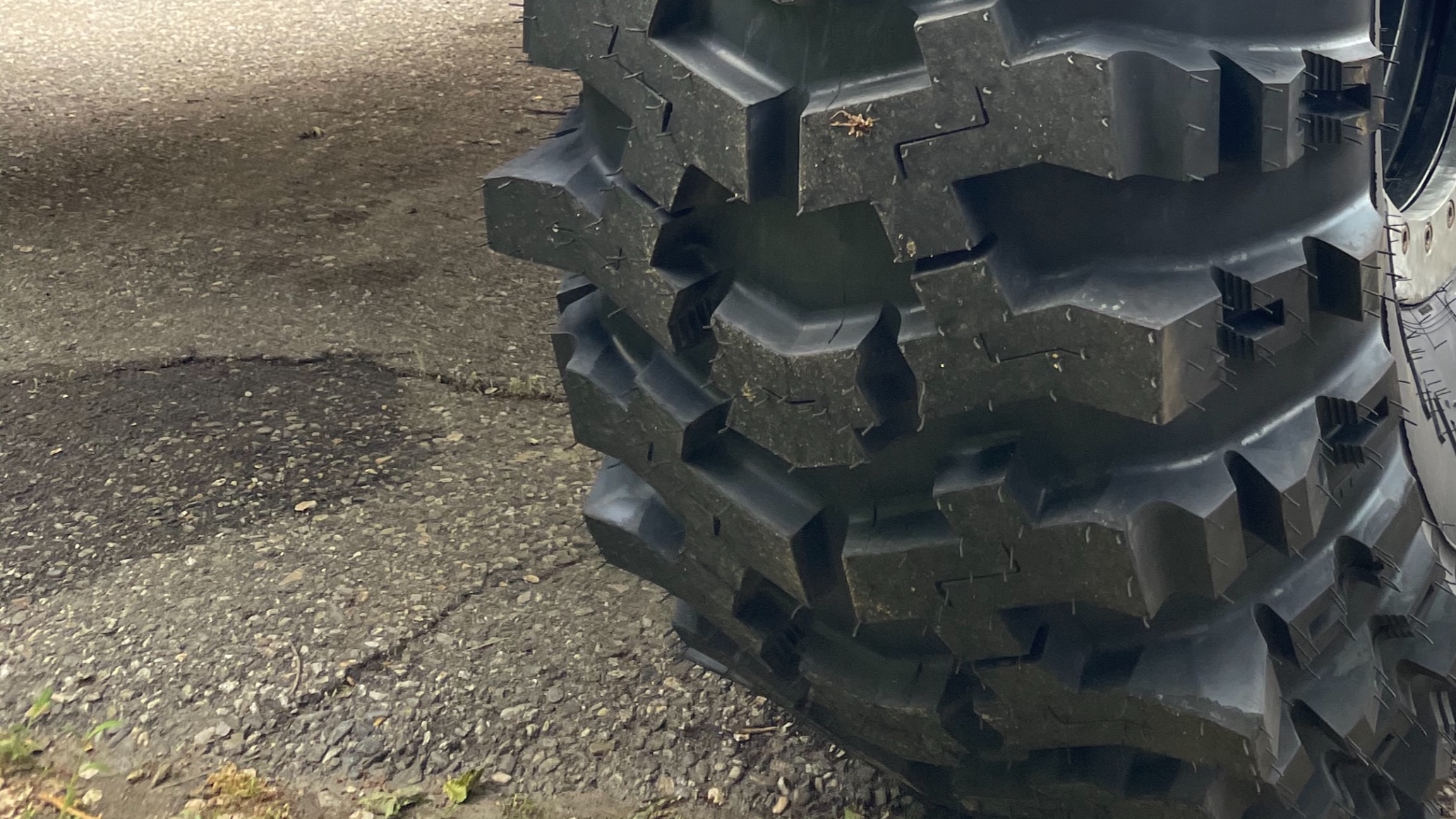

  • 43x15x17 Mickey Thompson Baja Pro XS

suspension

  • MetalCloak 5.5 Coil Springs
  • Frenched-in rear shock towers
  • Doetsch 15” travel shocks-rear
  • Doetsch 13.75” travel shocks-front
  • TeraFlex 1.25 Inch Body Lift
  • JKS Manufacturing Front & Rear Adjustable Track Bars
  • Custom Ratchets Offroad 3-link front with Artec crossmember

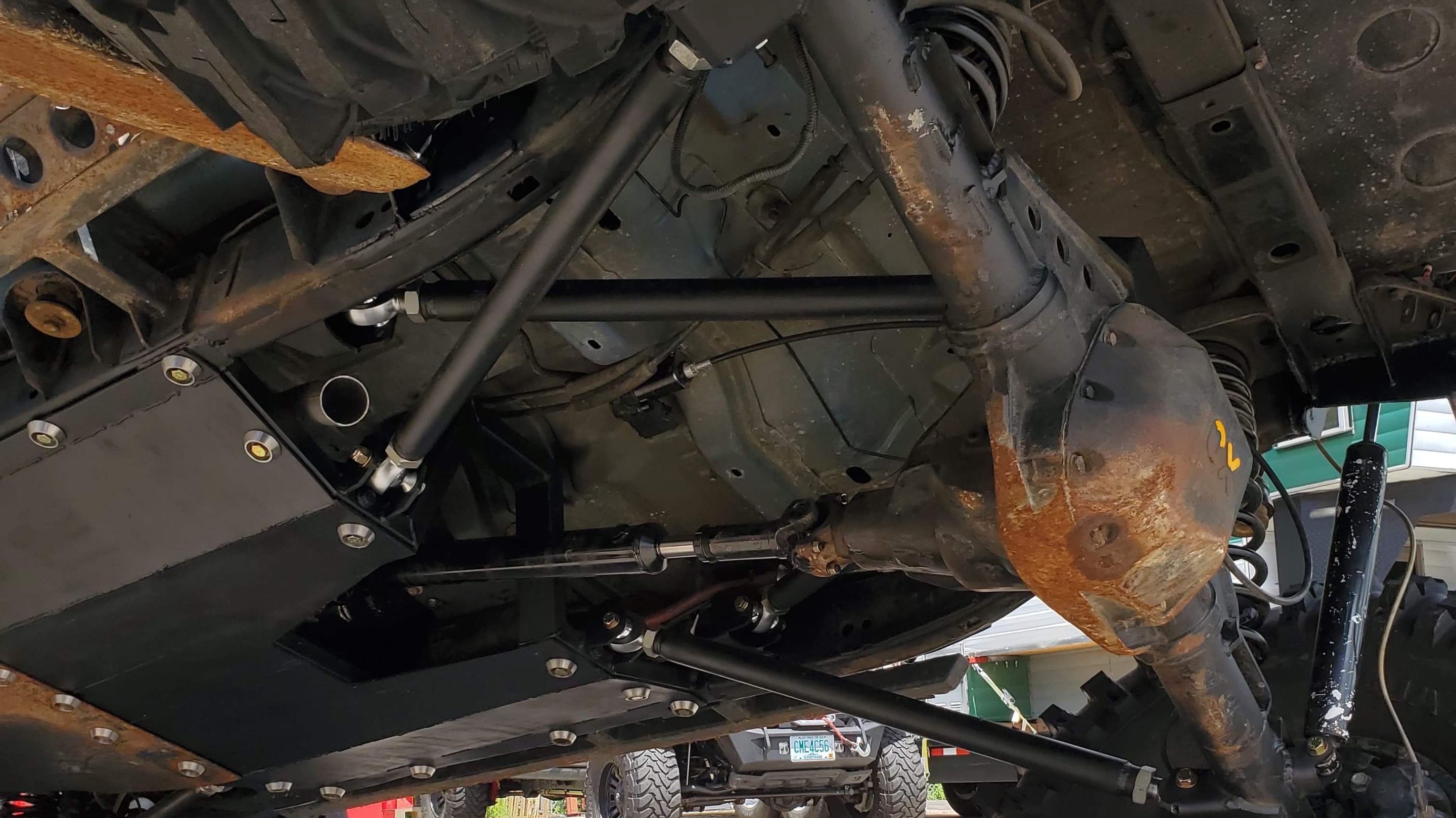

  • Custom Ratchets Offroad triangulated long arm rear suspension
  • Custom Ratchets Offroad rear crossmember & belly pan
  • MetalCloak Sway Bar Disconnects
  • Custom Ratchets Offroad DOM tierod
  • Custom Ratchets Offroad DOM draglink

lighting

exterior

interior

  • 12voltguy custom switch panel
