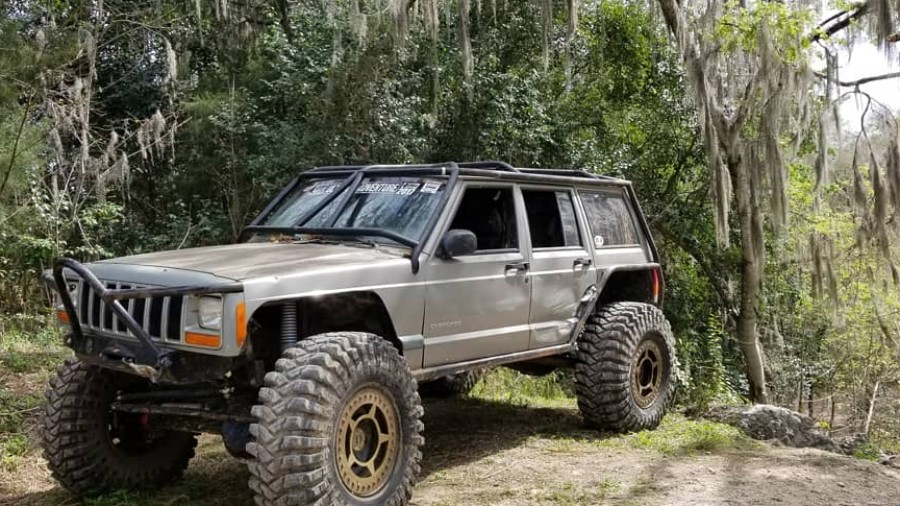

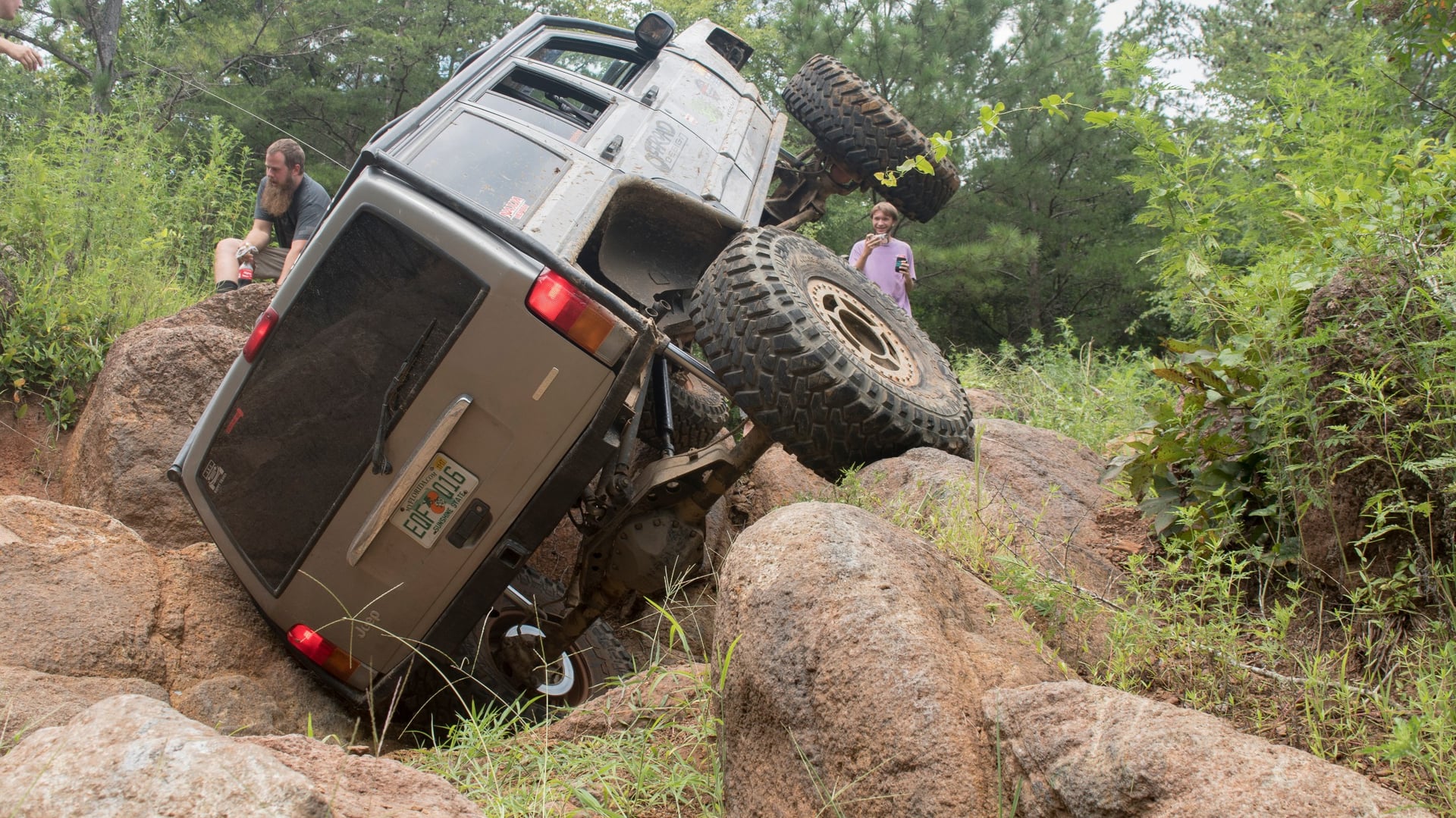

sfrautomotive · 2000 Jeep Cherokee XJ Build

It's been my goal to build a capable, comfortable wheeler that I can bring the family in, and beat the hell out of off-road and not worry about it. I think it's almost there

Build highlights

28 parts
40" tires
Gray

Wheels

40x14x17 USD Sticky's

17" TMI beadlocks

Suspension

Custom 3 link front with 14

Custom double triangulated 4 link rear with 16

114

Exterior

Homebuilt high clearance bumpers and sliders with a hidden winch mount

Full hybrid roll cage from 1.75x.120 DOM

Lighting

H4 housings, LED bulbs

Drivetrain

Hp60 front, 5.38s, riddler cover, ARB locker, yukon hardcore hubs, RCV 300m shafts, WFO truss

GM14bolt, 5.38, full shave, homebuilt cover, artec truss, RS disc brakes, RS pinion guard

Homebuilt heavy wall DOM driveshafts with a combonation of 1350 and 1480 parts

Jeep NV3550 trans

NP205 twin sticked with flanges

Nortwest fab Titan205 crawl box

Brakes

Ruffstuff rear disc conversion, stock 93 f350 front

99 dodge ram master cylinder

Engine

4.6 stroker

SCAT 4.0 length floating rods

Custom forged pistons

Mopar stg2 cam

Double roller timing gears and chain

Exhaust

Flowmaster muffler

Intake

Homebrew conical

Interior

15 gallon fuel cell

Other

Warn 10k winch

Flat belly skid from UHMW and aluminum

Beyond precise weld on high steer

PSC Full Hydro
