Cerberus

2005 Jeep Wrangler LJ Unlimited Rubicon 4WD 2dr 4x4 LWB

View profile

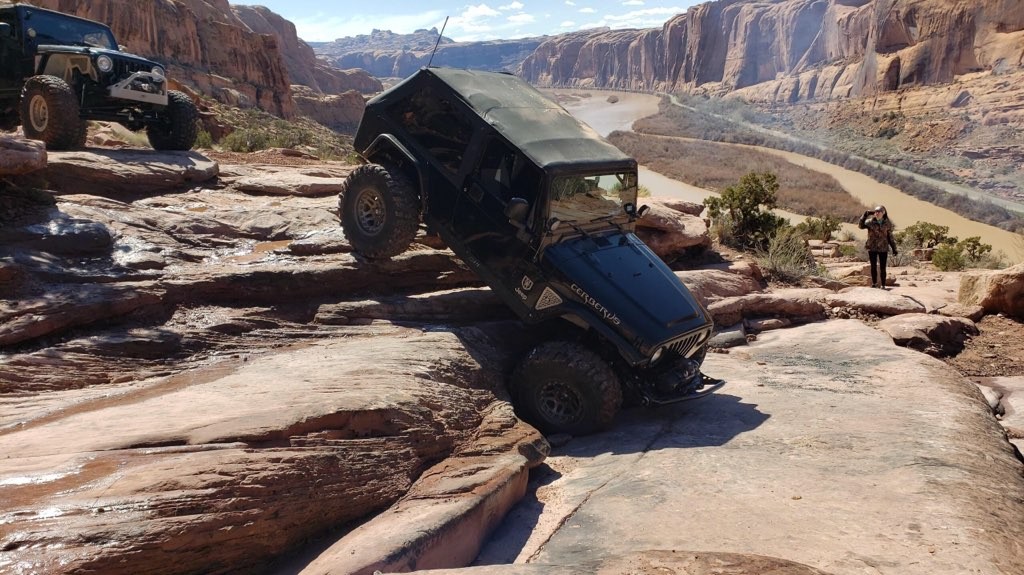

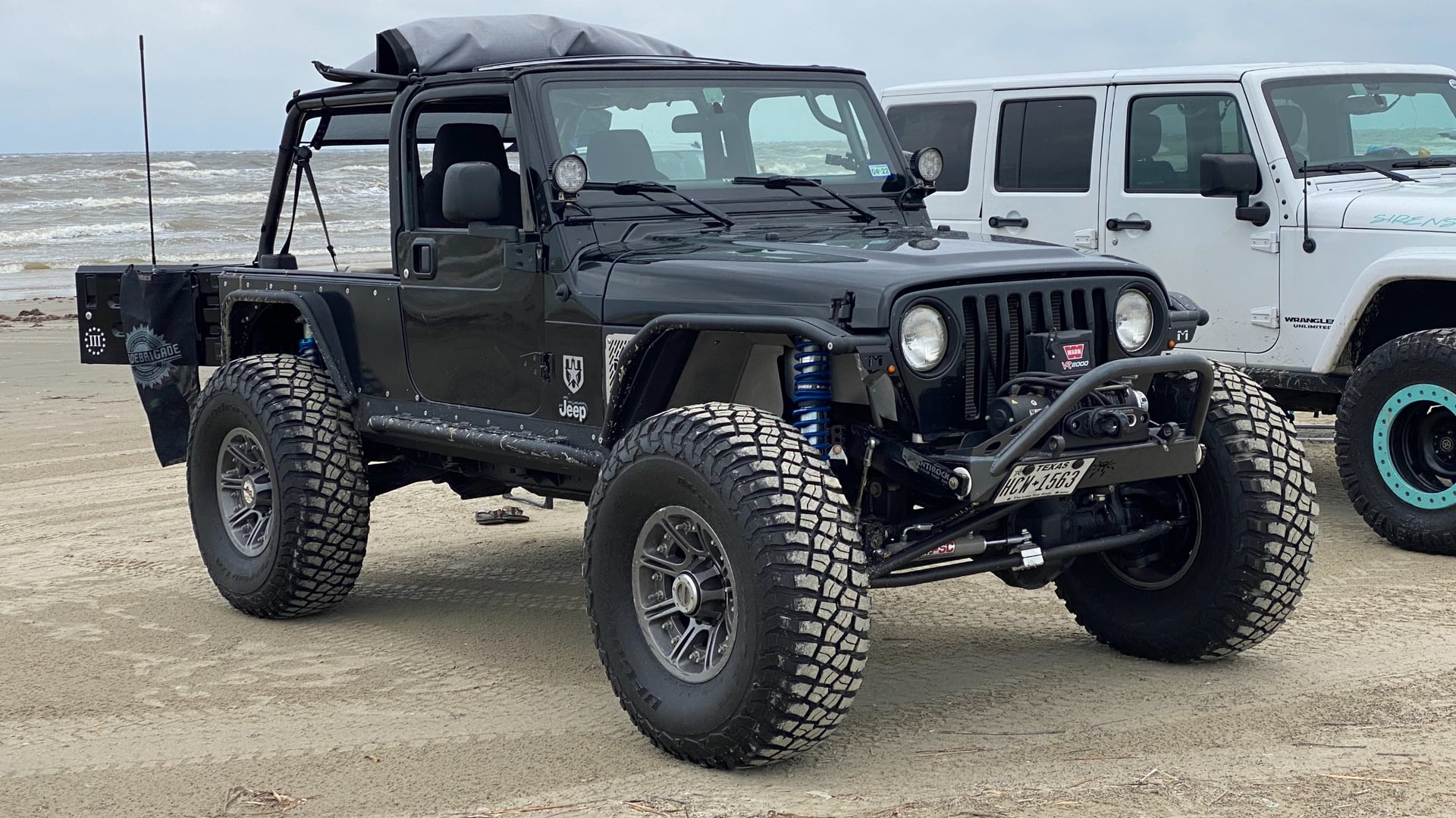

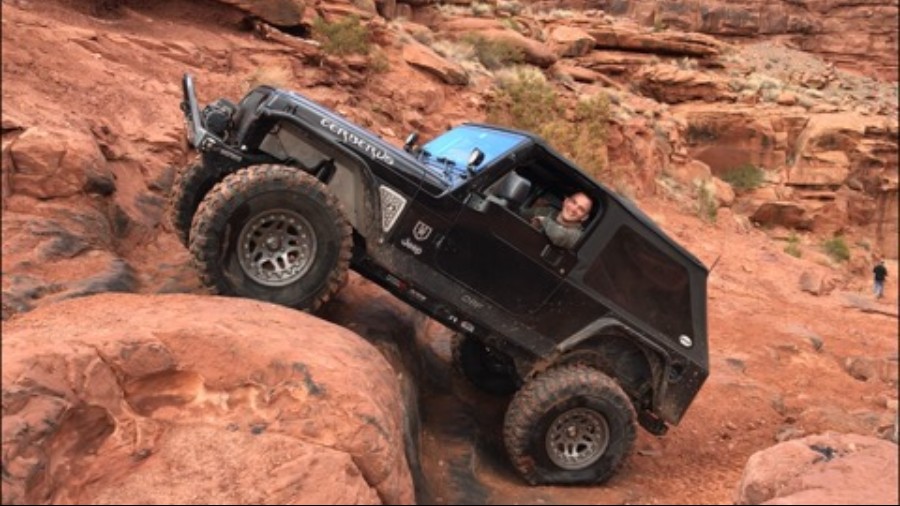

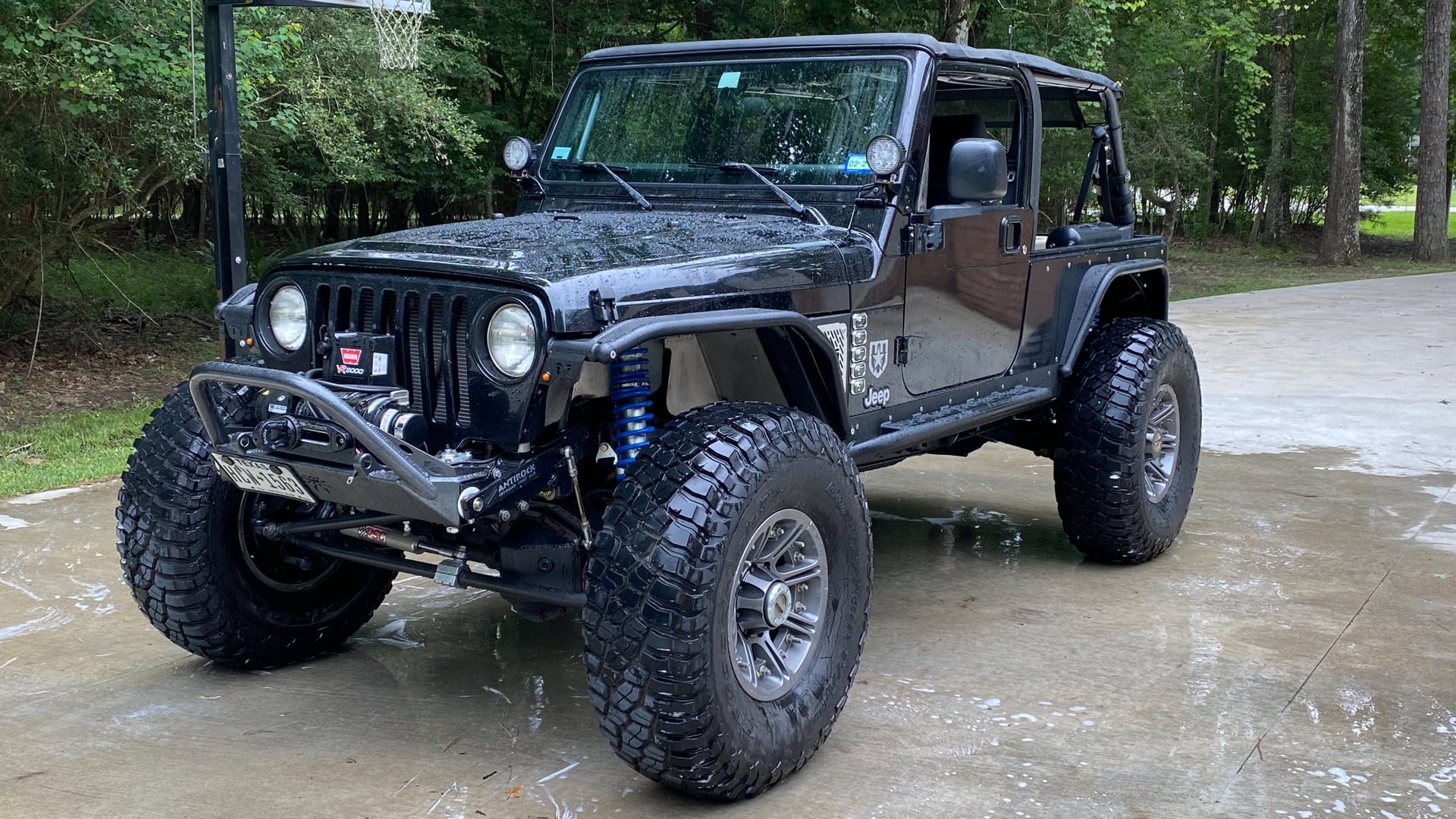

Bought this jeep in 2016 as a 6 speed manual Rubicon LJ. It's been through an few different lives, bought it with 4" lift and 35's. During the first few years I built it up to a fairly capable crawler/daily driver with a 3.5" metalcloak lift and fenders with 37" Pitbulls. Wheeled it like this in Moab, Texas, Arkansas, and Missouri. After a few broken axle shafts and a broken ring and pinion, I decided to upgrade the drive train in the fall of 2020. Currently finishing up ton swap with 14 bolt rear and D60 front with 3 link, 4 link, coil overs and 39" BFG's. Wheelbase went from 103" stock to 111" after 4" rear stretch and 4" front stretch.

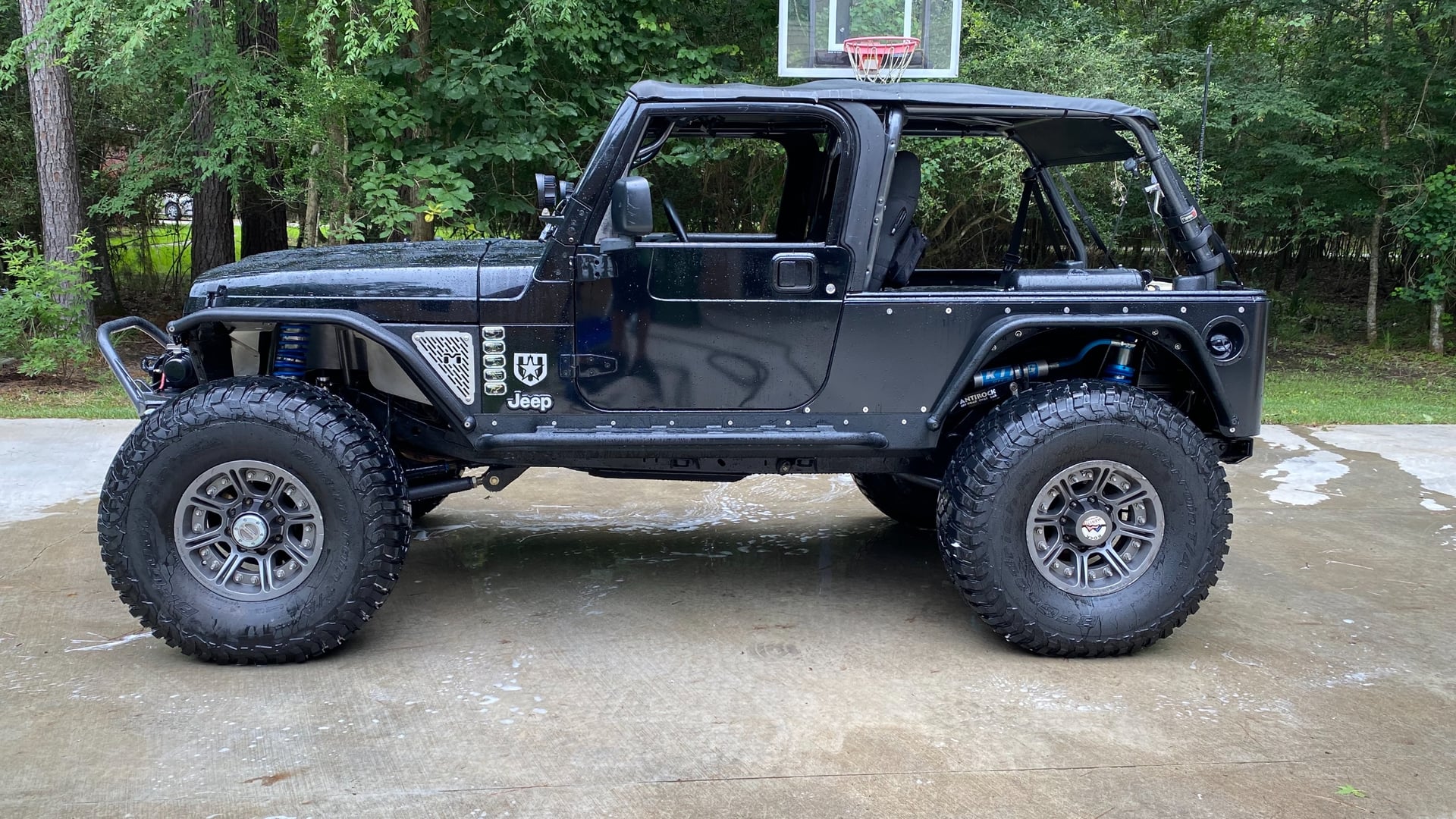

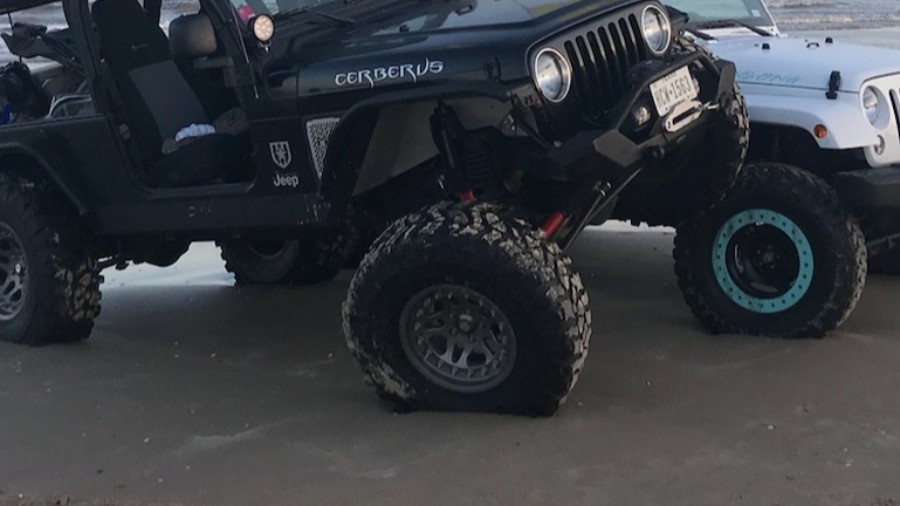

Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 1 of 25
Build specs: 30 parts39" tires
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 2 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 3 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 4 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 5 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 6 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 7 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 8 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 9 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 10 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 11 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 12 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 13 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 14 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 15 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 16 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 17 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 18 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 19 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 20 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 21 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 22 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 23 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 24 of 25
Cerberus, a black 2005 Jeep Wrangler LJ on 39-inch tires, photo 25 of 25

Top mods

Parts

Lighting

Amazon rock lights

Drivetrain

Rubicon 4:1 Case

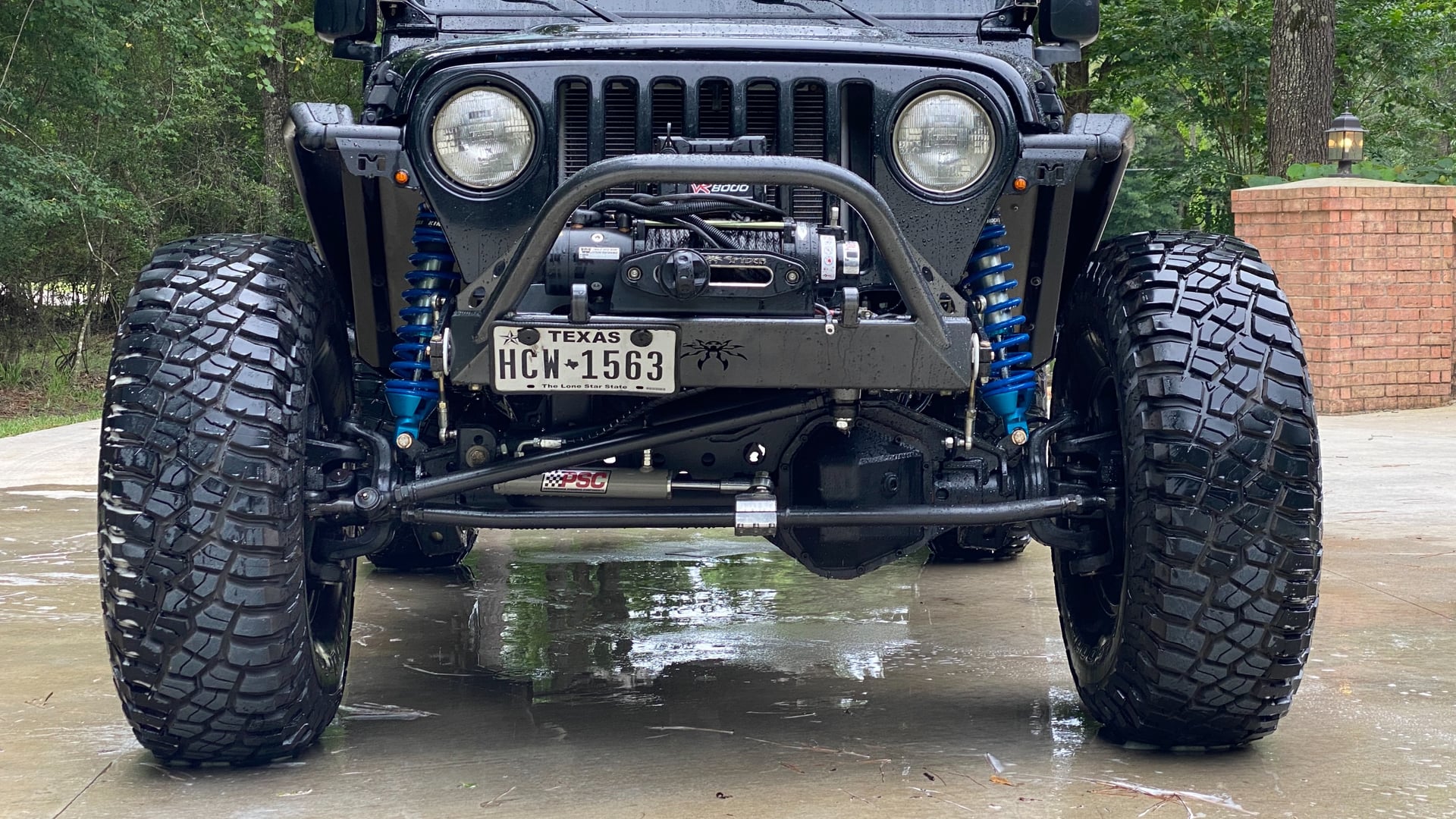

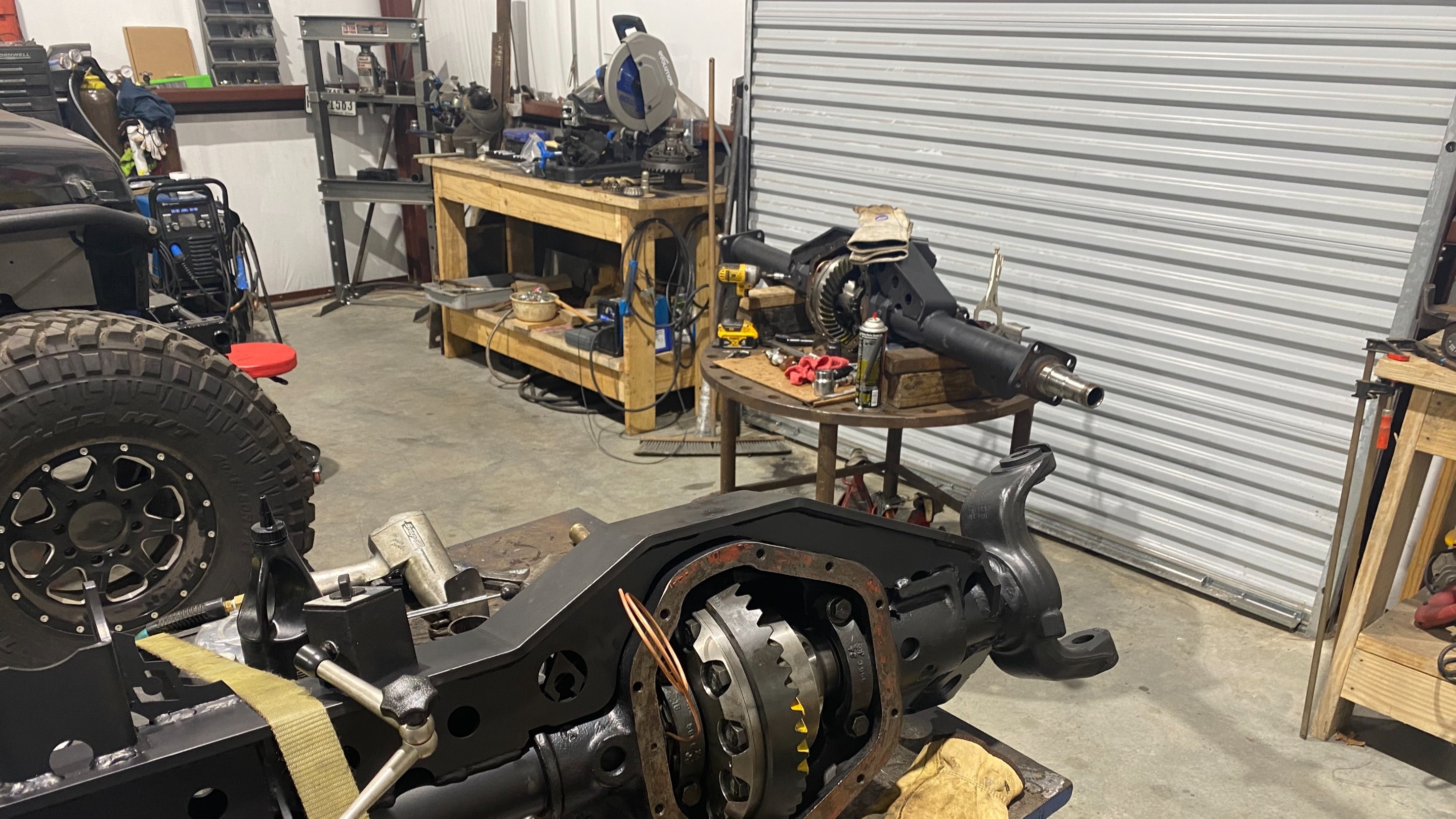

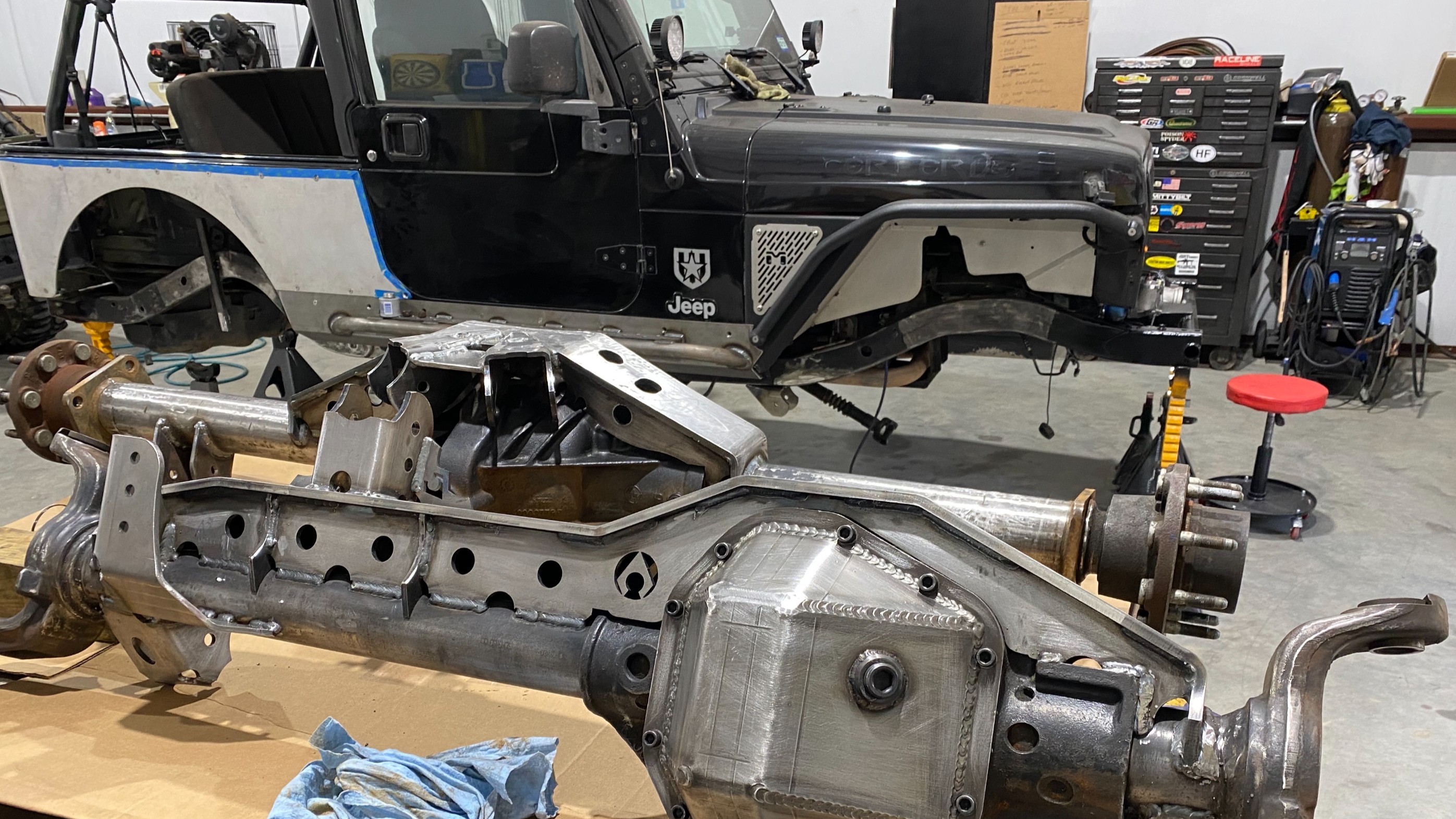

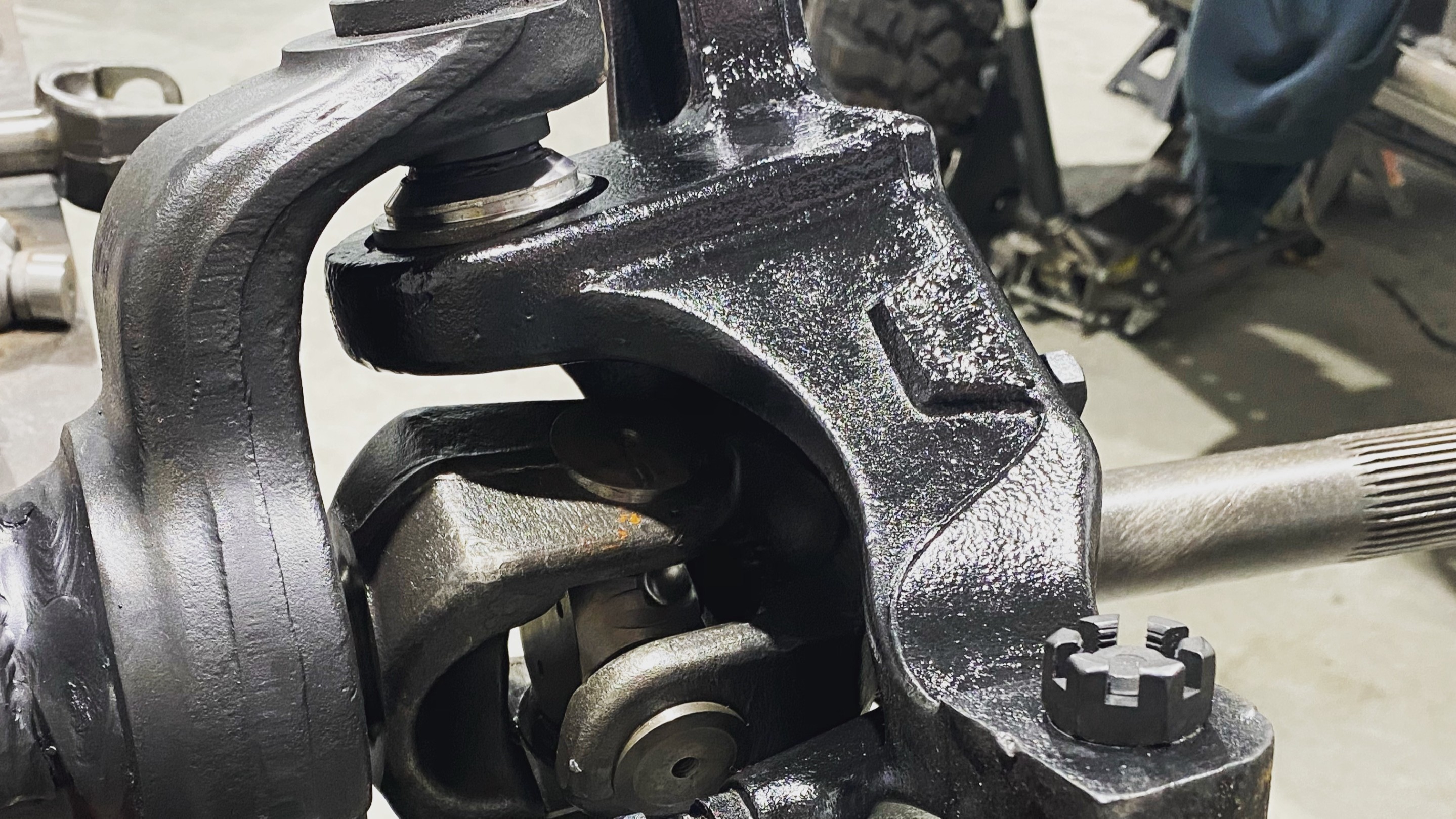

Front axle - Dana 60- Artec Truss, Chromoly shafts with 35 spline outters, CTM U joints, ARB air locker, Yukon 5:13 Gears, Yukon Hubs, Barnes 4x4 diff cover

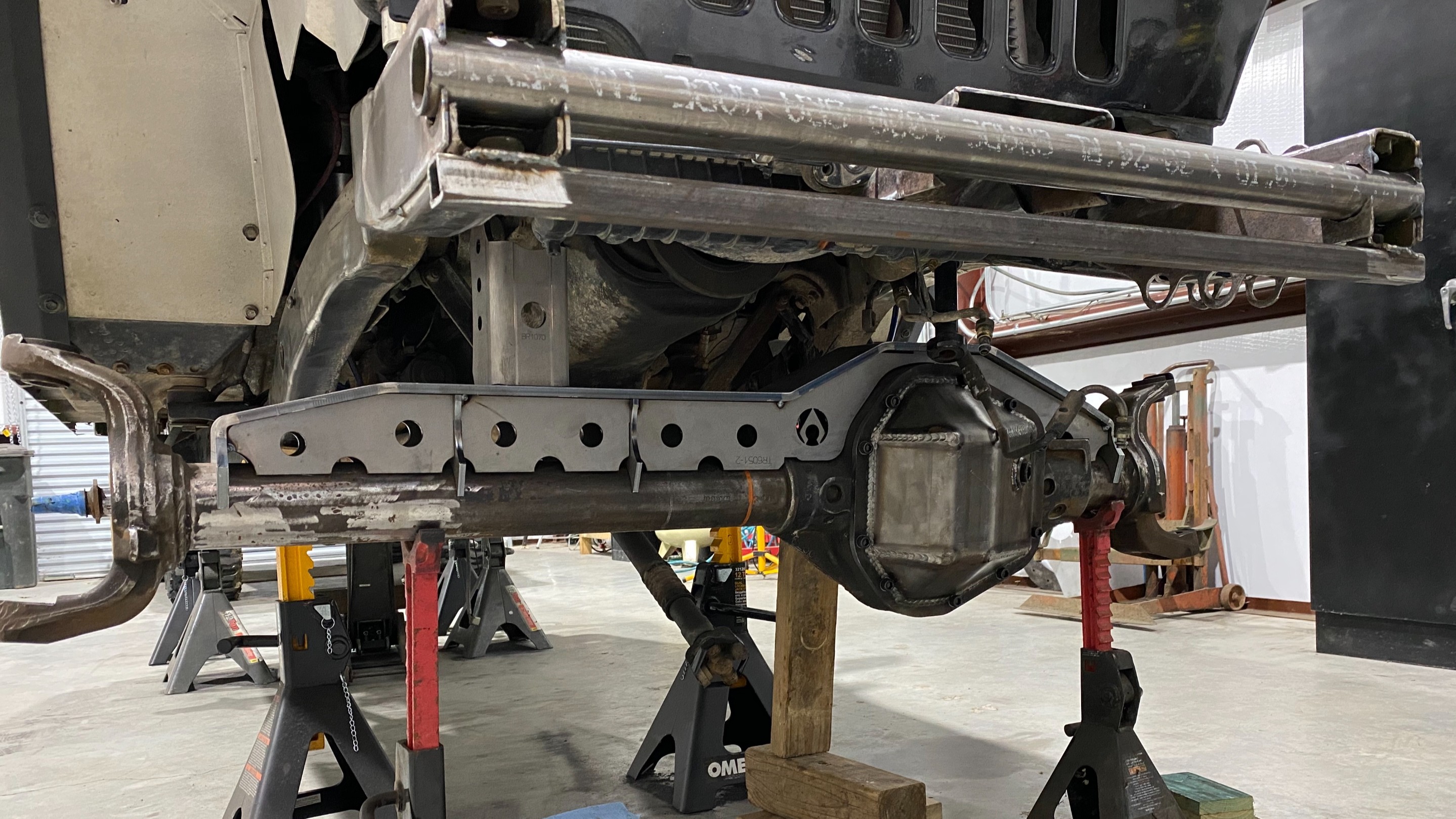

Rear axle - 14 bolt, Ballistic Fab Shave kit, Artec Truss, ARB air locker, Yukon 5:13 gears, Barnes 4x4 diff cover

Brakes

Factory dana 60/14bolt dual piston calipers and rotors

Engine

Stock

Exhaust

Intake

Other

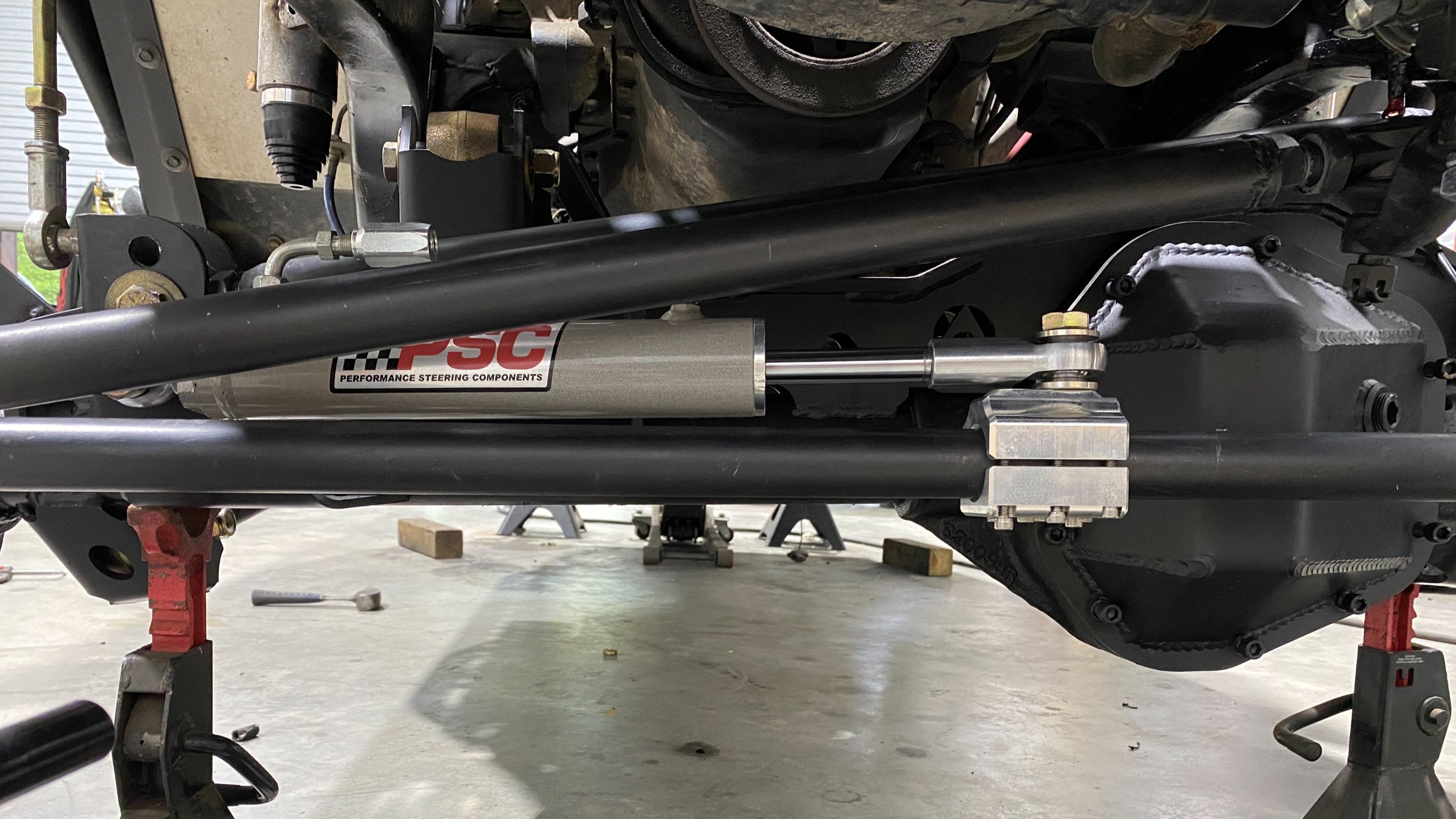

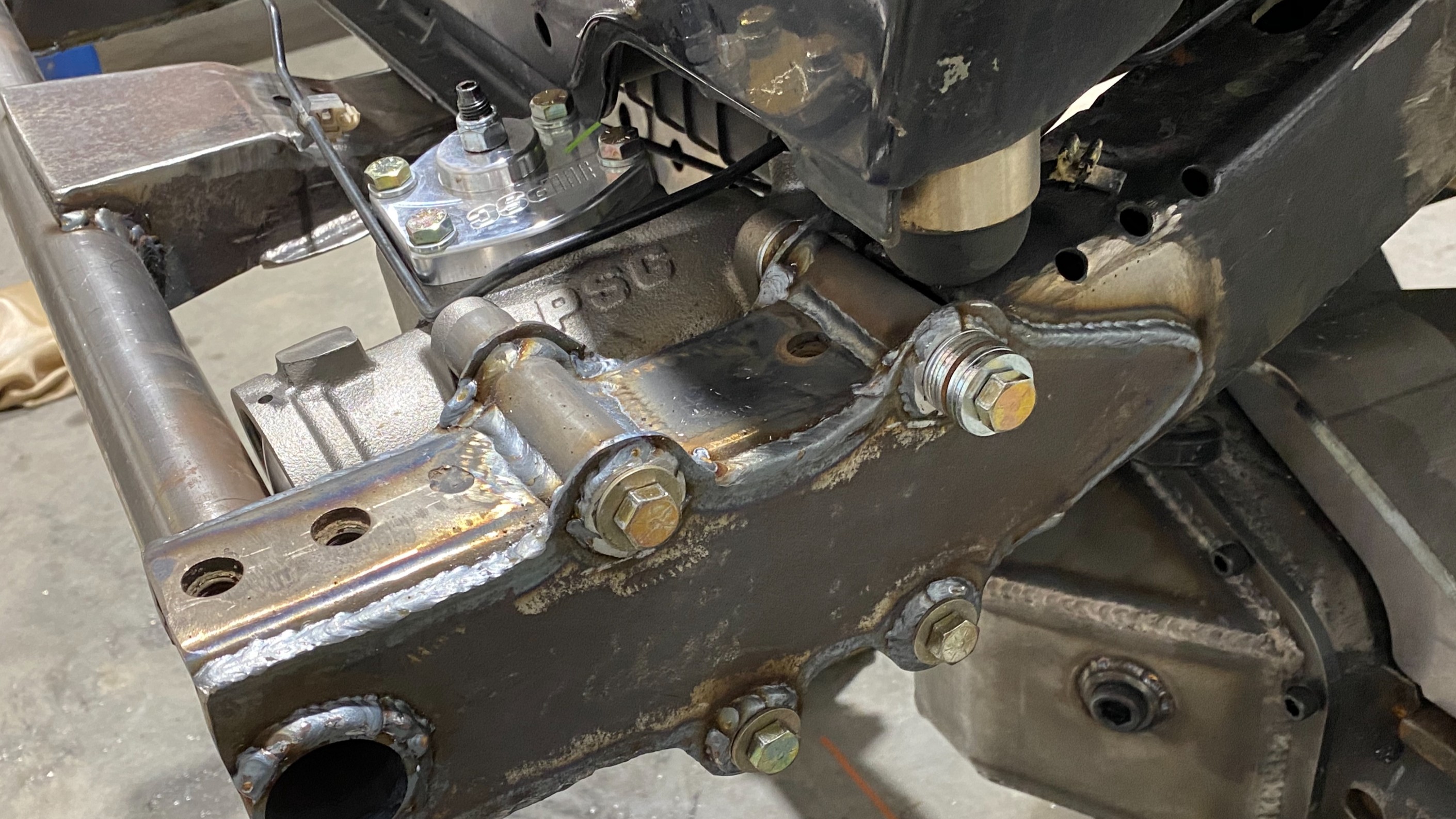

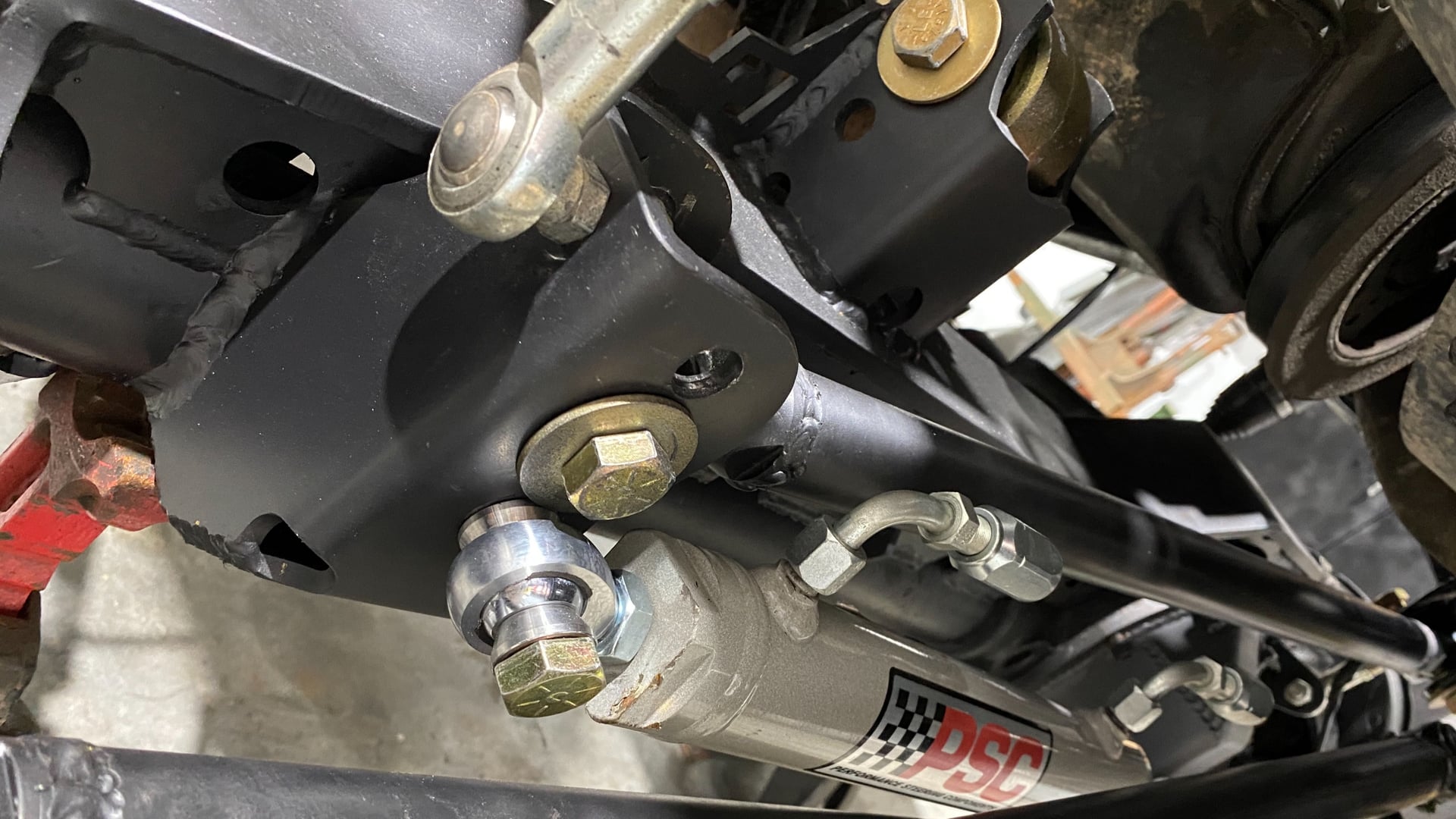

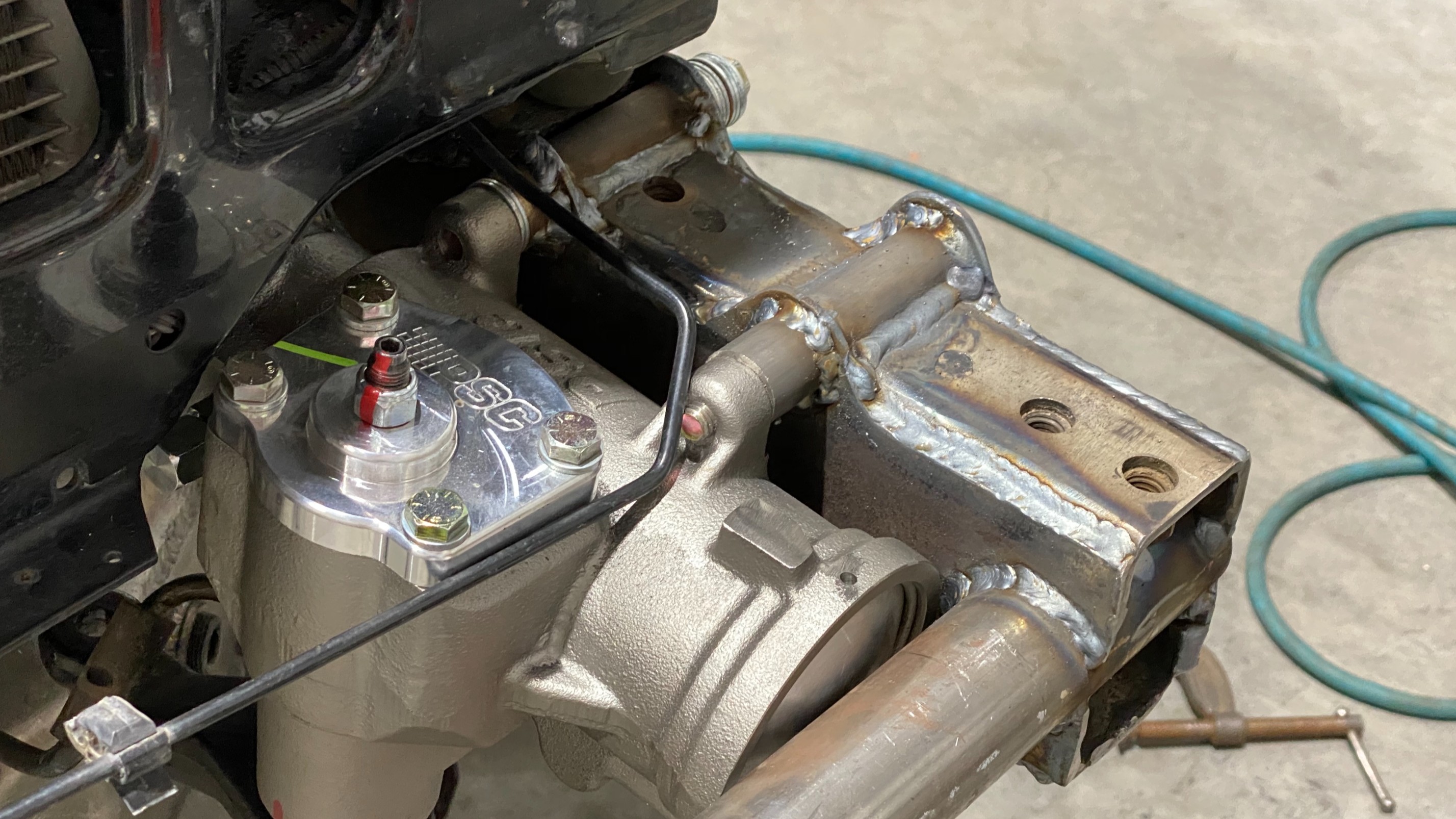

Custom steering gearbox relocation (TNT Style)
ARB Dual Compressor with 2 gallon tank
